DVB-S/S2/S2X TO DVB-C/DVB-T/ ISDB-T Trans-Modulator(TBS8112/TBS8113/TBS8114)
DVB-S/S2/S2X TO DVB-C/DVB-T/ ISDB-T Trans-Modulator(TBS8112/TBS8113/TBS8114)
- Model: TBS8112/TBS8113/TBS8114
- Weight: 4,500.00g
In Stock

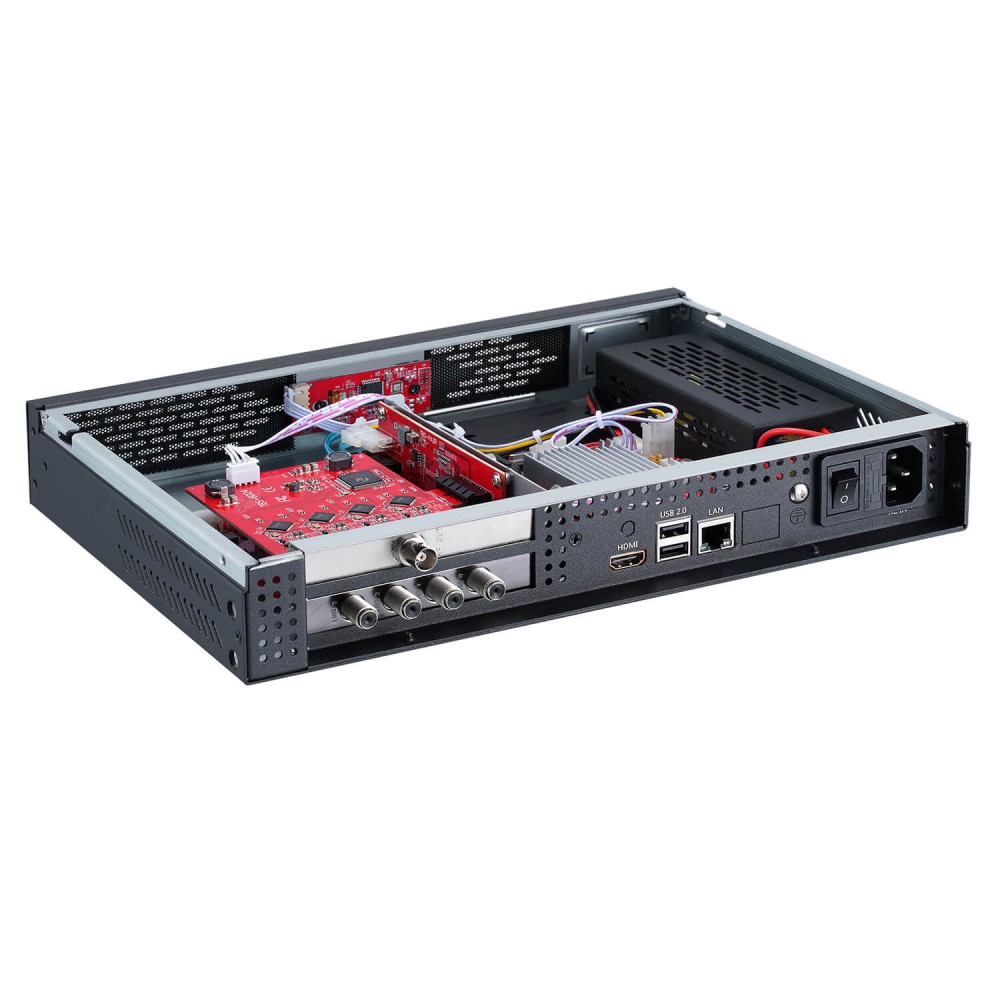

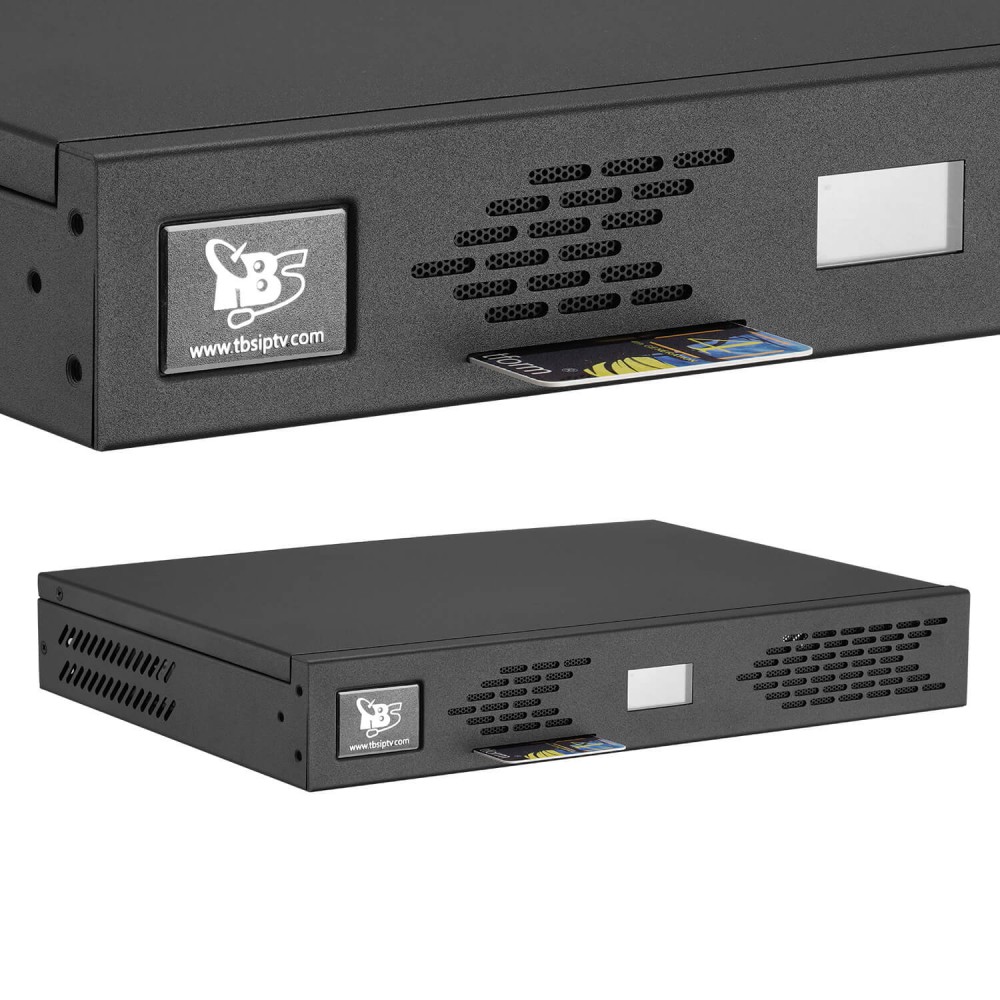

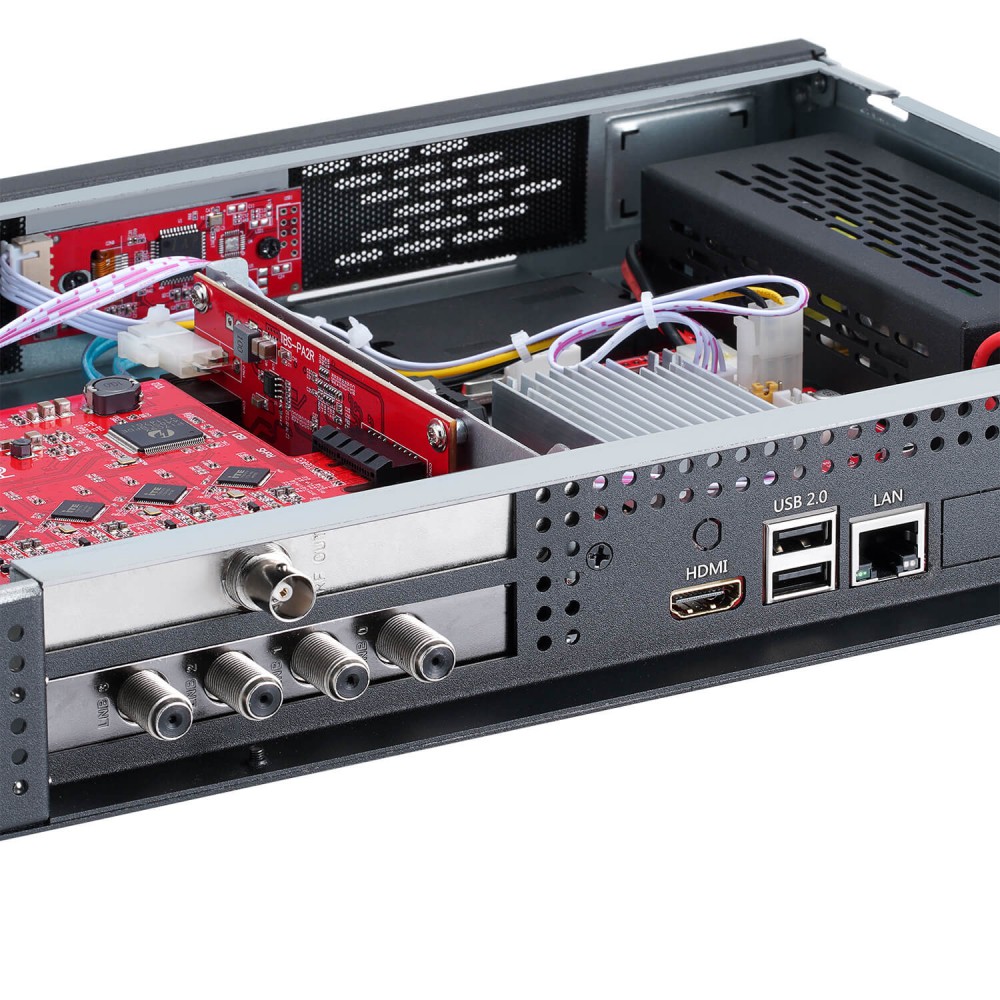

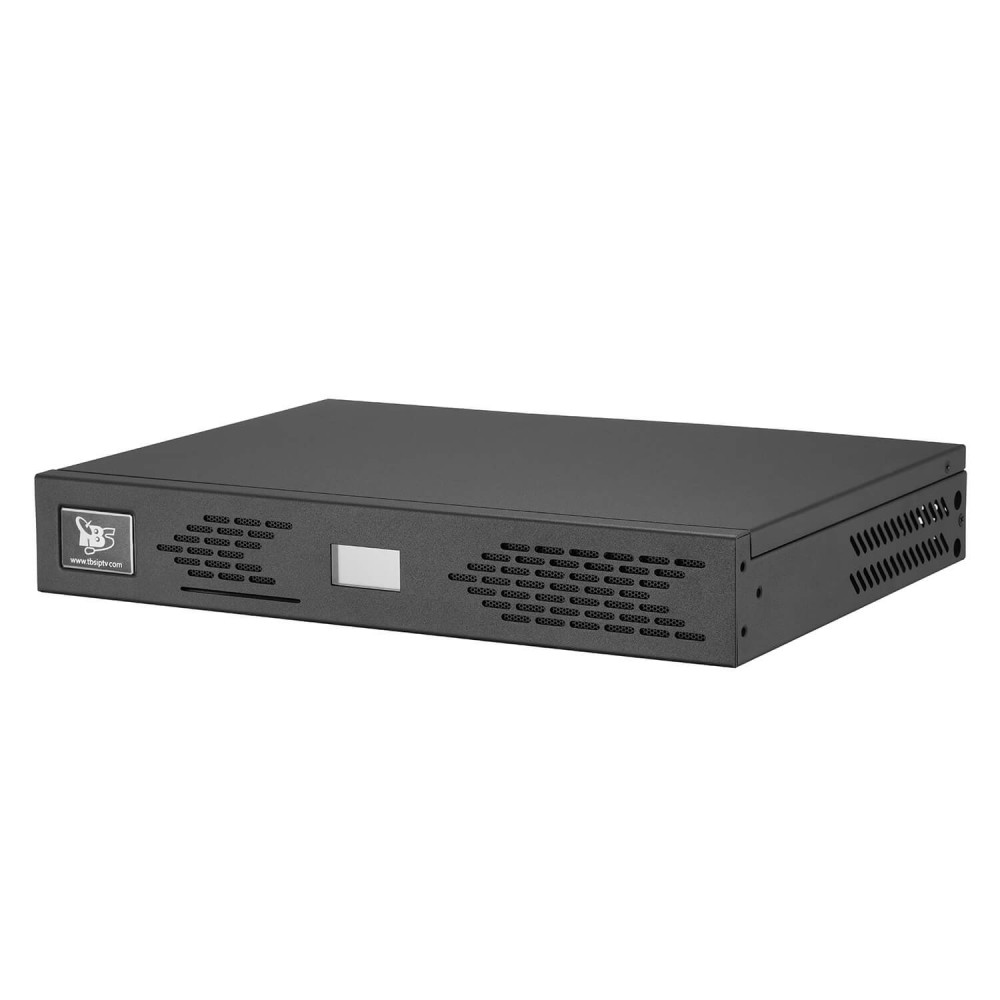

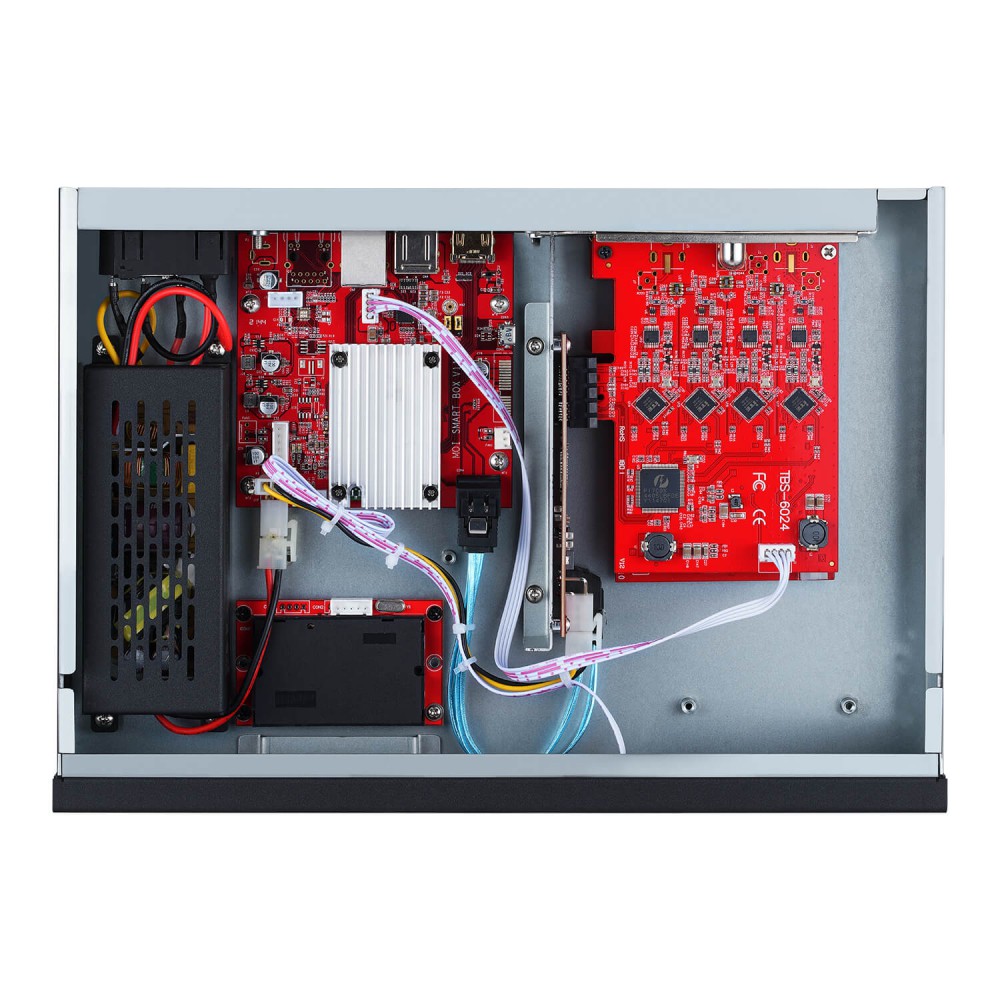

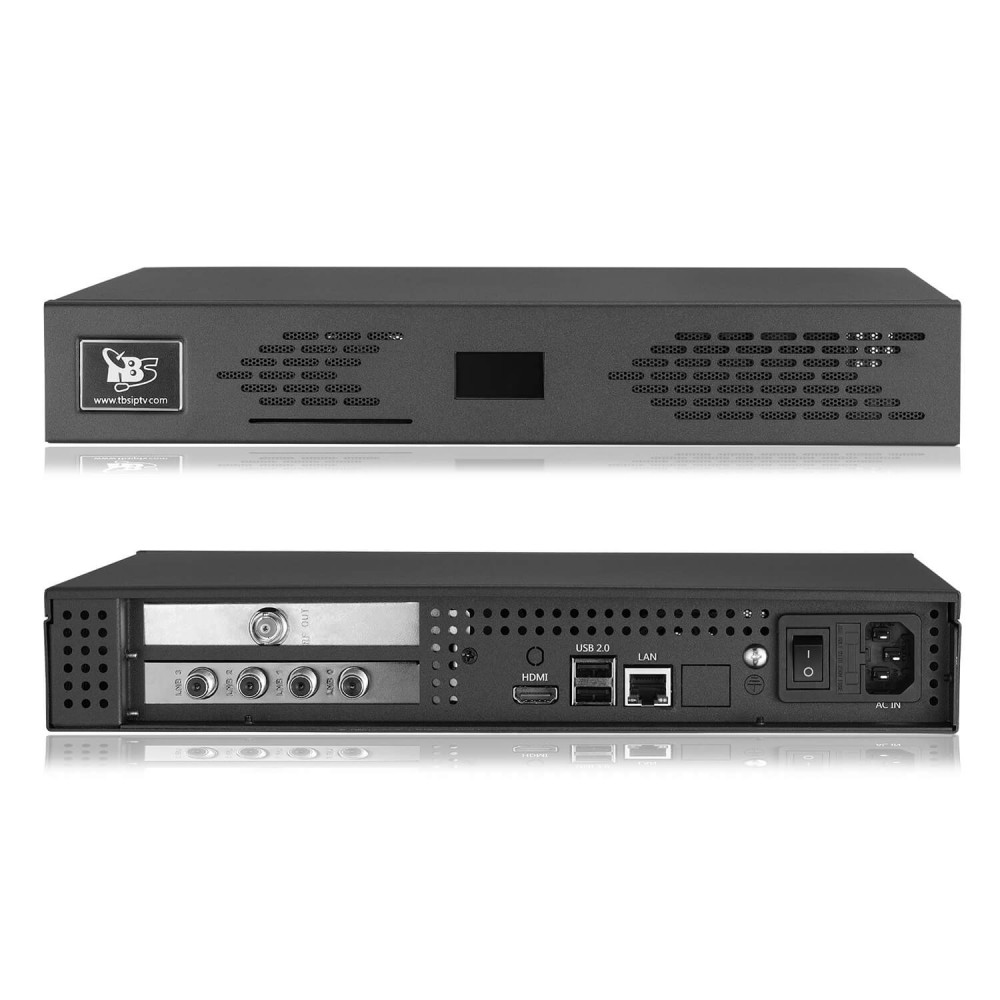

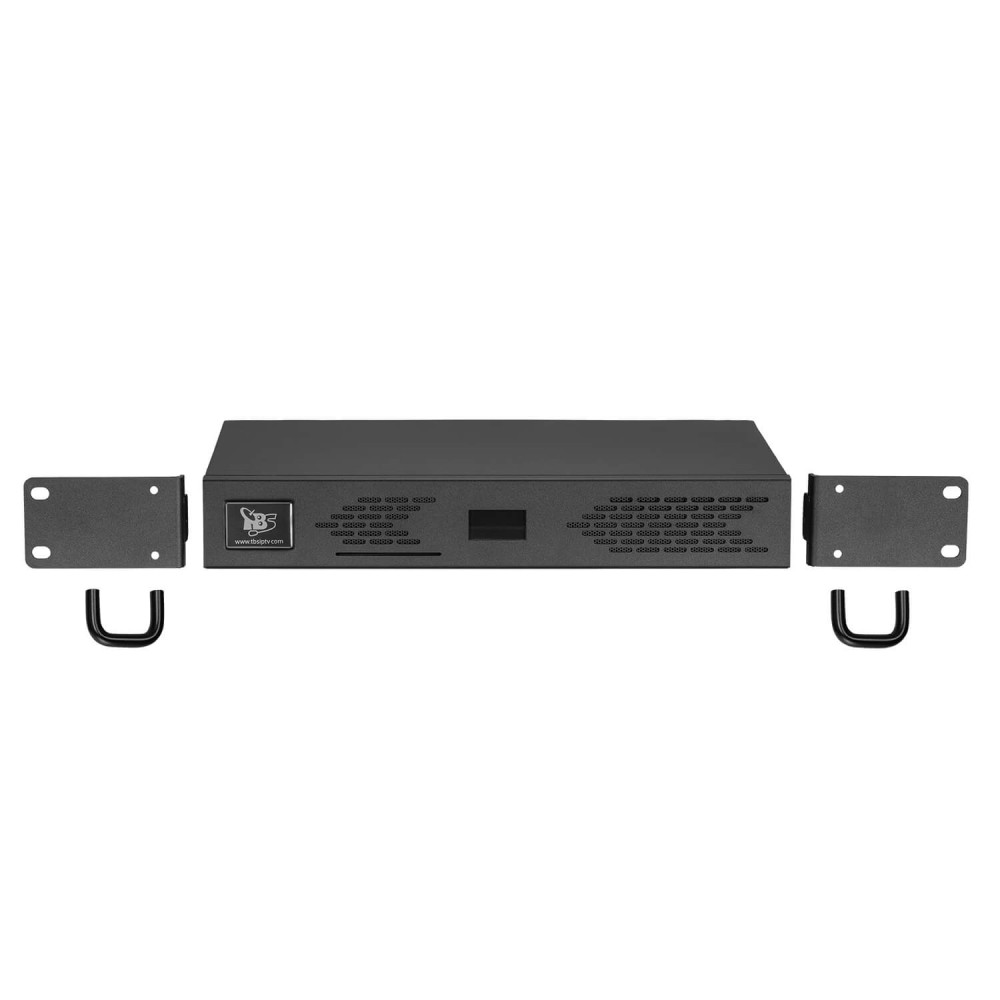

TBS versatile lineup of trans-modulation servers is based in the cutting-edge TBS2925 chassis featuring dual PCIe slots and loaded with TBS6904SE DVB-S2X/S2/S Quad Tuner PCIE card to achieve input satellite signals from four transponders simultaneously. When it is equipped with different TBS modulator card in the second PCIe slot, it can seamlessly transform your broadcasting signal to relative standards, meeting the demands of modern content delivery.
1. DVB-S2X/S2/S to DVB-T Trans-modulation Server (TBS8112):
When it is equipped with TBS6104 DVB- Quad modulator PCIe card in the second PCIe slot, it will convert DVB-S2X/S2/S satellite signals into DVB-T in 4 frequencies for seamless transmission over terrestrial networks.
2. DVB-S2X/S2/S to DVB-C Trans-modulation Server (TBS8113):
When it is equipped with TBS6004 DVB-C 4 QAM PCIe card in the second PCIe slot, it will convert DVB-S2X/S2/S satellite signals to DVB-C in 4 frequencies for cable distribution, enabling smooth content delivery across cable networks.
3. DVB-S2X/S2/S to ISDB-T Trans-modulation Server (TBS8114):
When it is equipped with TBS6214 Quad ISDB-T modulator PCIe card in the second PCIe slot, it will convert DVB-S2X/S2/S satellite signals into ISDB-T in 4 frequencies for optimal delivery in regions adopting the ISDB-T standard.
Key Features:
- Signal Conversion Excellence: Seamlessly convert DVB-S2X/S2/S to DVB-C, DVB-T, or ISDB-T standards, ensuring compatibility with a wide range of broadcasting systems.
- Customizable Configurations: Choose from a variety of trans-modulation cards to create a server that perfectly fits your broadcasting needs. Even the base server chassis TBS2925 is allowed to be customized.
- Reliability and Performance: Engineered for stability and speed, the TBS2925 ensures your broadcasts are delivered with the highest quality.
Specifications:
| 4 Frequencies DVB-S/S2/S2X satellite input | ||
| Frequency range | 950-2150 MHz | |
| Standard | DVB-S/S2 | DVB-S2X |
| code rate | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45 |
| 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45 | |
| 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45 | |
| 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | 32APSK (32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10(S2-MODCODs), 32/45, 11/15, 7/9 | |
| Symbol rate | 1 ~ 45Msymb/s | |
| Input power range | -70 to -20 dBm typ., -50 dBm nominal, -5 dBm max | |
| Input Impedance | 75 Ω | |
| Input return loss | > 10 dB | |
| Noise figure | 14 dB maximum | |
| 4 Frequencies DVB-T output (TBS8112) | |
| Frequency range | 47 MHz - 858 MHz |
| Output level | -20 dBm ± 1 dB, 50 ohms |
| Modulation DVB-T | QPSK, QAM16, QAM64 |
| Channel bandwidth | 7/8 MHz |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| 4 Frequencies DVB-C output (TBS8113) | |
| Frequency range | 100 ~ 1000 MHz |
| Symbol rate | 2000 ~ 7200kbps |
| Level | 5-120 |
| FEC | 16QAM,32QAM,64QAM,128QAM,256QAM |
| Max bit rate | 53Mbps/per channel (7200kps, 256QAM) |
| 4 Frequencies ISDB-T output (TBS8114) | |
| Frequency range | 100~866 MHz (-2 ~ -40 dBm) |
| Channel bandwidth | 6, 7, 8MHz |
| Mode | 2K, 4K, 8K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| No. of segment | Total 13 segments |
| Mapping (Modulation) | DQPSK, QPSK, 16-QAM, 64-QAM |
| Code Rates | 1/2, 2/3, 3/4, 5/6, 7/8 selectable |
| Time Interleaver | 0,1,2,4 or 0,2,4,8 or 0,4,8,16 (depending on OFDM mode) |
| Trans-modulation process | |
| TS REMUX |
- Select arbitrary number of services from the received DVB-S/S2/S2X TS, REMUX and convert to DVB-T TS - User-defined NID, ONID, Network Name |
| Remote control |
- 1000 Mbps Ethernet connector to access a webserver - User-defined IP address |
| OS and Driver | Linux 11 (bullseye) |
| Working Environment |
- Operating temperature: 0 to 40 deg C - Storage temperature: -20 to 70 deg C - Relative Humidity: 5% to 90% non-condensing |
| Dimensions(chassis) | 313 * 220 * 48 mm |
Why Choose the TBS2952?
- Future-Proof Your Broadcasting: Stay ahead of the curve with a server that can adapt to evolving broadcasting standards.
- Scalability: Whether you're a small broadcaster or a large network, the TBS2952 can grow with your business.
- Unmatched Support: Our team of experts is always ready to assist you in configuring and optimizing your server.
