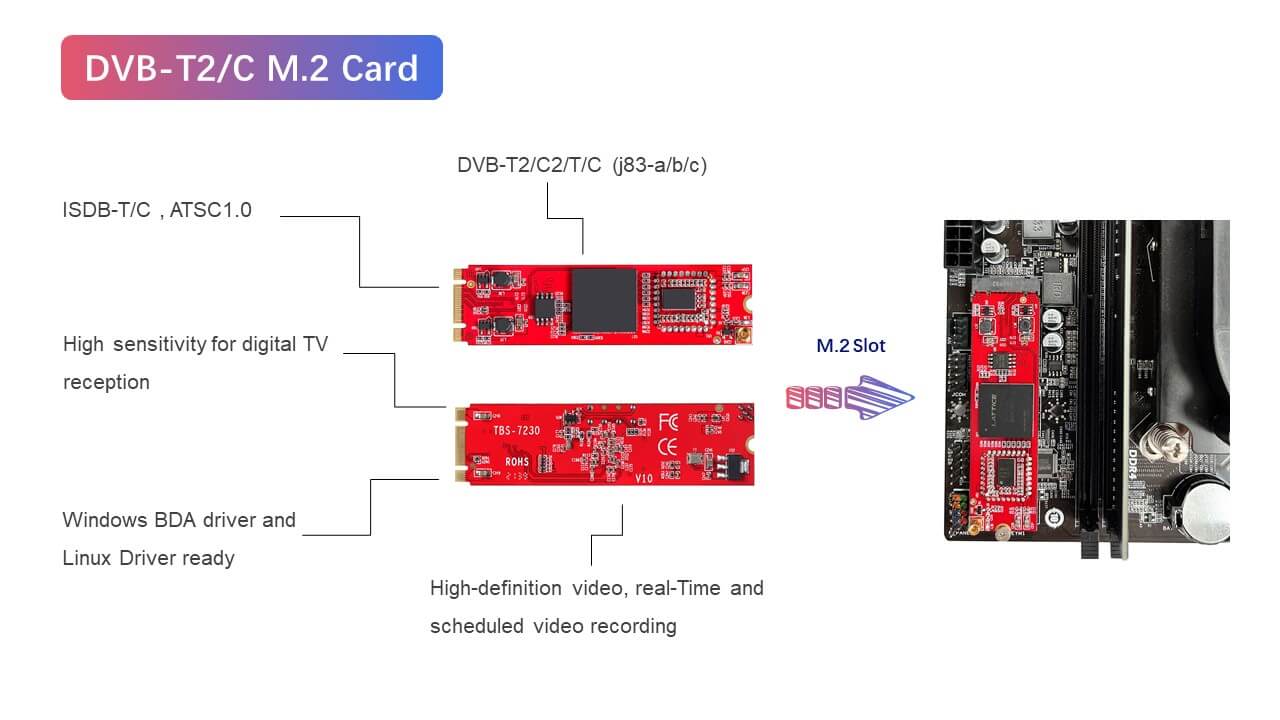

TBS M.2 card, which supports DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. is a professional TV tuner card, it allows you to enjoy not only free-to-air (FTA) digital terrestrial/ cable TV, but also supports to receiving ATSC, ISTB-T/C signals on PC. In addition, it can be used as a digital video recorder for recording digital terrestrial/cable TV programs with full HDTV support. This DVB T2/T/C ISDB-T/C, ATSC1.0 mini TV card is ready with windows BDA driver and Linux driver.
SPECIFICATIONS
| Model | DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0 mini card |

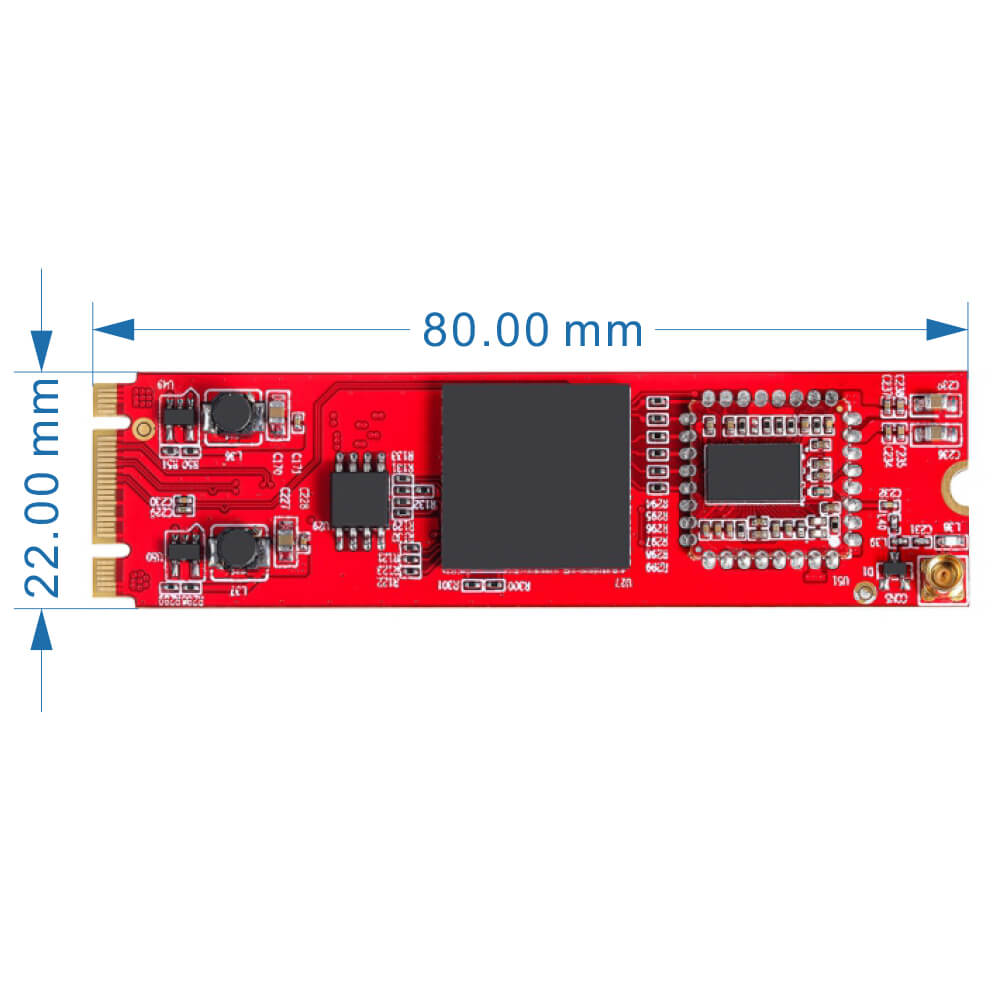

| Interface | M.2（B&M Key） |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C2 | 6 and 8MHz channel bandwidths |
| 1/64 and 1/128 guard intervals | |
| 16, 64, 256, 1024, 4096 QAM | |
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| ISDB-T | 6, 7 and 8MHz bandwidth |
| 2, 4 and 8K FFT | |
| 1/32, 1/16, 1/8 and 1/4 guard intervals | |
| QPSK, 16QAM and 64QAM | |
| ISDB-C | 5.274 Msym/s |
| 0.13 roll-off factor | |
| 64 and 256QAM | |
| TSMF (Transport Streams Multiplexing Frame) | |
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s |
| 0.18 and 0.12 roll-off factor | |
| 64 and 256QAM | |
| ATSC1.0 | 6MHz channel bandwidths |
| 8VSB modulation | |
| 2/3 code rate |
