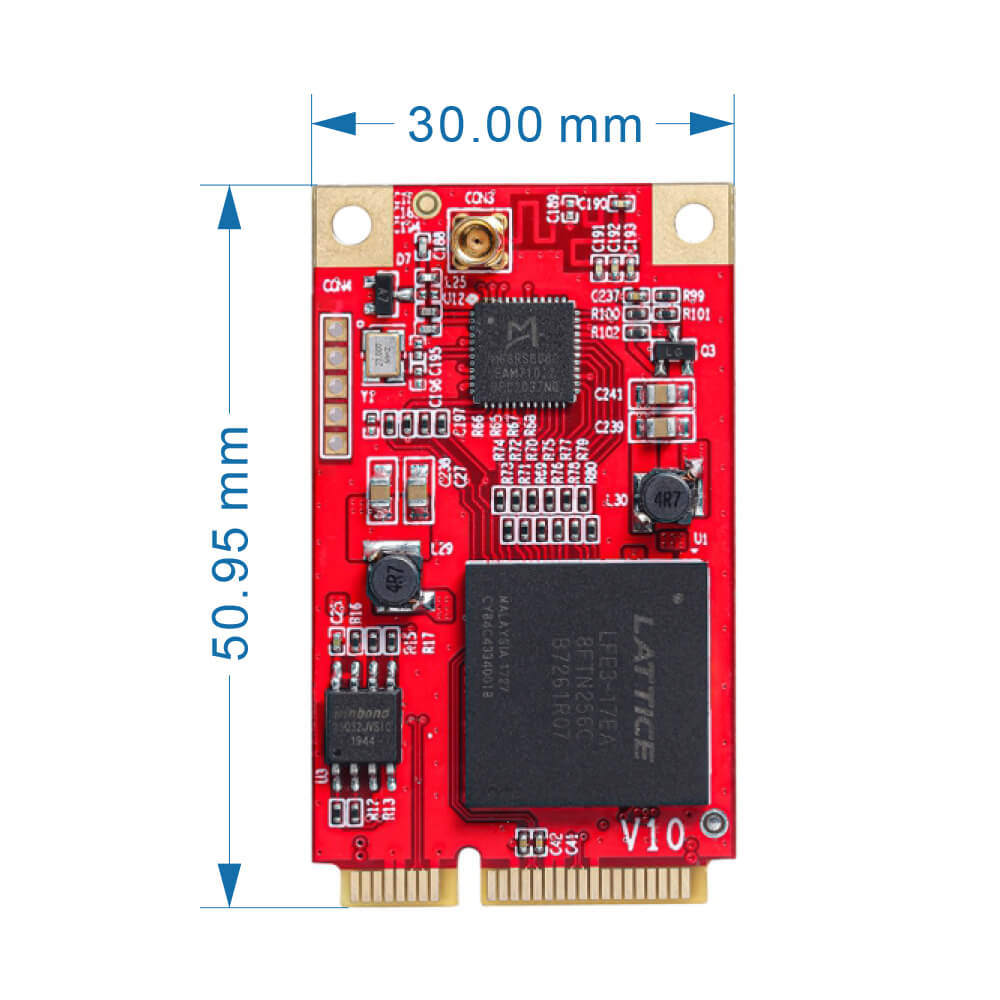

TBS DVB-S2X/S2/S MINI PCI-E CARD

TBS DVB-S2X/S2/S mini-PCI-e card is a digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. It supports not only advanced DVB-S2X/S2/S, but also VCM and multi stream, which is considered as a professional TV tuner for industrial-level users.

US$119

Main Features

  • Support DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports VCM and multi stream
  • High-speed data download via satellite
  • Watch & record satellite TV / radio programs on PC

Applications

  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution

Specifications

Model DVB-S2X/S2 mini card
Connection Mini PCI-express slot
1x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15, 8/15, 32/45
8PSK (8APSK-L) 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L) 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs)32/45, 11/15, 7/9, (2/3)
VCM Yes
Symbol rate 1 ~ 45Msymb/s
Power consumption
Input/ Power: 8 ~ 12W
temperature 0°~ 78°
System Requirements Windows XP / Vista/ 7/ 8/ 10, Linux
Available PCI Express x1, x4, x8 or x16 slot
