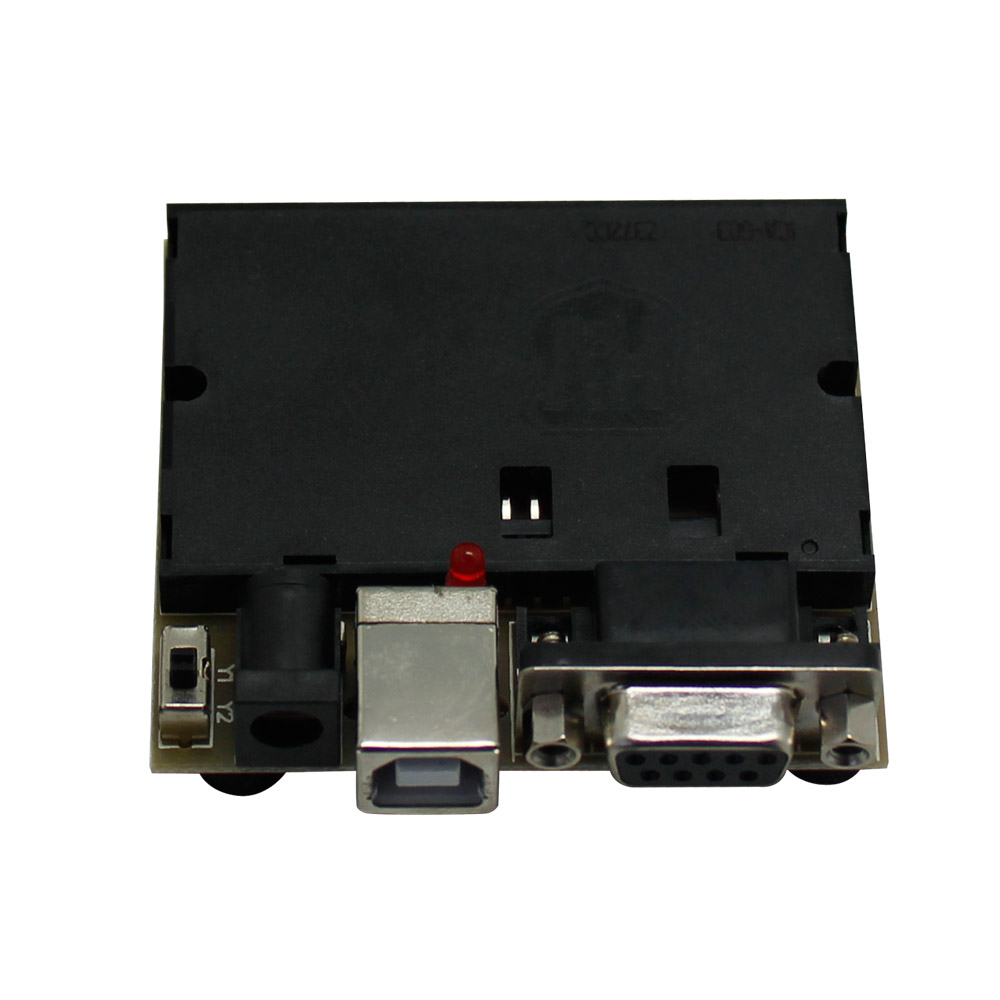

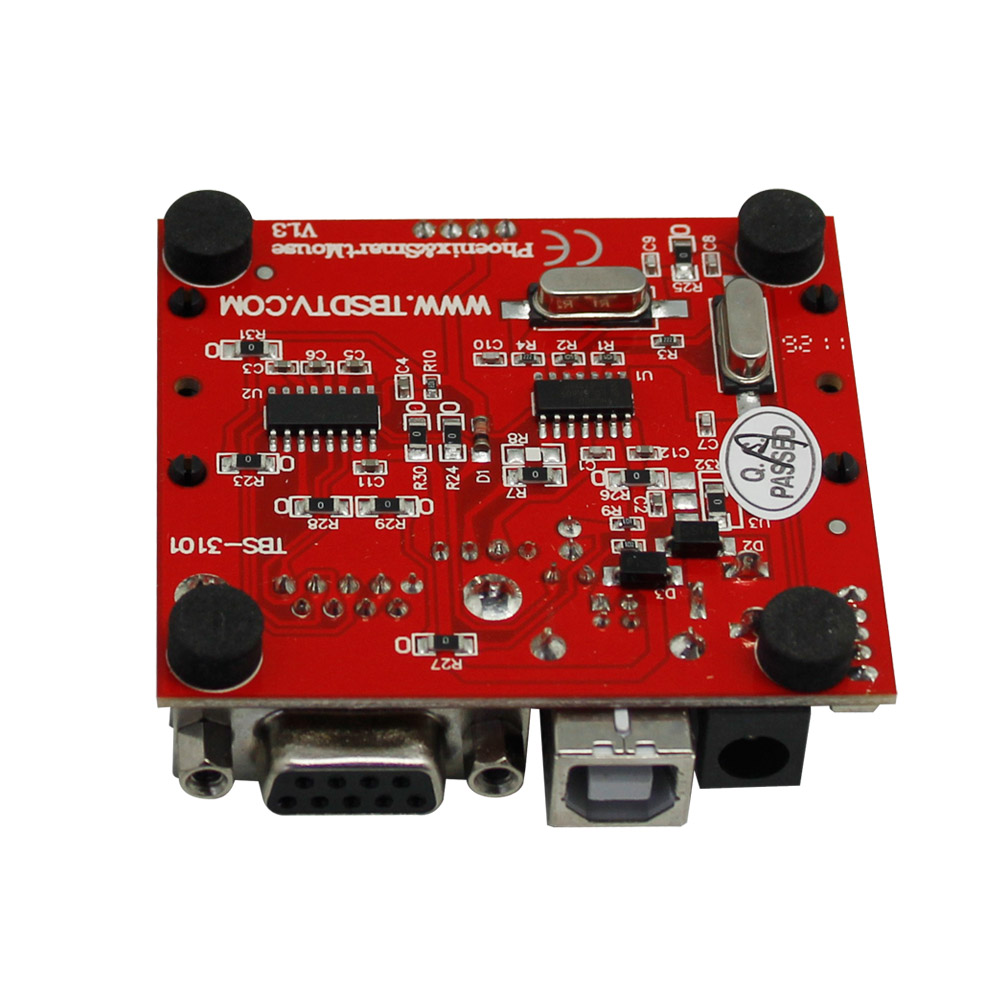

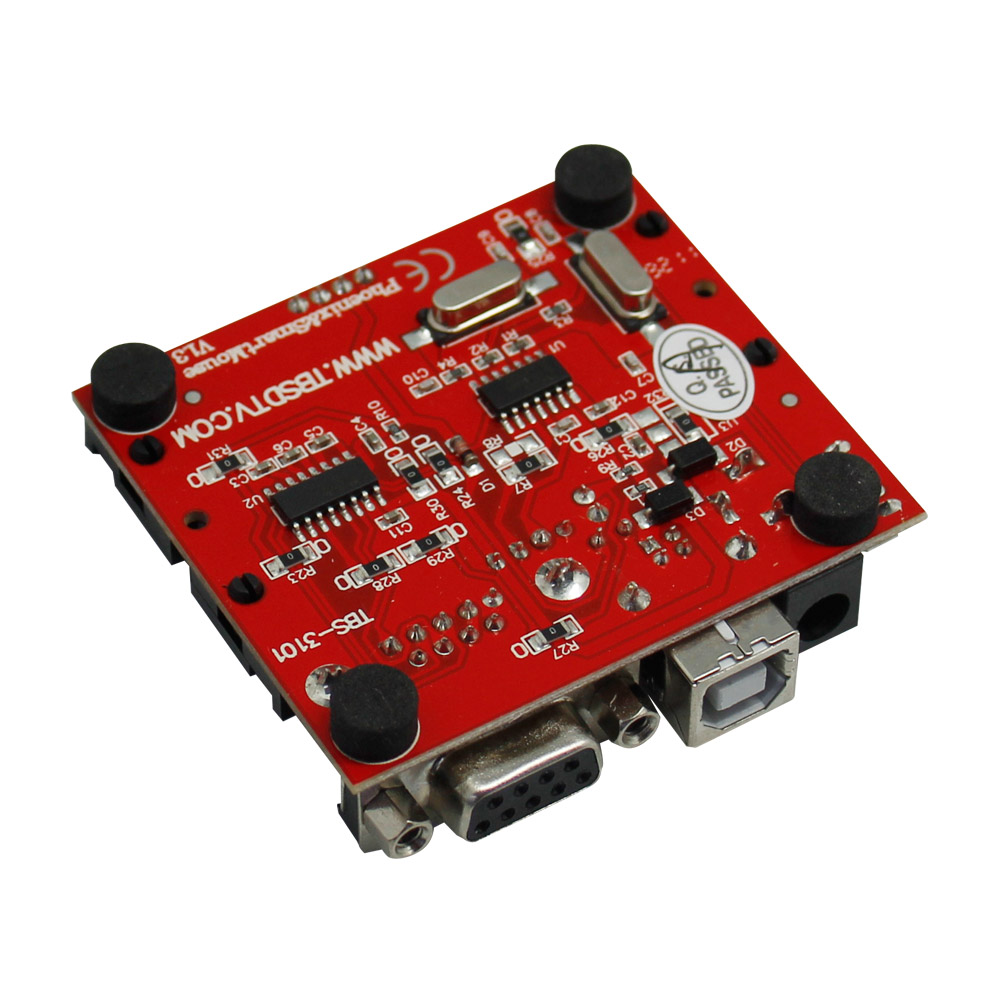

TBS3101 2 Crystal Phoenix/Smartmouse Card Reader smartcard reader supports both Phoenix and Smartmouse mode and it uses COM port for data communication. The power can be supplied from either USB connection or external DC 5V power adapter. The computer will treat this card reader as a COM interface device, without the need to install drivers. TBS3101 supports twocrystal frequencies and can read most ISO7816 smartcard. It’s compatible with both Windows and Linux.

Specifications:

• Cable connection: USB for power supply and RS232 for data communication
• Prog. Mode: Phoenix and Smartmouse
• Power Mode: DC 5V
• Frequency:


  Model A: 3.579MHz / 6MHz shiftable
  Model B: 3.686MHz / 6MHz shiftable
  (Or any other frequency requirements you may contact us)

• Led light indicating data communication
• Size: 60x60x15mm (Length x Width x Height)

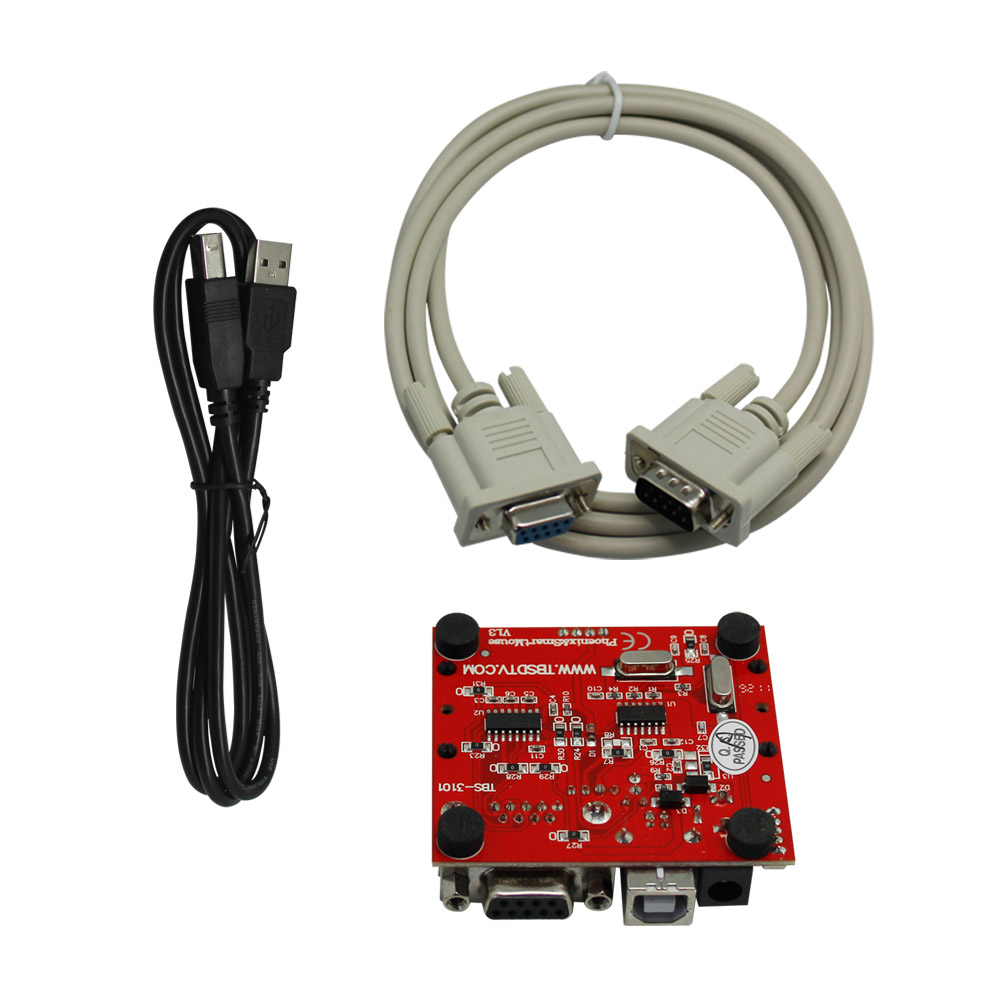

Package Content:

• 1 x TBS3101 Phoenix/Smartmouse Card Reader
• 1 x USB Cable
• 1 x RS232 Cable

Since there is no need to install drivers, no software CD is provided. If you have other frequency requirements, please contact us.
