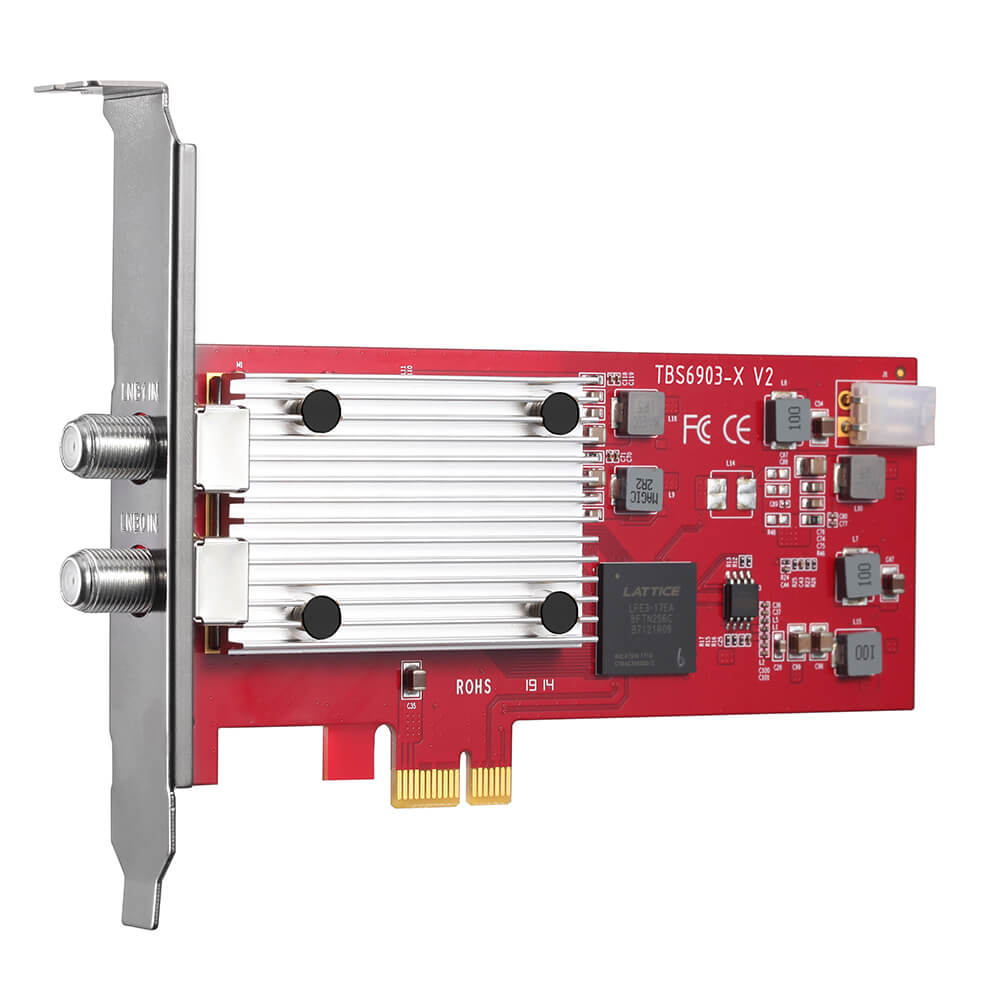

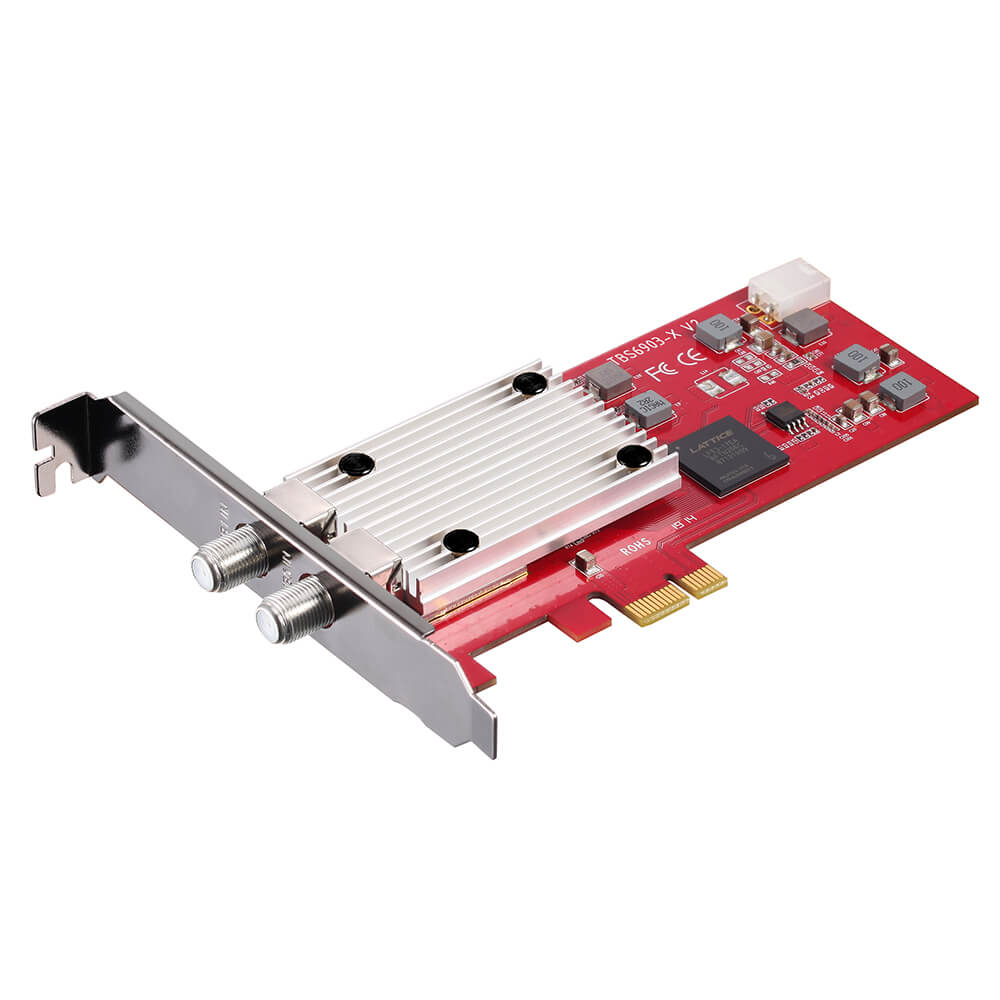

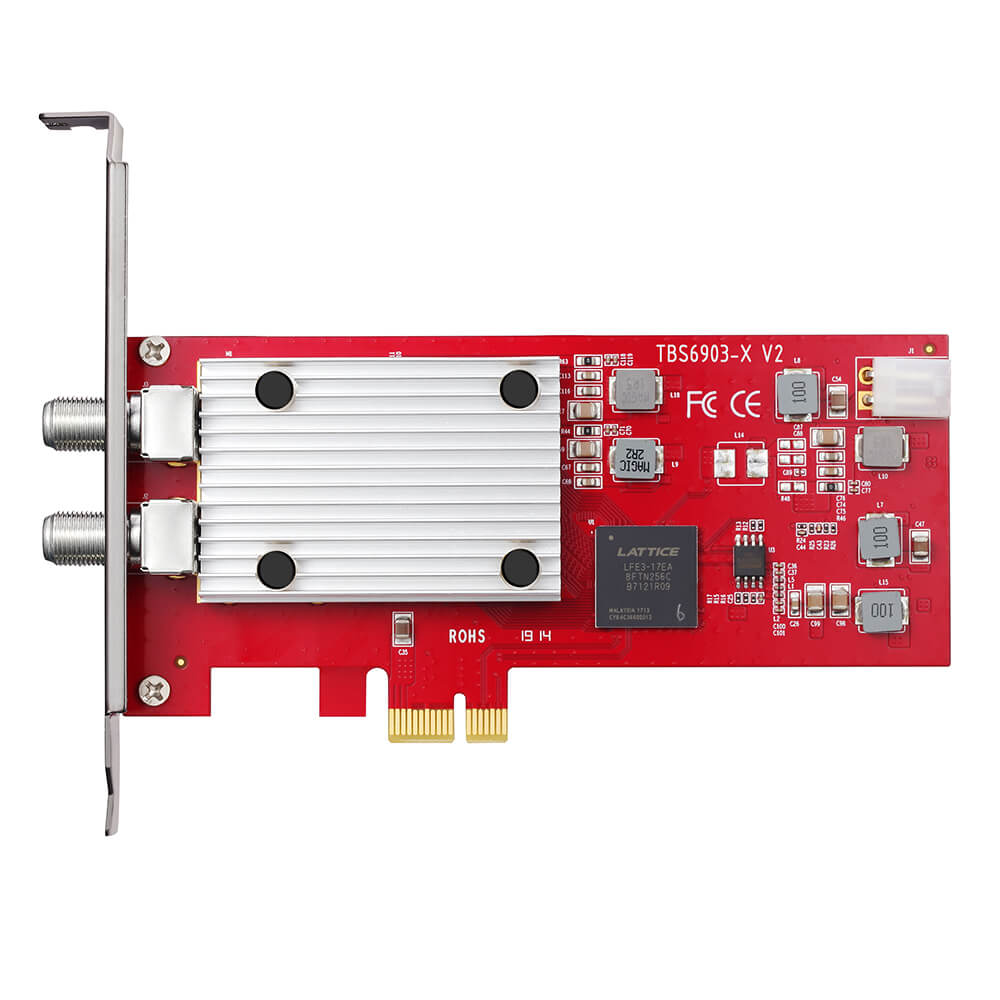

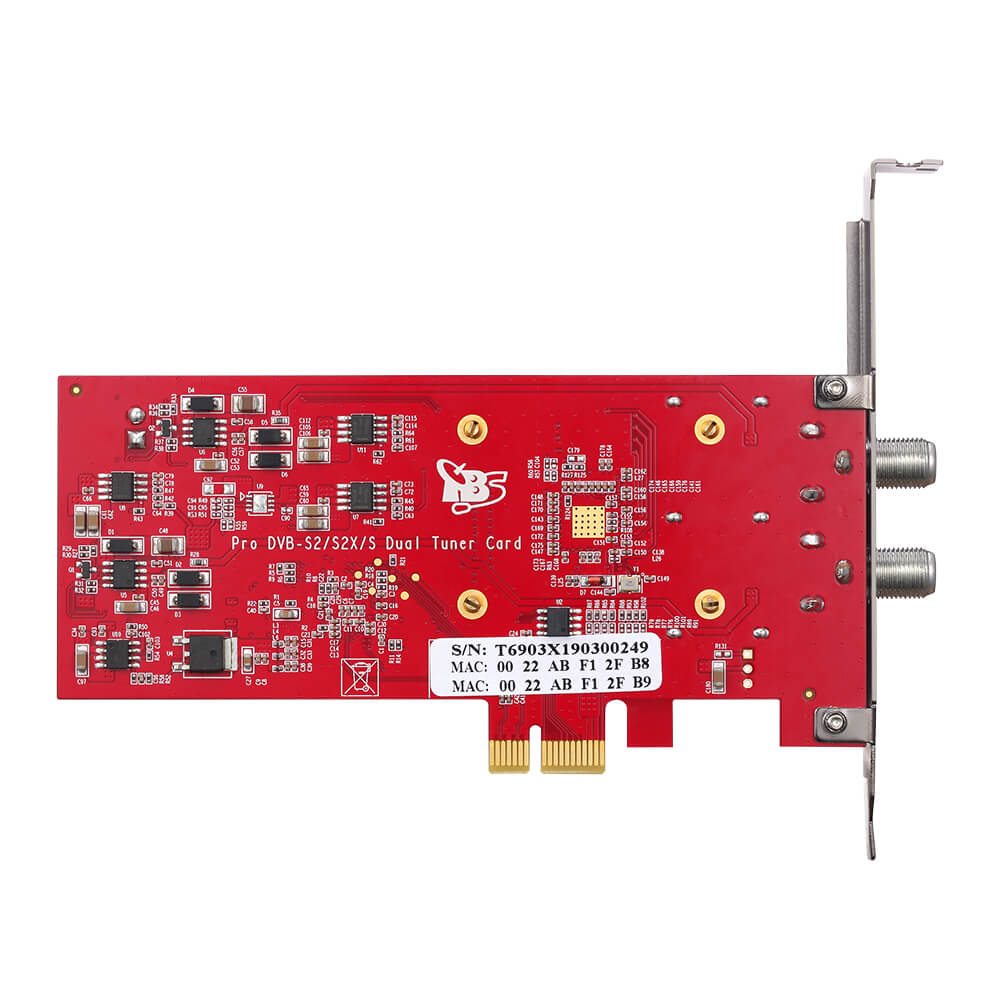

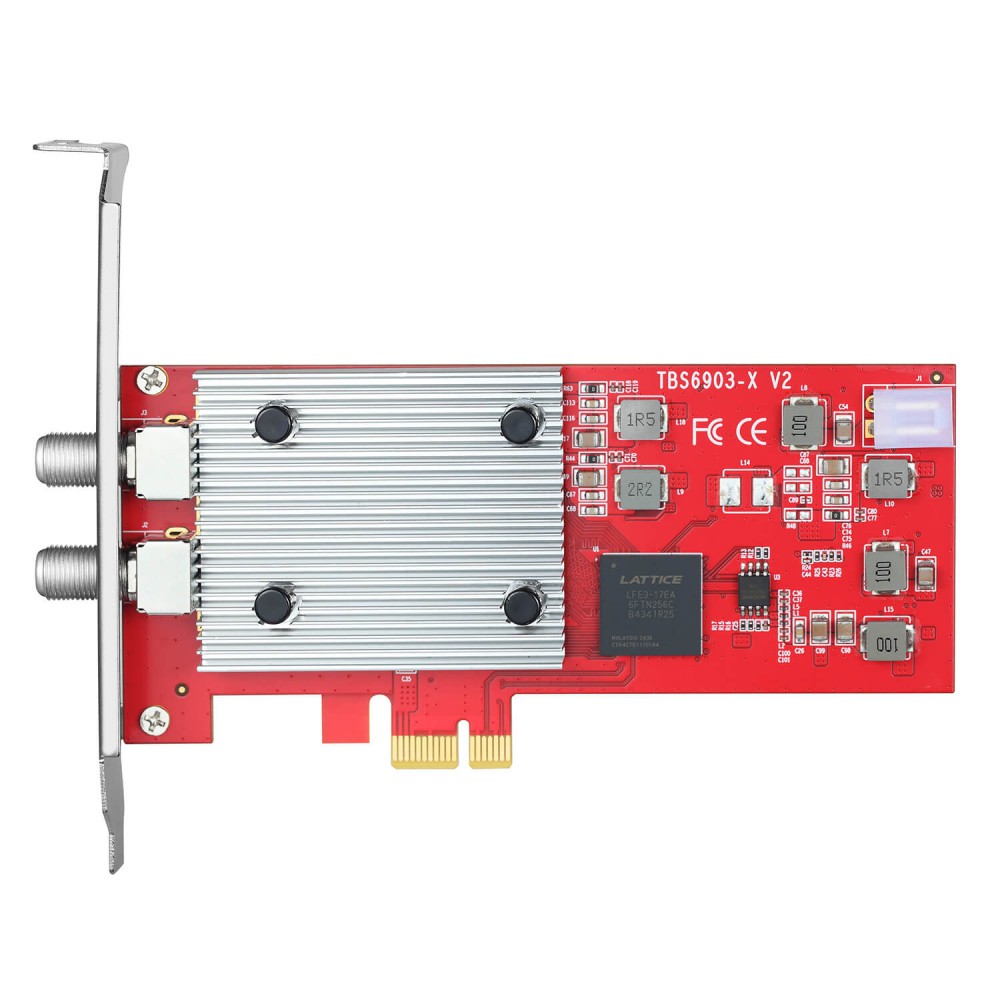

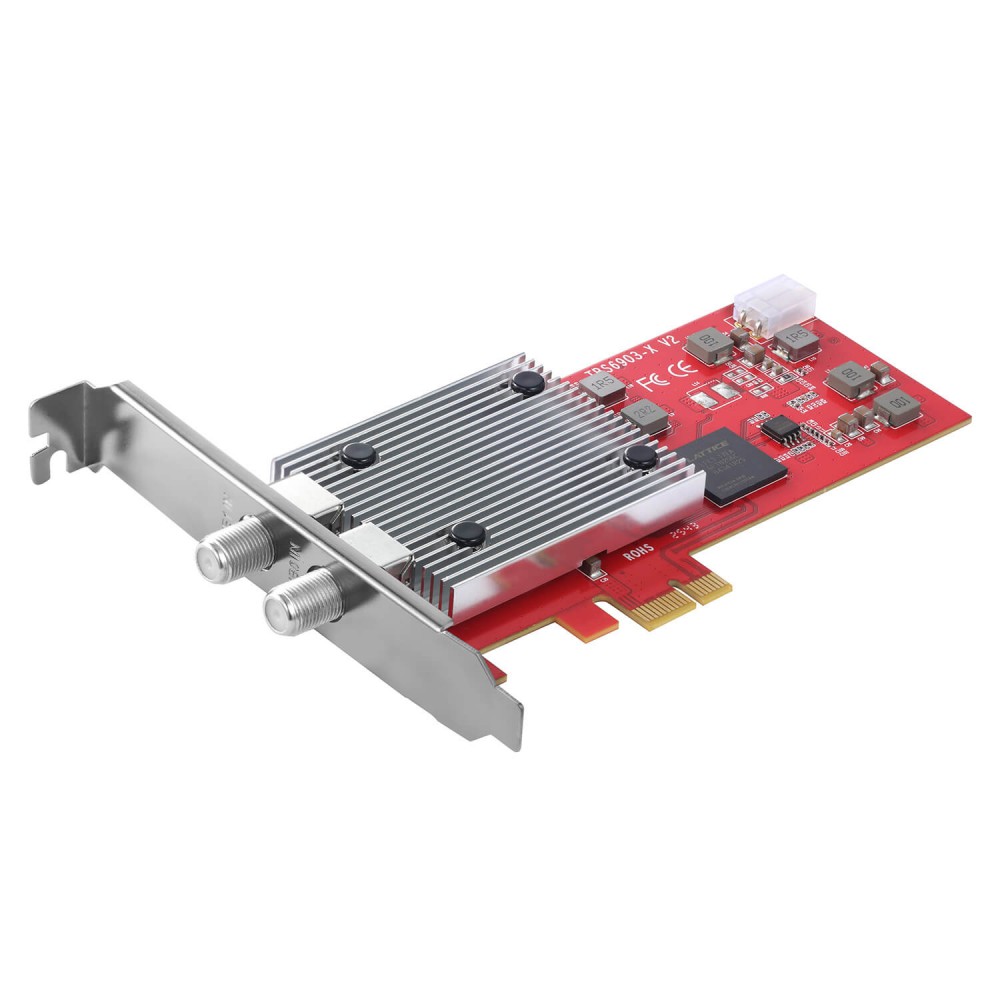

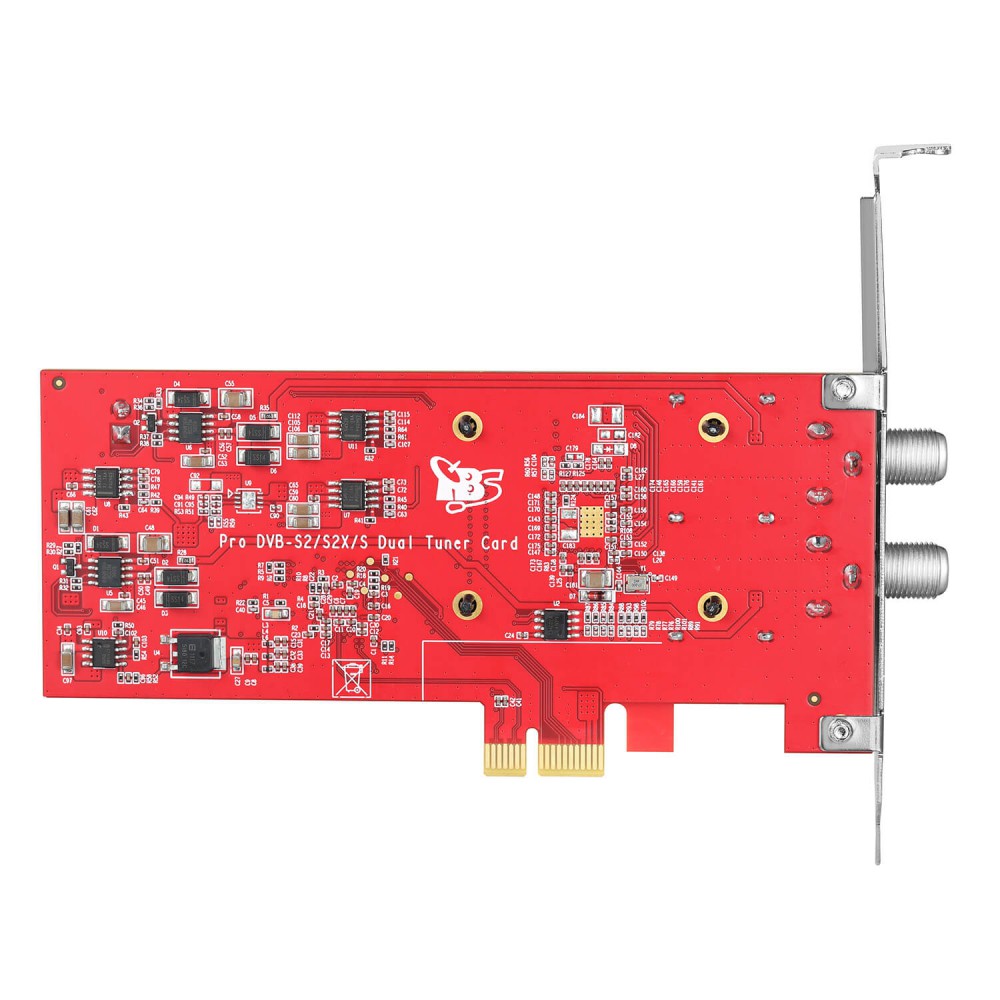

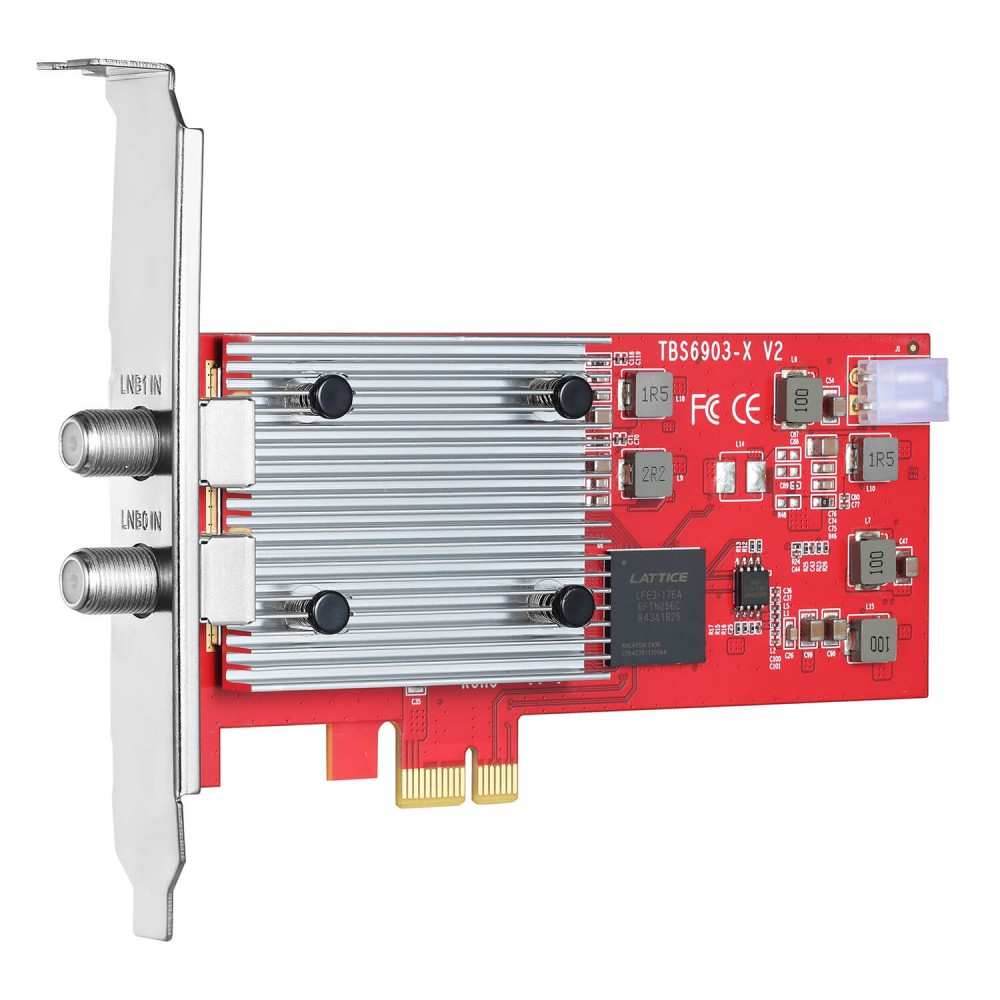

TBS6903-X Professional DVB-S2X Dual Tuner PCIe Card
TBS6903-X Professional DVB-S2X Dual Tuner PCIe Card
- Model: TBS6903X
- Weight: 350.00g
- Reward Points:359
In Stock
US$359.00
TBS6903-X is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903-X not only supports normal DVB-S2X/S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic & Single TS, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.
Main Features:
- DVB-S2X/S2 dual tuner
- Watch & record satellite TV/ radio programs on PC
- CCM, VCM, ACM and Multi Input Stream support
- Generic stream mode Support
- Blind scan support
- EPG (Electronic Program Guide) support
- Unicable/one cable compatible
- High-speed data download via satellite
Applications:
- Data receiving
- Media monitoring
Specification:
Model | TBS6903-X | |
Connection | PCI-express | |

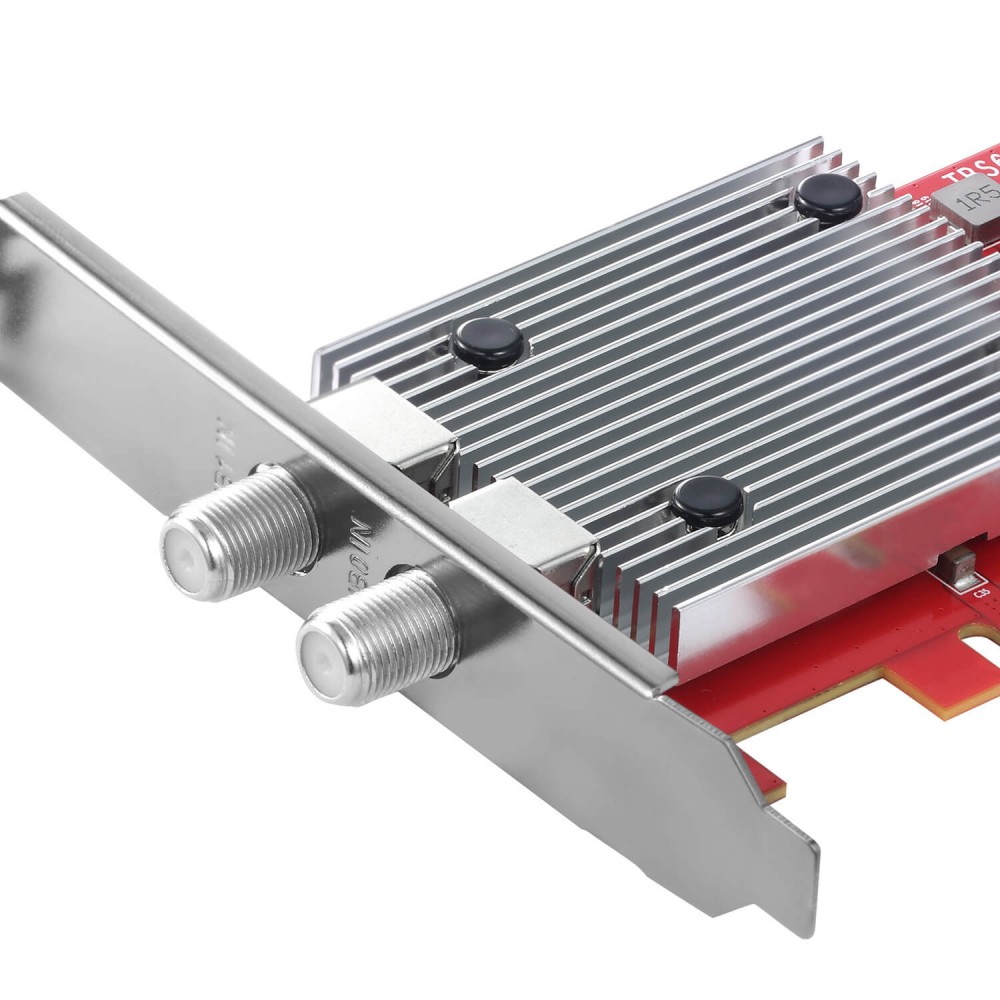

2x RF in | ||
DVB-S/S2/S2X | ||
DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
DVB-S2X(NORMAL) | FECFRAME | 64800 (bits) |
QPSK | 1/4,1/3, 2/5 (S2-MODCODs) | |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
8/9, 9/10 (S2-MODCODs) | ||
13/45 | ||
9/20, 11/20 | ||
8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
23/36, 25/36, 13/18 | ||
8PSK-L | 5/9, 26/45 | |
16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 , 9/10(S2-MODCODs) | |
26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90 | ||
16APSK-L | 5/9, 8/15, 1/2, 3/5, 2/3 | |
32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs) | |
32/45, 11/15, 7/9 | ||
32APSK-L | 2/3 | |
64APSK | 11/15, 7/9,4/5, 5/6. | |
64APSK-L | 32/45 | |
DVB-S2X(SHORT) | FECFRAME | 16200 (bits) |
QPSK | 1/4, 1/3, 2/5 (S2-MODCODs) | |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
8/9, 9/10 (S2-MODCODs) | ||
11/45, 4/15, 14/45, 7/15, 8/15, 32/45 | ||
8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
7/15, 8/15, 26/45,32/45 | ||
16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
7/15, 8/15, 26/45, 3/5, 32/45 | ||
32APSK | 2/3, 32/45 | |
VCM, VCM ,CCM | Yes | |
Power consumption | ||
Input/ Power: | 12V/7~15W | |
temperature | 0° ~ 60° | |
System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
Available PCI Express x1, x4, x8 or x16 slot | ||

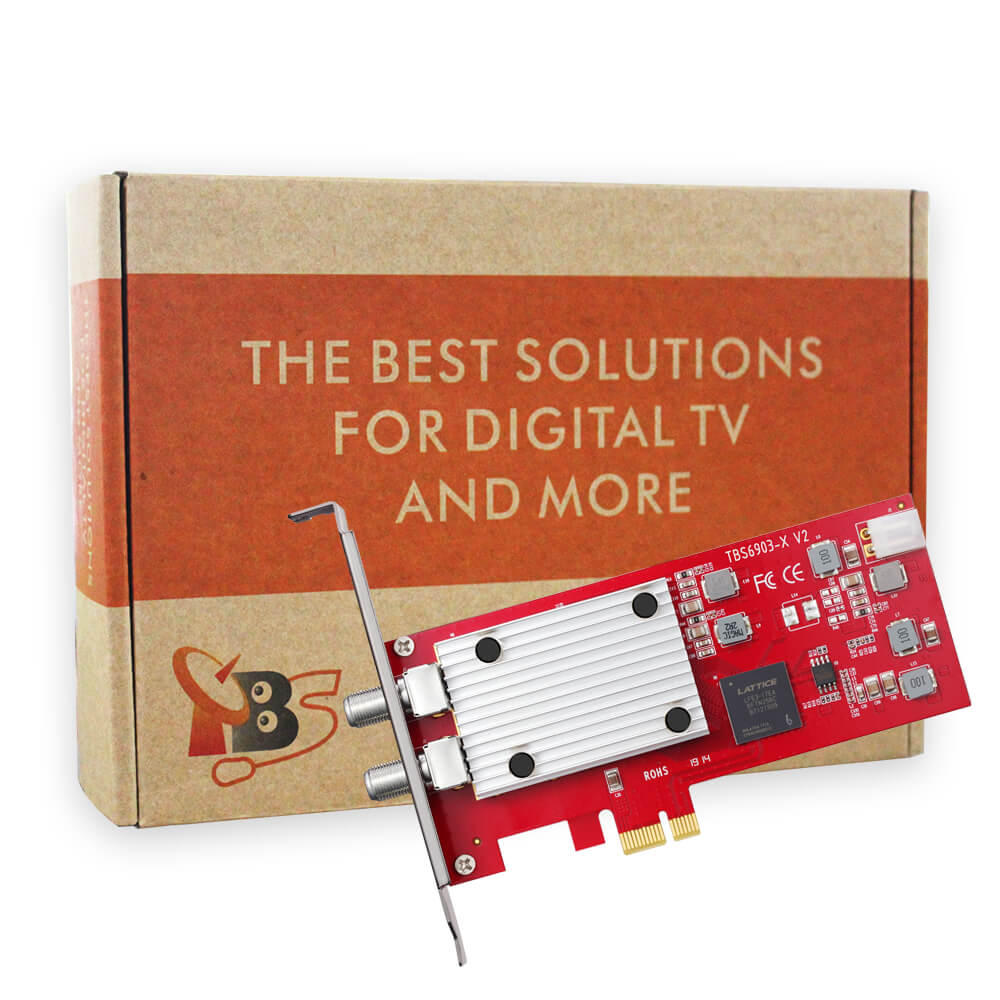

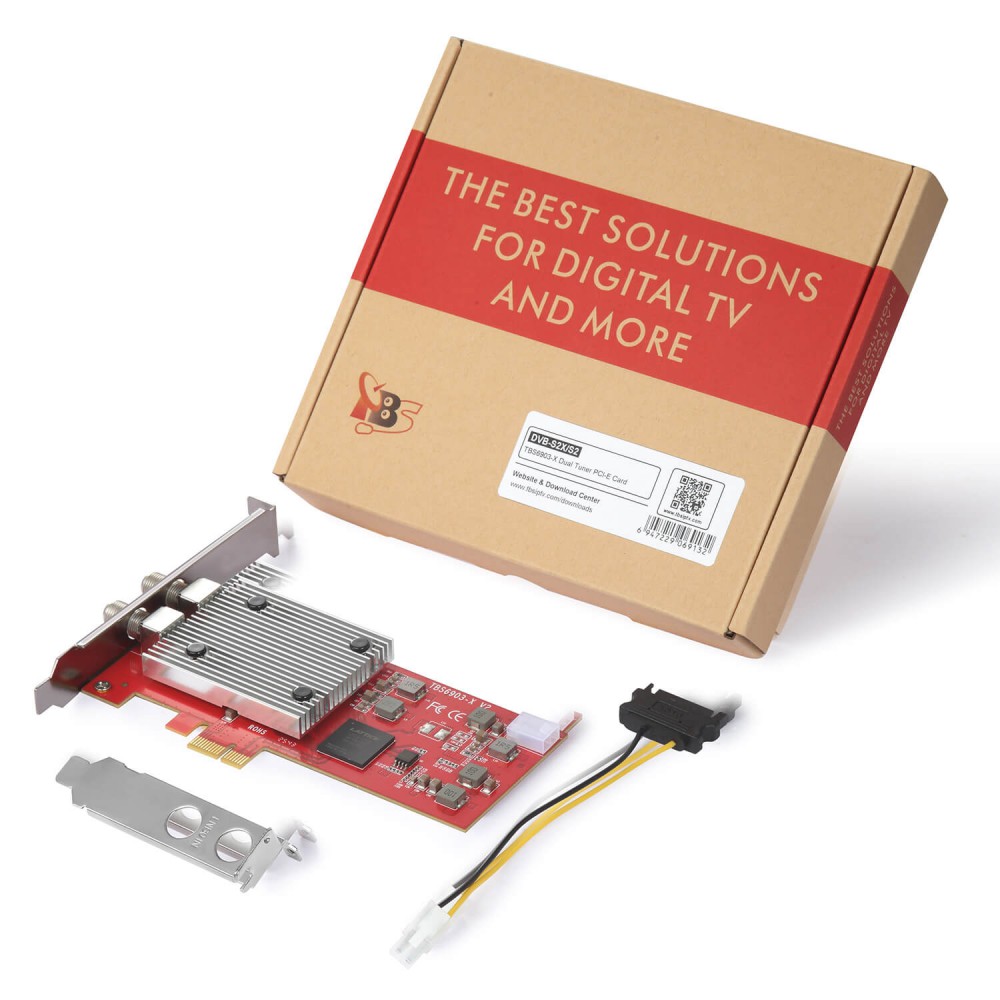

Package Contents | 1 * TBS6903-X | |
1 * Power cable |
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
Msymb/s | Demod |
QPSK | 180 |
8PSK | 120 |
16APSK | 90 |
32APSK | 72 |
64APSK | 60 |
128APSK | 51,42 |
256APSK | 45 |
