TBS6528 Multi Standard Tv Tuner CI PCI-e Card


TBS6528 Multi Standard Tv Tuner CI PCI-e Card

  • Model: TBS6528
  • Weight: 191.00g

Discontinued

Successor

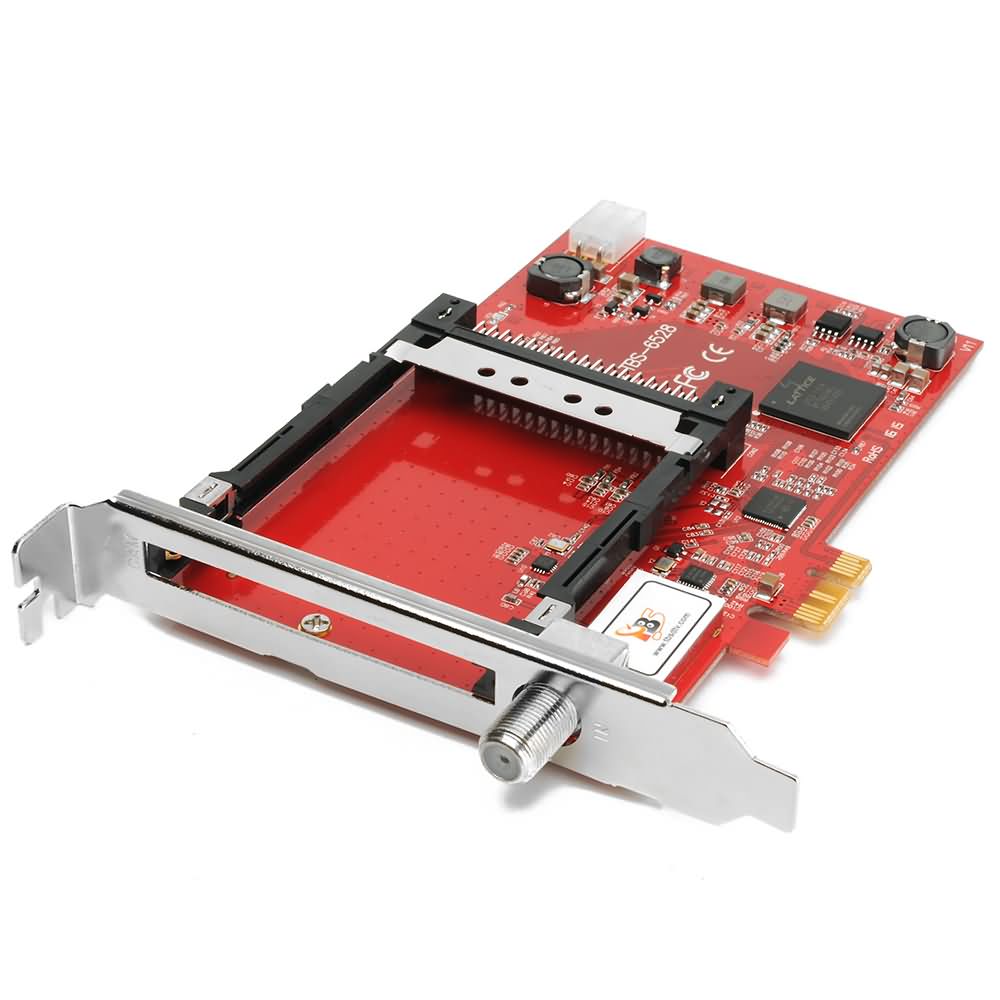

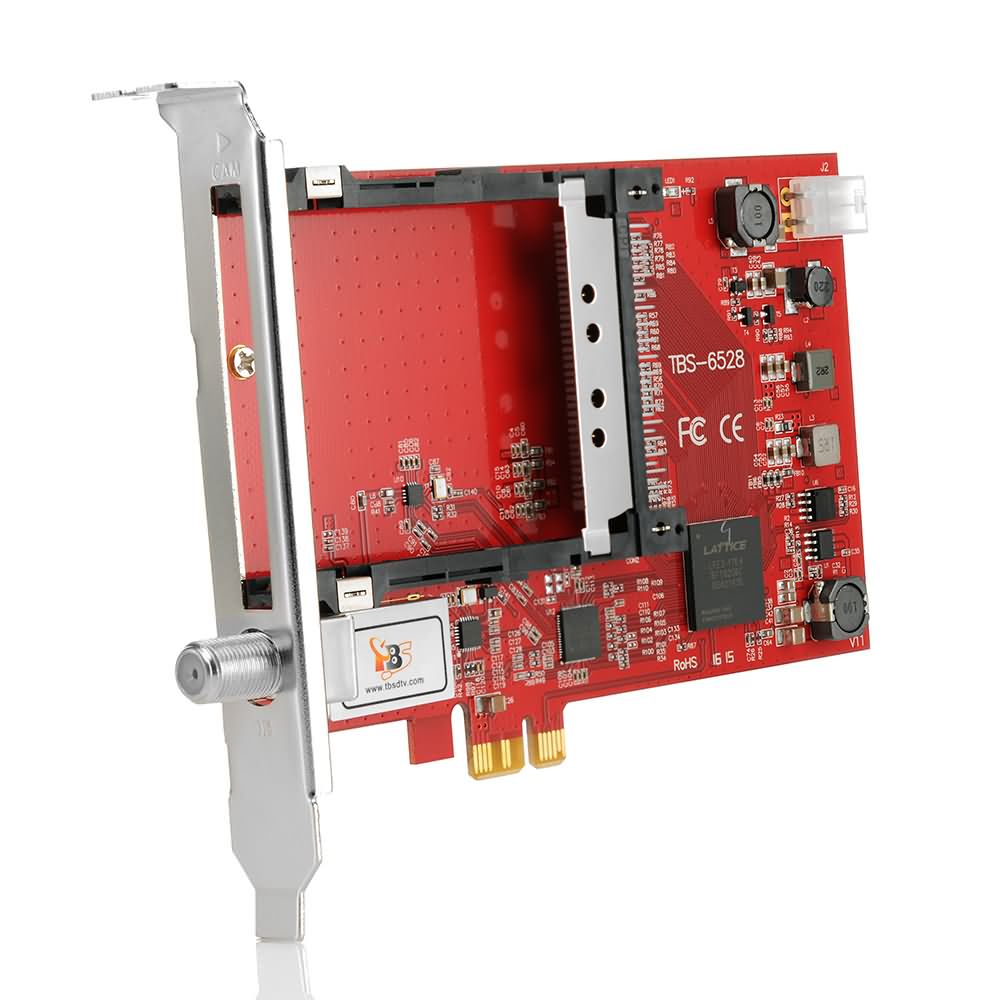

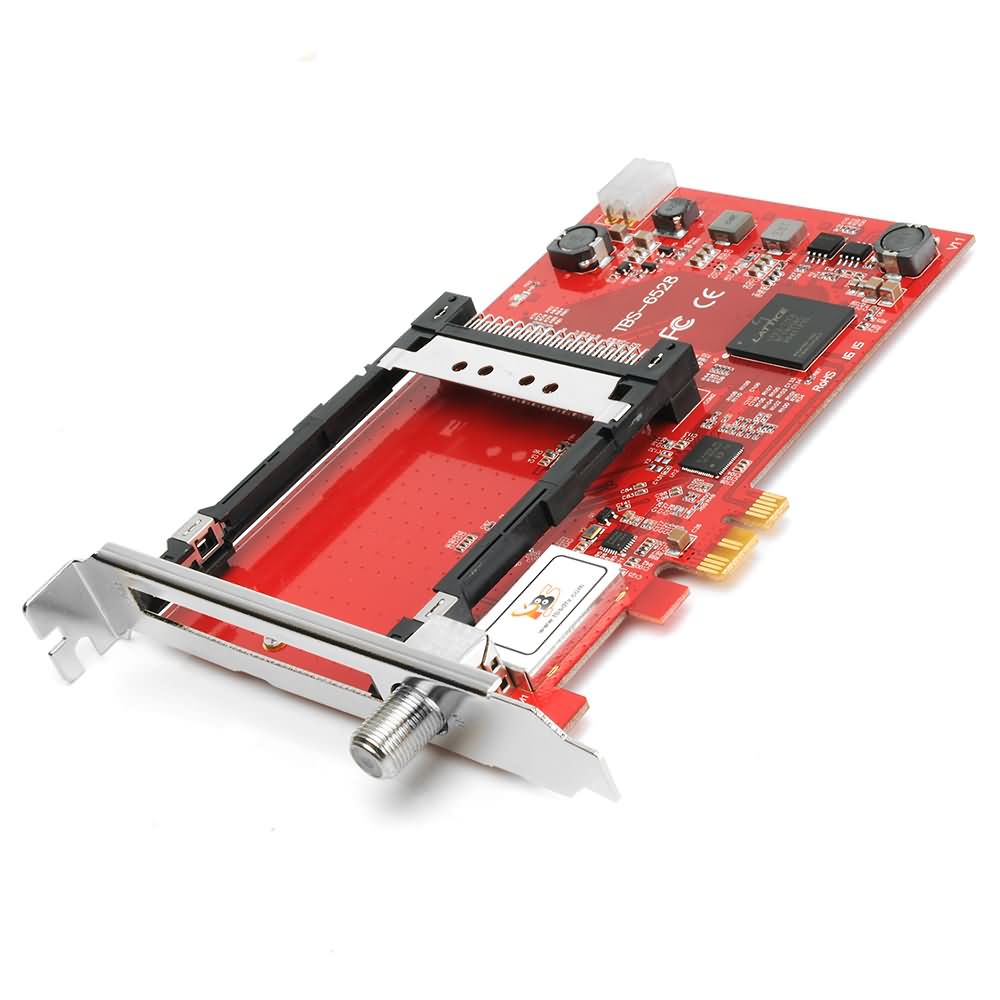

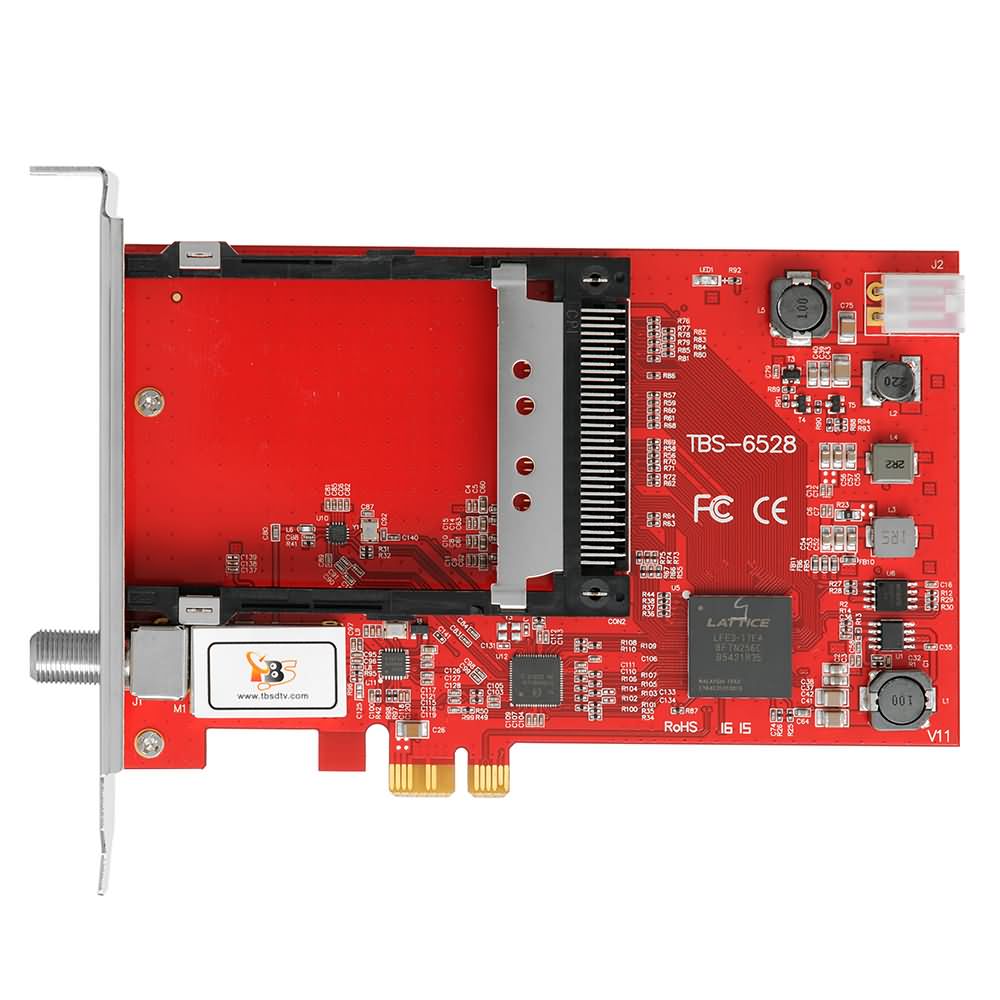

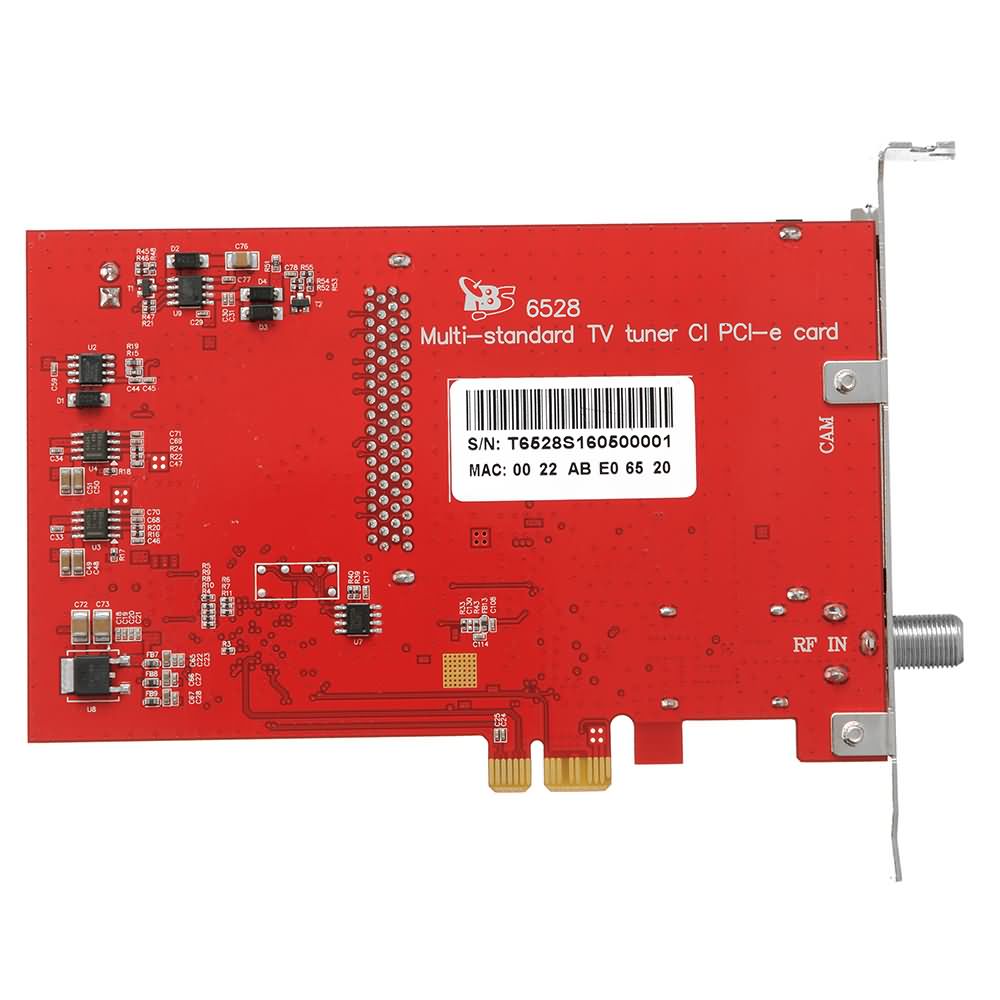

TBS6528 is a PCI Express TV tuner card that supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T,DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, with this multi-standard TV tuner card, it is much easier to switch between different digital TV signals. You just need to plug another signal cable instead of taking out the card from your server.

View More

Main Features:

  • Support DVB-S/S2/S2X, DVB-T/T2/C(ITU-T J.83 Annex A/B/C)/C2, ISDB-T
  • Watch & record TV/ radio programs on PC
  • Common Interface (Single CI) Support
  • SD or HD TV receiving

Applications:

  • Data receiving
  • Media monitoring
  • Digital content distribution

Specifications:

ISDB-T

COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite

Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2 COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2X

symbol rates: 1-45Msps
FEC:
    DVB-S/S2
                     QPSK:   1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
                      8PSK:   3/5, 2/3, 3/4, 5/6, 8/9, 9/10
                  16APSK:   2/3, 3/4, 4/5, 5/6, 8/9, 9/10
                  32APSK:   3/4, 4/5, 5/6, 8/9, 9/10

    DVB-S2X
                     QPSK:   13/45, 9/20, 11/20
           2_4_2_APSK:   100/180, 104/180
                      8PSK:   23/36, 25/36, 13/18
               8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30
                  16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
    4_12_16rb_APSK:   2/3
      4_8_4_16_APSK:   128/180, 132/180, 140/180
Power consumption
Input/ Power: 12V/6~15W
temperature 0°~ 60°

Other information:

System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (DVB-S2/S/S2X /DVB-T2/T/DVB-C2/C/ISDB-T)
Dimension:
TV tuner card size 140mm*93mm
Net weight 93Gram

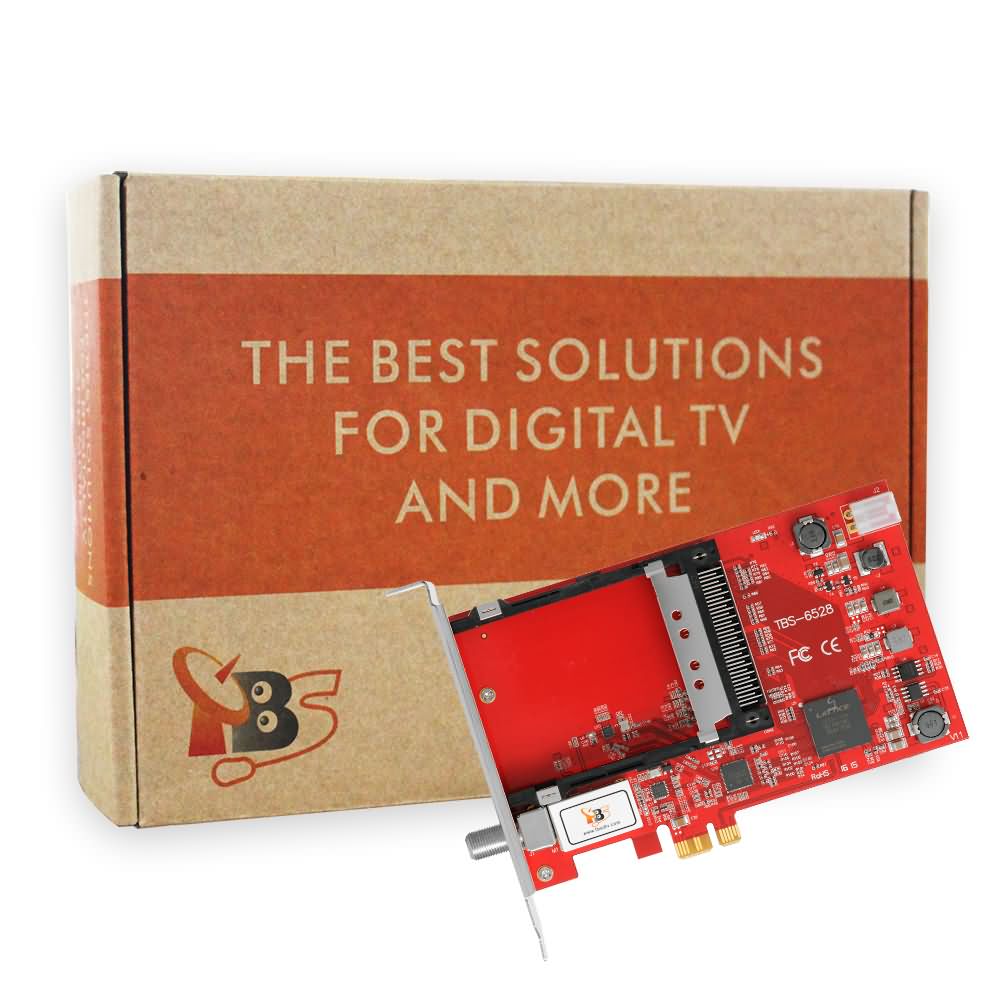

Gift Box Size 200*130*30mm
Weight 191Gram
Package Contents 1 x TBS6528
1 x power cable
1x IEC Connector
