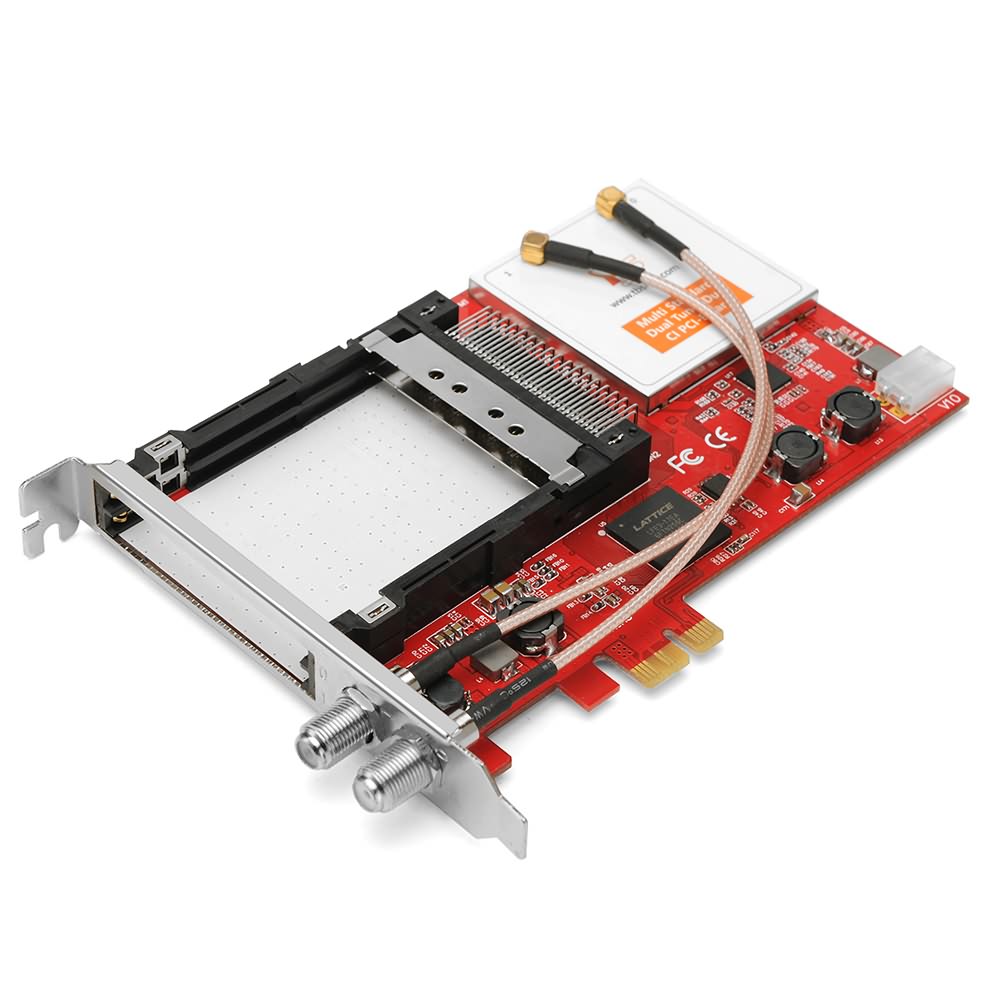

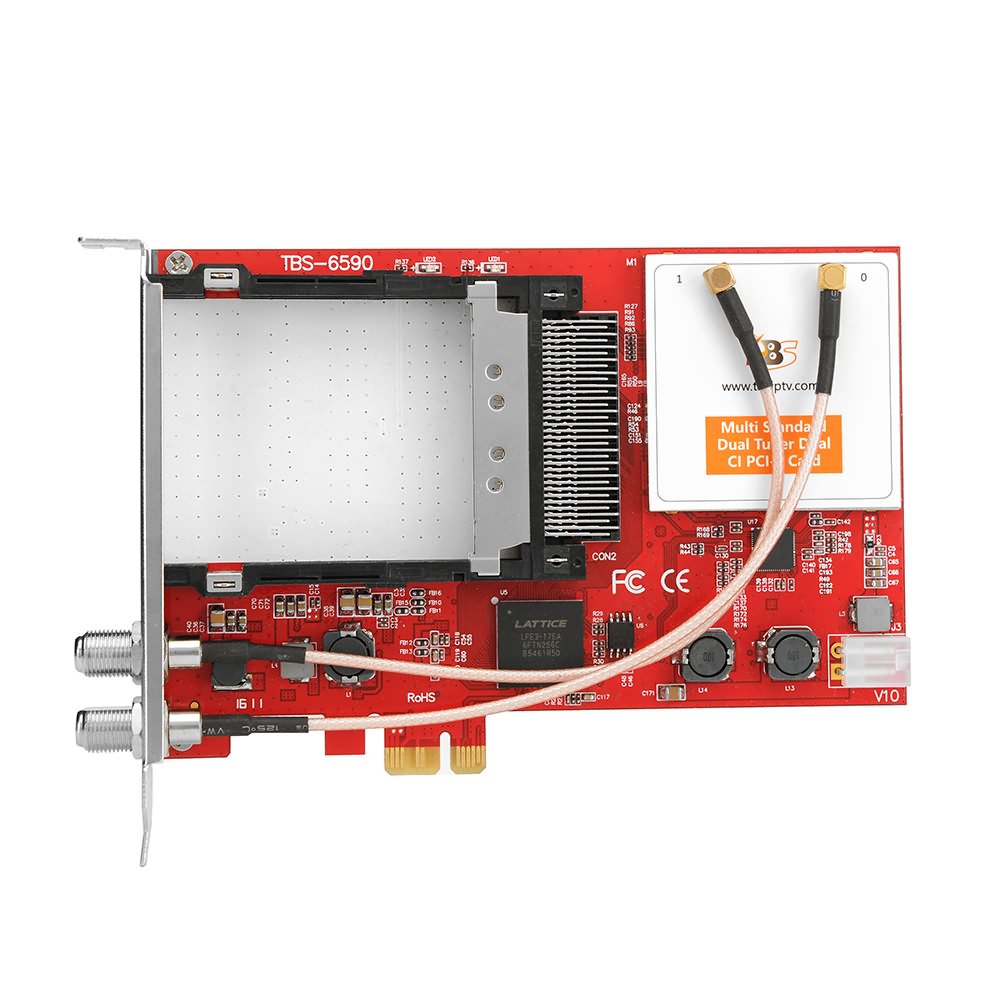

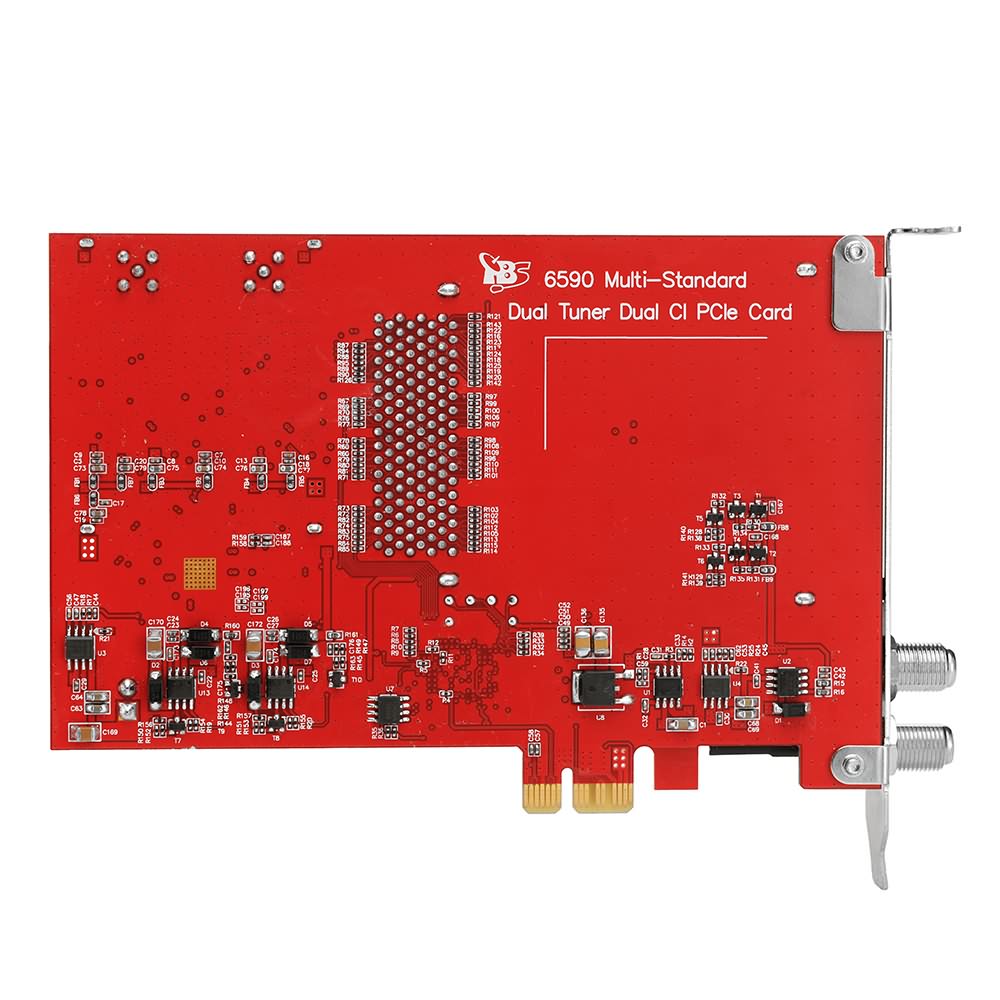

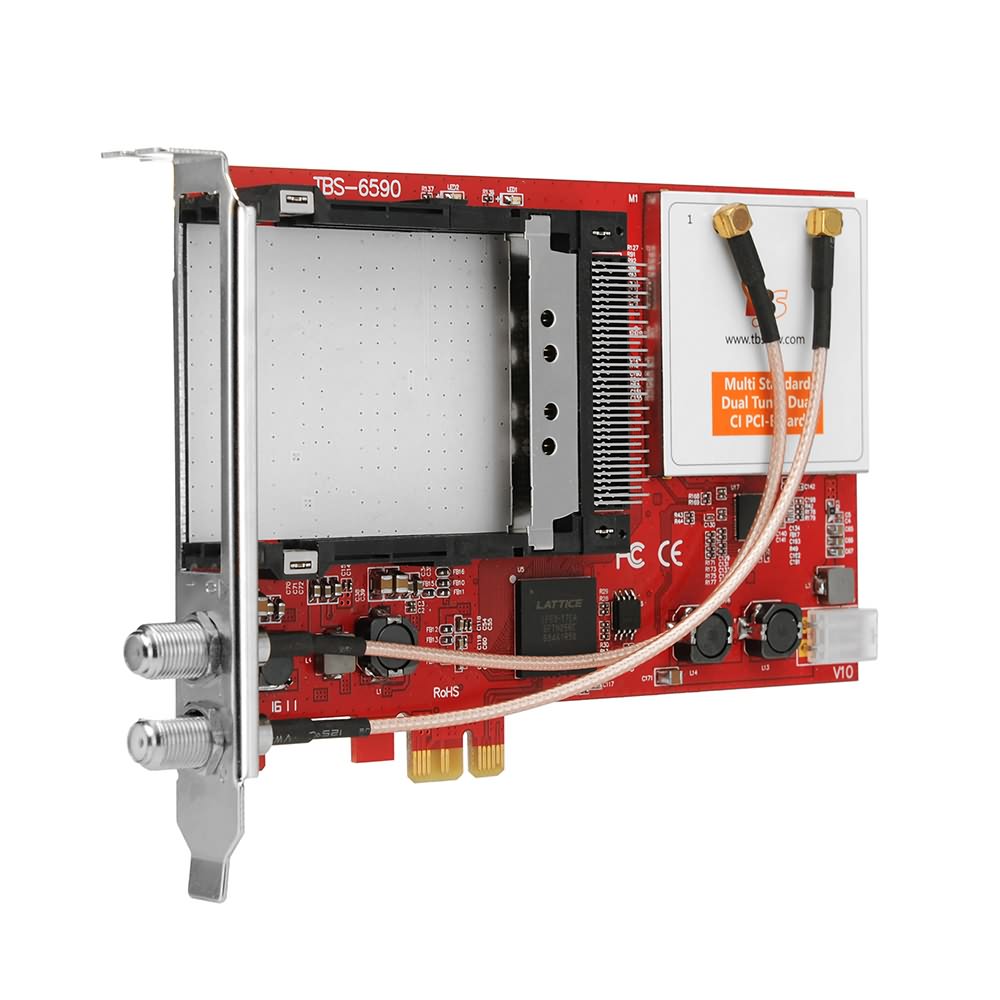

TBS6590 Multi Standard Dual Tuner Dual CI PCI-e Card
TBS6590 Multi Standard Dual Tuner Dual CI PCI-e Card
- Model: TBS6590
- Weight: 245.00g
Discontinued
SuccessorTBS6590 multi standard dual tuner dual CI card is a twin tuner card for watching or recording two different channels from two different frequencies simultaneously. TBS6590 supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T,DVB-C2/C, DVB-S2X and ISDB-T. It is built with 2 Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital HD TV on PC. What's more, with this multi-standard TV tuner card, it is much easier to switch between different digital TV signals. You just need to plug another signal cable instead of taking out the card from your server.
Main Features:
- Support DVB-S/S2/S2X, DVB-T/T2/C(ITU-T J.83 Annex A/B/C)/C2, ISDB-T
- Watch & record TV/ radio programs on PC
- Common Interface (Dual CI) Support
- SD or HD TV receiving
Applications:
- Data receiving
- Media monitoring
- Digital content distribution
Specifications:
| ISDB-T | COFDM demodulator and FEC decoding |
| Support 3 layers decoding | |
| TMCC decoding | |
| Support differential demodulation | |
| AC1 and AC2 decoding | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FEC: QPSK, 16QAM, 64QAM,256QAM | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) |
| FEC(LDPC/BCH) decoder | |
| Bandwidth: 6MHz, 7MHz, 8MHz | |
| DVB-C and ITU-T J.83 Annex B | QAM demodulator |
| FEC decoder | |
| 1 to 7.2MSymbol/s | |
| DVB-S/S2/S2X | symbol rates: 1-45Msps |
| FEC: DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/18 8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180 |
|
| Power consumption | |
| Input/ Power: | 12V/10~18W |
| temperature | 0-60℃ |
| Other information: | |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| Available PCI Express x1, x4, x8 or x16 slot | |
| Digital TV signal (DVB-S2/S/S2X /DVB-T2/T/DVB-C2/C/ISDB-T) | |
| Dimension: | |
| TV tuner card size | 104.5mm*150mm |
| Net weight | 137G |

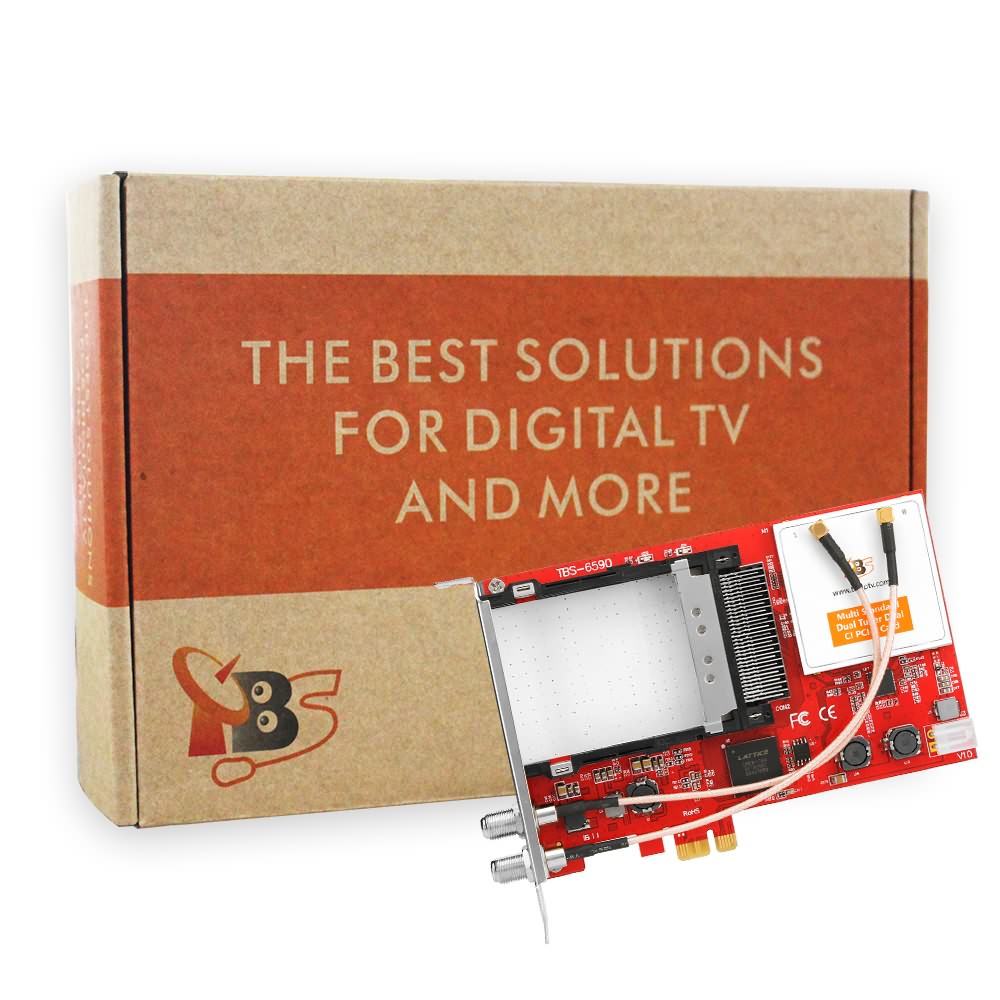

| Gift Box Size | 17.7*16*3CM |
| Weight | 245G |
| Package Contents | 1 x TBS6590 |
| 1x DC line | |
| 2x IEC Connector | |
