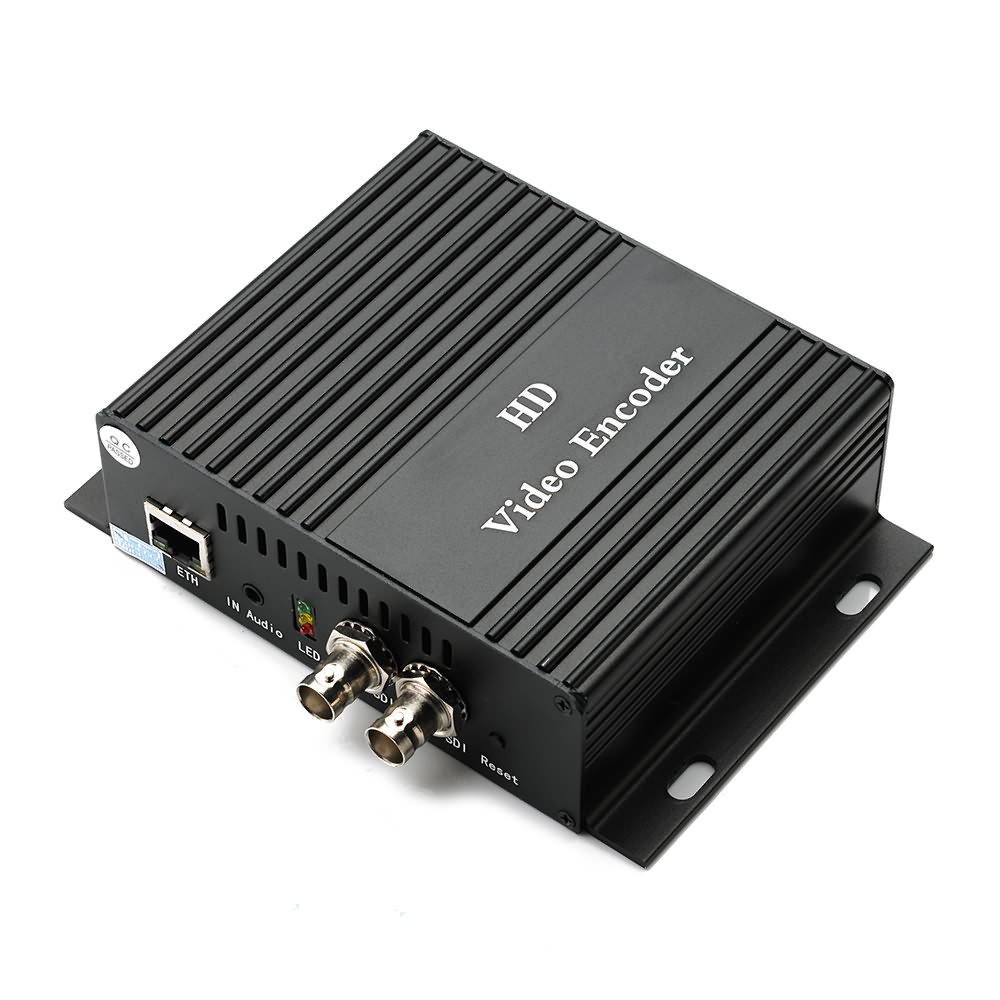

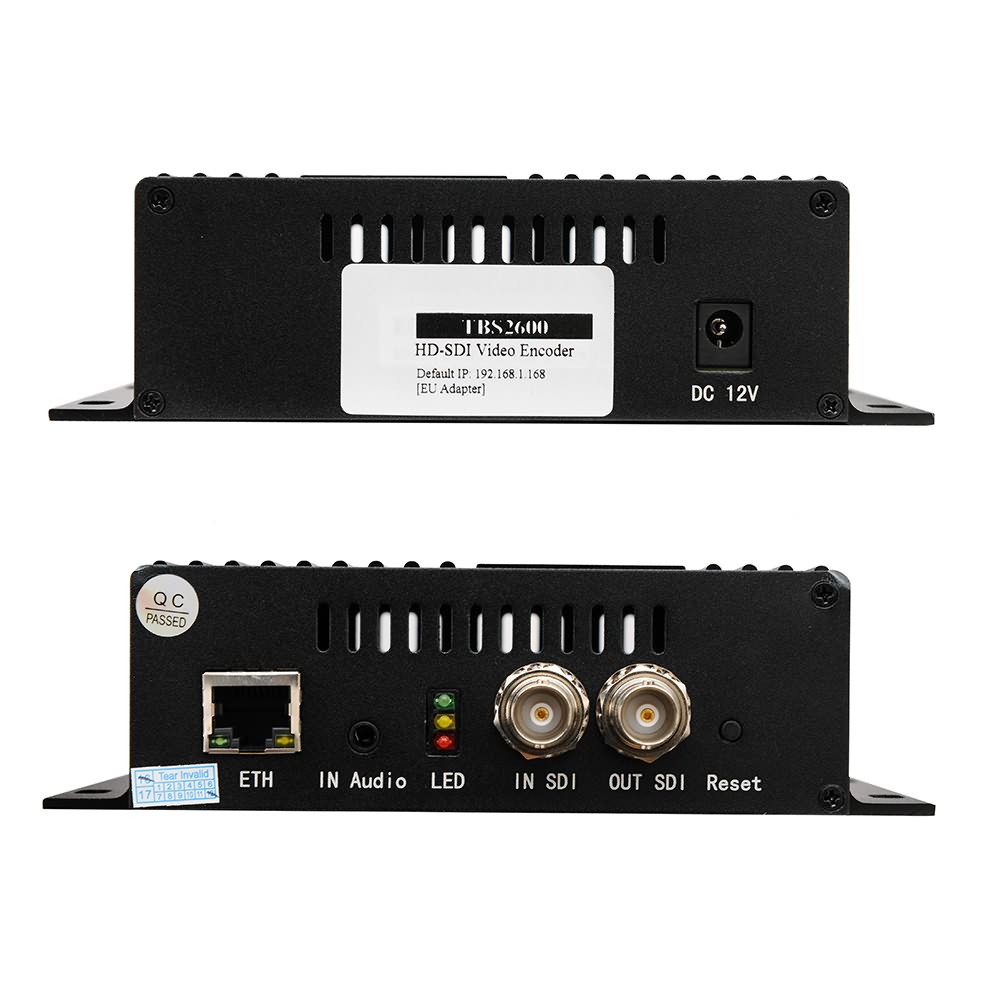

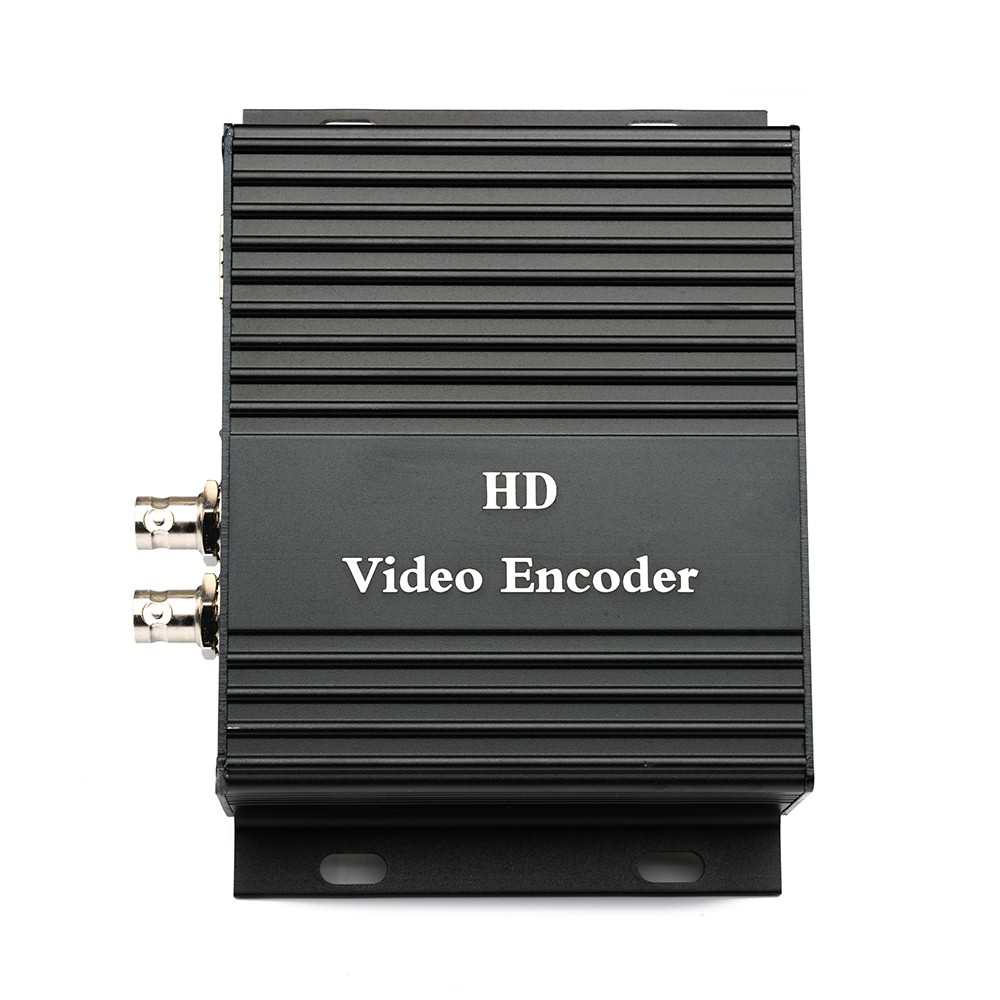

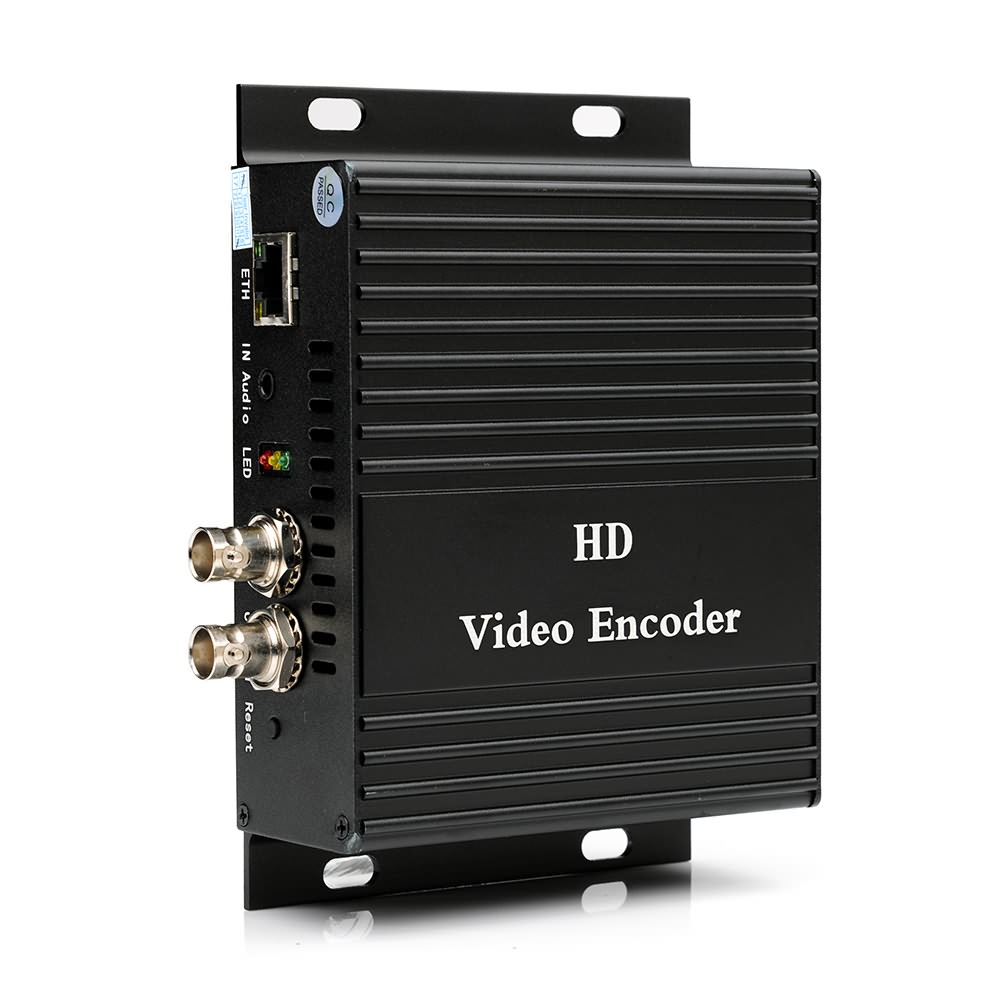

TBS2600 HD-SDI Video Encoder is a professional high-definition video coding box, which equipped with 1 SDI channel input and dual stream RJ45 output, what’s more, it has direct SDI output which can output original data. TBS2600 supports MPEG-4 AVC/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output.

Applications:

• IPTV
• Digital Signage
• Video Conference
• Replace HD Video Capture Card
• Hotel TV system
• Live Broadcast
• Teaching/Campus Broadcast
• Recording System
• NVR (Net Video Recorder)

Specification:

• Video:
  • Input: 1x HD-SDI
  • HDMI Resolution: 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below;
  • Encoding: H.264/AVC Main Profile/High Profile , Audio AAC;
  • Data Rate: 16KBIT/S~12MBIT/S;
  • Rate Control: CBR/VBR;
  • GOP Structure: IBBP;
  • Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.
• Audio:
  • Encoding: AAC, MP3;
  • Sampling rate: Auto;
  • Bit-rate: 32K/48K/64K/96K/128K/160K/192K;
  • Sampling precision: 24 bit;
  • Data Rate: 64Kb/s ~ 384Kb/s;

System:

• Ethernet/RJ45: 1000 Base-T Ethernet interface;
• Protocol: HTTP, UDP, RTSP, RTMP, ONVIF;
• Control Interface: WEB;

General Spec:

• Size: 146mm x 122mm x 42mm
• Weight: 0.25kg
• Working Temperature: 0~45℃

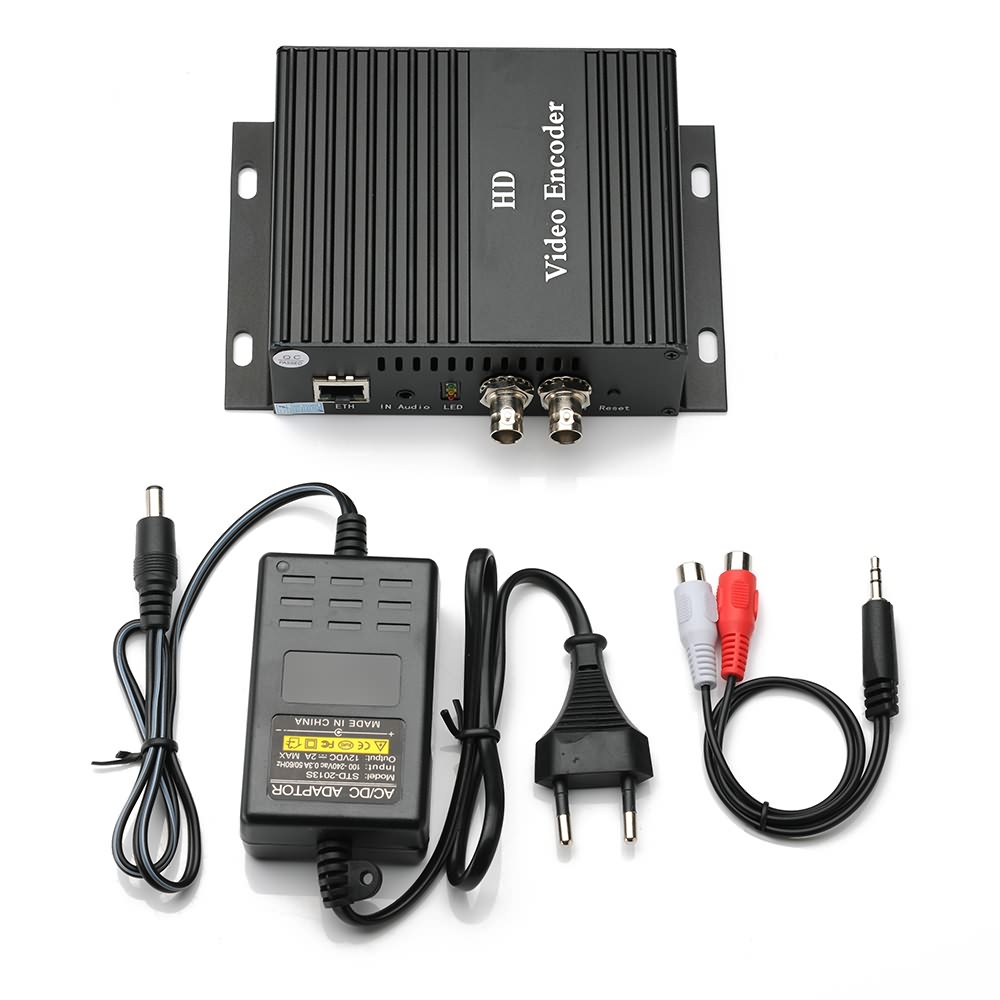

Packing List:

• TBS2600 HD-SDI Video Encoder *1PCS
• Power DC12V *1PCS
