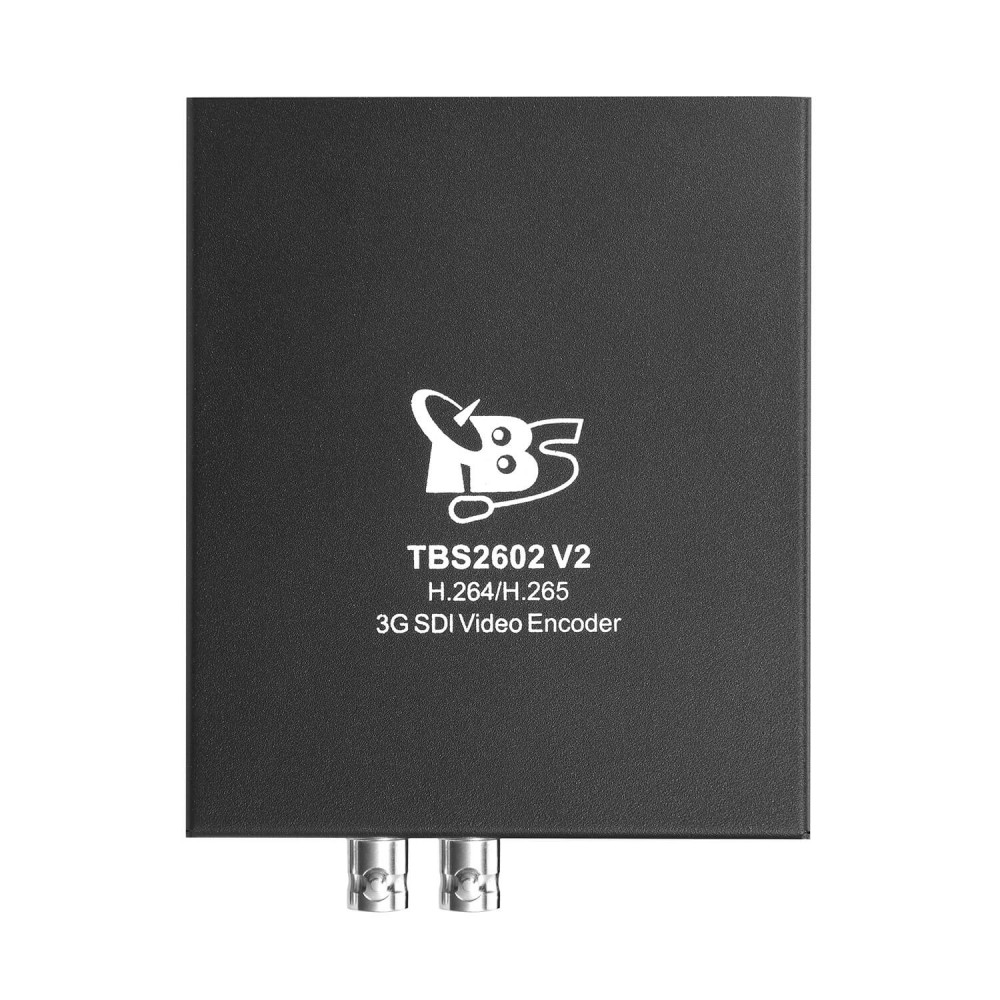

TBS2602V2 H.264/H.265 3G-SDI to IP Video Encoder
TBS2602V2 H.264/H.265 3G-SDI to IP Video Encoder
- Model: TBS2602V2
- Weight: 1,000.00g
- Reward Points:229
In Stock
US$229.00
TBS2602V2 3G-SDI Video Encoder is a professional high-definition video encoder that is equipped with one channel 3G-SDI input, dual H.264/H.265 encoded streams output via RJ45 interface. What’s more, it supports SDI loop out, which can be very easy to check the status of SDI input.
With any 3G-SDI video source, SDI embedded audio and 3.5mm jack Line in audio, TBS2602V2 can generate H.264/H.265 & AAC-LC / AAC-HE encoded streams compliant with HLS (m3u8), HTTP, RTSP, SRT, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF protocols.
TBS2602V2 is ideal for streaming to various media streaming servers (e.g. Wowza, Read5, Flussonic and FMS) or online live broadcast platforms (e.g. Youtube, Twitch, Facebook, Vimeo, Ustream, Livestream, Streamspot and Dacast) over IP in real time.

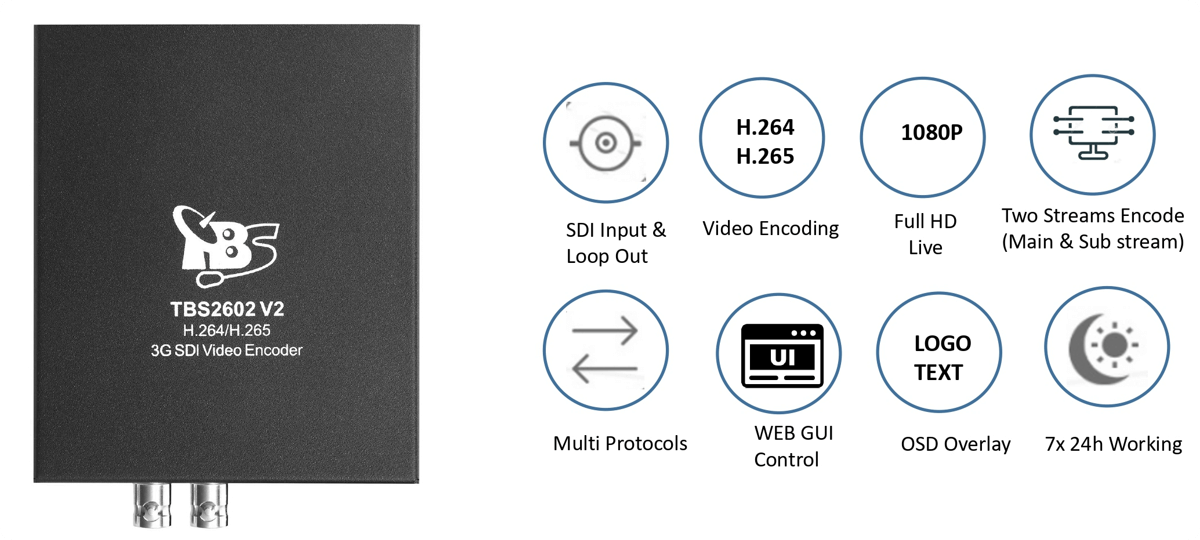

Features
- 1 channel 3G-SDI input and encode to 1920x1080p@60fps at maximum
- SDI audio embedded input supports up to 4 stereo audio tracks
- Support audio Line in through 3.5mm Jack
- Support SDI loop out
- Support H.265/HEVC and H.264/AVC encode
- Support 2 streams out: Main stream & sub stream
- Support HTTP, HLS (m3u8), RTSP, SRT caller & listener, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF output
- Support OSD overlay: inserting text / logo into the video
- Flexible and friendly webpage control
- Support 7x 24h stable working
Applications
TBS2602V2 3G-SDI video encoder is widely used in IPTV, broadcast, video conference, remote education, health care, news interview, IP video surveillance and other industries.

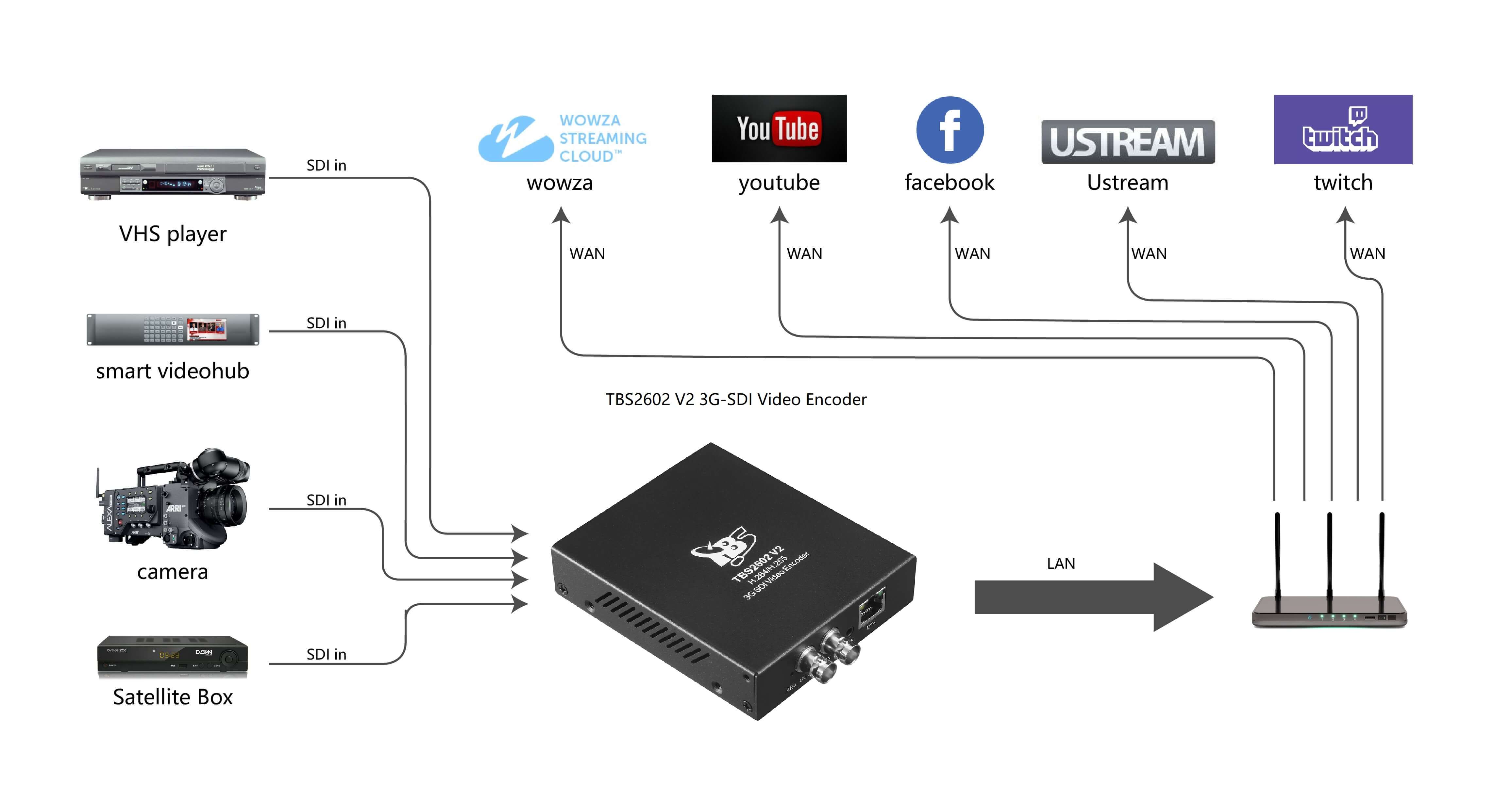

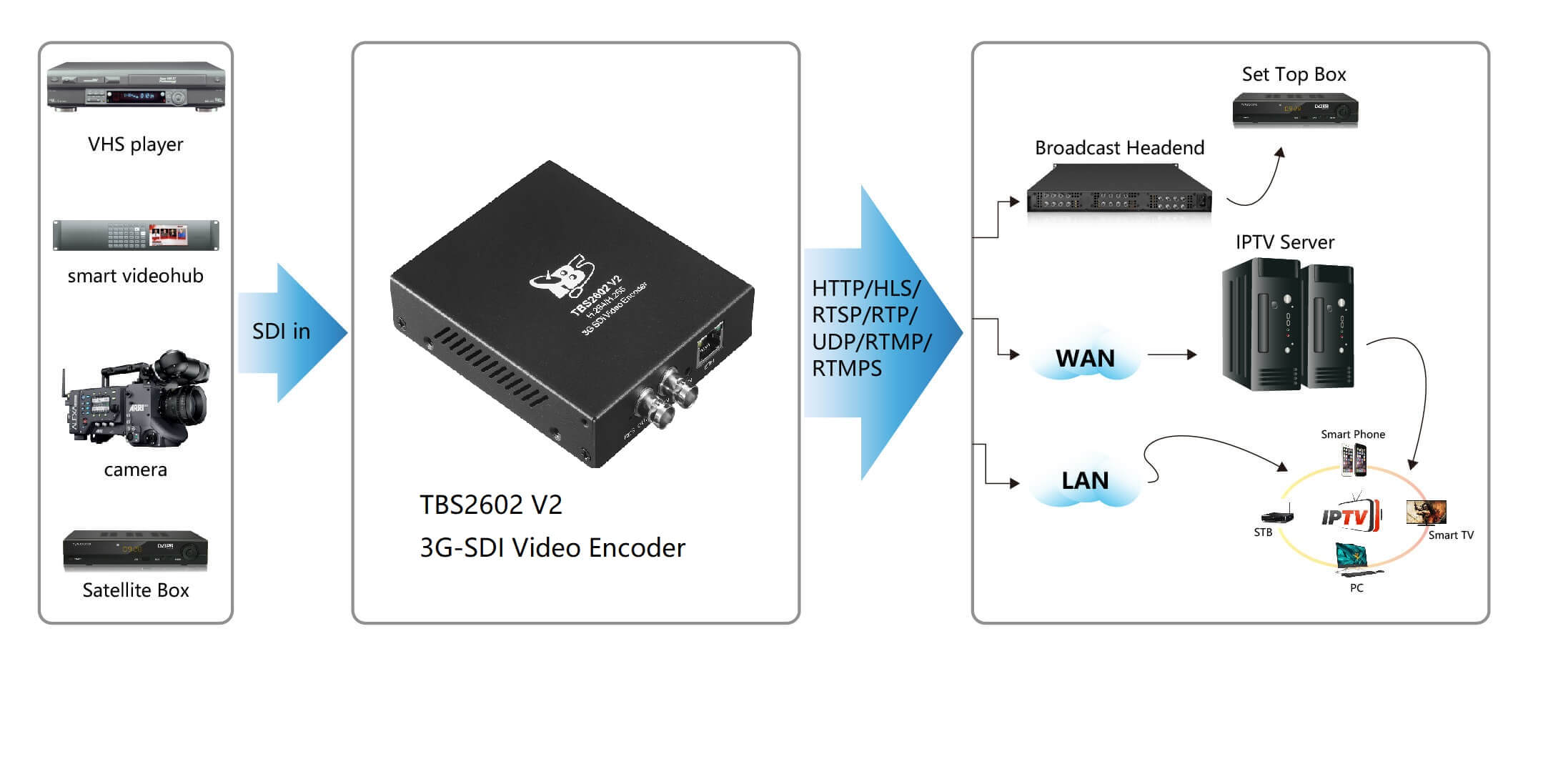

Connection Diagram
Specification
| Model NO. | TBS2602V2 |
| Model Name | 3G-SDI Video Encoder |
| SDI In | 1x SDI (BNC Female) |
| SDI Loop Out | 1x SDI (BNC Female) |
| Video | |
| Video Input | SD-SDI (SMPTE 259): 480i, 576i |
| HD-SDI (SMPTE 292): 1920x1080i_60/50hz, 1920x1080p_30/25/24hz, 720p_60/50hz | |
| 3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B | |
| Video Encode Size | auto, 1920x1080, 1680x1056, 1280x720, 1024x576, |
| 720x576, 720x480, 704x576, 640x480, 640x360 | |
| Video Output | 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, |
| 720x576p@30fps, 640x480p@30fps etc. | |
| Video Codec | H.264, H.265 |
| Profile | H.264: Baseline, Main, High |
| H.265: Main | |
| Level | H264: Level 4.2; H265: Level 4.1 |
| Bitrate Control | CBR, VBR, EVBR |
| Frame Rate | 5 ~ 60fps |
| Key Interval (GOP) | 5 ~ 180fps |
| GOP Structure | IPPP |
| Bitrate | 300 ~ 20000Kbps |
| Color depth | 8 bit |
| Chroma subsampling | 4:2:0 |
| De-interlace | Supported, force to do de-interlace when i (interlace) input |
| Audio: | |
| Audio Input | SDI embedded: Supports up to 4 stereo audio tracks (8 mono audio channels), channel 1-2, 3-4, 5-6, 7-8 |
| Line in (Jack 3.5mm) | |
| Audio Codec | AAC-LC, AAC-HE, MP2 |
| Audio Bitrate | 24/32/44.1/48/64/96/128/160/192/256Kbps |
| Audio Resample | 48, 44.1, 32(Khz) |
| System: | |
| Control Interface | web GUI |
| Recommended Browser | Google Chrome, Firefox, Microsoft Edge etc. |
| Ethernet / RJ45 | 1000M Base-T Ethernet Interface |
| Protocols | HTTP, HLS (m3u8), RTSP, SRT caller & listener, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF |
| General Spec.: | |
| Power Consumption | 5 Watt |
| Working Environment | Operating temperature: 0 to 60 °C |
| Storage temperature: –20 to 70 °C | |
| Relative Humidity: 5% to 90% (non-condensing) | |
| Net Weight | 330g |
| Size | 114mm x 96mm x 27mm |

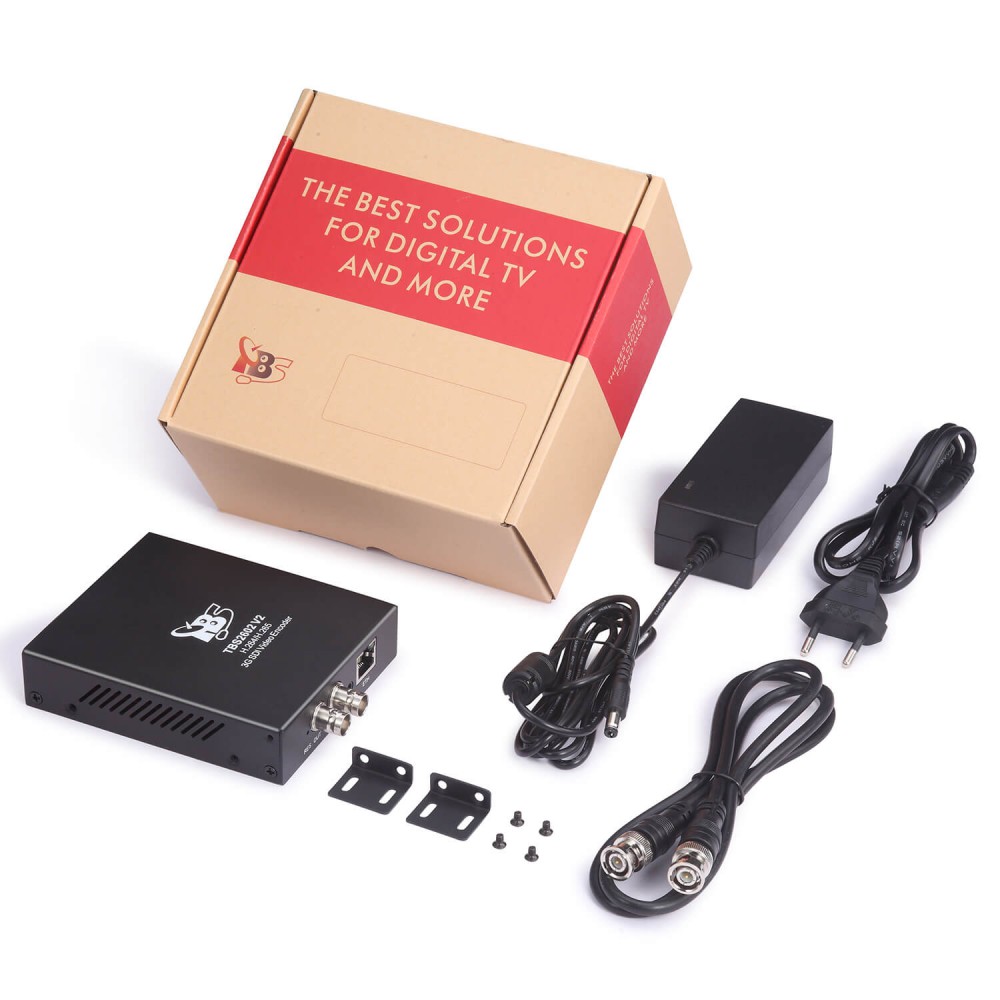

| Package Contents | 1x TBS2602V2 |
| 1 x DC 12V power adapter | |
| 1x SDI cable | |
| 1 pair of mounting brackets with mounting screws | |
