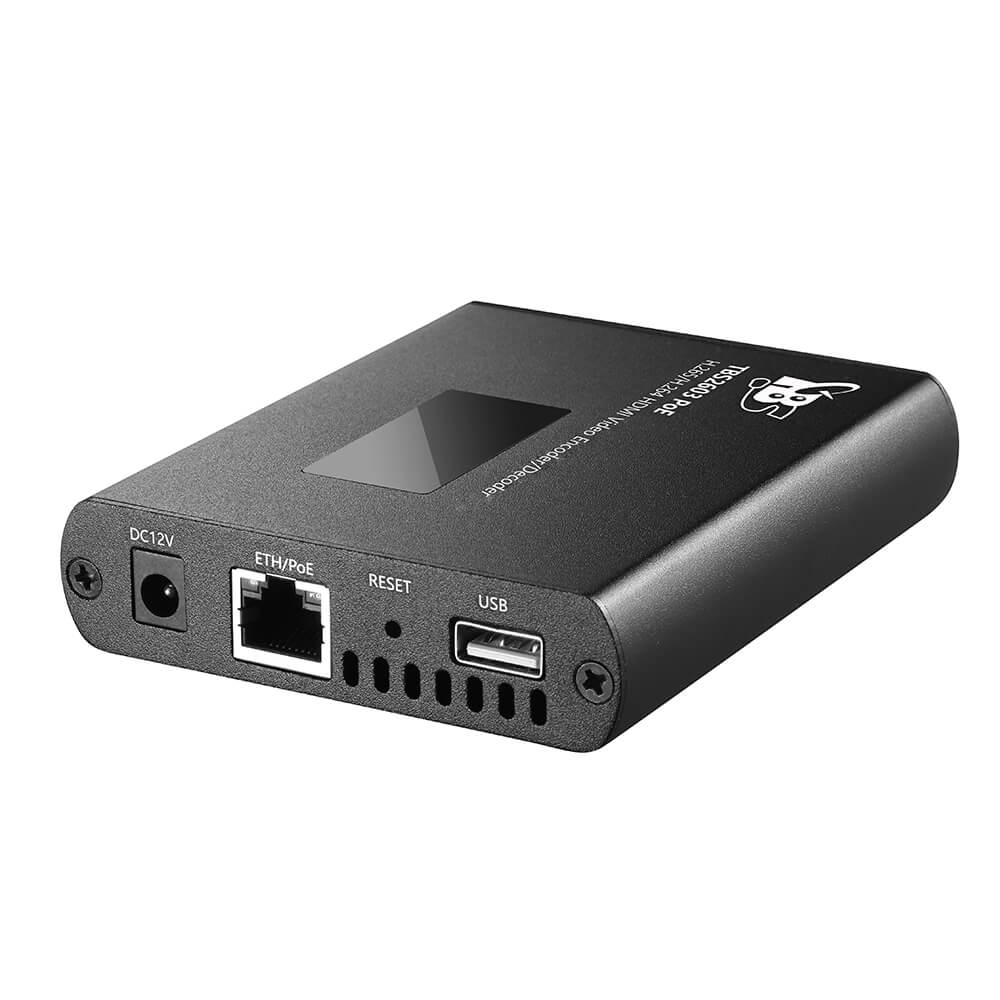

TBS2603 PoE NDI®|HX Supported H.265/H.264 Video Encoder / Decoder
TBS2603 PoE NDI®|HX Supported H.265/H.264 Video Encoder / Decoder
- Model: TBS2603 PoE
- Weight: 510.00g
- Reward Points:379
In Stock
US$379.00

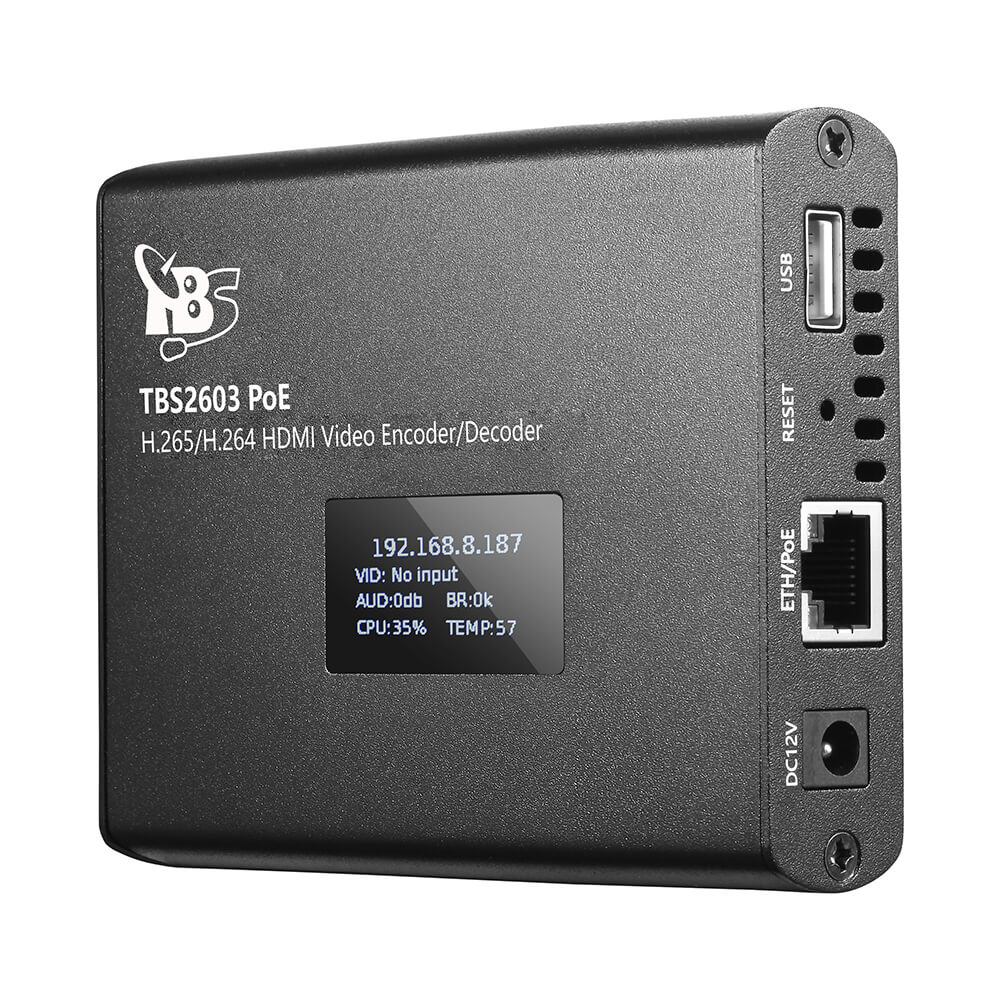

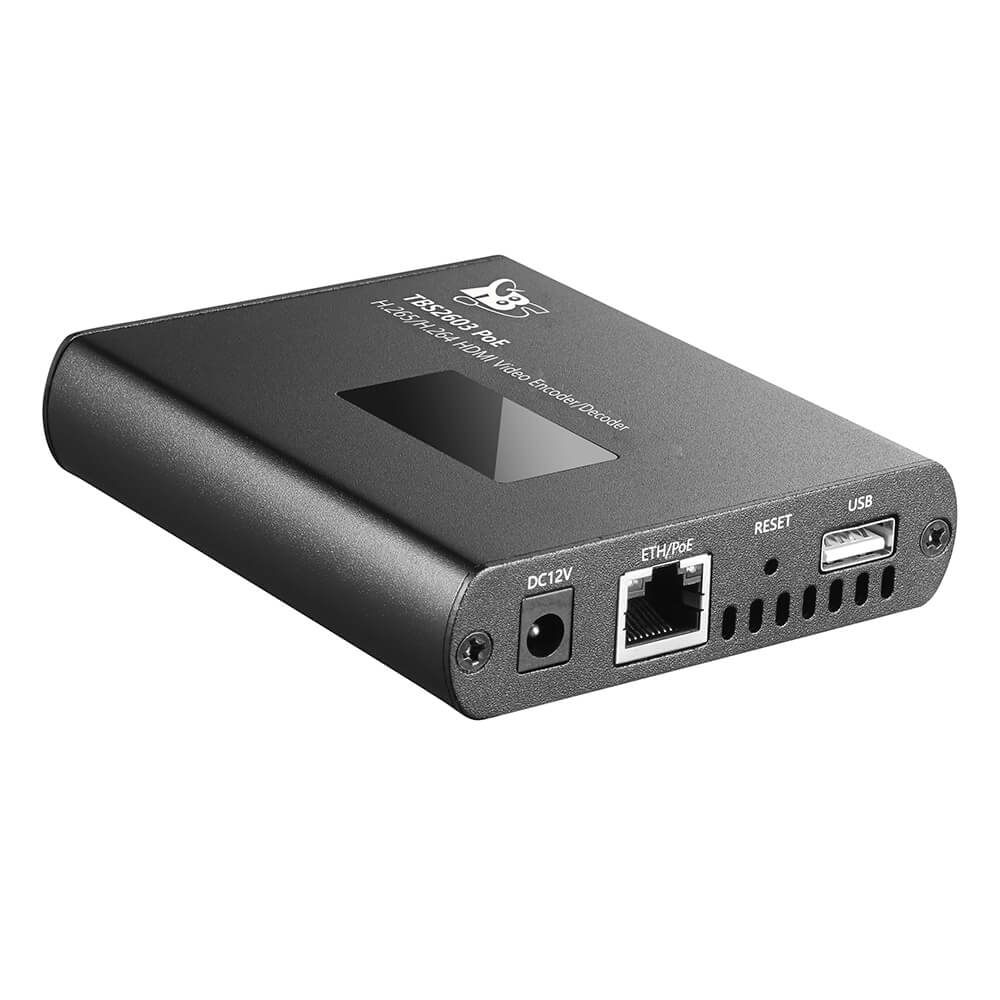

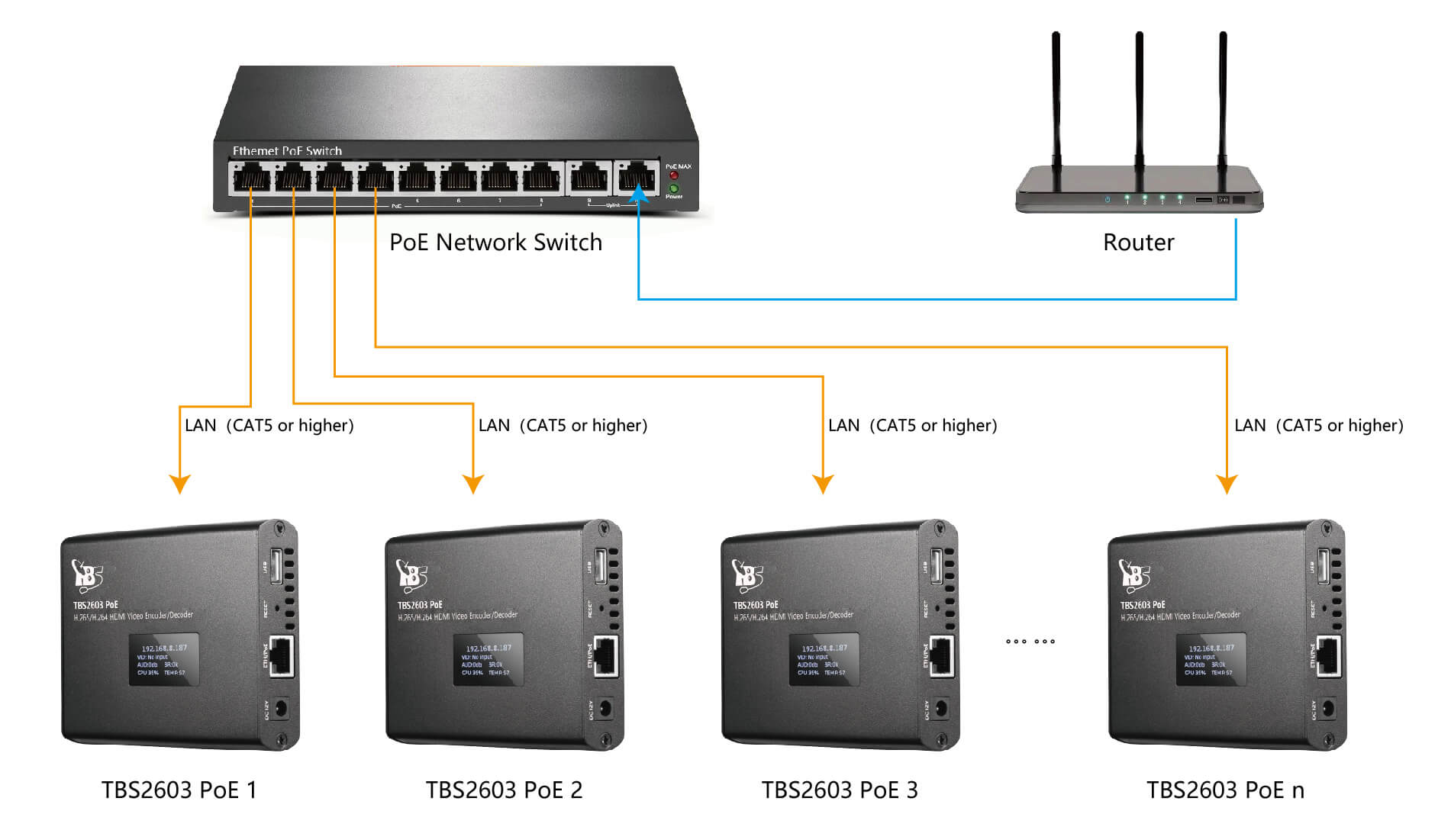

TBS2603 PoE is a NDI®|HX supported H.264/H.265 video Encoder, a professional HD video Encoder/ Decoder, and a HDMI/USB video recorder. With PoE（Power over Ethernet）support, it will receive electrical power as well as the data from a standard Ethernet cable, which made the installation simpler than normal encoders and no need power supply anymore. What's more, PoE injectors and switches will not damage any equipment, IEEE802.3af/at/bt compliant PoE technology is safe.
As an encoder, TBS2603 PoE allows to send your video source through the local network, over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPS, or in NDI®|HX streams for use with other NDI®|HX compatible systems.
As a decoder, TBS2603 PoE supports video source from HDMI video, IP streams or NDI®|HX streams. It supports "H.265 Main Profile, Level 4.1 & H.264 Baseline/Main/High Profile Level 4.2" decode. Up to H.265 Main 1920x1080@60fps decode.
TBS2603 PoE NDI®|HX use a high efficiency, low bandwidth form of NDI®, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.
Features
- Visual input (Preview)
- HDMI video input, UVC Camera input or NDI®|HX streams input.
- NDI®|HX streams output, HDMI video out, or USB output for recording
- H.264/H.265 Encode & Decode, up to 1920x1080P_H.265@60fps Encode. And H.265 Main Profile, Level 4.1 Decode
- HDMI-embedded & Line-in Audio input
- AAC, MP3, MP2, PCMA audio encoding
- MP4/TS/FLV/MKV/MOV format recording
- Bitrate is adjustable 500kbit/s ~ 20Mbit/s
- Support HTTP, HLS(m3u8), SRT, RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF
- Support NDI | HX2 based on NDI 5.x

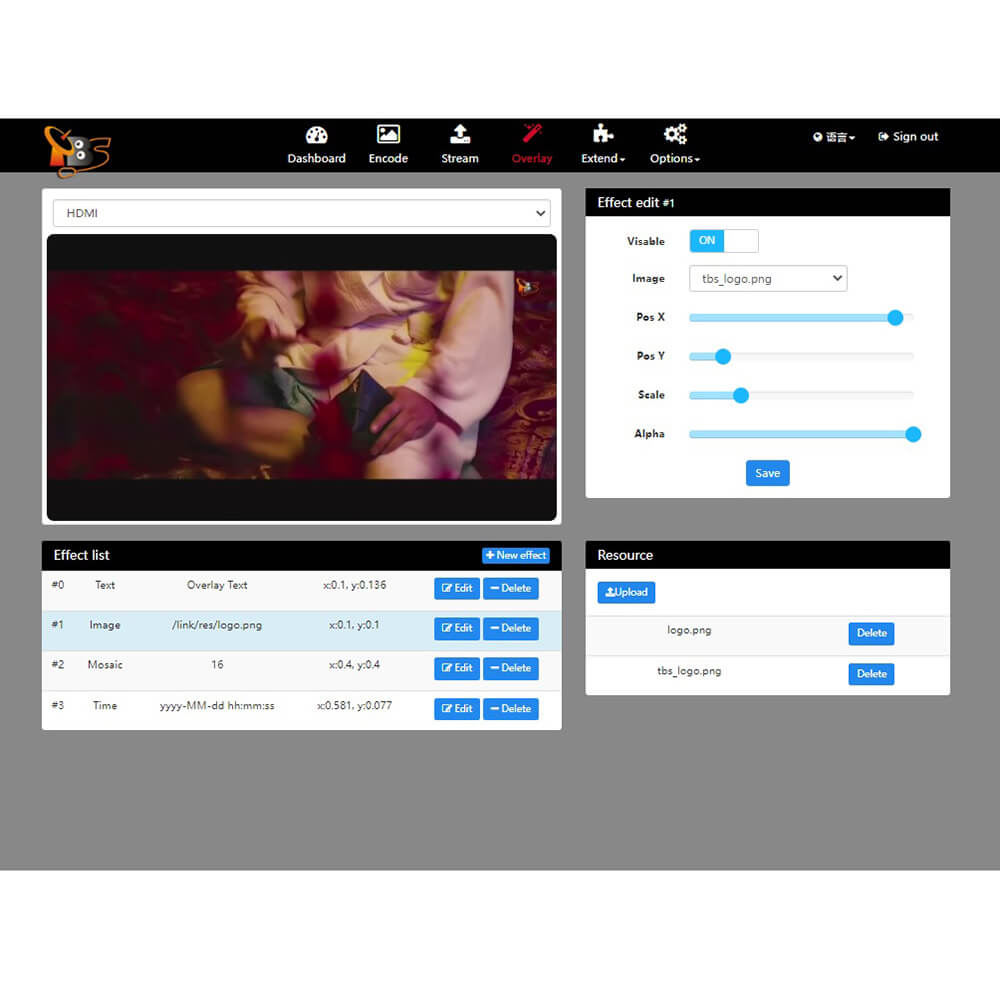

- Support inserting Logo, Text, Mosaics and Time Display to the video
- Support output displayed video resolution and frame rate setting (max 1920x1080P@60hz)
Applications:

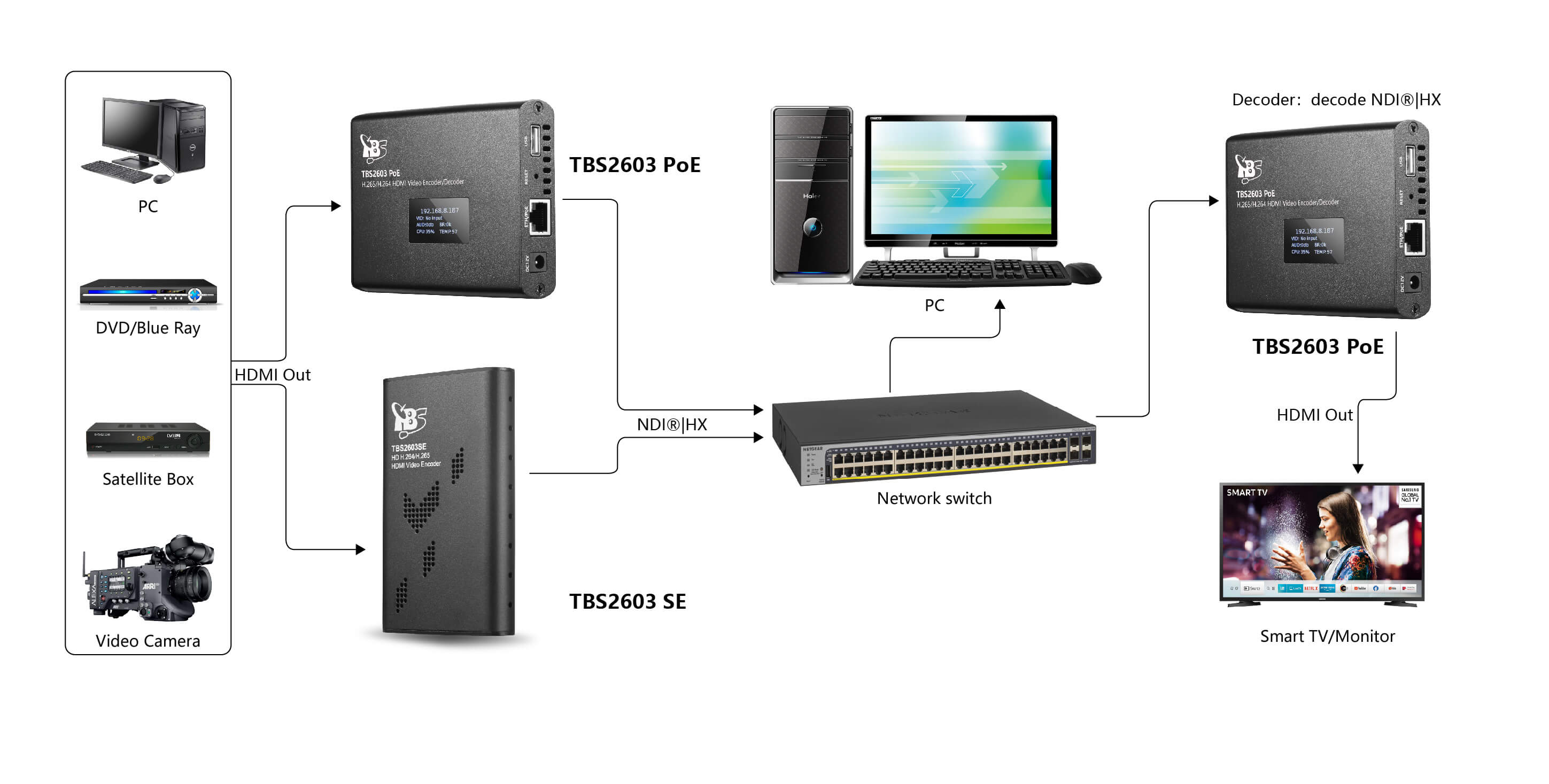

- NDI Decoding

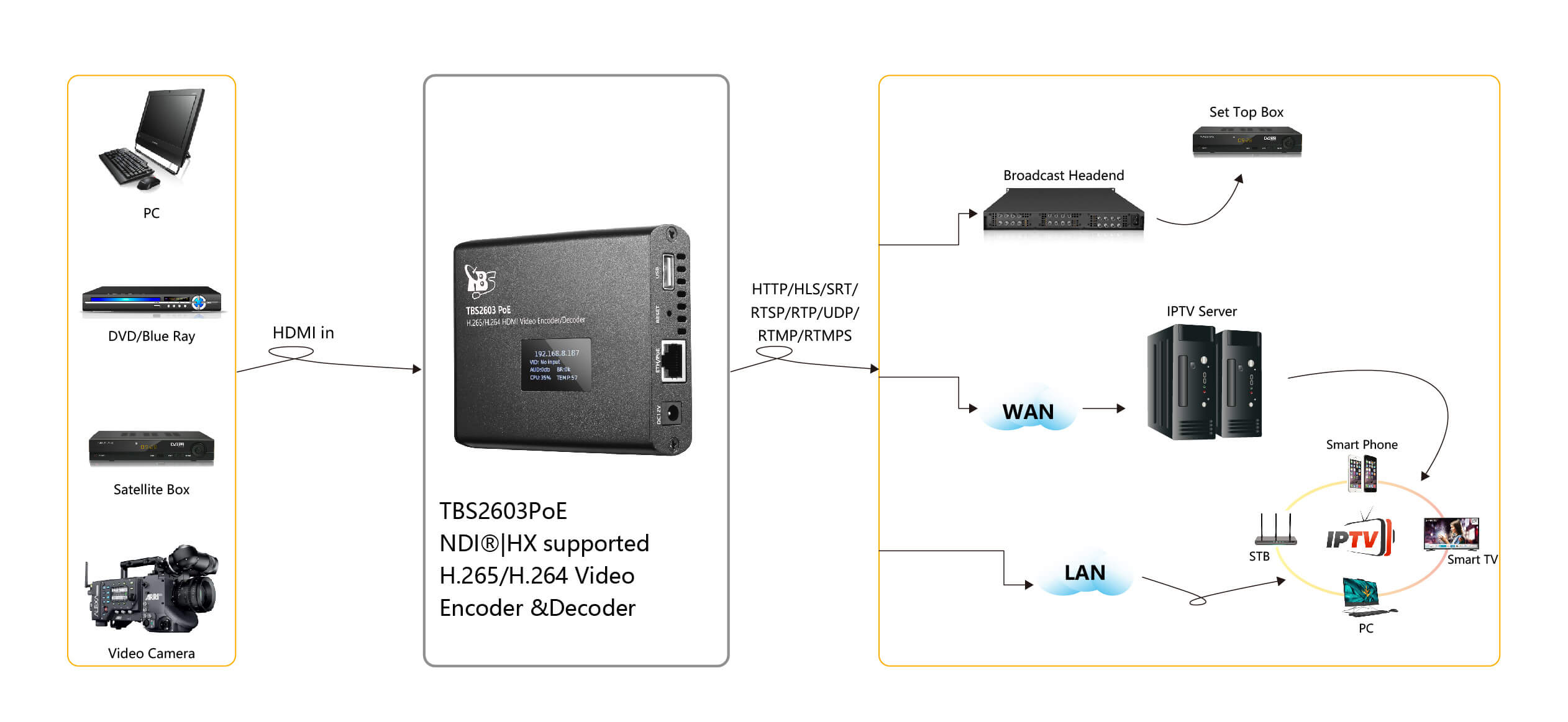

- IPTV

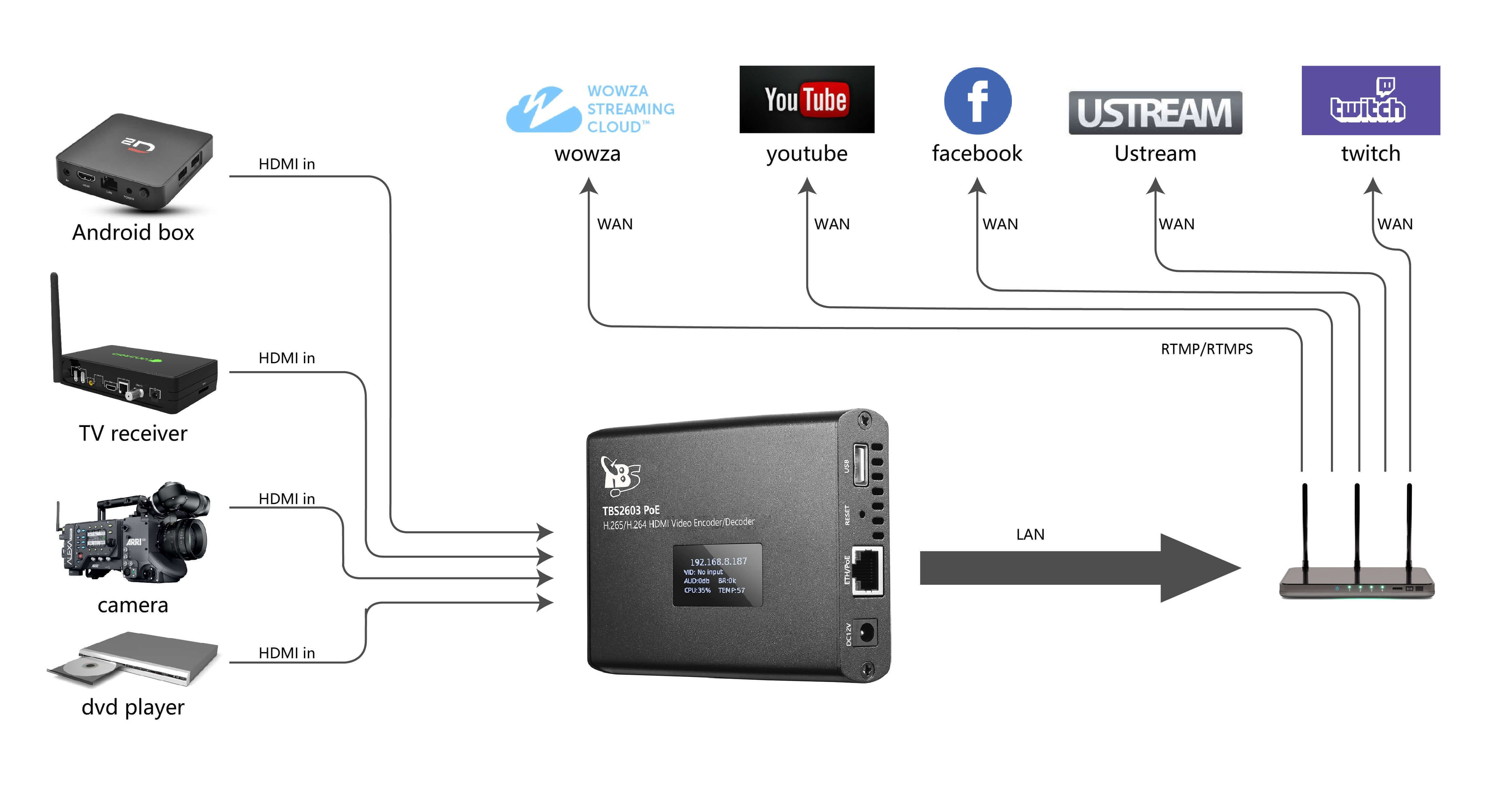

- Live broadcasting to Social Media
Specification
| Model Number | TBS2603 PoE |
| Video Input | 1x HDMI 1.4, NDI®|HX streams, 1x USB2.0 from UVC Camera |
| Audio Input | HDMI-embedded, Line-in (Jack 3.5mm) |

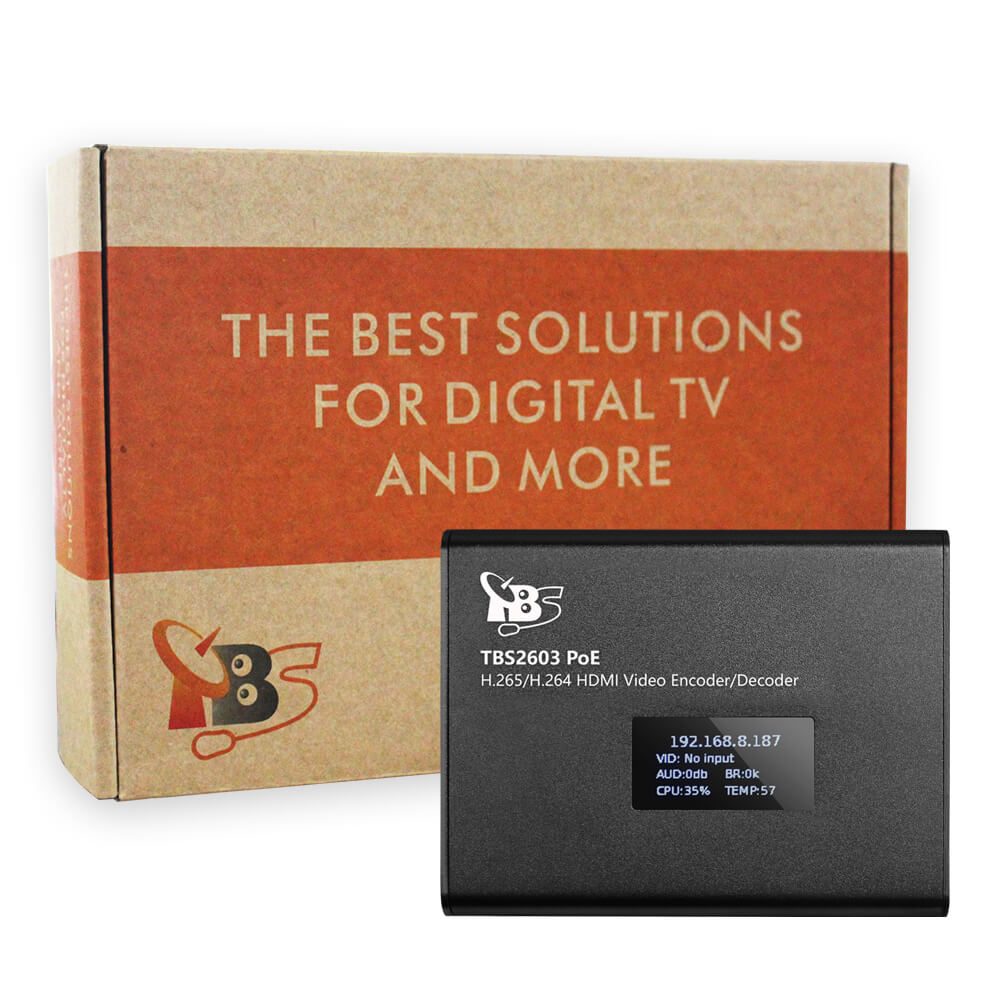

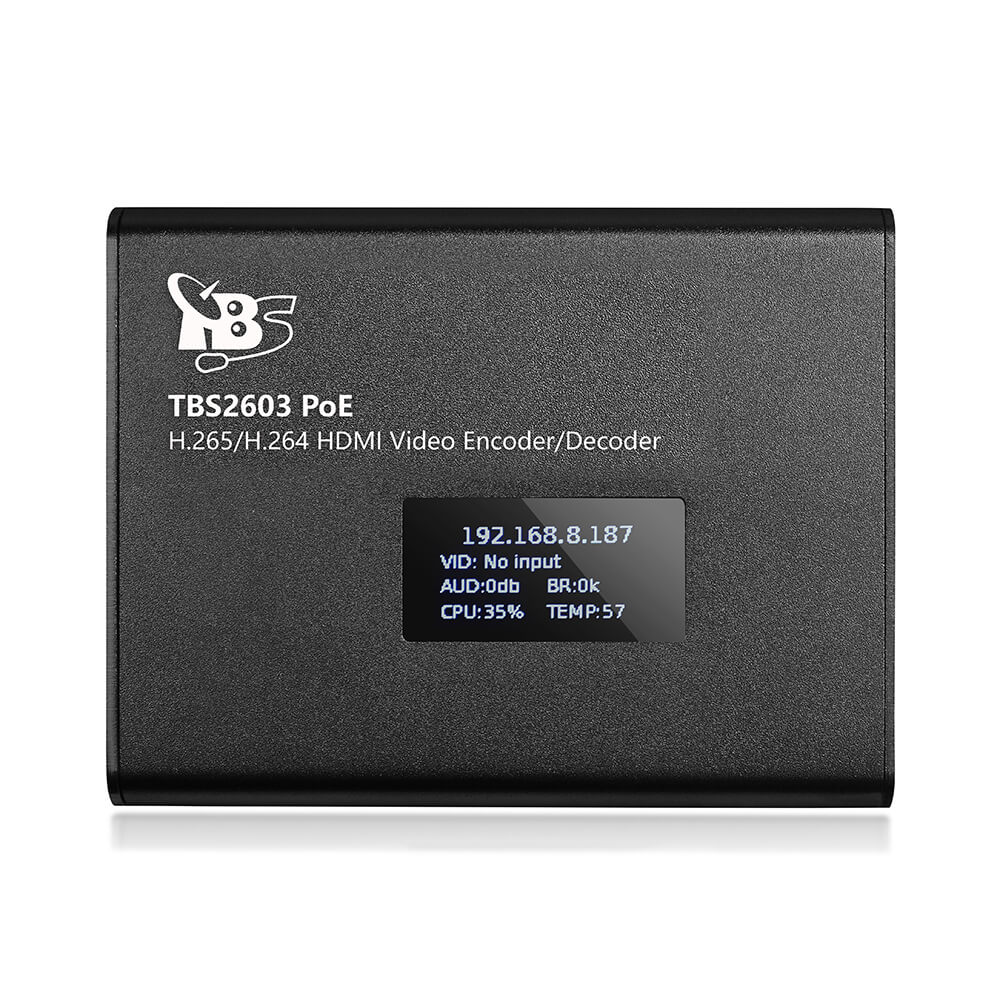

| OLED display | IP, input video resolution, CPU utilization, Core temperature |
| Encode | |
| Video Input Resolution | 1920x1080P_50/60HZ, 1920x1080I_50/60HZ, 1280x720P 50/60HZ |
| 720x576, 640x480, 360p, and etc. | |
| Video Output Resolution | 1920x1080P@60fps; 1680x1050; 1280x720; 1024x576; 850x480; |
| 720x576; 720x480; 640x480; 480x360; 360x240; auto; customized and etc. | |
| Video Encode | H264 Base line, H264 Main, H264 High, H265 Main |
| Video Bit Rate | 0.5Mbps-20Mbps |
| Bit Rate Control | CBR, VBR, AVBR, FIXQP |
| Protocol | NDI®|HX, HTTP, HLS(M3U8), RTSP, SRT, RTP/ UDP Unicast/ Multicast, RTMP(RTMPS) |
| Audio Encode | AAC, MP3, MPEG2, PCMA |
| Audio Sampling rate | 16K, 32K, 44.1K, 48K |
| Audio Sampling precision | 16 bit |
| Audio Bit Rate | 32Kb/s ~ 256Kb/s |
| Network Stream IN | |
| Video | H264 Baseline, Main, High Level 4.2; H265 Main, Level 4.1 |
| Audio | MPEG2, MP3, AAC |
| Protocol | NDI®|HX stream, HTTP, RTSP, RTP/UDP, SRT, RTMP (pull), RTMP push(it can be another media server push to Encoder) |
| Decode | |
| Video code | H.265 Main Profile, Level 4.1, H.264 Baseline/Main/High Profile Level 4.2 |
| Audio code | Mpeg2, MP3, AAC |
| Source | HDMI in decode; Network stream decode, NDI decode |
| Record | |
| USB record | To USB flash disk or USB hard disk |
| Format | *.MP4, *.TS, *.FLV, *.MKV, *.MOV |
| System | |

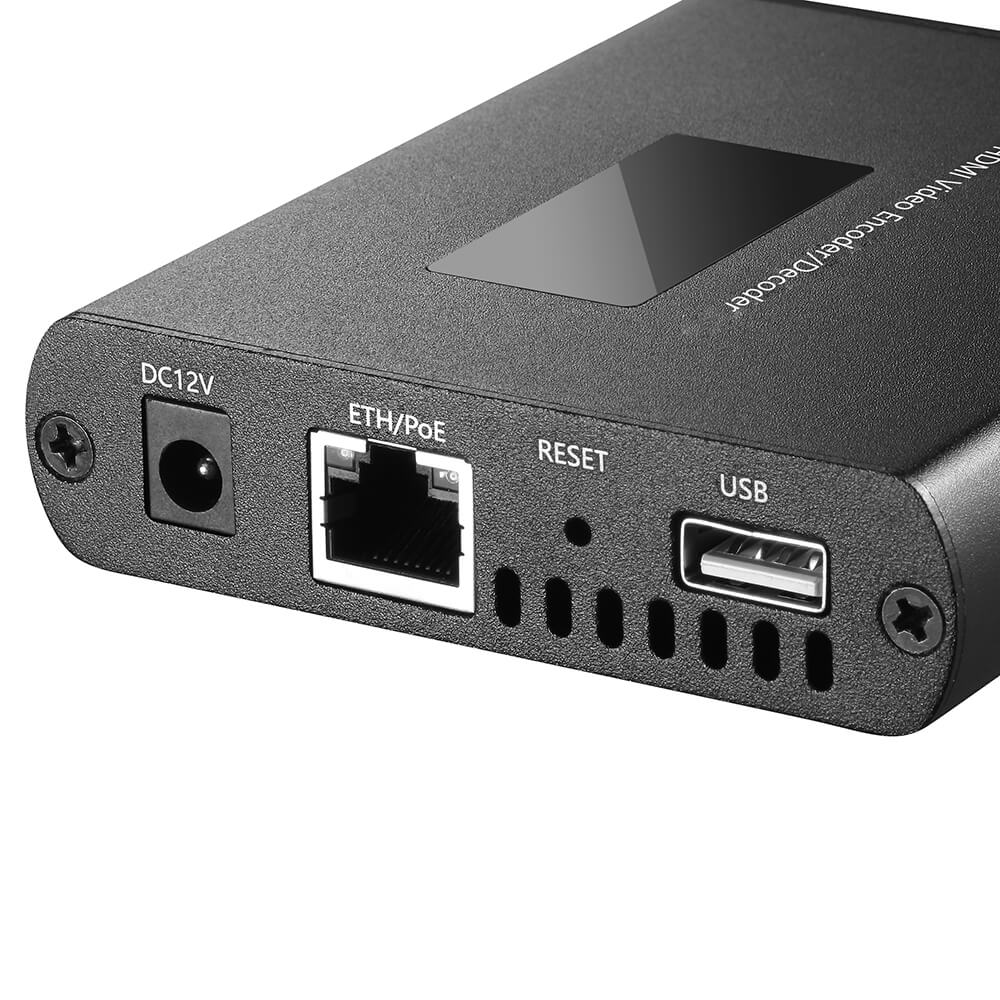

| Ethernet / RJ45 | 1000 Base-T Ethernet interface IEEE 802.3af PoE supported |
| Supported System | Windows XP/ VISTA/ SERVER/ WIN7/ WIN10, Linux, MAC OS |

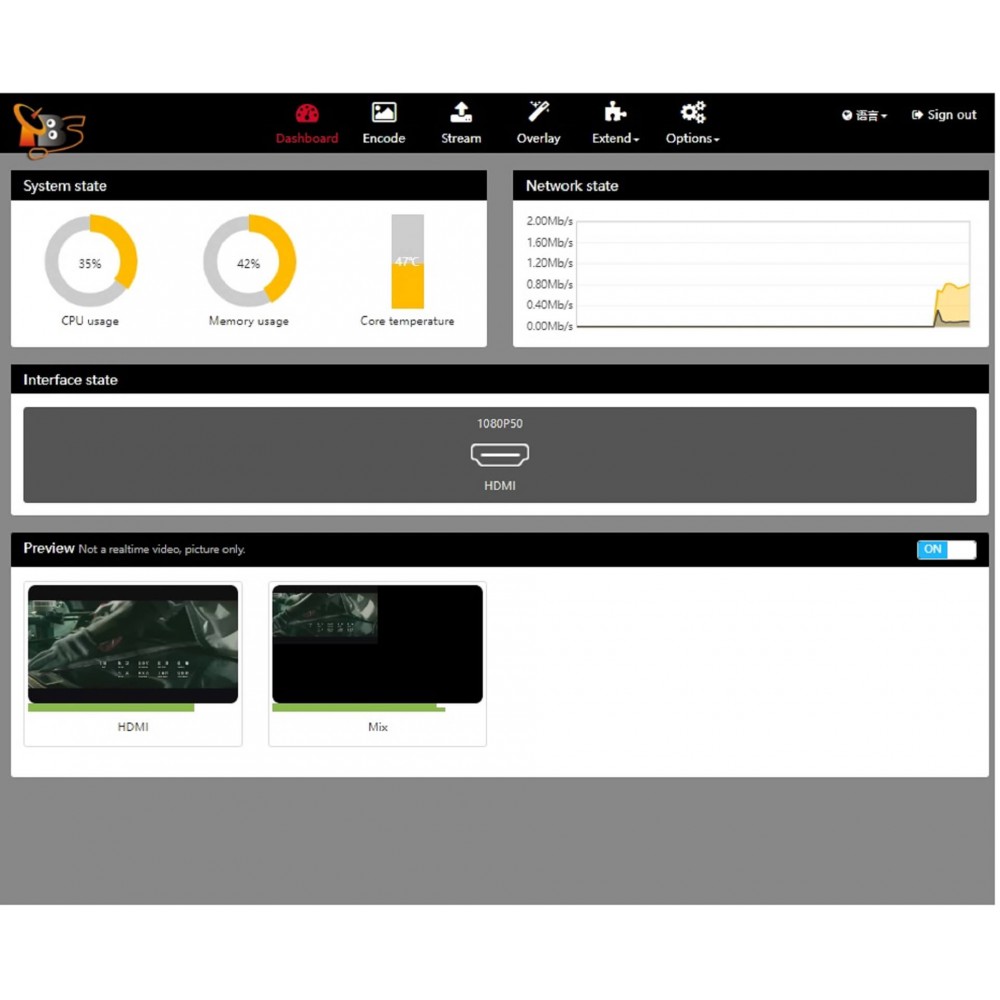

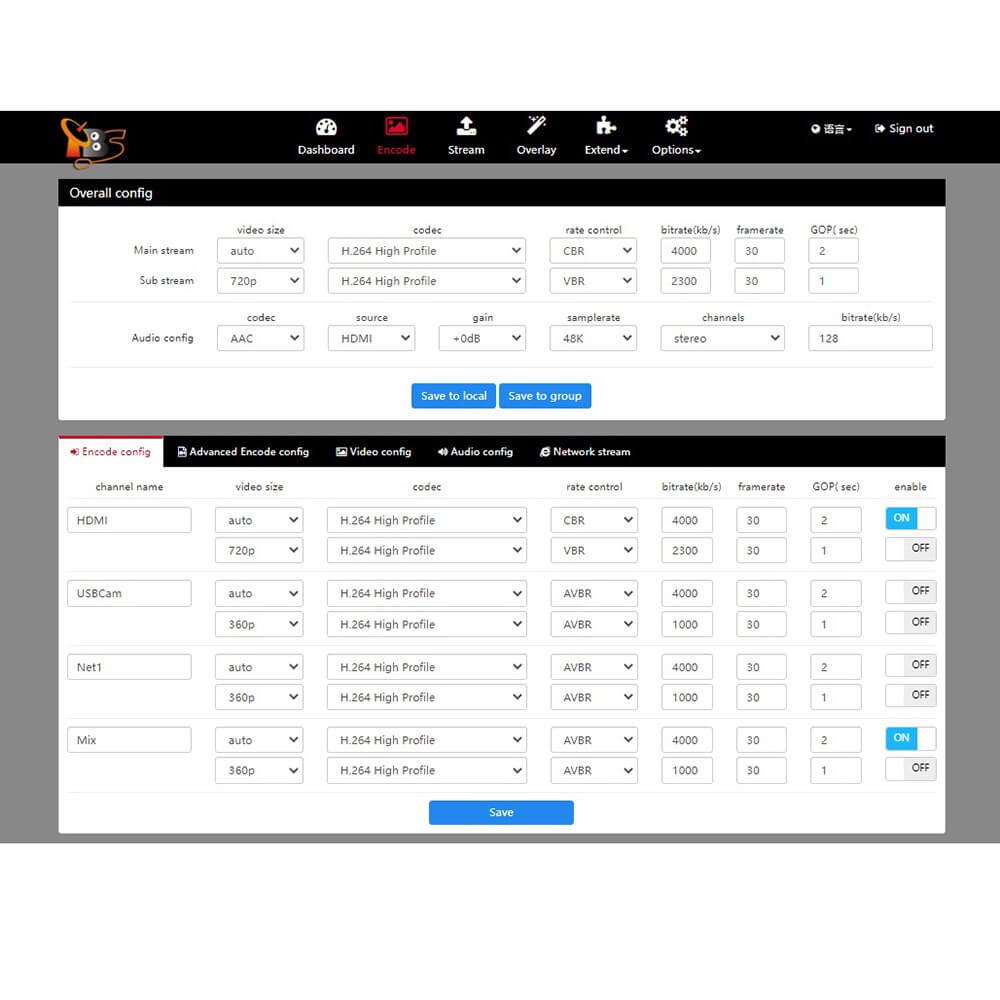

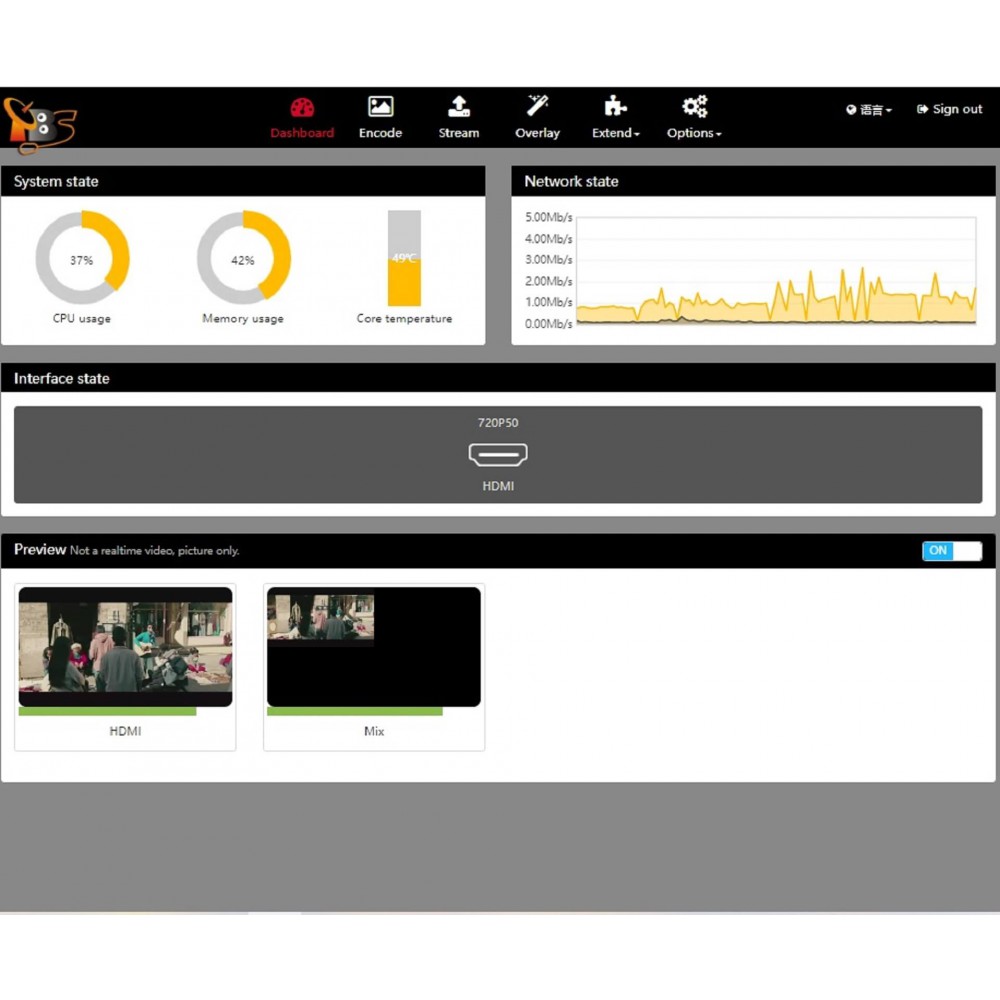

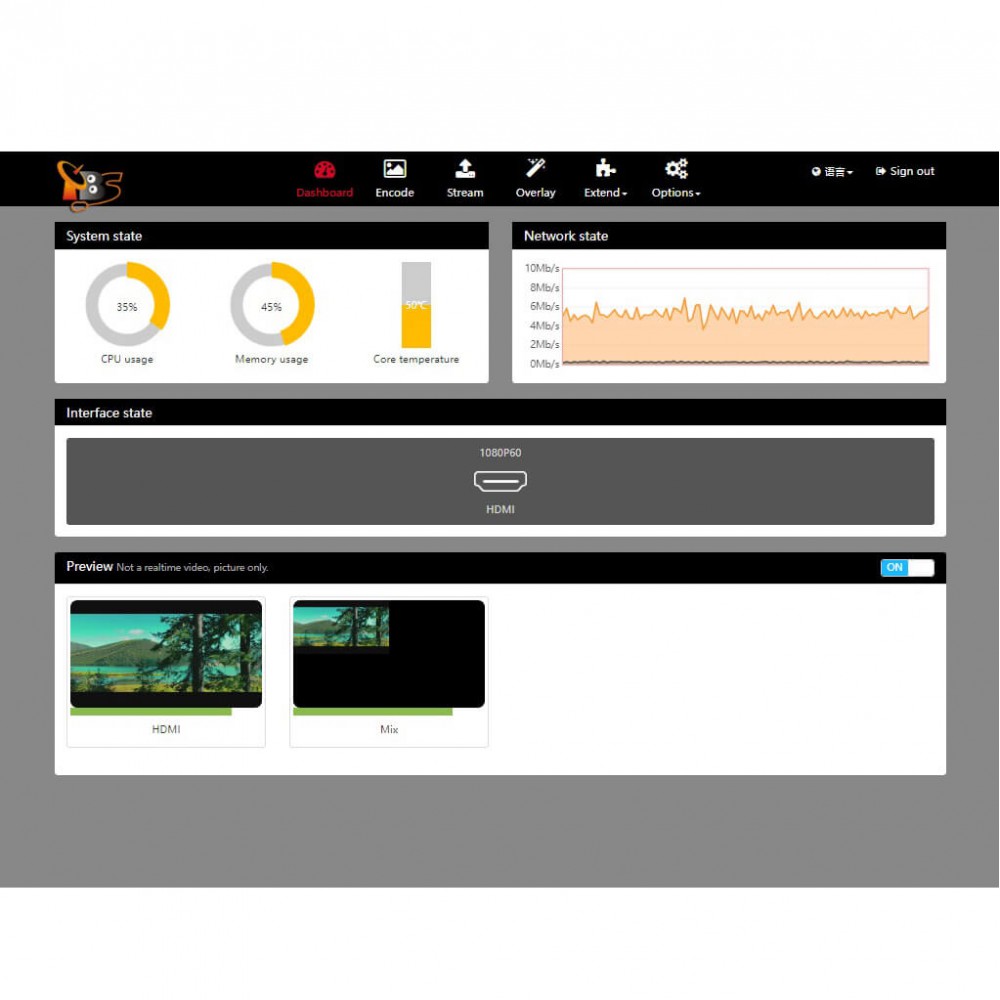

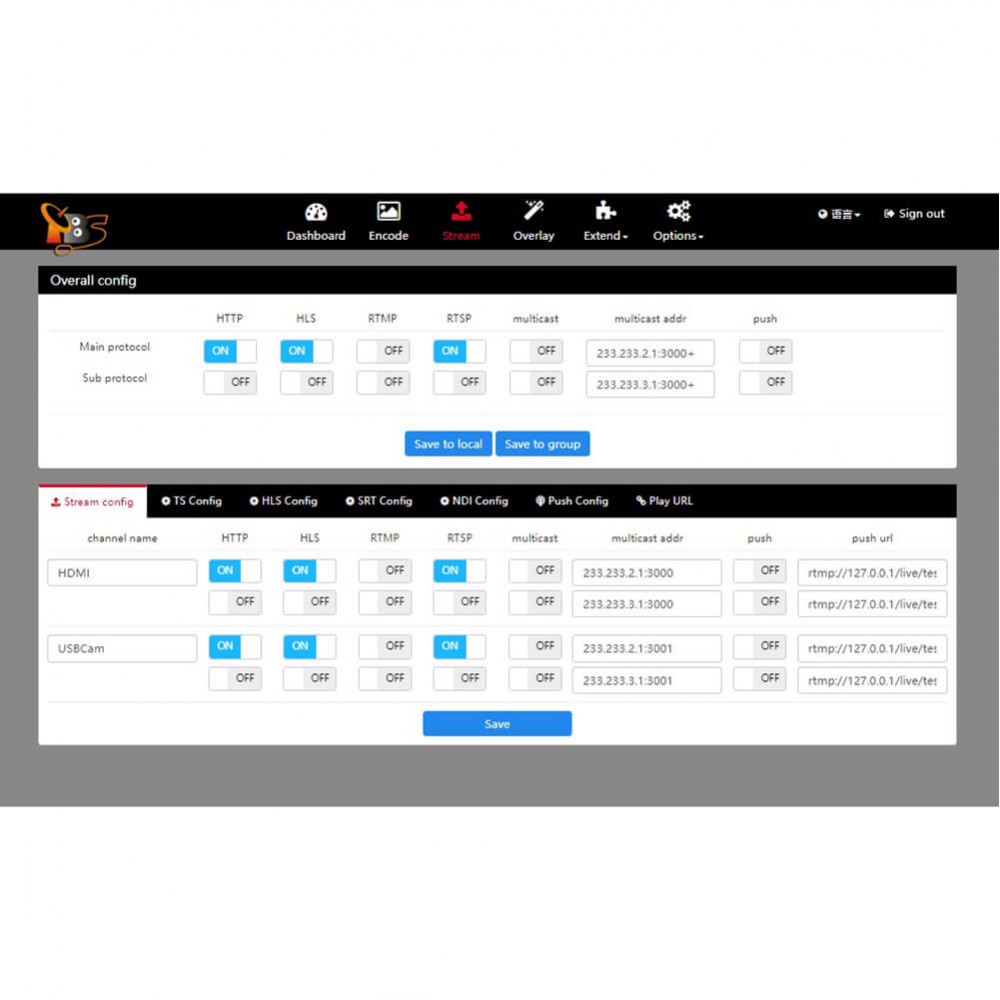

| Control | WebUI |
| General Spec. | |
| Dimension | 100 * 60 * 31.5mm |
| Power Consumption | Less than 6W |
