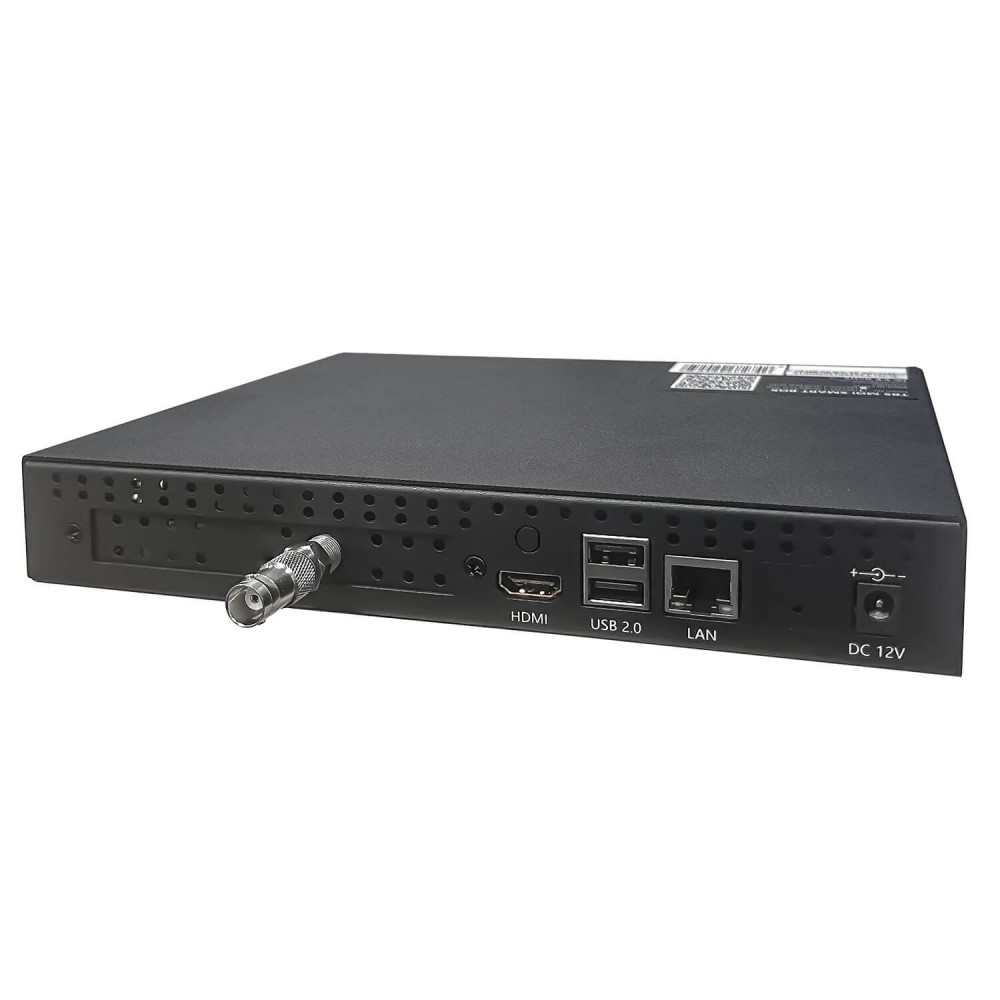

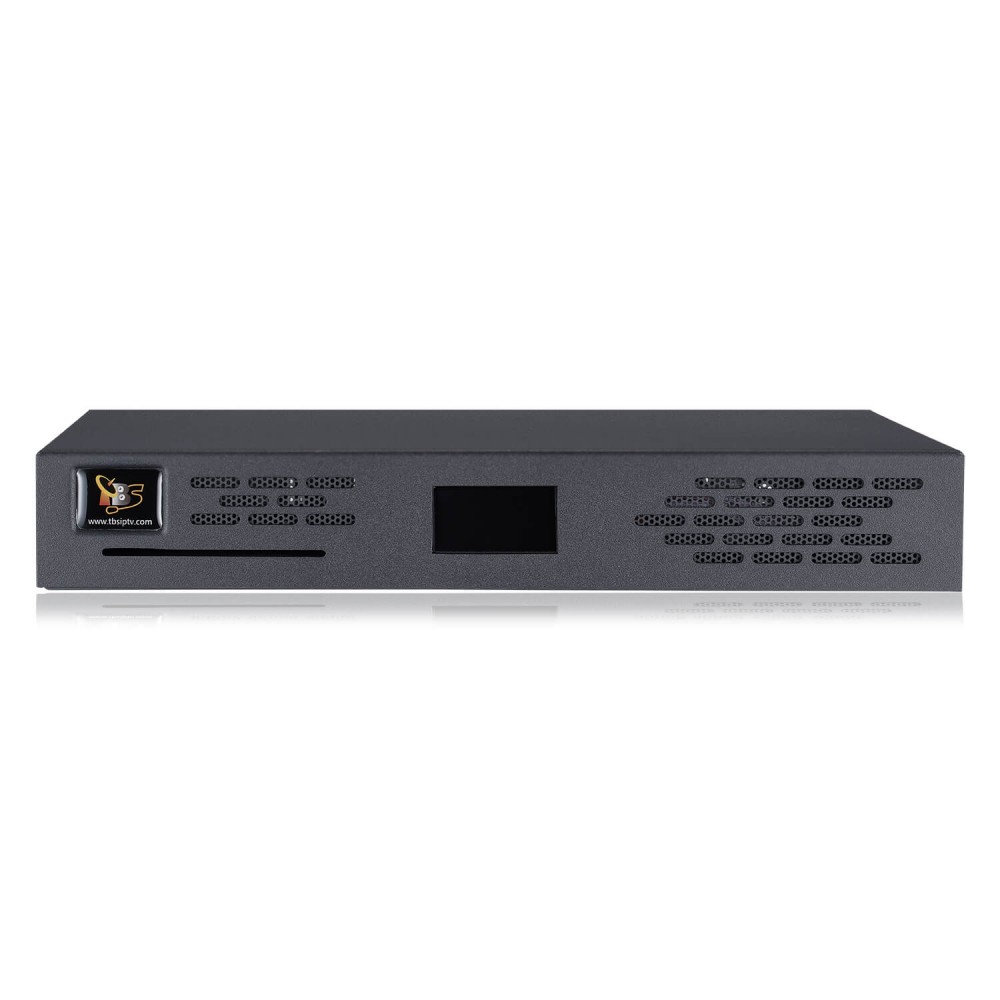

TBS260B pro IP to ASI converter
TBS260B pro IP to ASI converter
- Model: TBS260B Pro
- Weight: 2,000.00g
- Reward Points:750
In Stock
US$750.00
The IP to ASI Converter is an advanced signal conversion solution designed for broadcasters, cable operators, and other professional video applications. With robust hardware and intuitive software, this device seamlessly converts multiple IP stream protocols into ASI output for efficient signal distribution.
· Multi-protocol IP Stream Support:
HTTP, UDP, RTP, HLS, SRT, SPTS, and MPTS.
HTTP, UDP, RTP, HLS, SRT, SPTS, and MPTS.
· Output:

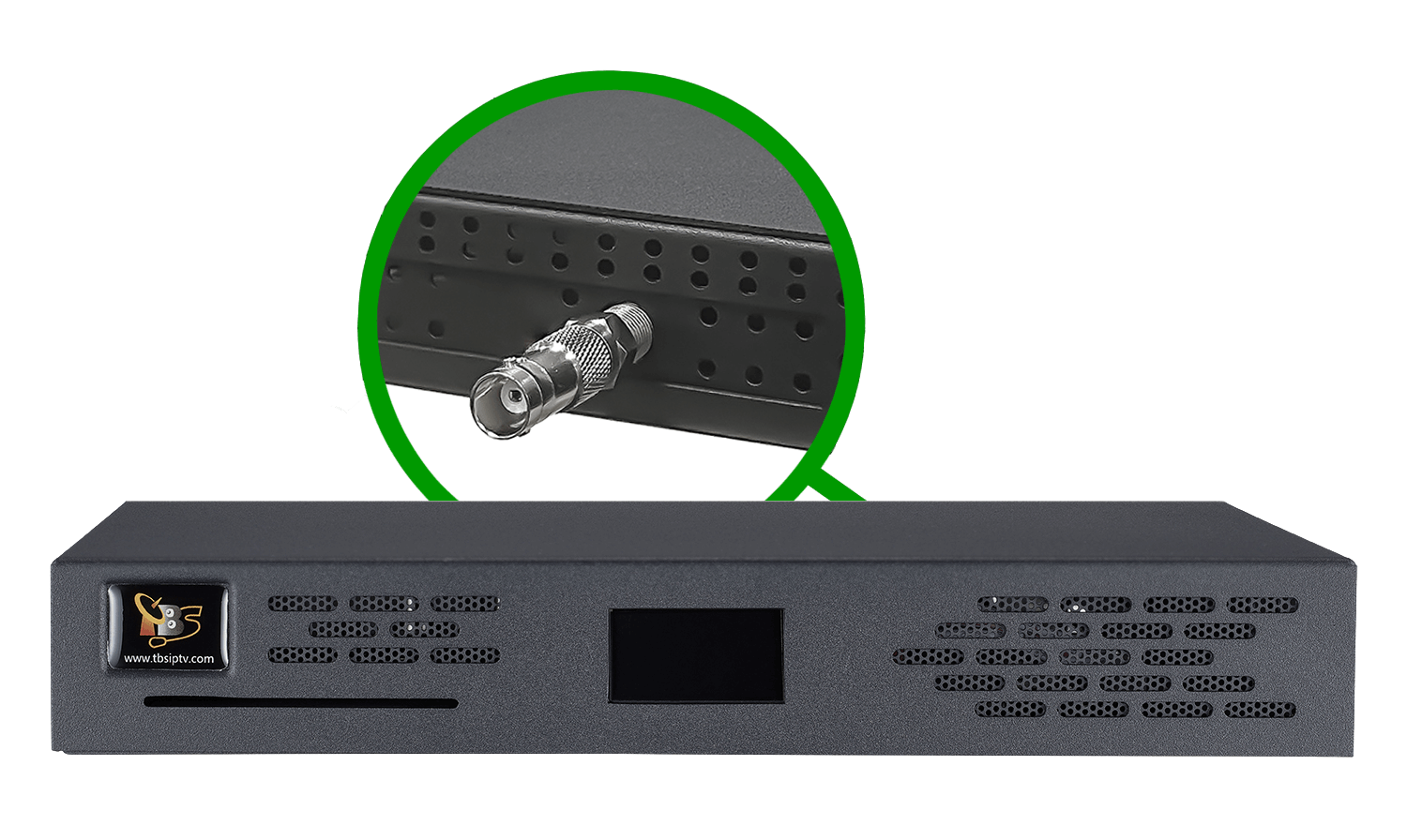

1 ASI output port.
1 ASI output port.
· Hardware Highlights:
Powered by Quad-core 64-bit ARM SoC @ 2.0GHz.
Powered by Quad-core 64-bit ARM SoC @ 2.0GHz.
· Kylone IP Streaming System:
User-friendly interface for IP stream management and ASI output configuration.
User-friendly interface for IP stream management and ASI output configuration.
Specifications
| Basic server spec: | |
| Processor | Quad-core 64-bit ARM SoC @ 2.0GHz |
| RAM | 4GB LPDDR4 |
| Flash | 16GB eMMC |
| LAN | 1Gb onboard Ethernet |
| USB2.0 | 2 * USB2.0 port |
| HDMI | 1 * HDMI2.0 Out |
| UART | 1 x LCD Display |
| PSU | 12V/3A external |
| Input & Output: | |
| IP Streams | HTTP, UDP, RTP, HLS, SRT, SPTS, MPTS |
| ASI output | TS stream |
| ASI output rate | Up to 140Mbps |
| Managing system | Kylone streaming system |
| IGMP | Support V1, V2, V3 |
| Common information: | |
| Working Environment |
|
| Dimensions(chassis) | 230 * 180 * 34mm |
