TBS2804SDI 1080P@60fps 4 Channels SDI Video Encoder
TBS2804SDI 1080P@60fps 4 Channels SDI Video Encoder
- Model: TBS2804SDI
- Weight: 2,500g
- Reward Points: 990
In Stock
US$990.00
TBS2804SDI is a high-definition multi-channel SDI video encoder，which supports 4 independent SD/HD/3G-SDI inputs and H.264/H.265 encoded streams output via single RJ45 interface.
TBS2804SDI supports up to 4-channel 1080P@60Hz input and H.265/H.264 1080P@60fps video encode. It especially optimized for low-bitrate LAN/WAN transmission, enabling high-definition streaming even under limited bandwidth conditions.

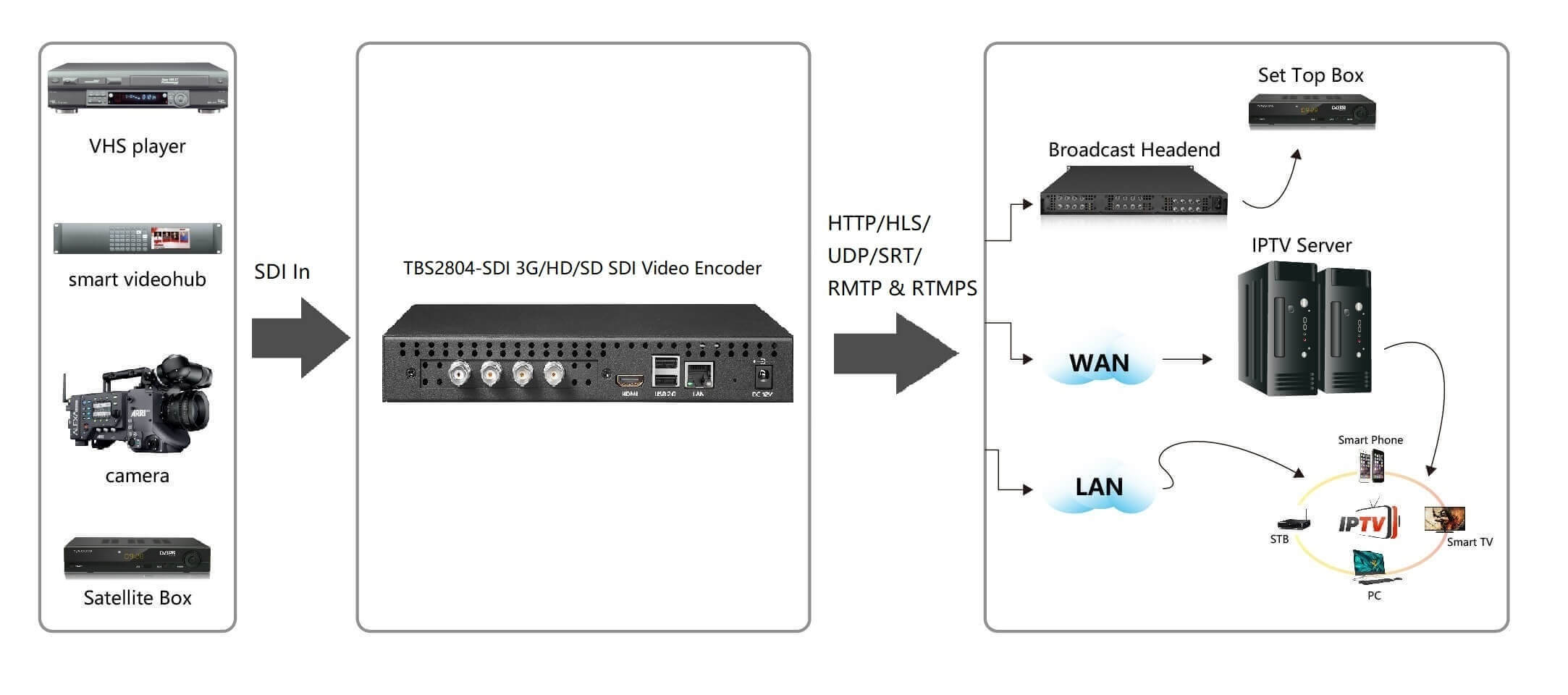

From any SDI video sources and SDI embedded audio，TBS2804SDI can generate H.264/H.265 & AAC-LC/ AAC-HE/ MP2 encoded streams compliant with HLS (m3u8), HTTP, SRT, UDP, RTMP/RTMPS protocols. It provides professional-grade hardware encoding solution for broadcast and streaming applications and more.

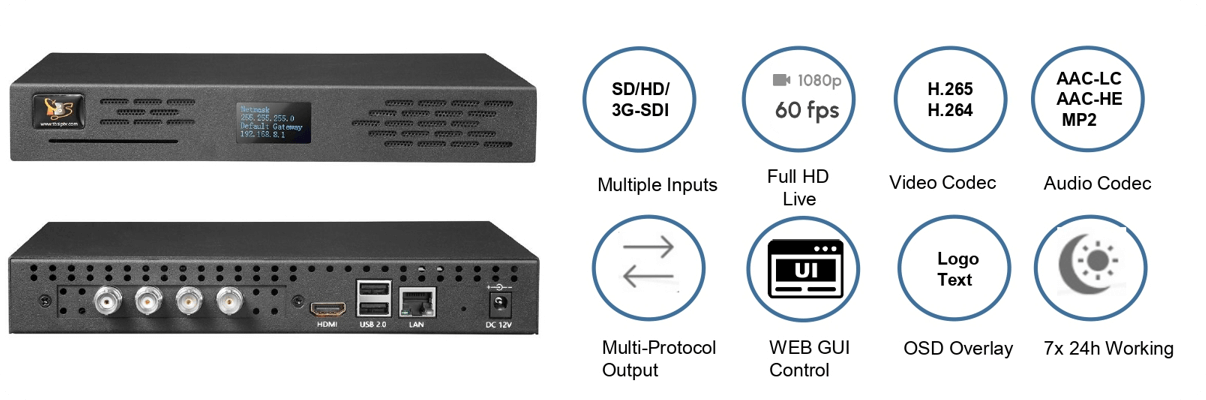

Features
- Multi-channel Inputs: 4x 3G/HD/SD-SDI input
- High-resolution Encoding: Up to 4x 1080p@60fps encoding
- SDI Audio Embedded Input: Up to 4 stereo audio tracks (8 channels mono audio)
- Supports H.265/HEVC & H.264/AVC video encoding
- Multi-protocol IP Output: HTTP, HLS(m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS

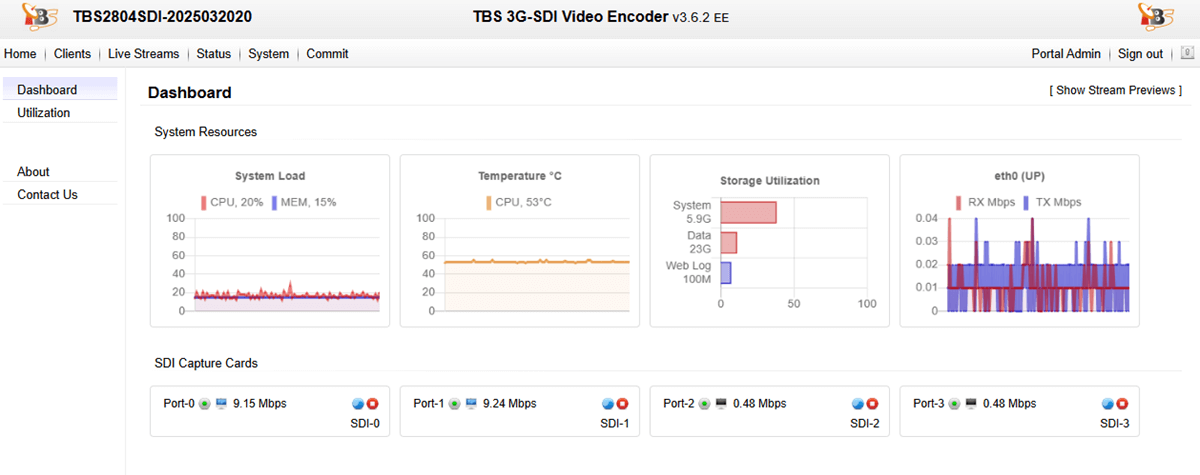

- Web-based GUI for remote management
- Support OSD overlay, including inserting logo/text into video

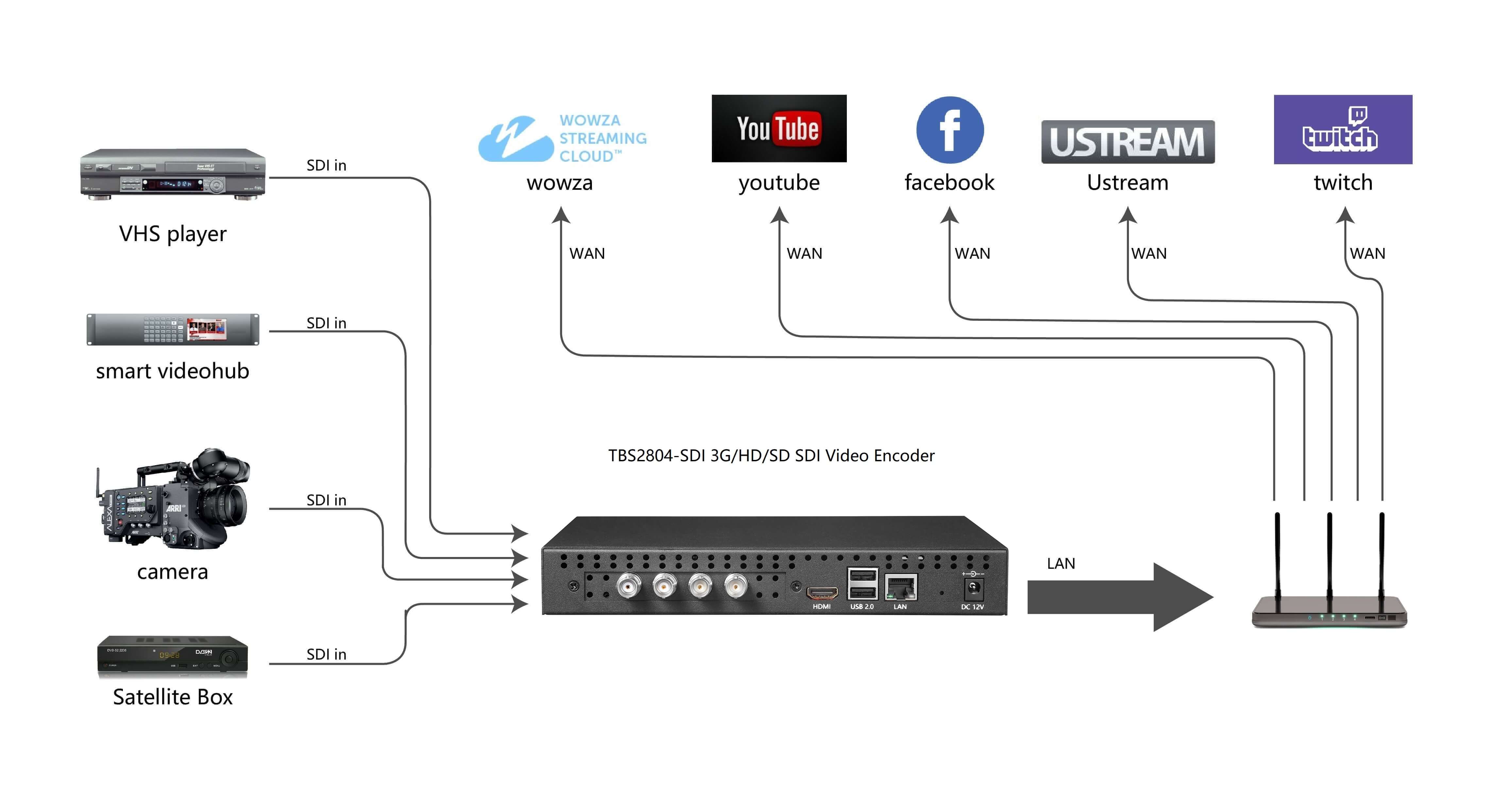

- Flexible Integration: Compatible with media servers (e.g. Wowza, FMS etc.) and social media platforms (e.g. YouTube, Facebook, Twitch etc.)
- Broadcast-Grade Stability: Designed for 24/7 operation in IPTV, live streaming and broadcast environments.
Applications
- Digital TV broadcasting system
- IPTV & OTT system
- Datacasting and monitoring
- Live TV encoding and streaming
- Digital signage project
- Remote video conference
Specification
| Model NO. | TBS2804SDI |
| Product Name | 1080p@60fps 4 Channels SDI Video Encoder |

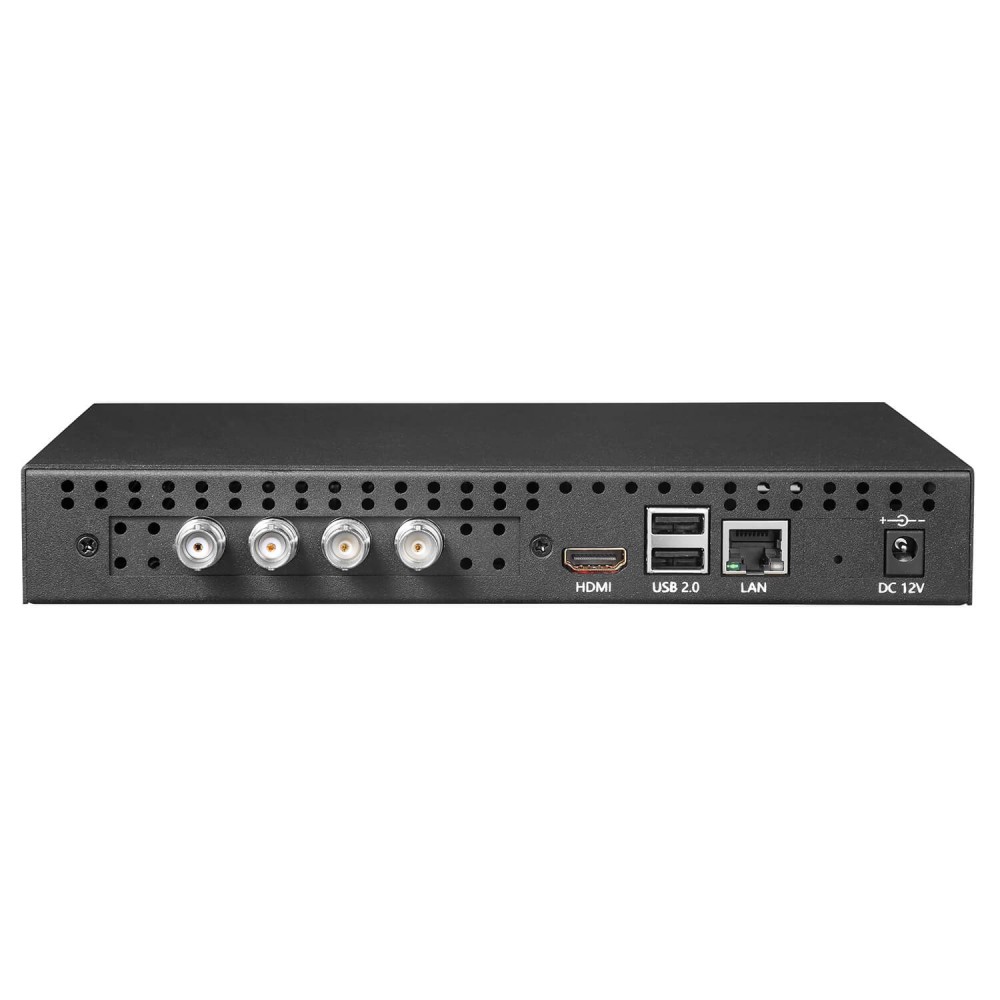

| Input | 4x SDI (BNC Female) |
| Output | IP Streams |
| Video | |
| Video Input | SD-SDI (SMPTE 259): 480i, 576i |
| HD-SDI (SMPTE 292): 1920x1080i_60/50hz,1920x1080p_30/25/24hz, 720p_60/50hz | |
| 3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B | |
| Video Encode Size | auto, 1920x1080, 1680x1056, 1280x720, 1024x576 |
| 720x576,720x480,704x576,640x480,640x360 | |
| Video Output | 1920x1080p@60/50/30/25/24fps, |
| 1280x720p@60/50/30/25fps, 720x576p@30fps, 640x480p@30fps etc. | |
| Video Codec | H.264, H.265 |
| Profile | H.264: Baseline, Main, High |
| H.265: Main | |
| Level | H264: Level 4.2; H265: Level 4.1 |
| Bitrate Control | CBR, VBR, EVBR |
| Frame Rate | 5 ~ 60fps |
| Key Interval (GOP) | 5~180fps |
| GOP Structure | IPPP |
| Bitrate | 0.3 ~ 20Mbps |
| Color depth | 8 bit |
| Chroma subsampling | 4:2:0 |
| De-interlace | Supported, force to do de-interlace when i (interlace) input |
| Audio | |
| Audio Input | SDI embedded Supports up to 4 stereo audio tracks (8 mono audio channels): channel 1-2, 3-4, 5-6, 7-8 |
| Audio Codec | AAC(LC, HE), MP2 |
| Audio Bitrate | 24/32/44.1/48/64/96/128/160/192/256 Kbps |
| Audio Resample | 48/44.1/32 Khz |
| System | |
| Control | web GUI |
| Recommended Browser | Windows / Linux browsers (e.g., Google Chrome, Firefox, Microsoft Edge) |
| Ethernet / RJ45 | 1x 1000M Base-T Ethernet Interface |
| Protocols | HTTP, HLS(m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS |
| General Spec. | |
| Power Consumption | Less than 48 Watt |
| Net Weight | 1.31kg |
| Dimension | 230mm * 180mm * 34mm |
| Working Environment | Operating temperature: 0 to 60 °C |
| Storage temperature: –20 to 70 °C | |
| Relative Humidity: 5% to 90% (non-condensing) | |

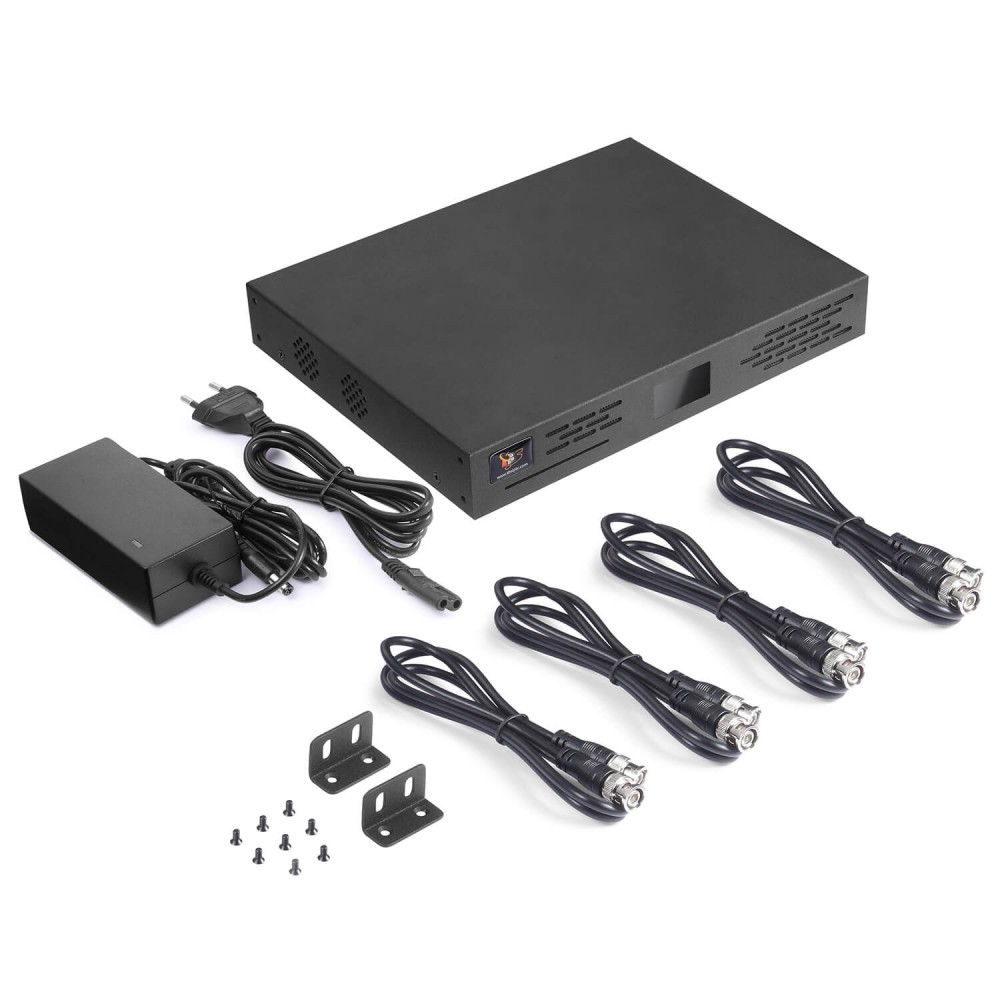

| Package Contents | 1x TBS2804SDI Video Encoder |
| 1x 12V/3A Power Adapter | |
| 4x SDI Cable | |
