TBS2808X 8 Channels 4K 30Hz H.265 / H.264 HDMI Video Encoder
TBS2808X 8 Channels 4K 30Hz H.265 / H.264 HDMI Video Encoder
- Model: TBS2808X
- Weight: 4,000g
- Reward Points: 1500
In Stock
US$1,500.00
TBS2808X is a professional 8 channels 4K HDMI video encoder that enables high-quality content streaming and display. It supports 8 channels 4K@30Hz HDMI input with real-time 4K@30FPS encoding.

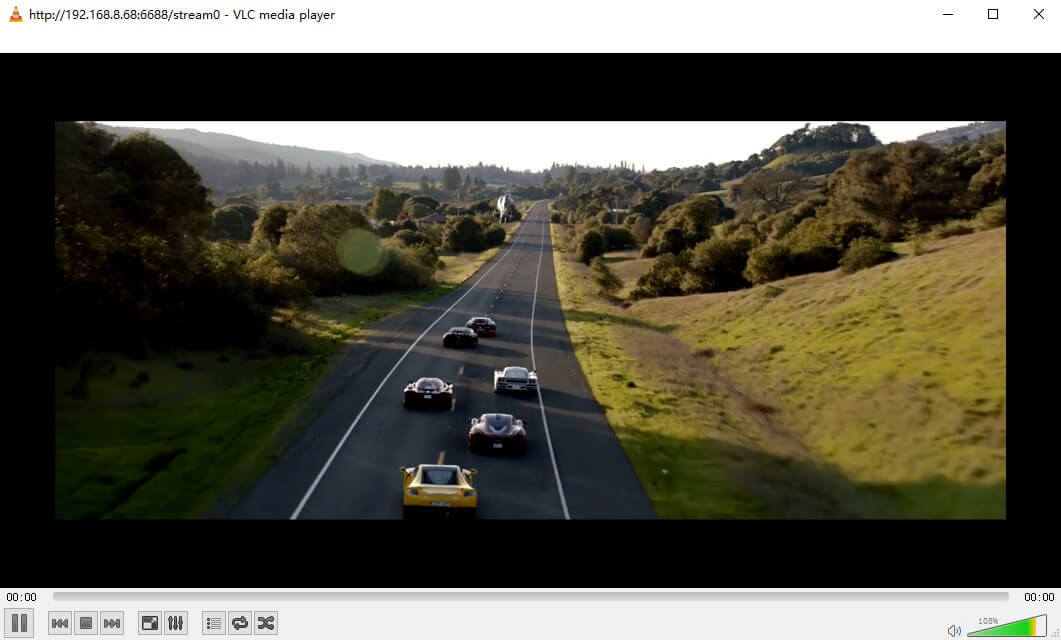

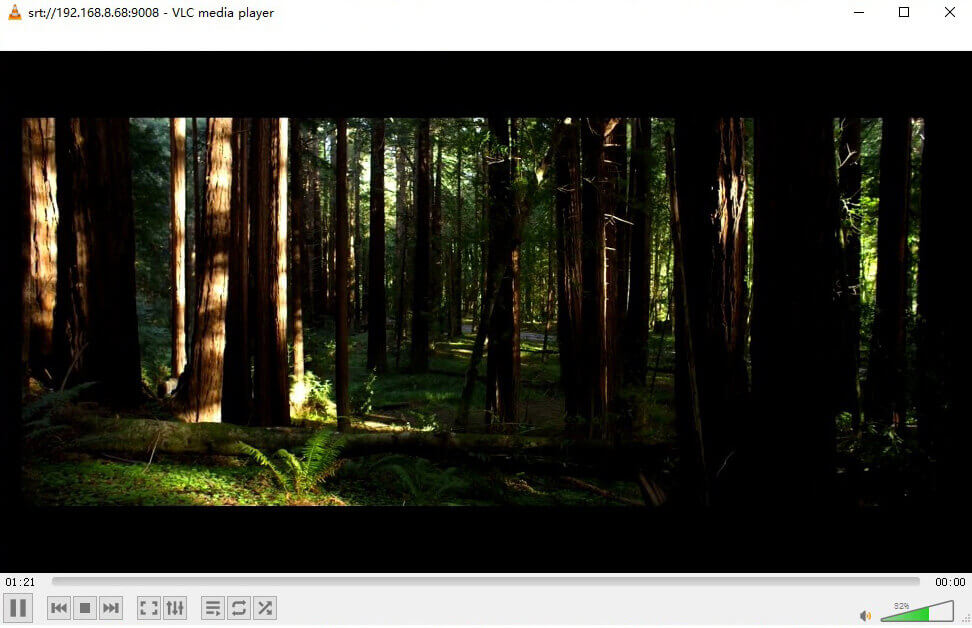

TBS2808X can stream to popular online social media platforms including YouTube, Facebook and Twitch as well as custom RTMP/RTMPS servers. It supports HTTP, HLS (M3U8), SRT (caller/ listener modes), UDP multicast, RTMP/RTMPS protocol output.
TBS2808X enables HD content capture/recording in H.265/H.264 formats. Its web-based GUI control interface facilitates seamless channel switching and parameter adjustment, enhancing television broadcast operations.

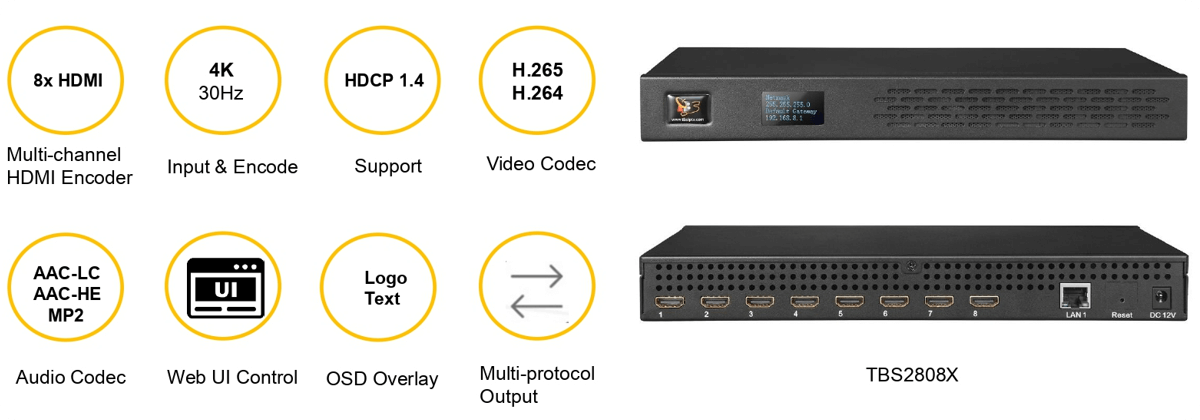

Features
- 8-CH 4K@30Hz HDMI input and encoding
- Real-time H.265/HEVC and H.264/AVC encoding at 4K@30FPS
- Multi-protocol streaming outputs simultaneously
- Compliant with HTTP, HLS(M3U8), SRT(caller / listener modes), UDP multicast, RTMP/RTMPS protocols
- Supports OSD overlay, including adding your own text and logo to video.
- HDCP 1.4 compliance for protected content handling.
- User-friendly Web-based GUI for remote control
- Single LAN port output with efficient bandwidth management.

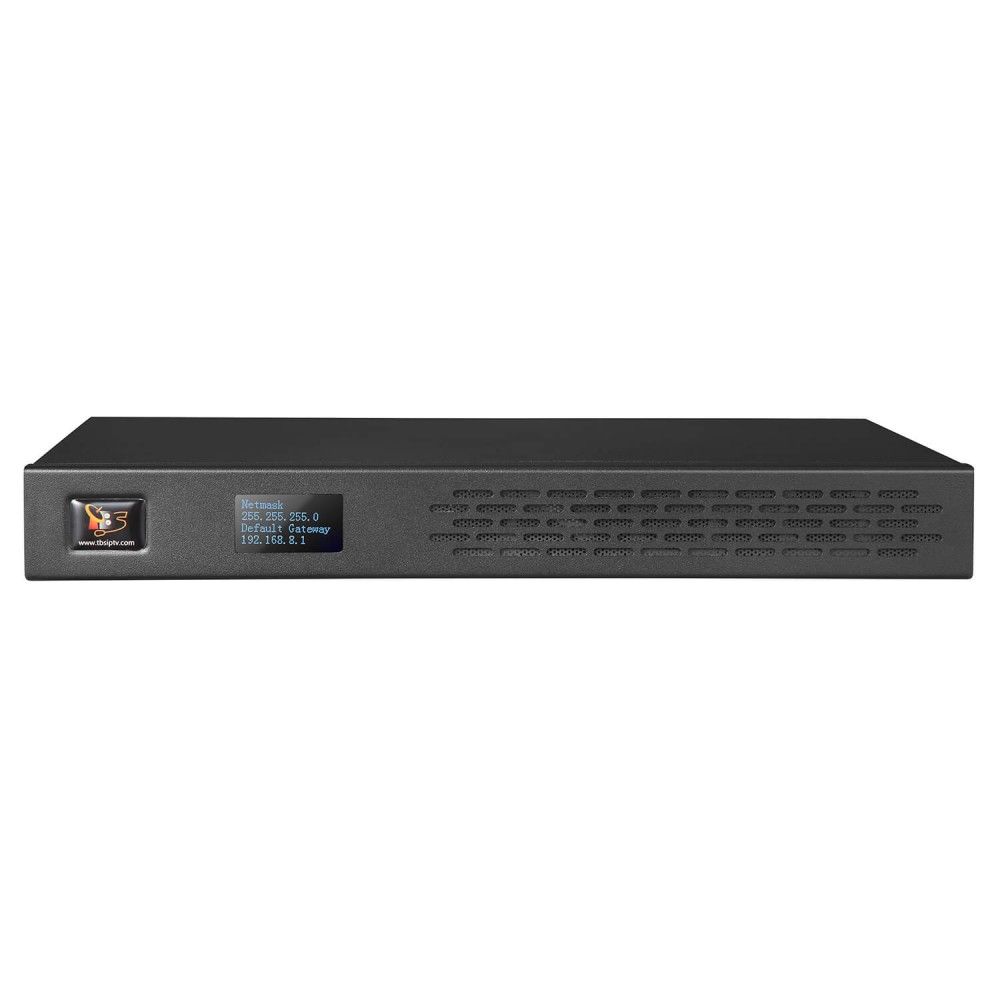

- OLED display for quick access to IP address and system info.
- 7 x 24h stable operation
Applications
- Digital TV broadcasting system
- IPTV & OTT system
- Datacasting and monitoring
- Live TV encoding and streaming
- Digital signage project
- Remote video conference

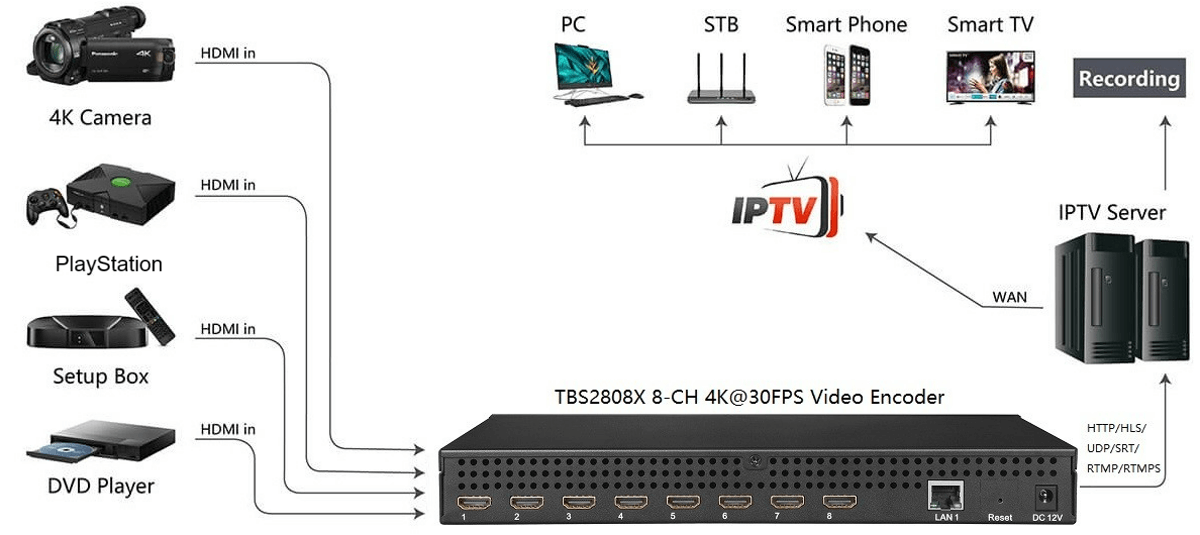

IPTV

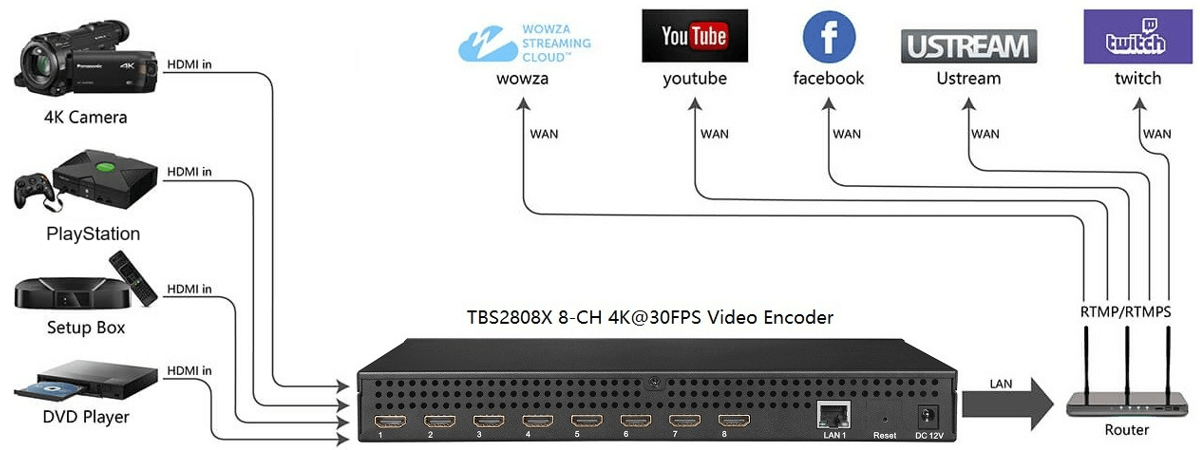

Live Streaming to Social Media
Why choose TBS2808X?
- True 4K Ultra HD Encoding: Native 3840×2160p@30fps real-time encoding in H.265/H.264 format
- Advanced Encoding Efficiency: Intelligent compression technology cuts 4K bandwidth by 50% without quality loss
- Professional Live Streaming: Capture and deliver 4K live streaming over public internet with broadcast-grade quality
User-Friendly Management

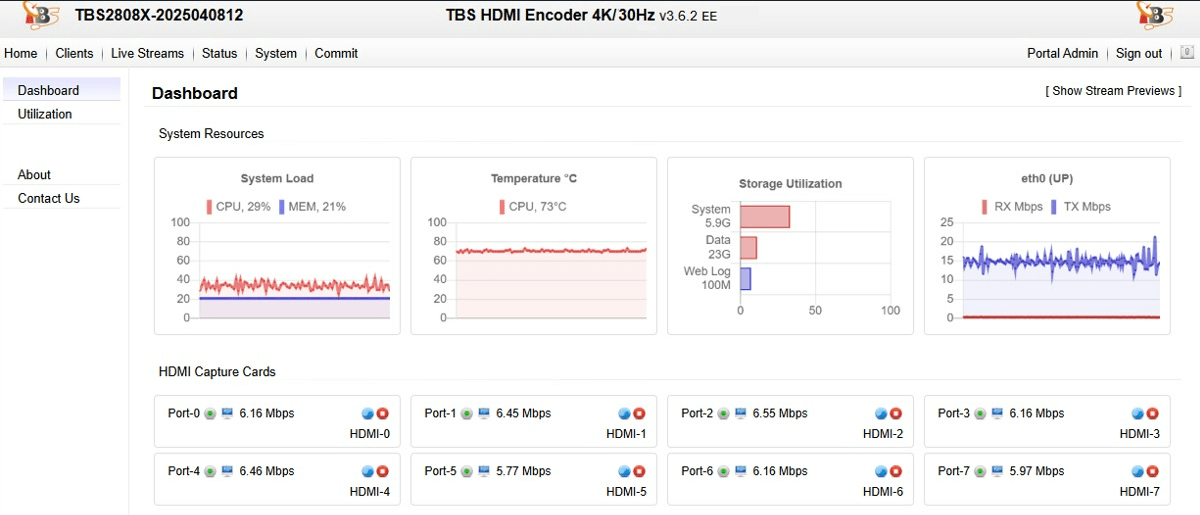

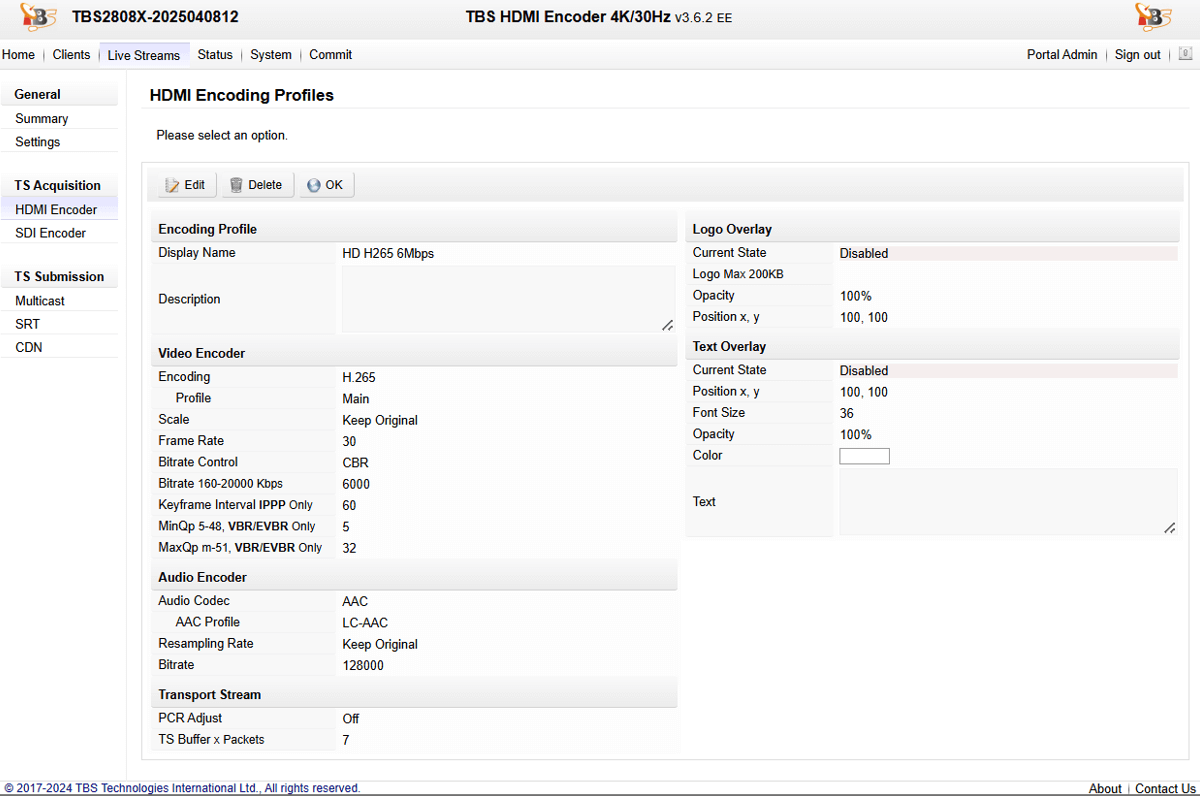

- The Web-based Kylone GUI allows users to monitor the real-time status of TBS2808X 4K HDMI encoder, configure encoding profiles, manage OSD overlay and other functions.

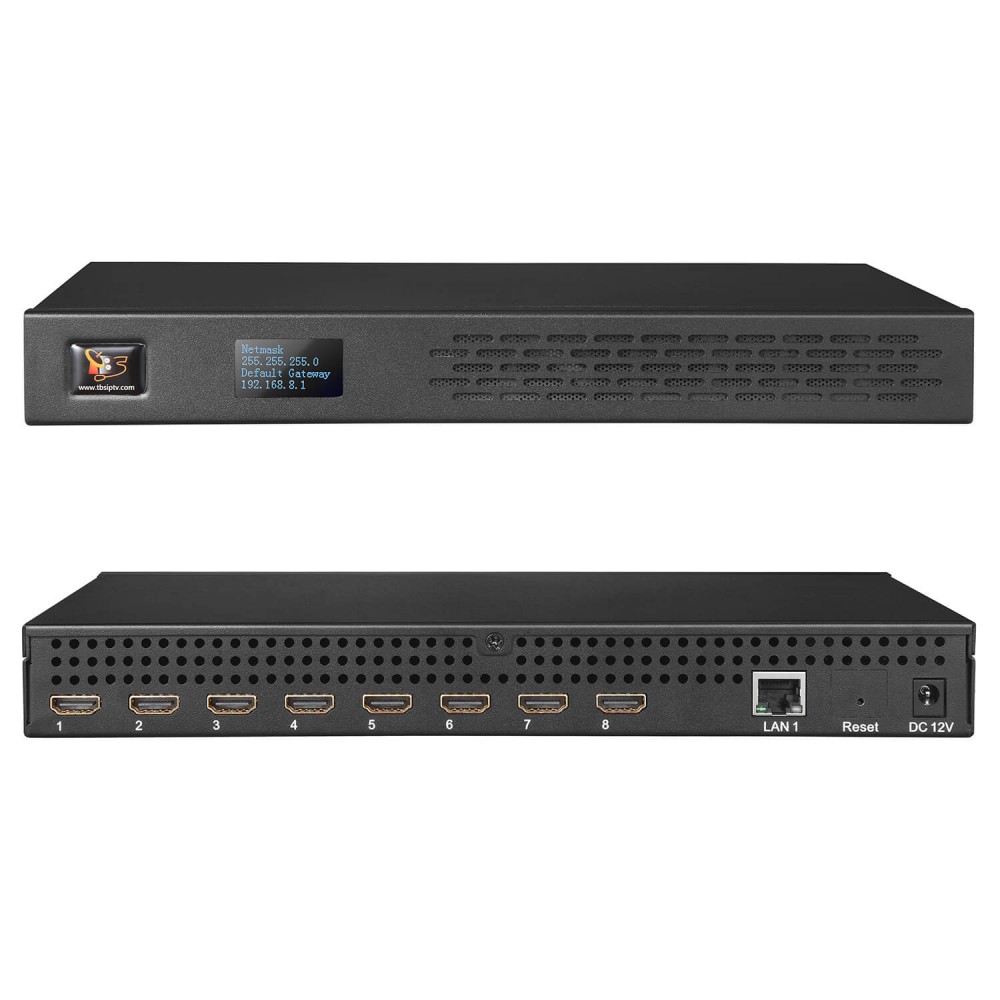

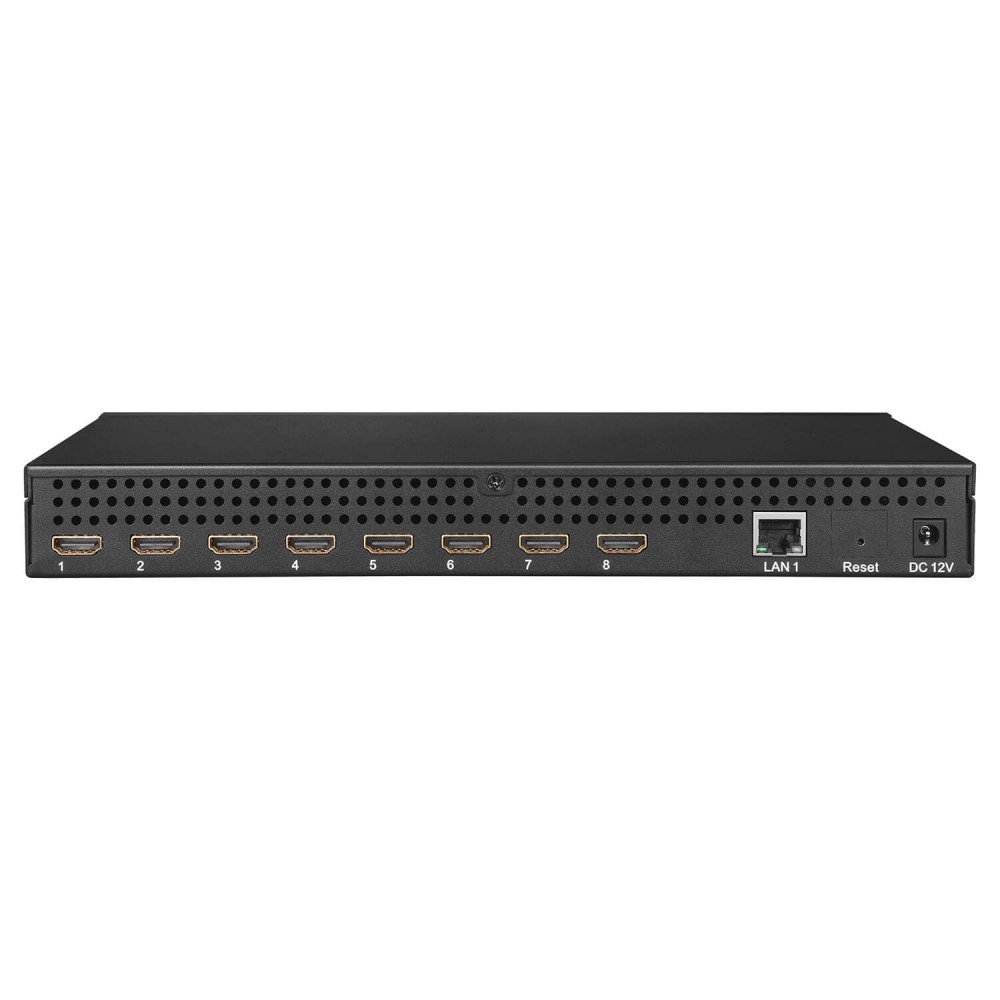

- Space-efficient design simplifies system integration: TBS2808X supports 8-channel HDMI input with a single LAN port output.
- Unified management interface reduces cabling requirements.
Specification
| Model | TBS2808X |
| Product Name | 8 Channels 4K 30Hz H.265/H.264 HDMI Video Encoder |
| HDCP | HDCP 1.4 supported |
| Input | |
| Video Input | 8x HDMI 1.4a |
| Audio Input | HDMI embedded audio |
| Power Input | DC 12V/4A |
| Output | |
| Power Consumption | 42 Watt |
| Video | |
| Video Input | 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, |
| 1280x720p_60/50hz, 720x576p/i, 720x480p/i etc. | |
| Encode Size | 3840x2160,2560x1600,2560x1440,2048x1152,1920x1080,1680x1056, |
| 1280x720,1024x576,720x576,720x480,704x576,640x480,640x360, auto | |
| Video Codec | H.264/H.265 |
| Profile | H.264: Baseline, Main, High |
| H.265: Main | |
| Level | H264: Level 4.2; H265: Level 4.1 |
| Bitrate Control | CBR/VBR/EVBR |
| Frame Rate | 5~60fps |
| Key Frame (GOP) | 5~180fps |
| GOP Structure | IPPP |
| Video Bitrate | 0.3~20 Mbps |
| Color depth | 8 bit |
| Chroma subsampling | 4:2:0 |
| De-interlace | Supported: force to do de-interlace when i (interlace) input |
| Output Protocol | HTTP, HLS(M3U8), SRT (Caller, Listener), UDP multicast, RTMP/RTMPS |
| Audio | |
| Audio Codec | AAC-LC, AAC-HE, MP2 |
| Audio Resample | 48kHz, 44.1kHz, 32Khz |
| System | |
| Ethernet / RJ45 | 1x 1000 Base-T Ethernet interface |
| OS | Linux |
| Control | Web GUI |
| Recommended Browser | Google Chrome, Firefox, Microsoft Edge, Safari etc. |
| General Spec. | |
| Working Environment | Operating temperature: 0 to 40 °C |
| Storage temperature: –20 to 70 °C | |
| Relative Humidity: 5% to 90% (non-condensing) | |
| Dimension | 290mm x185mmx 35mm |
| Net Weight | 1.68kg |

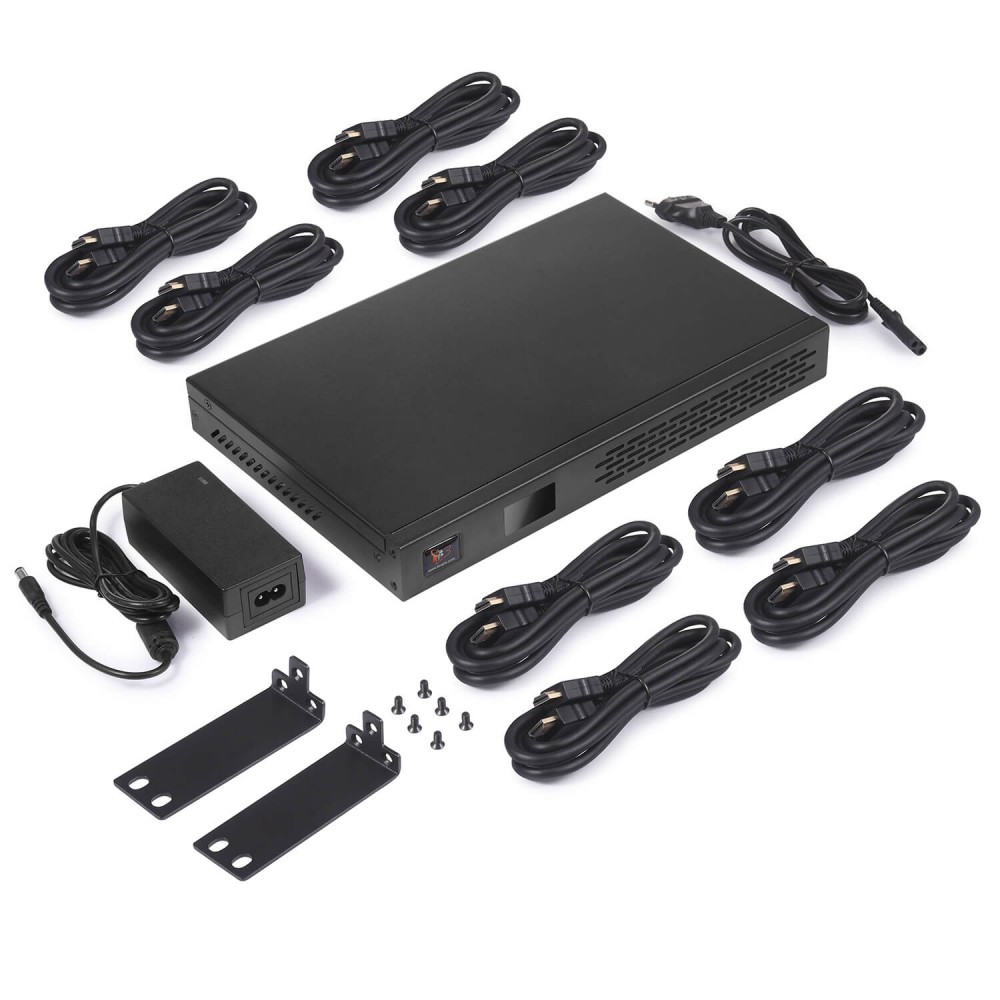

| Package Contents | 1x TBS2808X Video Encoder |
| 1x Power Adapter | |
| 8x HDMI Cable | |
| 2x Mounting Brackets | |
