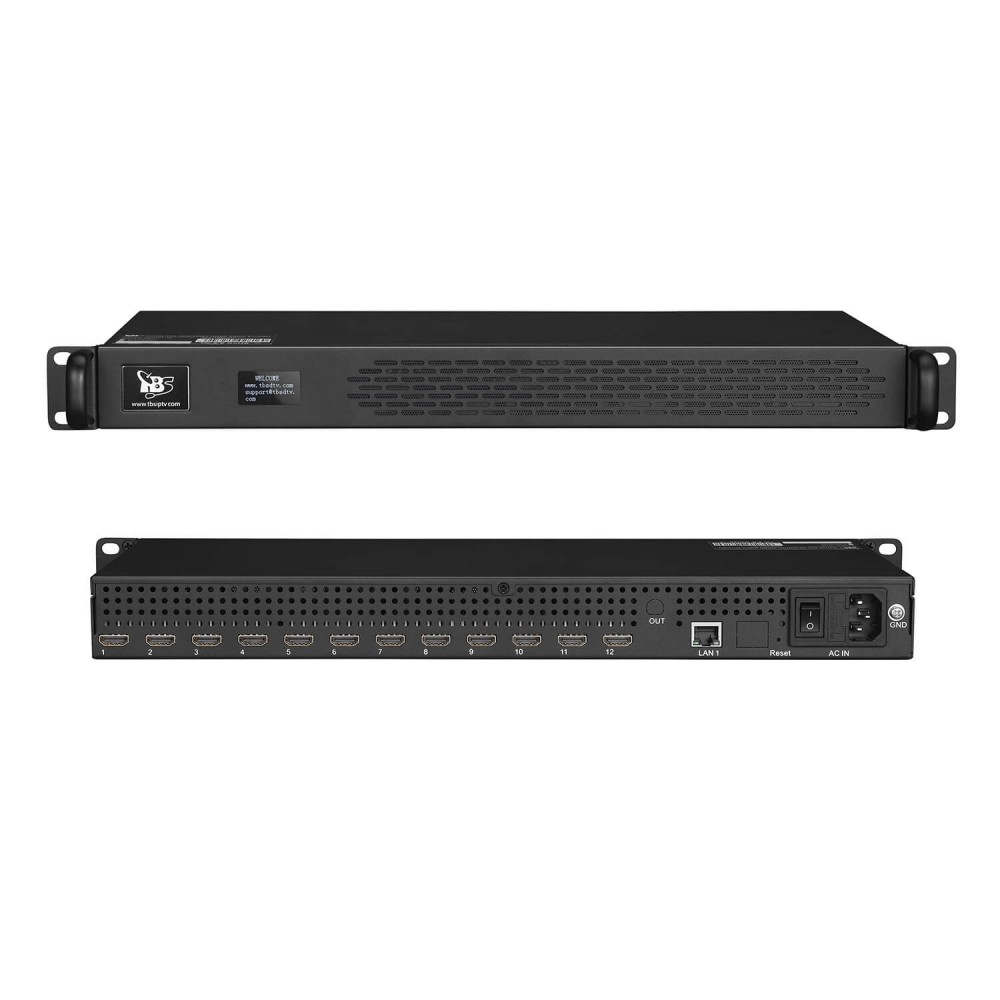

TBS2812 1U 12 Channels 4K H.265 / H.264 HDMI Video Encoder
TBS2812 1U 12 Channels 4K H.265 / H.264 HDMI Video Encoder
- Model: TBS2812
- Weight: 5,500.00g
- Reward Points:2100
In Stock
US$2,100.00
TBS2812 is a professional 1U 12 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It supports up to 4K@30Hz HDMI input and can stream content to various popular online platforms such as YouTube, Facebook, Ustream, Twitch, or custom specified RTMP/RTMPS servers. Besides, it supports output in various protocols including HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, up to 6 protocols at the same time.
TBS2812 enables you to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover，it provides a flexible web UI for seamless channel switching and configuration adjustments, which greatly enhancing the television viewing experience.
Features
- Supports H.265/HEVC and H.264/AVC compression
- Supports up to 12-CH 4K@30fps HDMI input and 12-CH 4k@30fps encode
- Multiple protocol outputs simultaneously
- Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
- Single LAN port output and high-efficient management
- Support HDCP 1.4
- Flexible and friendly webpage control

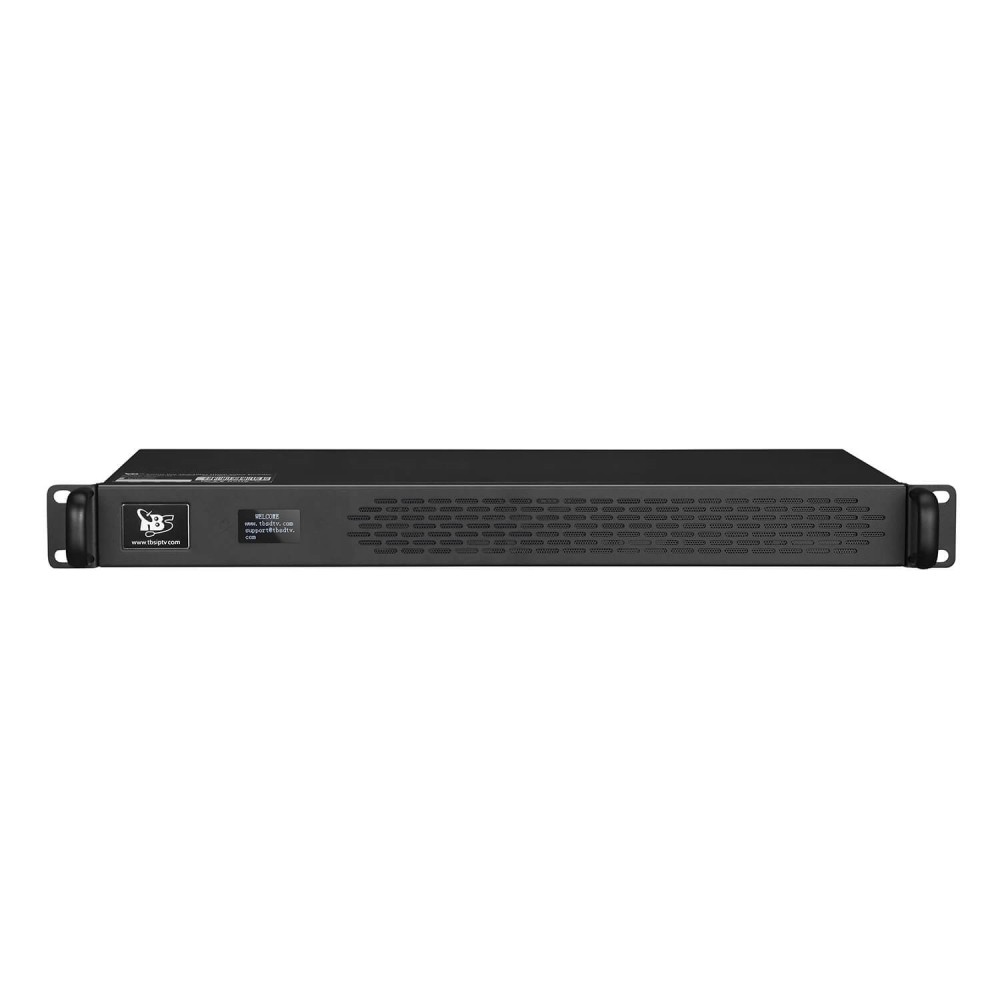

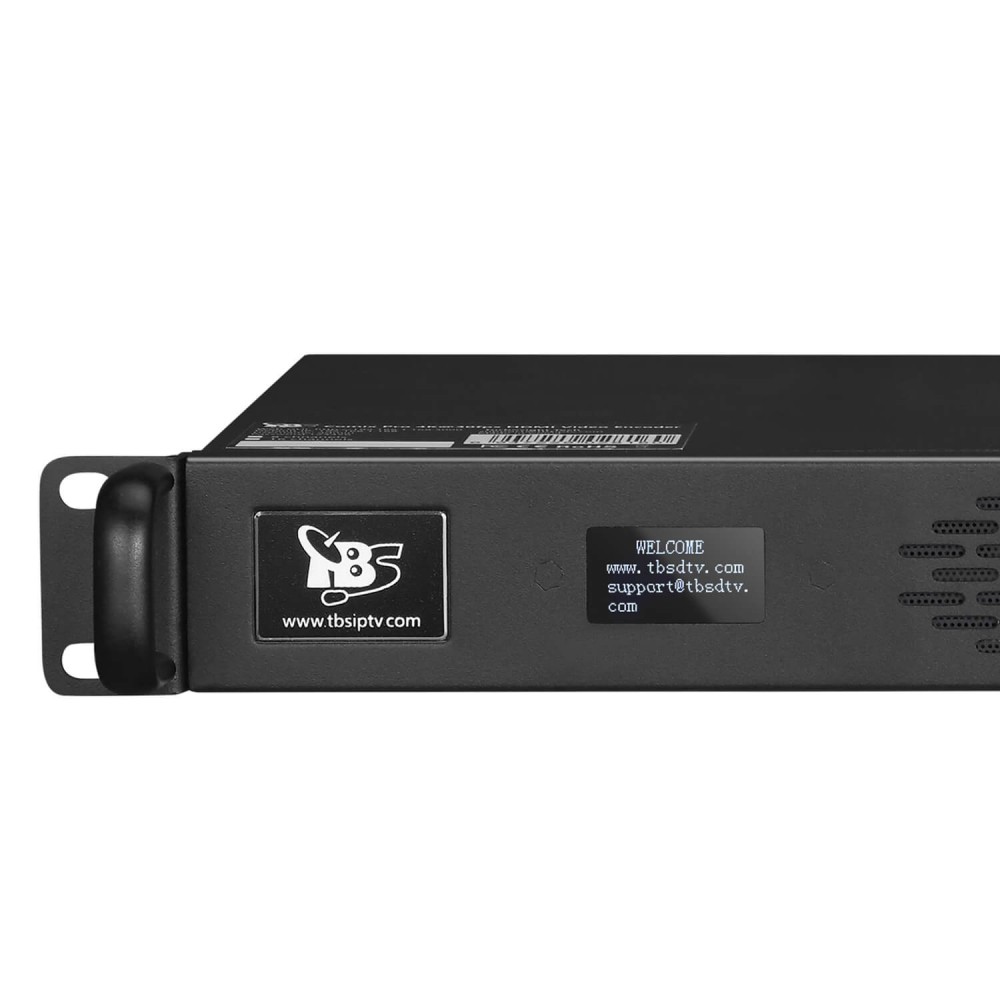

- OLED display for IP information, encode status etc.
Applications
- Digital TV broadcasting system
- IPTV & OTT system
- Datacasting and monitoring
- Live TV encoding and streaming
- Digital signage project
- Remote video conference
Why choose TBS2812?
- 3840x2160p@30fps(H.265), real 4K encode
- Capture & Deliver Live Video in 4K Ultra HD over Public Internet
- Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
- Efficient encoding leads to bandwidth savings, even at high resolutions.
- Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS
- Each channel has multiple protocols for outputting

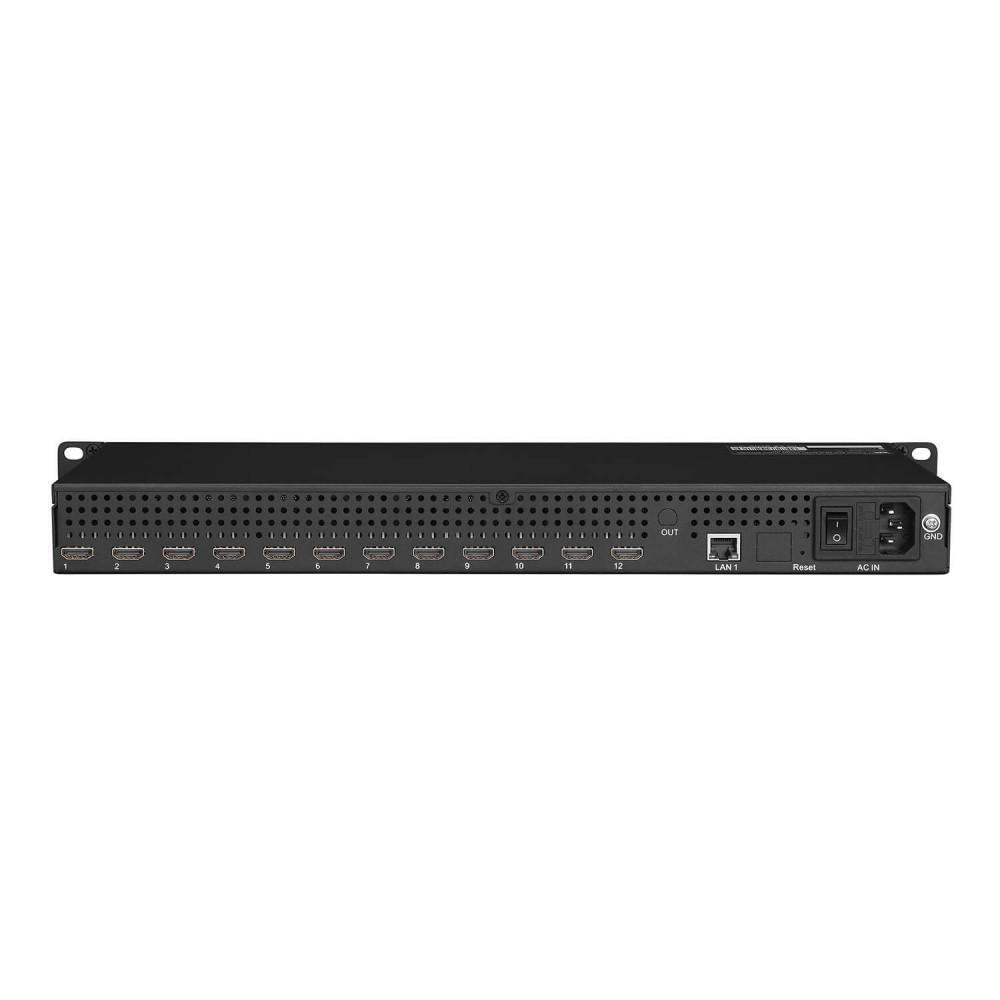

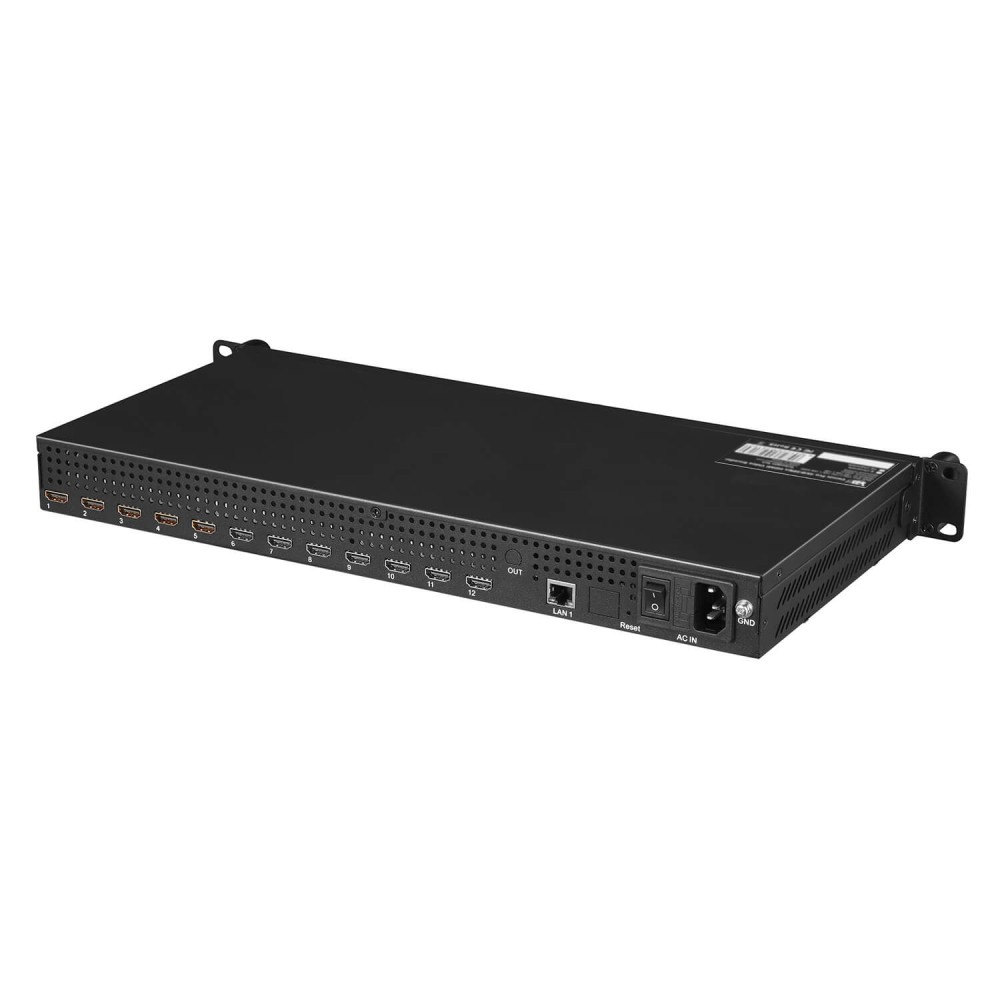

- TBS2812 supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you.
- Flexible and friendly Web UI let you manage TBS2812 encoder easily at anytime.
Specification
| Model | TBS2812 | |
| HDCP | HDCP 1.4 supported | |
| Input | ||

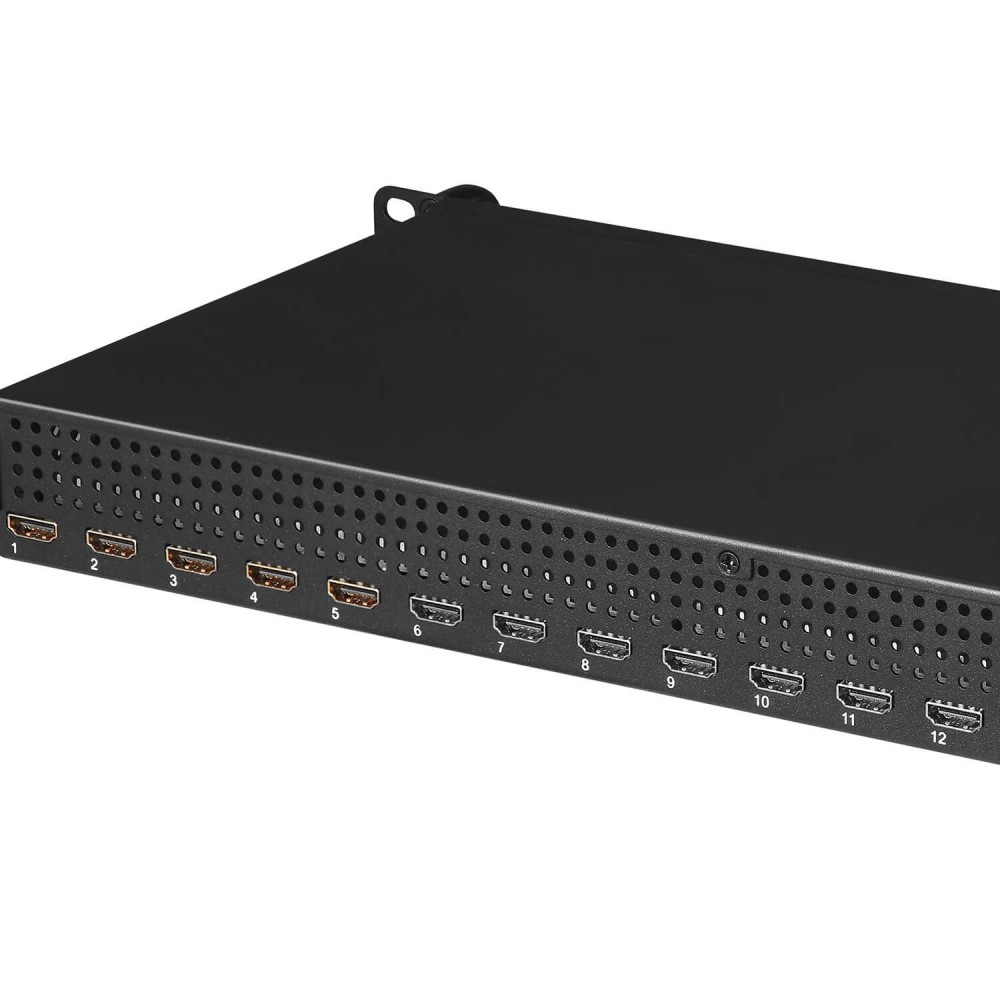

| Video Input | 12x HDMI 1.4a | |
| Audio Input | HDMI embedded audio | |
| Video | ||
| Video Input | 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc. | |
| Encode Size | 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 20x480, 704x576, 640x480, 640x360, auto | |
| Video Codec | H.264/H.265 | |
| Profile | H.264: Baseline, Main, High | |
| H.265: Main | ||
| Level | H.264: Level 4.2; H.265: Level 4.1 | |
| Bitrate Control | CBR/VBR/EVBR | |
| Frame rate | 5 ~ 60fps | |
| Key Interval (gop) | 5 ~ 180fps | |
| GOP Structure | IPPP | |
| Bitrate | 300 ~ 20000Kbps | |
| Color depth | 8 bit | |
| Chroma subsampling | 4:2:0 | |
| De-interlace | Supported: force to do de-interlace when i (interlace) input | |
| Output Protocol | HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS | |
| Audio | ||
| Audio Codec | AAC-LC, AAC-HE | |
| Audio Bitrate | 24000/ 32000/ 44100/ 48000/ 64000/ 96000/ 128000/ 160000/ 192000/ 256000bps | |
| Audio Resample | 48k, 44.1k, 32k | |
| System | ||

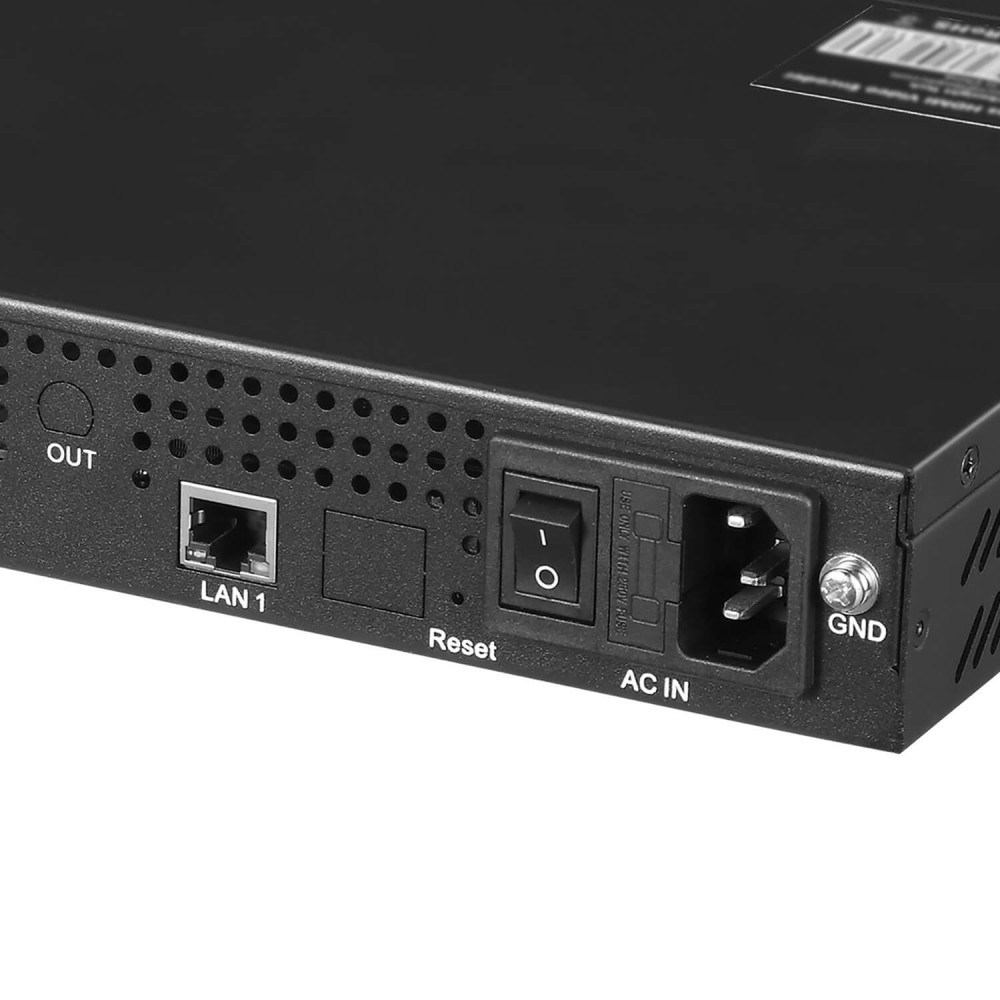

| Ethernet / RJ45 | 1000 Base-T Ethernet interface | |
| OS | Linux | |
| Control | web GUI | |
| General Spec. | ||
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% (non-condensing) |
|
| Power Consumption | 55 Watt | |
| Dimension | 410mm x 210mm x 44.4mm (1U) | |
| Net Weight | 3.0 KG | |

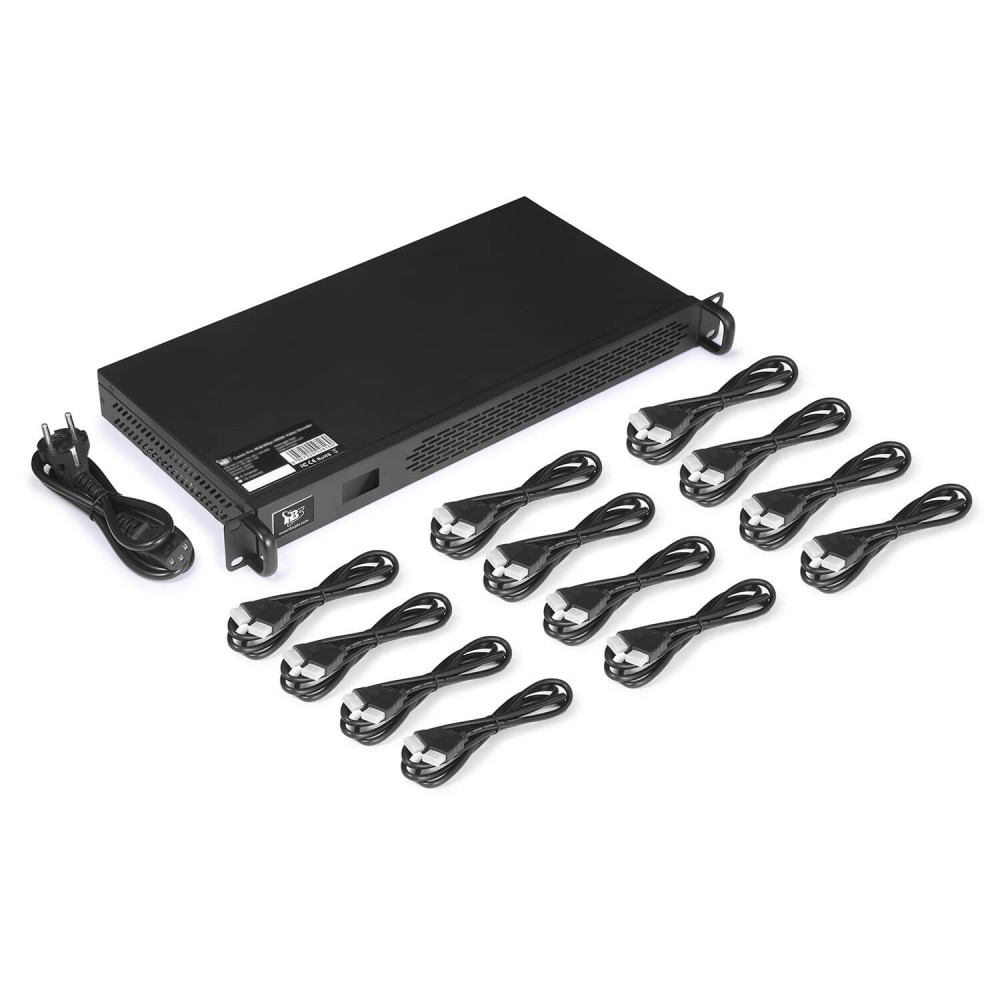

| Package Contents | 1x TBS2812 4K@30fps HDMI Video Encoder | |
| 1x AC Power Cable | ||
| 12x HDMI Cable | ||
