TBS2816 Comix Pro is a professional 1U 16 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It is capable of handling up to 4K@30Hz HDMI input and can stream content to various popular online platforms like YouTube Live, Facebook Live, Twitch, or custom specified RTMP/RTMPS servers. What's more, it supports output in various protocols including HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, up to 6 protocols at the same time.

Comix Pro supports to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover, it provides a flexible web UI for seamless channel switching and configuration adjustments, which greatly enhancing the television viewing experience.

Features:

• Supports H.265/HEVC and H.264/AVC compression

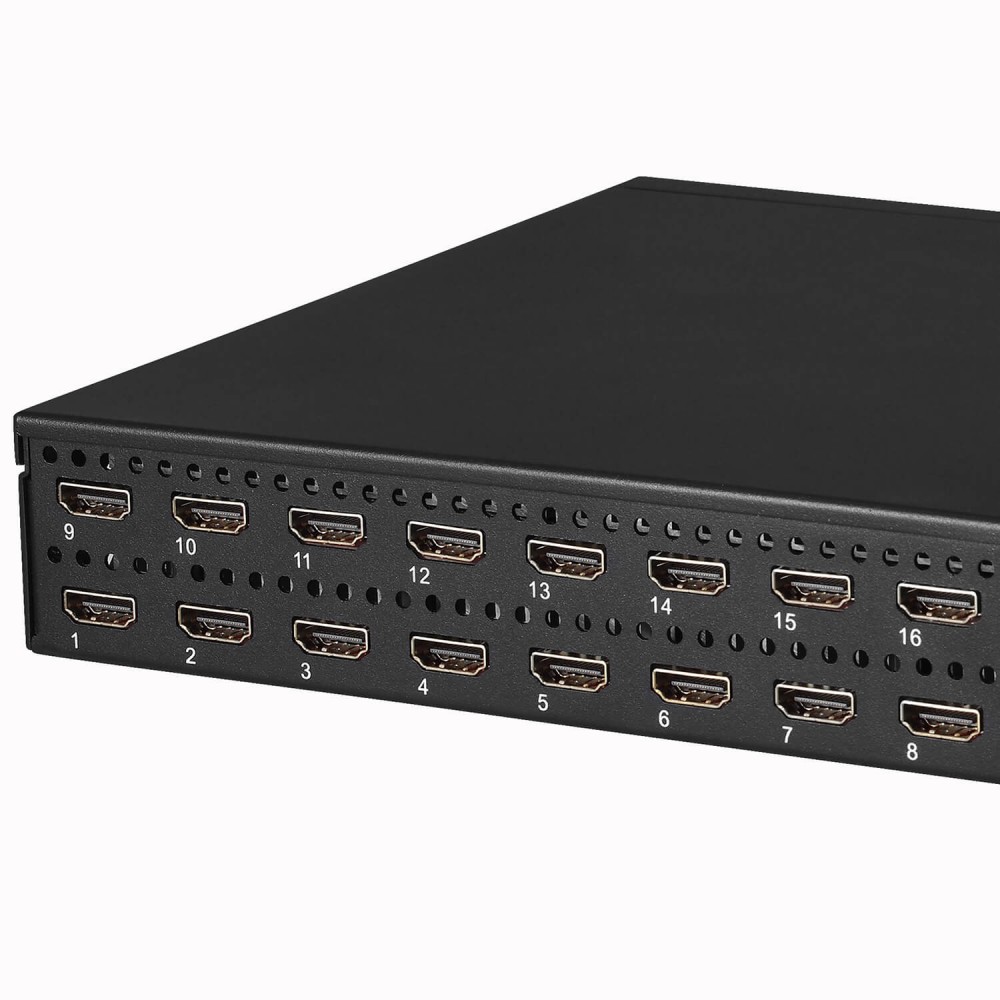

• Supports up to 16-CH 4K@30fps HDMI input and 16-CH 4k@30fps encode
• Multiple protocol outputs simultaneously
• Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
• Single LAN port output and high-efficient management
• Support HDCP 1.4
• Flexible and friendly webpage control

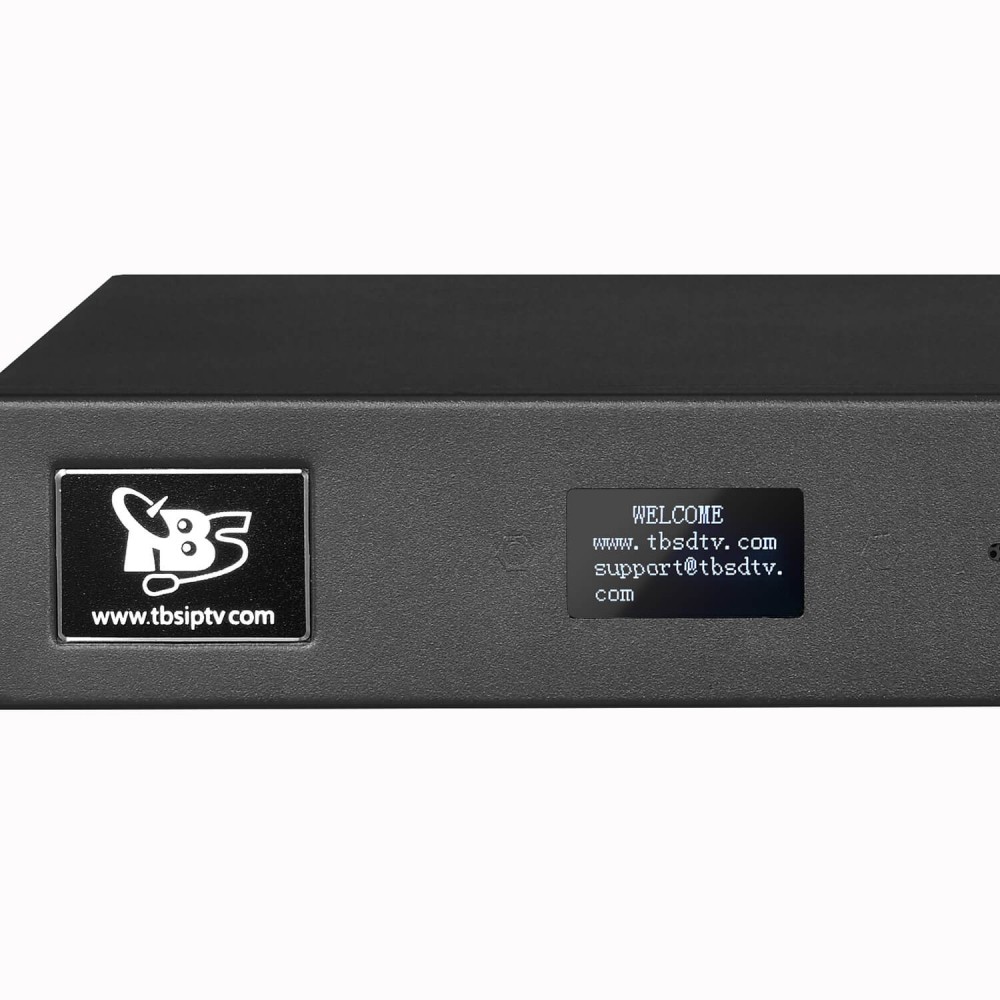

• OLED display for IP information, encode status etc.

Applications

• Digital TV broadcasting system
• IPTV & OTT system
• Datacasting and monitoring
• Live TV encoding and streaming
• Digital signage project
• Remote video conference

Why choose Comix Pro?

• 3840x2160p@30fps(H.265), real 4K encode
• Capture & Deliver Live Video in 4K Ultra HD over Public Internet
• Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
• Efficient encoding leads to bandwidth savings, even at high resolutions.

• Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS
• Each channel has multiple protocols for outputting

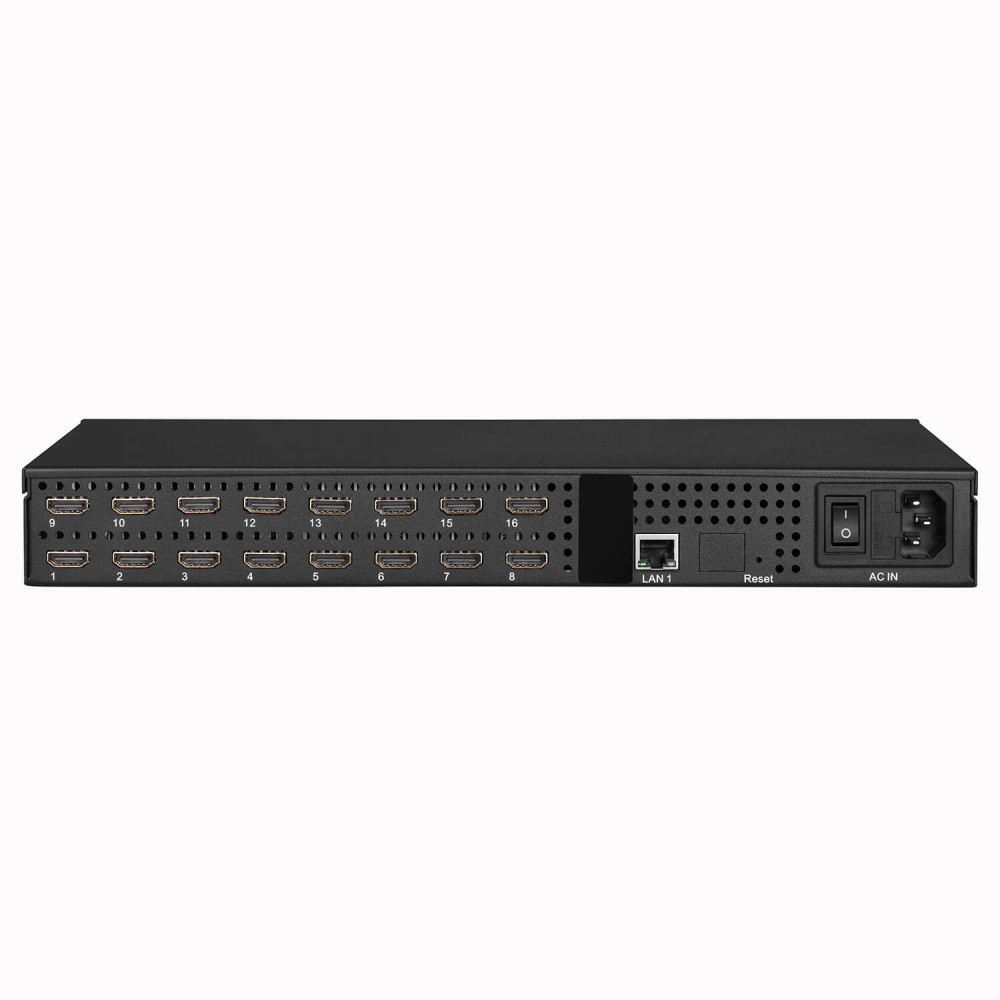

• Comix Pro supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you.
• Reliable Web UI let you easy to setup and manage Comix Pro encoder at anytime.

Specification:
