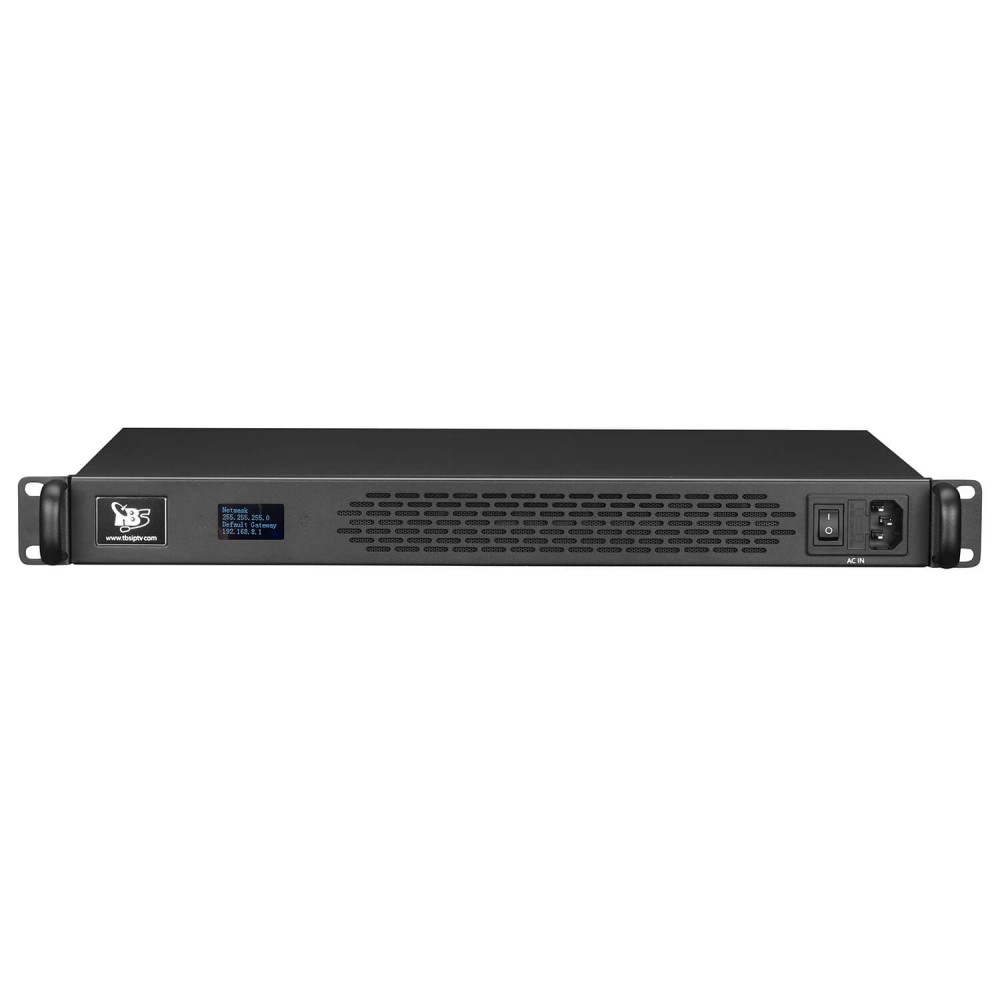

TBS2824 1U 24 Channels 4K H.265 / H.264 HDMI Video Encoder
TBS2824 1U 24 Channels 4K H.265 / H.264 HDMI Video Encoder
- Model: TBS2824
- Weight: 8,000.00g
- Reward Points:3900
In Stock
US$3,900.00

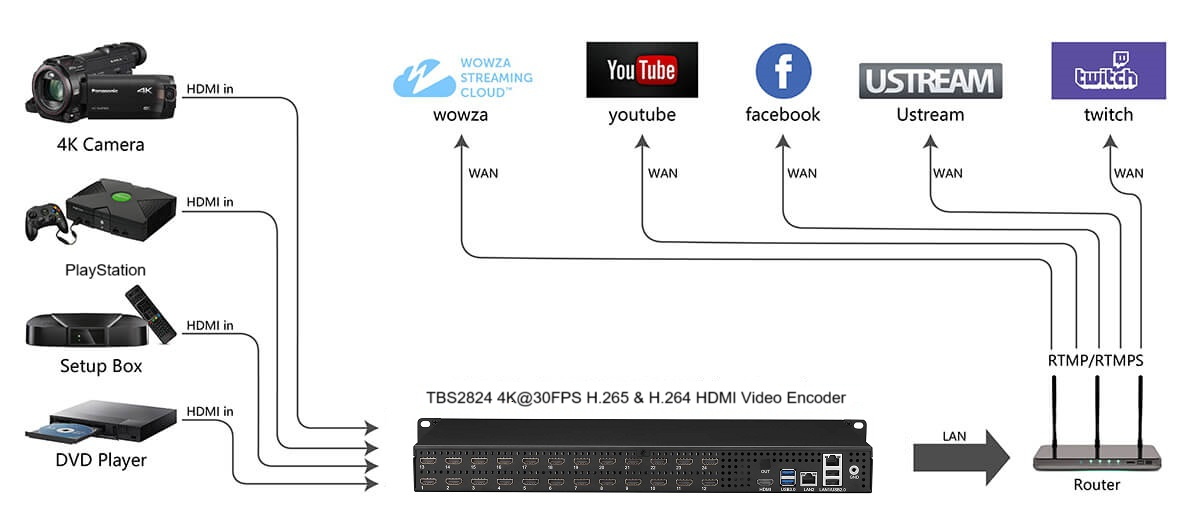

TBS2824 is a professional 1U 24 channels 4K HDMI Video Encoder, which facilitates high-quality content streaming and display. It can handle up to 4K@30Hz HDMI input and has the ability to stream content to numerous popular online platforms like YouTube, Facebook, Ustream, Twitch, or custom-specified RTMP/RTMPS servers. In addition, it supports output in diverse protocols, namely HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, and can support up to 6 protocols at the same time.
TBS2824 allows you to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover, it offers a flexible web UI for seamless channel switching and configuration adjustments, which considerably boosts the television viewing experience.
Features
- Supports H.265/HEVC and H.264/AVC compression
- Supports 24-CH 4K@30fps HDMl input and 24-CH 4k@30fps encode
- Multiple protocol outputs simultaneously
- Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
- Dual LAN port output and high-efficient management
- Support HDCP 1.4
- Flexible and friendly webpage control

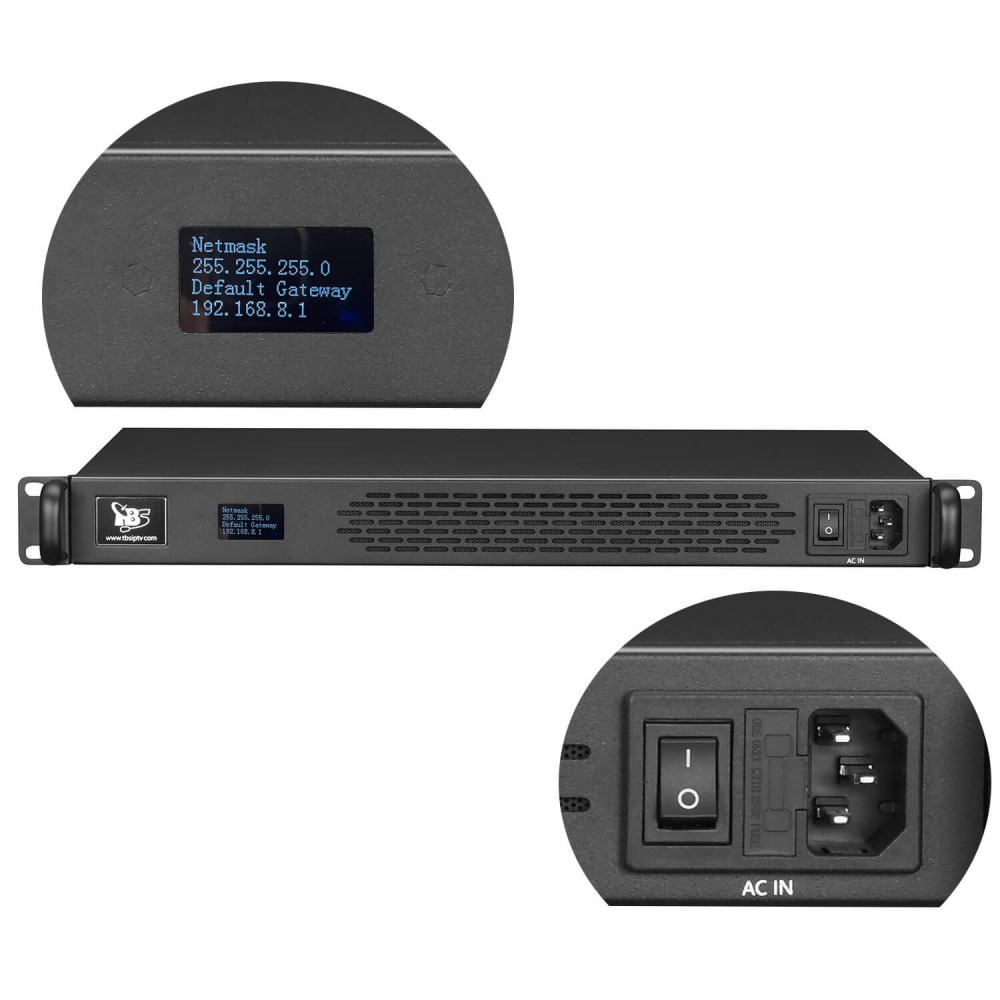

- OLED display for lP information, encode status etc.
Applications
- Digital TV broadcasting system

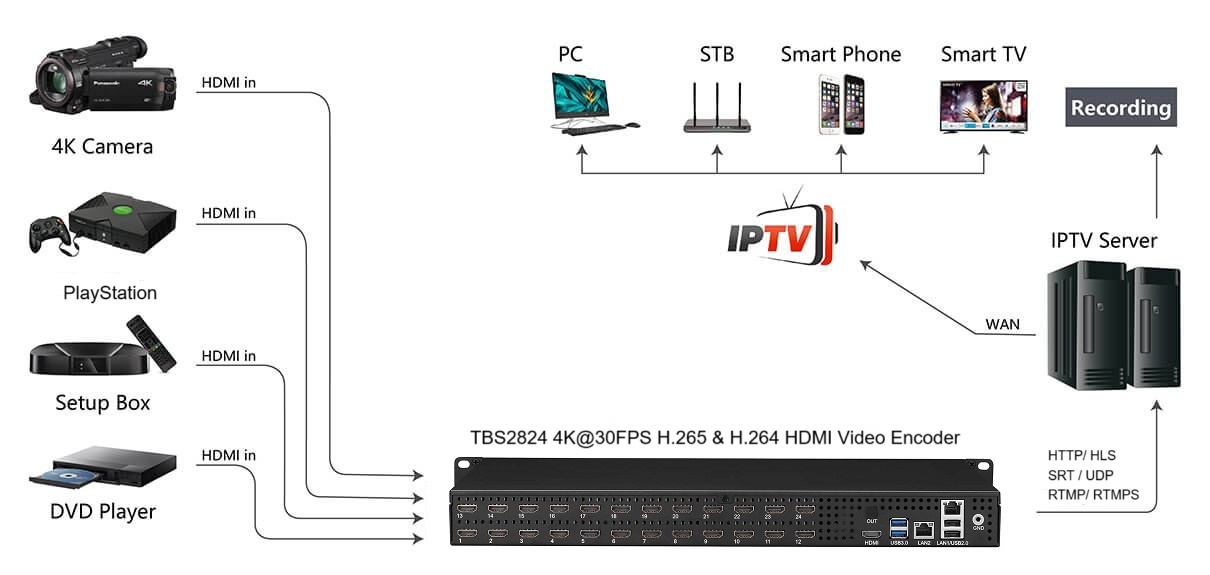

- IPTV & OTT system
- Datacasting and monitoring
- Live TV encoding and streaming
- Digital signage project
- Remote video conference

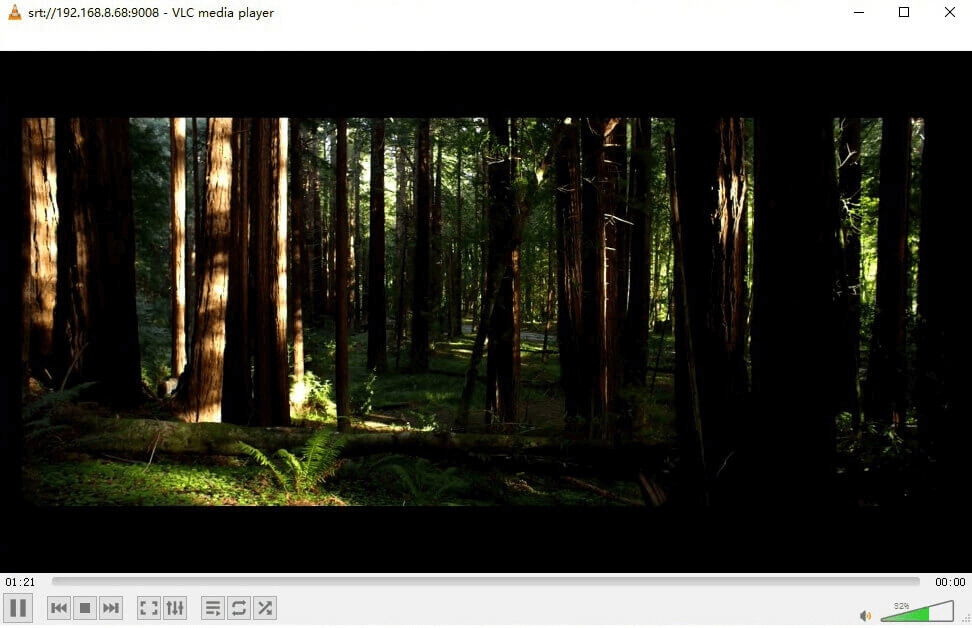

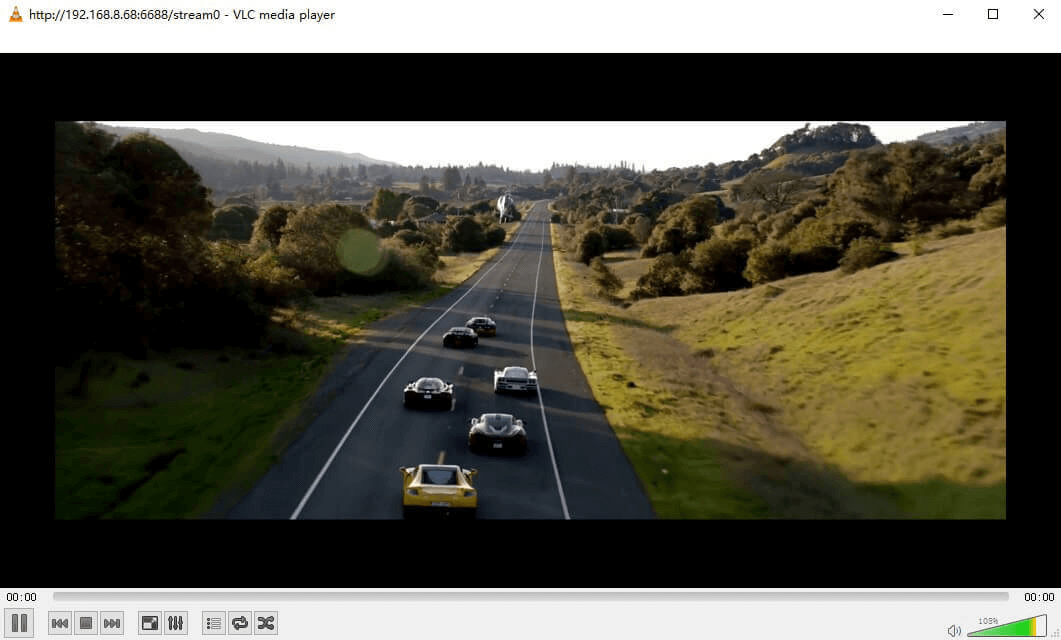

Supports 24 channels real 4K@30Hz encode
- 3840x2160p@30fps(H.265), real 4K encode
- Capture & deliver live video in 4K Ultra HD over Public Internet
- Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
- Efficient encoding results in the saving of bandwidth, even at high resolutions.
Multiple protocol outputs simultaneously
- Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS protocols
- Each channel has multiple protocols for outputting
Dual LAN port output and high-efficient management

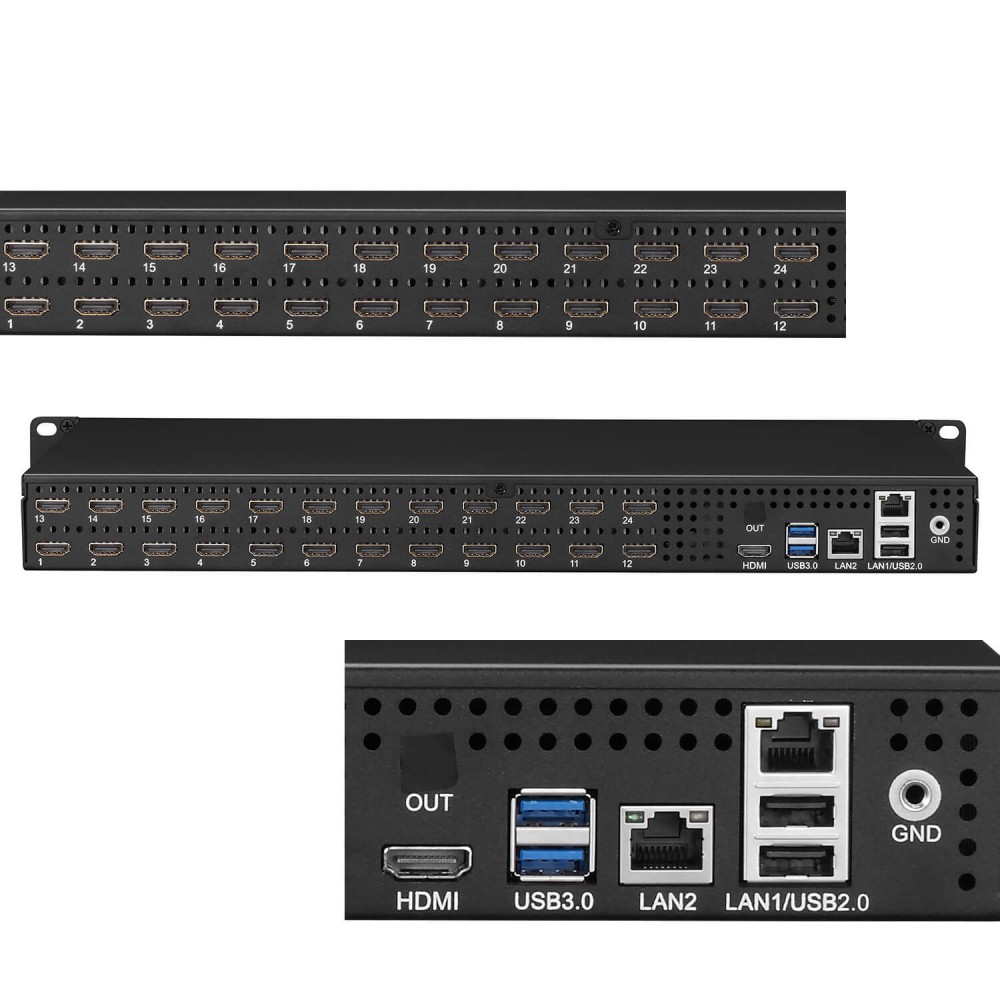

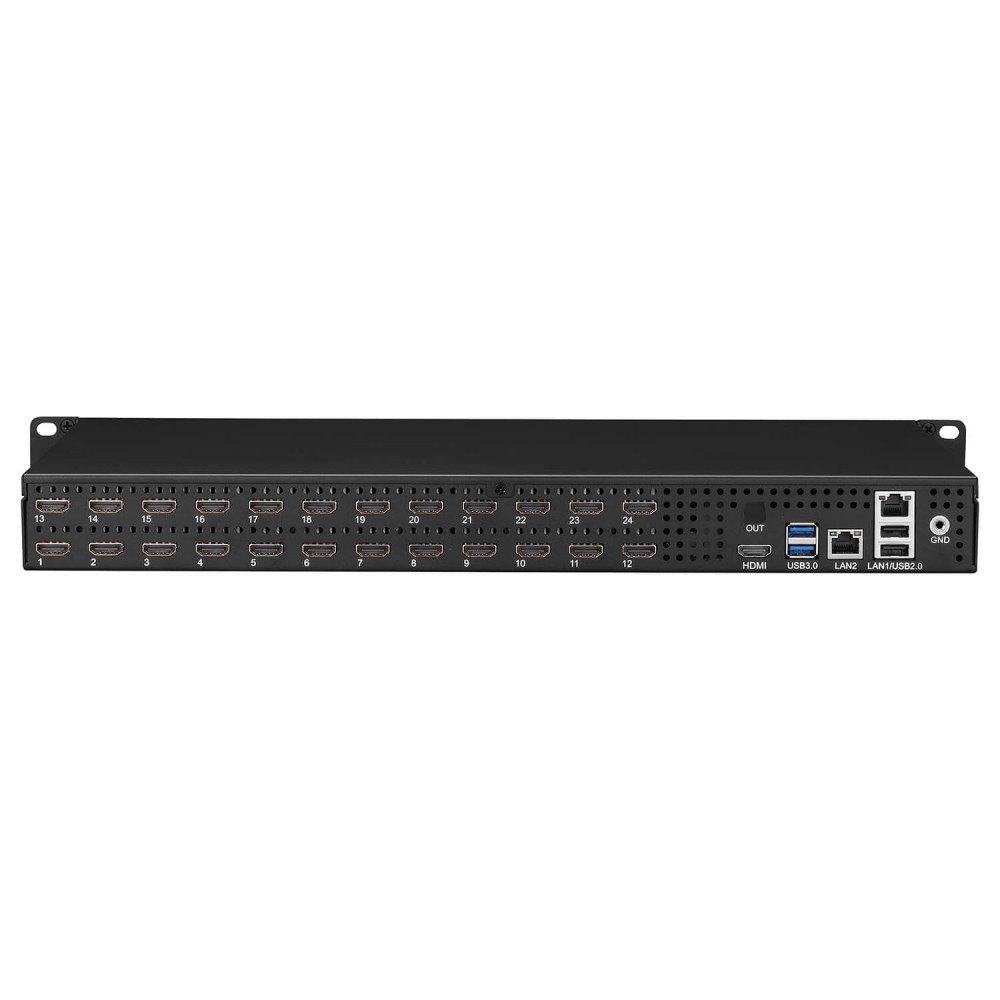

- TBS2824 supports multiple HDMI inputs with only dual LAN port for output and management, which greatly save source and space for you.

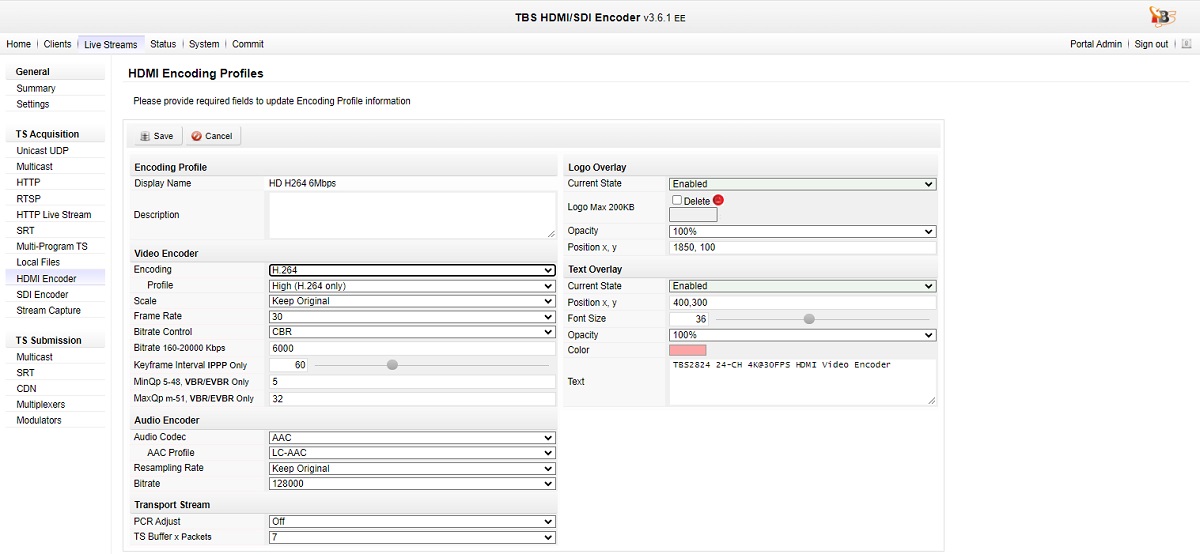

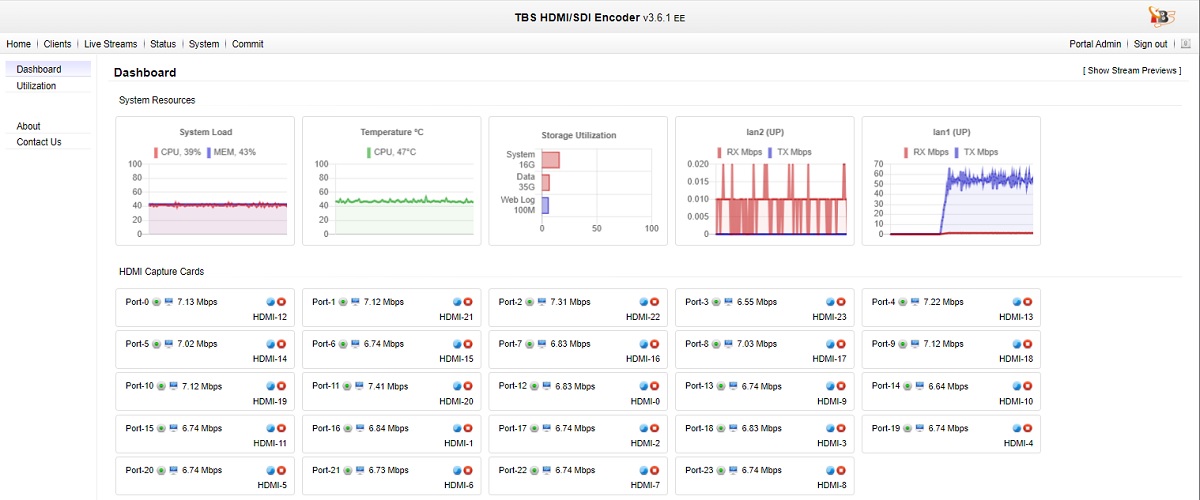

- Flexible and friendly Web UI enables you manage TBS2824 encoder with ease at any time.
Specification
| Model No. | TBS2824 |
| Model Name | 1U 24 Channels 4K@30FPS HDMI Video Encoder |
| HDCP | HDCP 1.4 supported |
| Input | |
| Video Input | 24x HDMI 1.4a |
| Audio Input | HDMI embedded |
| Video | |
| Video Input | 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, |
| 1280x720p_60/50hz, 720x576p/i, 720x480p/i etc. | |
| Encode Size | 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, |
| 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto | |
| Video Output | 3840x2160p@30fps, 1920x1080p@60/50/30/25fps, |
| 1280x720p@60/50/30/25fps, 720x576p@60fps, 720x480p@60fps etc. | |
| Video Codec | H.264/H.265 |
| Profile | H.264: Baseline, Main, High |
| H.265: Main | |
| Level | H264: Level 4.2; H265: Level 4.1 |
| Bitrate Control | CBR/VBR/EVBR |
| Frame rate | 5~60fps |
| Key Interval (gop) | 5~180fps |
| GOP Structure | IPPP |
| Bitrate | 300 ~ 20000Kbps |
| Color depth | 8 bit |
| Chroma subsampling | 4:2:0 |
| De-interlace | Supported, force to do de-interlace when i (interlace) input |
| Audio | |
| Audio Codec | AAC-LC, AAC-HE |
| Audio Bitrate | 24000/32000/44100/48000/64000/96000/128000/160000/ 192000/256000bps |
| Audio Resample | 48k, 44.1k, 32k |
| System | |
| Control | web GUI |
| Output Protocols | HTTP, HLS(M3U8), RTSP, SRT, RTP/UDP unicast & multicast, RTMP/RTMPS |
| Recommended Browser | Google Chrome, Firefox, Microsoft Edge etc. |
| Ethernet | 1x 1000M Base-T Ethernet interface for efficient management |
| 1x 2.5G Base-T Ethernet interface for data streaming | |
| General Spec. | |
| Working Environment | Operating temperature: 0 to 40 deg C |
| Storage temperature: –20 to 70 deg C | |
| Relative Humidity: 5% to 90% (non-condensing) | |
| Power Consumption | Less than 120 Watt |
| Dimension | 430mm x 280mm x 44.4mm |
| Net Weight | 8.0kg |

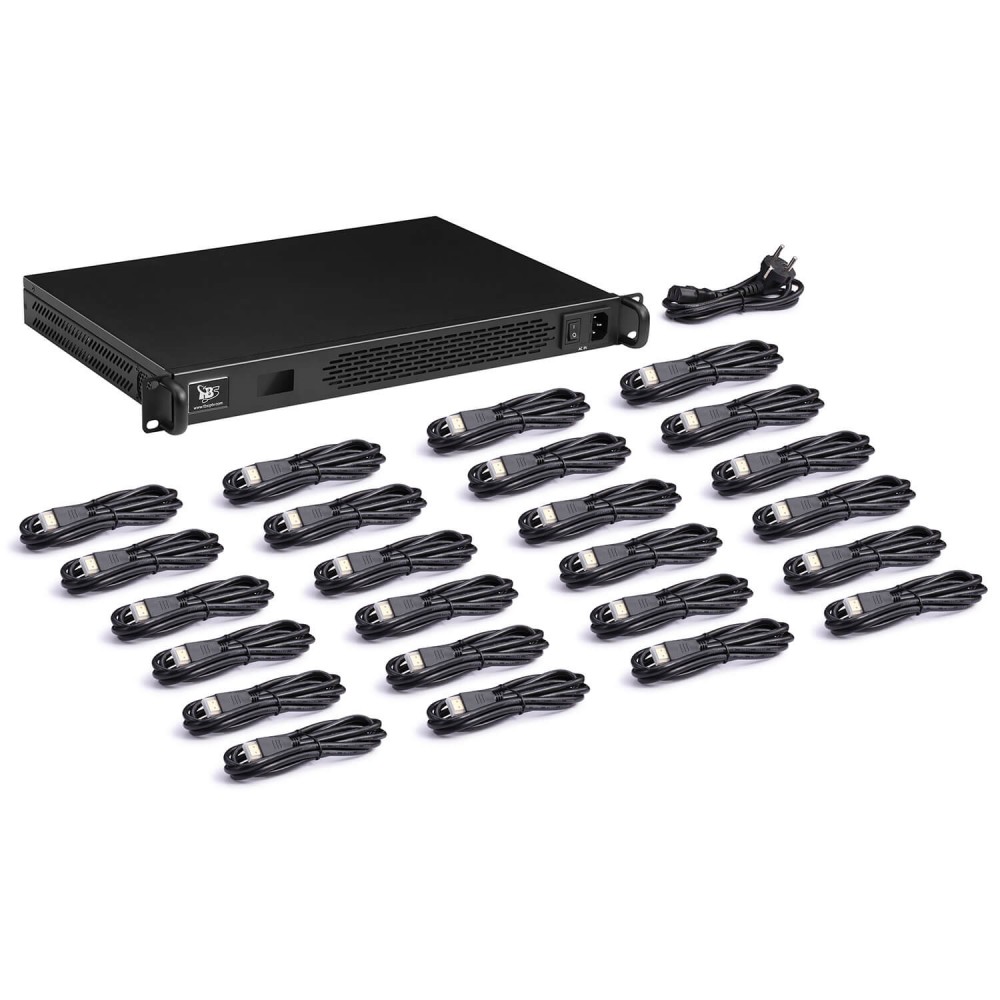

| Package Content | 1x TBS2824 4K@30fps HDMI encoder |
| 1x AC Power Cable | |
| 24x HDMI Cable | |
