TBS2925 MOI Smart Box small IPTV streaming server


TBS2925 MOI Smart Box small IPTV streaming server

  • Model: TBS2925
  • Weight: 2,500.00g

In Stock

Available Options

The TBS2925 chassis is designed to be a multi-purpose platform, equipped with the capability to accommodate a range of PCIe cards, the TBS2925 chassis transforms into a multifunctional powerhouse, capable of serving three distinct applications with unparalleled efficiency.

1. IP Gateway Server

When outfitted with TBS digital TV PCIe cards supporting DVB-S/S2/S2X, DVB-T/T2, DVB-C, ATSC-T, ISDB-T and more, the TBSTBS2925 chassis seamlessly transitions into an IP Gateway server, facilitating the efficient delivery of digital content across networks.

Module NO. Function Brief Price
TBS2925 gateway server -1
TBS2925 single PCIe chassis + TBS6902
  • Input free DVB-S/S2 signal from 2 satellite transponders/frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD478
TBS2925 gateway server -2
TBS2925 single PCIe chassis + TBS6904SE
  • Input free DVB-S2X/S2/S signal from 4 satellite transponders/frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD598
TBS2925 gateway server -3
TBS2925 single PCIe chassis + TBS6909-X V2
  • Input free DVB-S2X/S2/S signal from 8 satellite transponders/frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD728
TBS2925 gateway server -4
TBS2925 single PCIe chassis + TBS6205se
  • Input free DVB-T2/T/C signal from 4 frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD628
TBS2925 gateway server -5
TBS2925 single PCIe chassis 1 + TBS6209se
  • Input free DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 signal from 8 frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD738
TBS2925 gateway server -6
TBS2925 single PCIe chassis + TBS6704
  • Input free ATSC QAM signal from 4 frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD598
TBS2925 gateway server -7
TBS2925 Dual PCIe chassis + 1 * TBS6902 + 1 * TBS6205se
  • Input free DVB-S2/S signal from 2 satellite transponders/frequencies and DVB-T2/T signal from 4
    • frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD807
TBS2925 gateway server -8
TBS2925 Dual PCIe chassis + 1 * TBS6904SE + 1 * TBS6205se
  • Input free DVB-S2X/S2/S signal from 4 satellite transponders/frequencies and DVB-T2/T
    • signal from 4 frequencies.
  • Output IP streams in UDP, HTTP, SRT.
 USD927

2. Modulator Server/Trans-Modulator

Incorporating a TBS modulator PCIe card unleashes the chassis' potential as a modulator server or a trans-modulator server, enabling seamless modulation of signals for diverse broadcasting needs.

Module NO. Function Brief Price
TBS2925 Modulator -1 (TBS8112-old)
TBS2925 Dual PCIe chassis + 1 * TBS6904se + 1 * TBS6024
  • Input free DVB-S2X/S2/S signal from 4 satellite transponders/frequencies.
  • Output DVB-T signal in 4 frequencies.
 USD1100
TBS2925 Modulator -2(TBS8113)
TBS2925 Dual PCIe chassis + 1 * TBS6904se + 1 * TBS6004
  • Input free DVB-S2X/S2/S signal from 4 satellite transponders/frequencies.
  • Output DVB-C signal in 4 frequencies.
 USD1200
TBS2925 Modulator -2(TBS8114)
TBS2925 Dual PCIe chassis + 1 * TBS6904se + 1 * TBS6214
  • Input free DVB-S2X/S2/S signal from 4 satellite transponders/frequencies.
  • Output DVB-C signal in 4 frequencies.
 USD1540

3. HDMI Video Encoder

With the integration of a TBS HDMI Video encoding PCIe card, the TBS2925 chassis transforms into a cutting-edge HDMI video encoder, empowering users to effortlessly capture, encode, and transmit high-quality video content.

Module NO. Function Brief Price
TBS2925 Encoder -1
TBS2925 Dual PCIe chassis + 1 * TBS6304-X
  • Input 4K@30fps video in 4 x HDMI 1.4a port, supporting H.265/HEVC and H.264/AVC compression
  • Output IP streams (HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS).
 USD1200
TBS2925 Encoder -2
TBS2925 Dual PCIe chassis + 2 * TBS6304-X
  • Input 4K@30fps video in 8 x HDMI 1.4a port, supporting H.265/HEVC and H.264/AVC compression
  • Output IP streams (HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS).
 USD1900

The TBS2925 chassis stands as a pinnacle of versatility, offering two distinct hardware versions to cater to varying needs, providing ample room for expansion and customization.

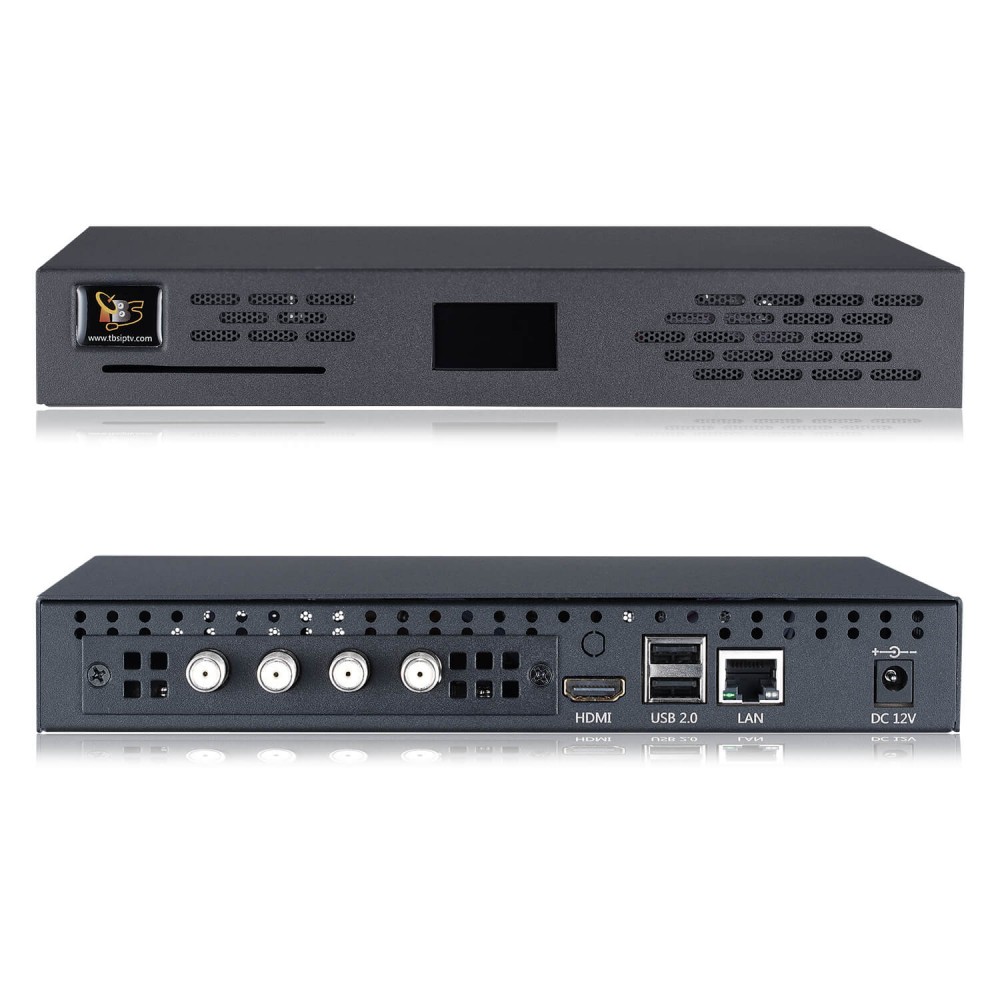

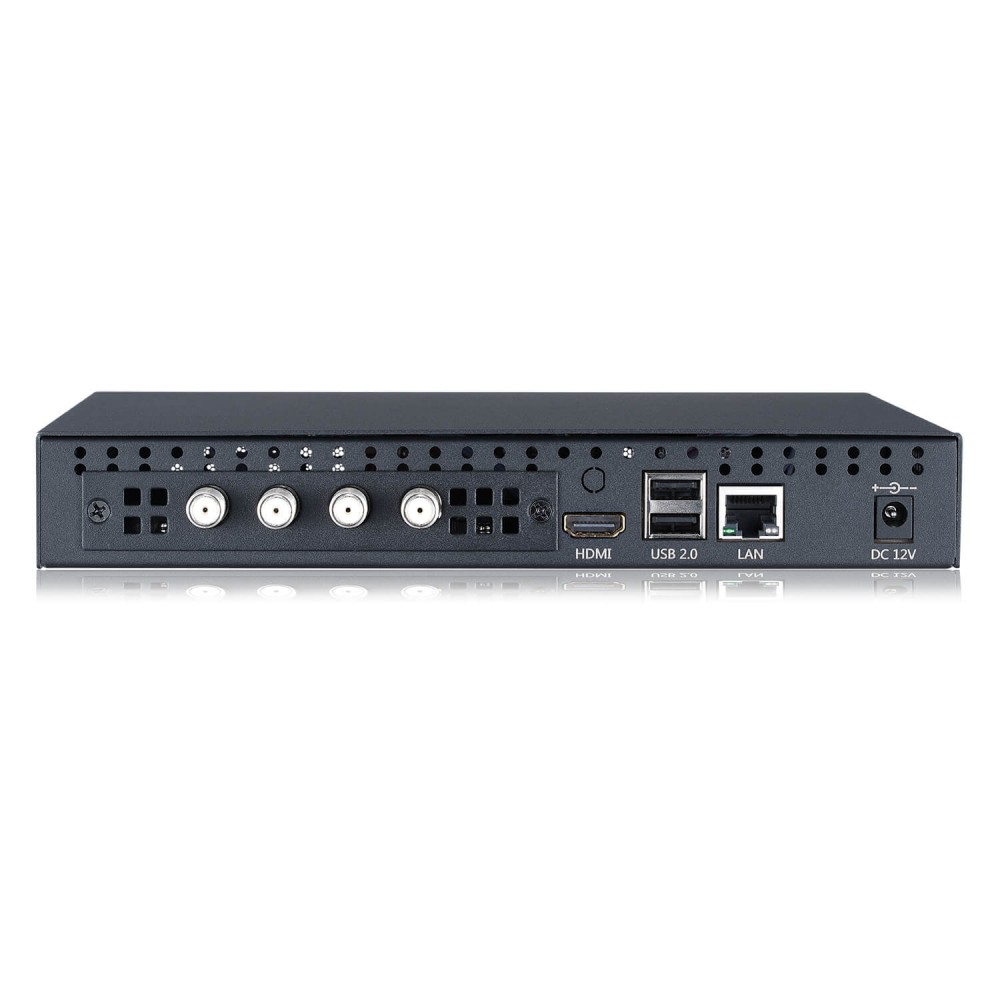

1. Compact Version: Equipped with a single PCIe slot for versatile card options

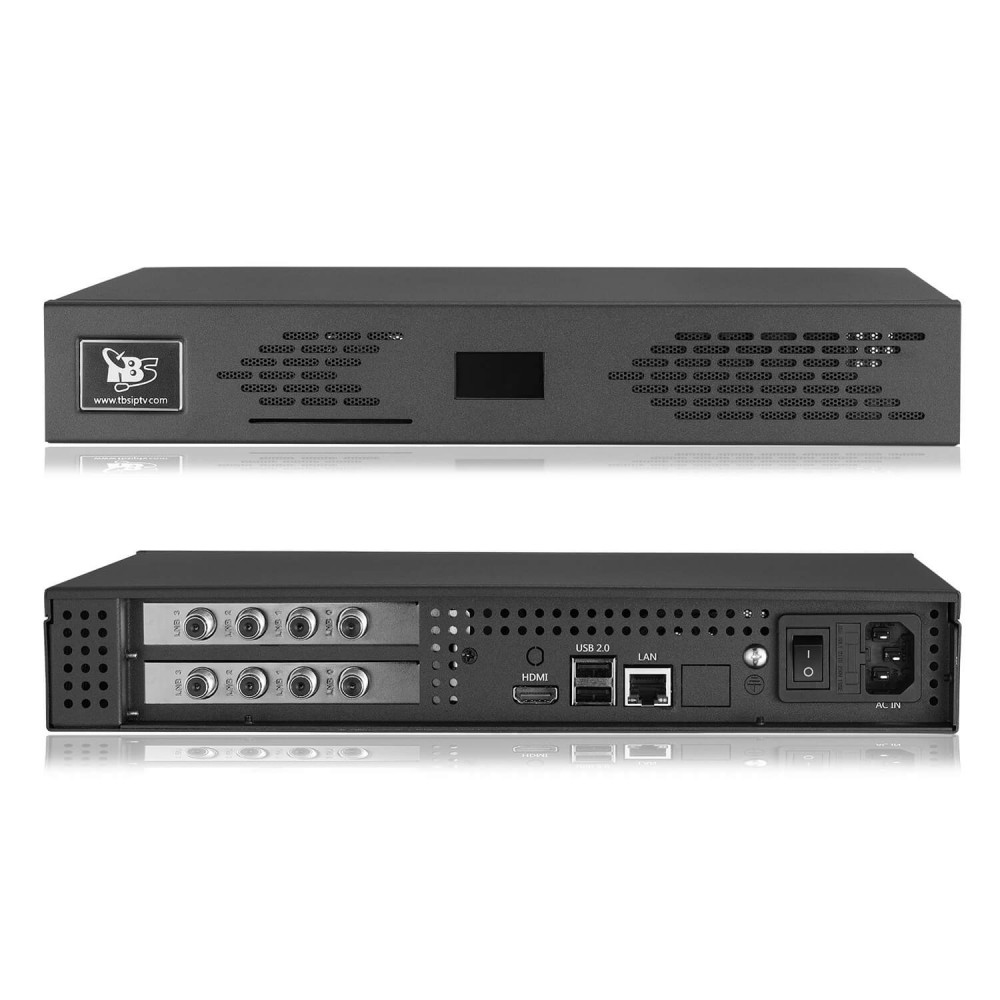

2. Extended Version: Features two PCIe slots for enhanced flexibility and capability

Chassis specifications

Basic server spec:
Processor Quad-core 64-bit ARM SoC @ 2.0GHz
RAM 4GB LPDDR4
Flash 16GB eMMC
LAN 1Gb onboard Ethernet
USB2.0 2 * USB2.0 port
HDMI 1 * HDMI2.0 Out
PCIe Slot
  • 1 x PCIe slot in TBS2925-1
  • 2 x PCIe slot in TBS2925-2Support 450M bandwidth at most.
CA Reader slot Optional. If you need the CA reader slot in the server, please contact us.
UART 1 x LCD Display
PSU
  • 12V/3A external PSU for TBS2925-1
  • 12V/4A internal PSU for TBS2925-2
Available inputs:
Live channels input DVB-S/S2/S2X, DVB-T/T2, DVB-C, ATSC-T, ISDB-T from Tuner PCIe cards
HDMI video input HDMI encoding PCIe cards
ASI input DVB-ASI capture PCIe cards
Video streaming:
Free software Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
Protocol UDP, HTTP, SRT
Common information:
Working Environment
  • Operating temperature: 0 ~ 40 deg C
  • Storage temperature: –20 ~ 70 deg C
  • Relative Humidity: 5% ~ 90% non-condensing

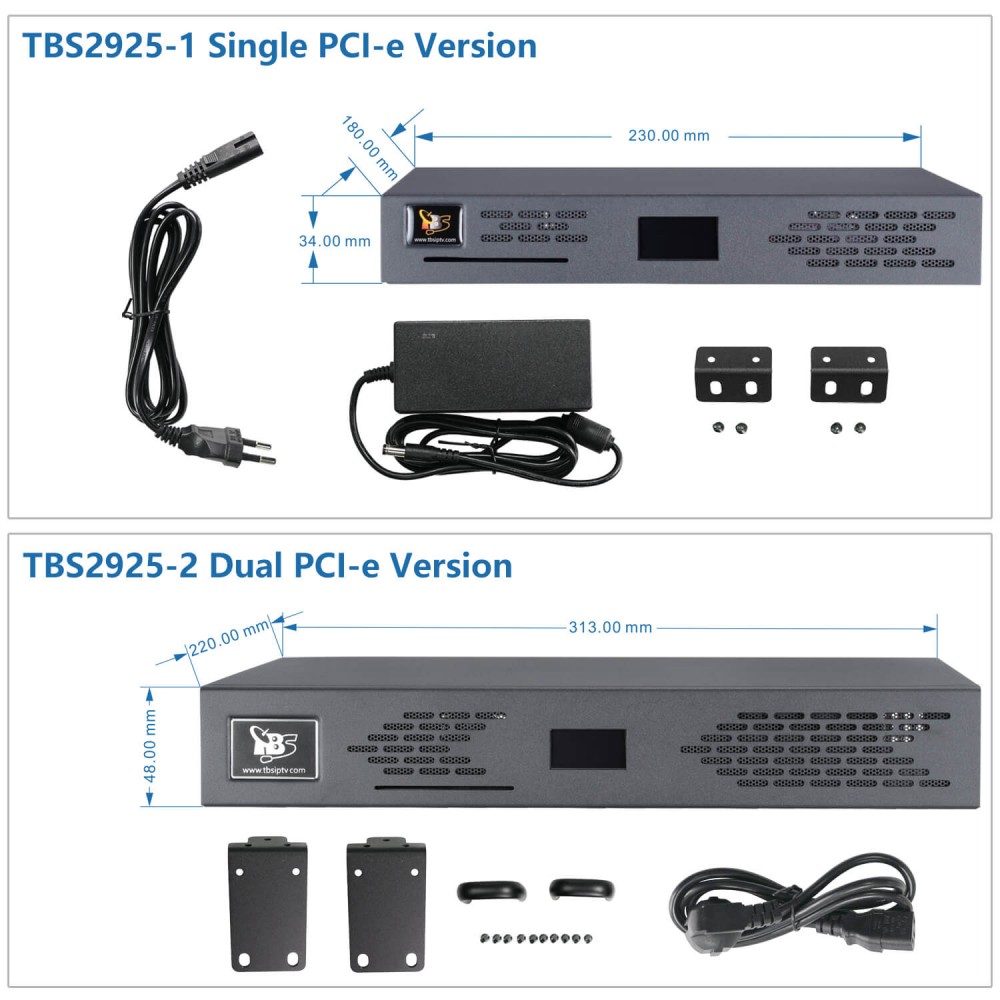

Dimensions(chassis)

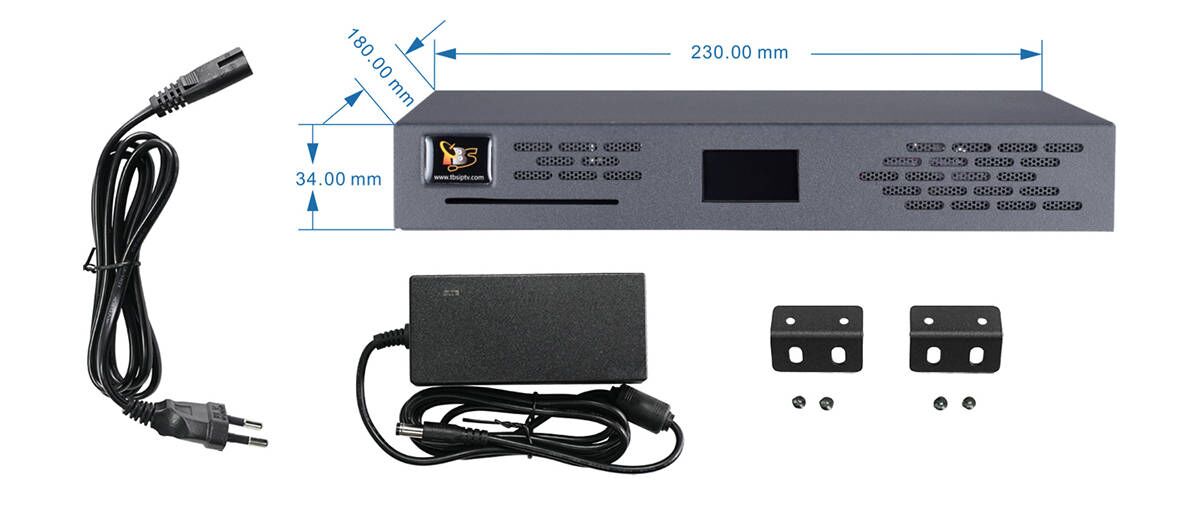

  • 230 * 180 * 34mm for TBS2925-1

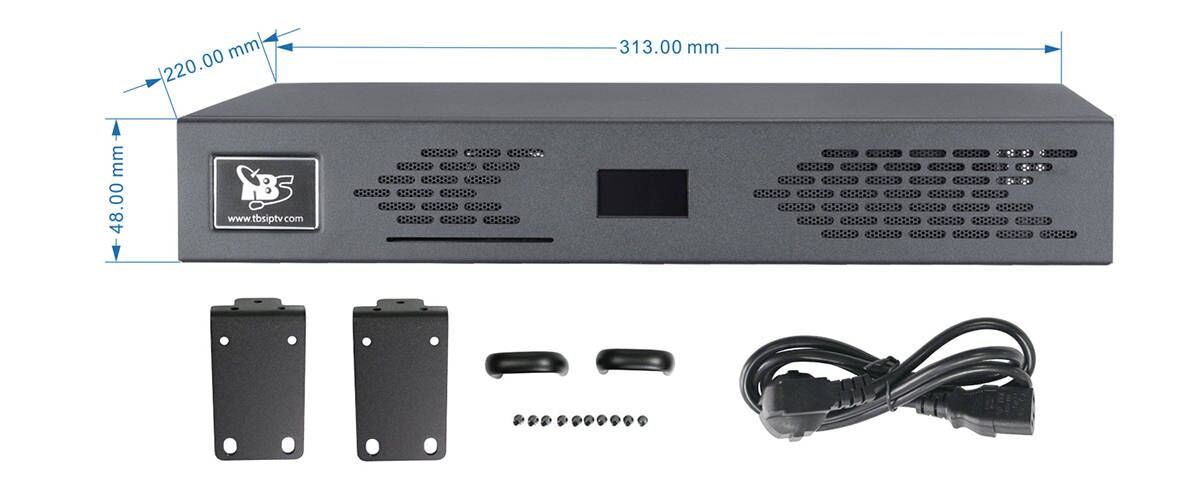

  • 313 * 220 * 48mm for TBS2925-2

The TBS2925 chassis is a testament to adaptability and innovation, offering a robust solution for various broadcasting and encoding needs in the digital media landscape. Its modular-design allows customization requirements, as well. If users want to modify the chassis to fit your own project need, please contact sales@tbsdtv.com.
