TBS2952 MOI Pro MAX IPTV Streaming Server
TBS2952 MOI Pro MAX IPTV Streaming Server
- Model: TBS2952
- Weight: 12,000.00g
- Reward Points:850
In Stock
US$850.00
MOI Pro MAX is a new professional IPTV streaming server powered by Intel Quad Core solution. It can receive live TV signal using built-in TV tuners and stream the channels further through Ethernet to various clients' devices, such as PC, tablet PC, smartphone, and smartTV. With pre-installed Kylone streaming software, MOI Pro MAX provides more possibilities to IPTV system integrators and TV service operators.
Kylone software is designed by TBSDTV and is compatible with all TBS DVB tuner/modulator/ capture cards. It offers a comprehensive set of tools and features to empower users in efficiently organizing digital TV broadcasting service across cable, satellite, terrestrial and IP networks with advanced real-time monitoring. With Kylone, you can manage all your DVB sources. Know more details, please check https://www.tbsiptv.com/kylone-digital-content-managing-panel

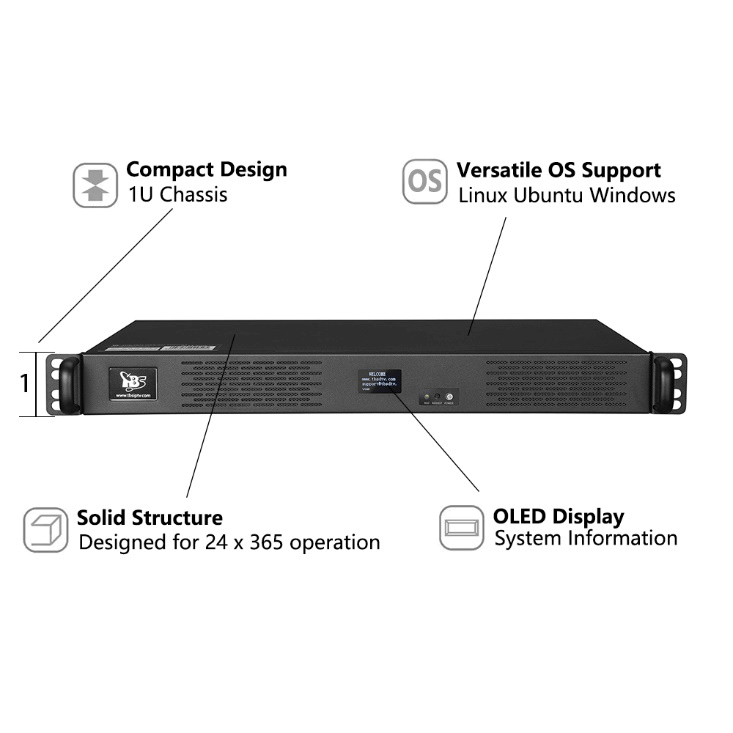

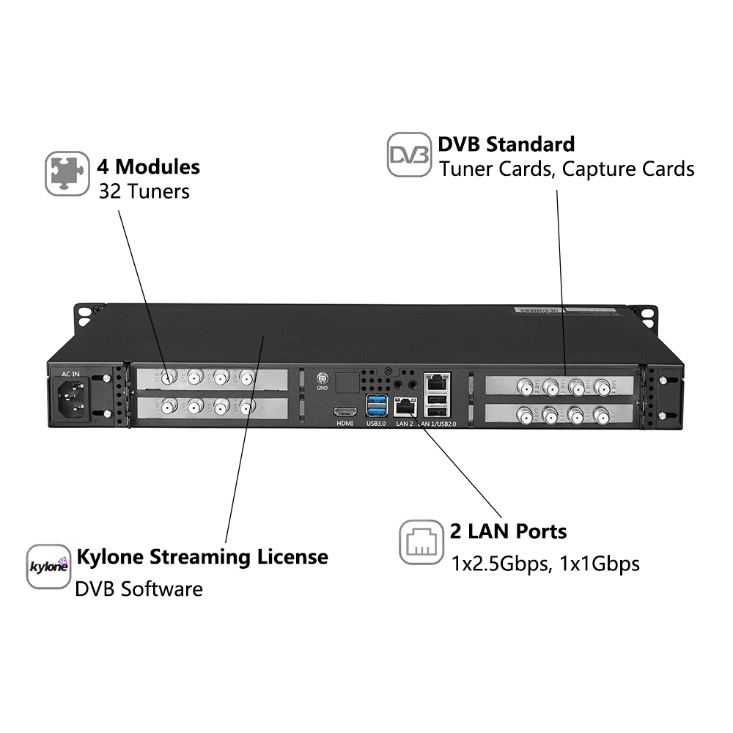

Key Features:
- Live SD/HD TV streaming
- Based on Intel Quad Core
- High-performance graphics processing
- Low power consumption

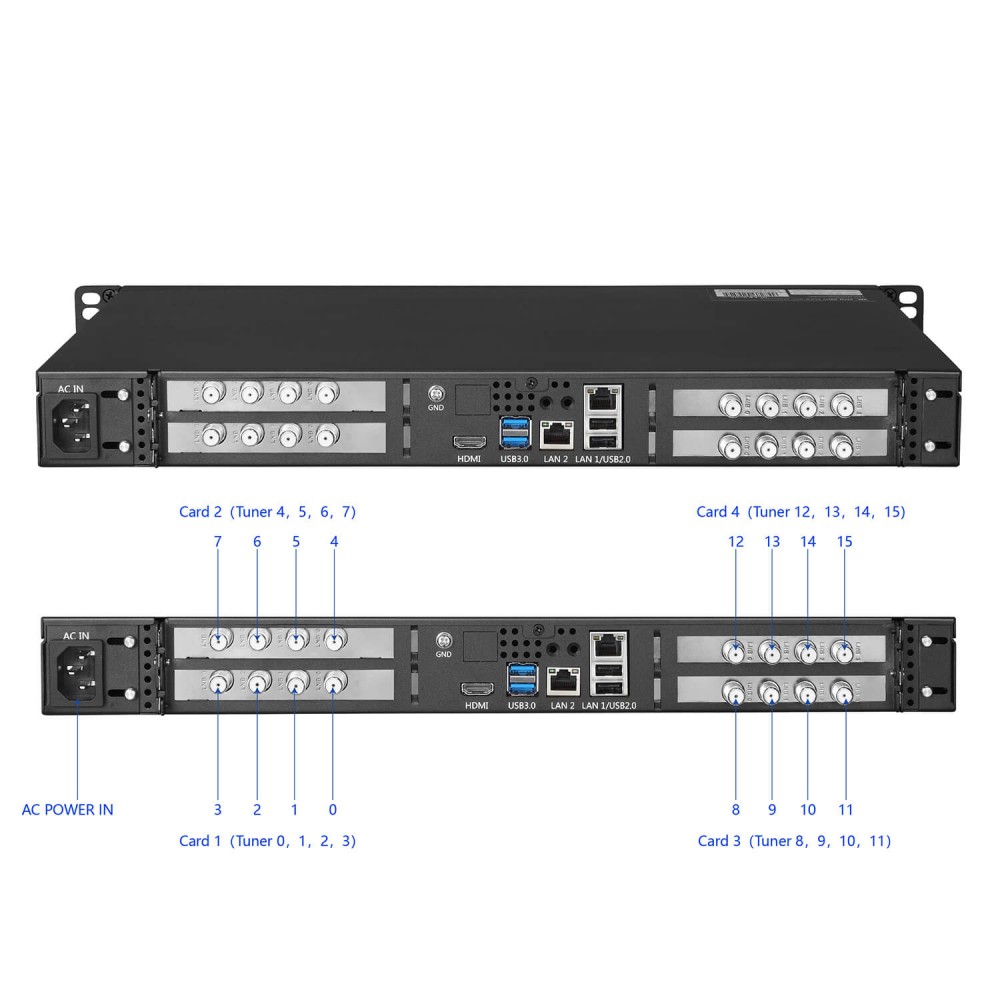

- Supports up to 32 TV tuners (4 TV tuner PCIe cards of different DVB standards)
- Compatible with various DVB software
- Versatile OS Support: Linux Ubuntu/ Rokcy8/ CentOS，Windows XP / Vista/ 7/8/10
Specifications:
| Model | MOI Pro MAX |
| Size | 1U Chassis (430 * 320 * 46mm) |
| Processor | Intel® Embedded Celeron J6412 (Quad Core, 2.6GHz) |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Ethernet | 1x2.5Gbps, 1x1Gbps or 1x2.5Gbps & 2x1Gbps (optional) |
| Memory | 8G DDR4-2666 (Up to 32G ) |
| Storage | 1 x SATA 6.0 Gb/s |
| SSD | 250G M.2 SATA |
| Front Panel | Power Button |
| Reboot Button | |
| Power LED | |
| HDD LED | |
| Display Interface | 1 x HDMI |
| USB Port | 2x USB 2.0 |
| 2x USB 3.0 | |
| SBC dimension | 128 * 104 mm |
| Operating Systems | Rocky Linux System (default) , Linux Centos7, Ubuntu |
| Microsoft® Windows XP / Vista/ 7/8/10 | |
| DVB tuner card support | Up to 32 TV tuners (4 TV tuner PCIe cards; recommend no more than 3pcs dual CI PCIe cards such as TBS6910SE) |
| Video capture card support | HDMI / DVB-ASI capture PCIe cards |
| Pre-installed Software | Kylone (default) |
| Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba etc. (Optional) | |
| Power consumption | 72W |
| Working Environment | Operating Temperature: 0 to 40 deg C |
| Storage temperature: –20 to 70 deg C | |
| Relative Humidity: 5% to 90% non-condensing | |
| Package Contents | 1x TBS2952 MOI Pro MAX |
| 1x AC Power Cable | |
| Single Gross Weight | 11.0kg |
What is the difference between TBS2951 MOI Pro AMD and TBS2952 MOI Pro Max
| TBS2951 | TBS2952 | |
| CPU | AMD® G-Series SoC GX-420GL (Quad Core, 2GHz) 15W | Intel® Embedded Celeron J6412 (Quad Core, 2.6GHz) 10W |
| SSD | 30G SSD (mSATA) | 250G SSD (M.2 SATA 2242) |
| RAM | 4G DDR3-1600 | 8G DDR4-2666 (Support upto 32G) |
| LAN | 2x1Gbps | 1x2.5Gbps+1x1Gbps +1x1Gbps (Optional) |
| PCIE | 4*1xPCIE share with 2*PCIE 2.0 | 4*1xPCIE with 4*PCIE 3.0(Independence) |
| System | CentOS7 | Rocky8 |
| Software | Tvheadend, DVBlast, MuMudvb… | Kylone (Preinstalled) |
| Input | DVB-S/S2/S2x, DVBT/T2, DVBC/C2, ATSC, ISDB-T, DTMB, HDMI, ASI, | DVB-S/S2/S2x, DVBT/T2, DVBC/C2, ATSC, ISDB-T, DTMB, HDMI, ASI, UDP(Unicast,Multicast), HTTP, HLS, RTSP, SRT, MPTS, Local TS File |
| Output | HTTP, UDP | HTTP, UDP, RTP, HLS, SRT, SPTS, MPTS |
