TBS2955 DVB/ISDB-T/ATSC to IP gateway server
TBS2955 DVB/ISDB-T/ATSC to IP gateway server
- Model: TBS2955
- Weight: 11,500.00g
In Stock
TBS2955 is a new powerful IPTV headend streaming server, which is equipped with AMD Ryzen5-2400G. It can receive live TV signal from IP Streams or from built-in DVB TV tuner cards. After REMUX, TBS2955 IPTV headend streaming server will re-stream the channels further through Ethernet to various devices, such as transcoding server, CDN server, CMS server, end-users' android TV box and so on.
TBS2955 IPTV headend streaming server is an essential headend server for IPTV system. Furthermore, if it is loaded with Kylone IPTV managing platform, TBS2955 can also work as an all-in-one IPTV server to build up a simple IPTV system in LAN network for hotel project, coffee shop project, hospital project and so on.
TBS2955 IPTV headend streaming server supports NMS system, can be controlled and configured via Ethernet using a standard browser. This function will allow system manager to login the system can configure it in anywhere and anytime as long as he can connect to internet.
Specifications

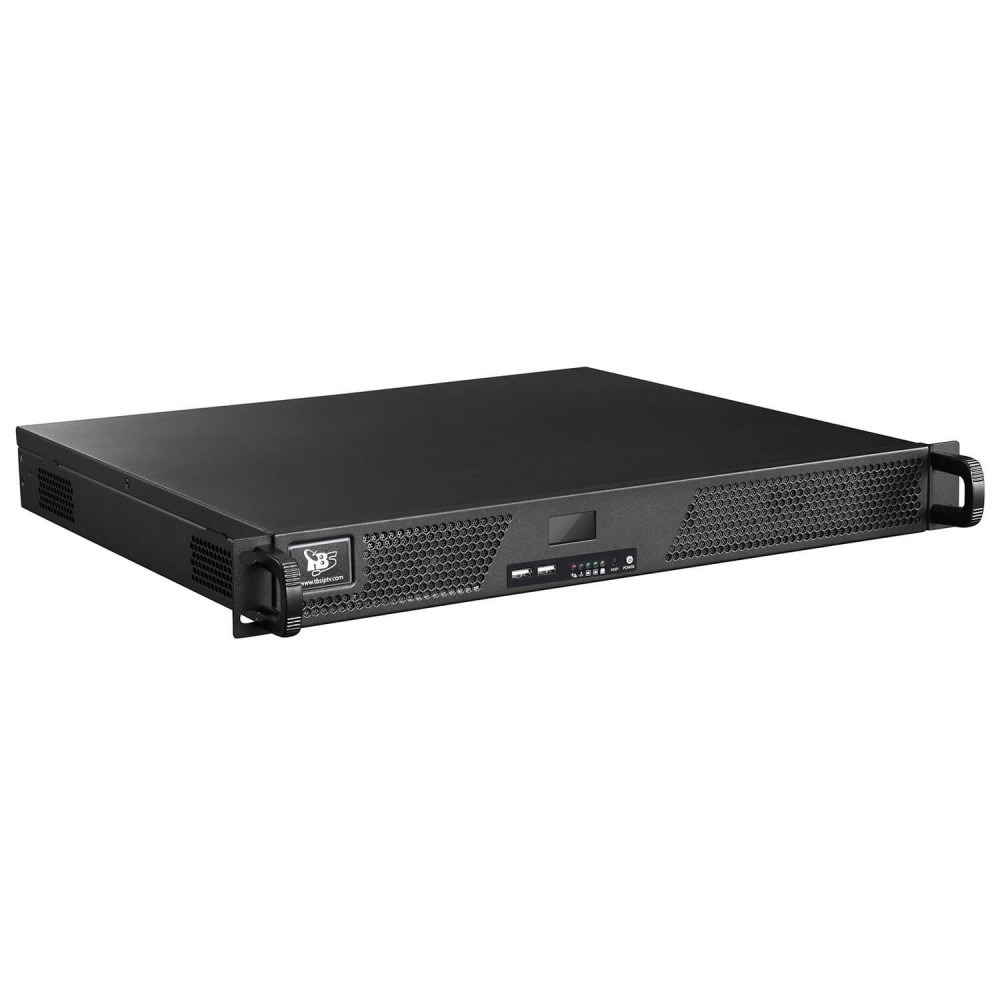

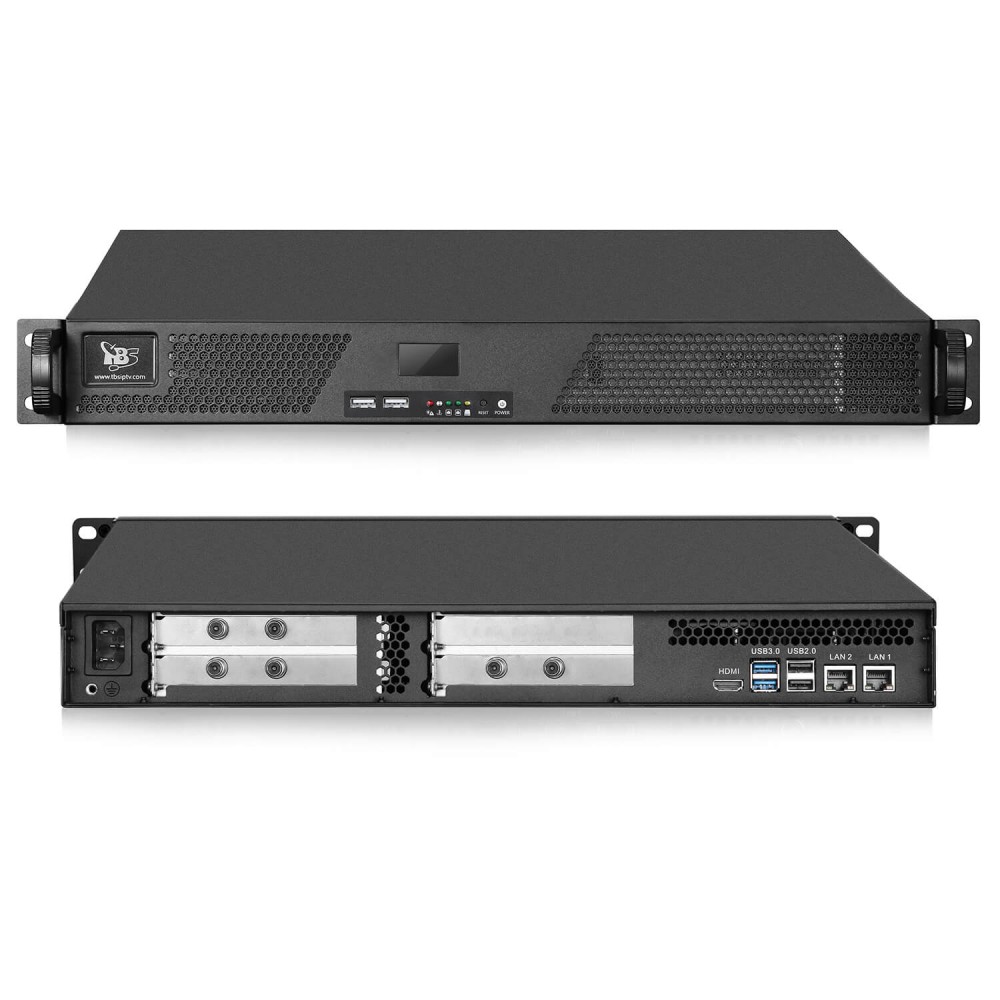

| Size | 1U Chassis (439mm*380mm*52mm) |
| Processor | AMD® Ryzen5-2400G |
| Memory | DDR4-2666 8G |
| Ethernet | 3 x 1Gbps LAN |
| Storage connection | 2 x SATA 6.0 Gb/s |
| SSD | 240G SATA SSD |

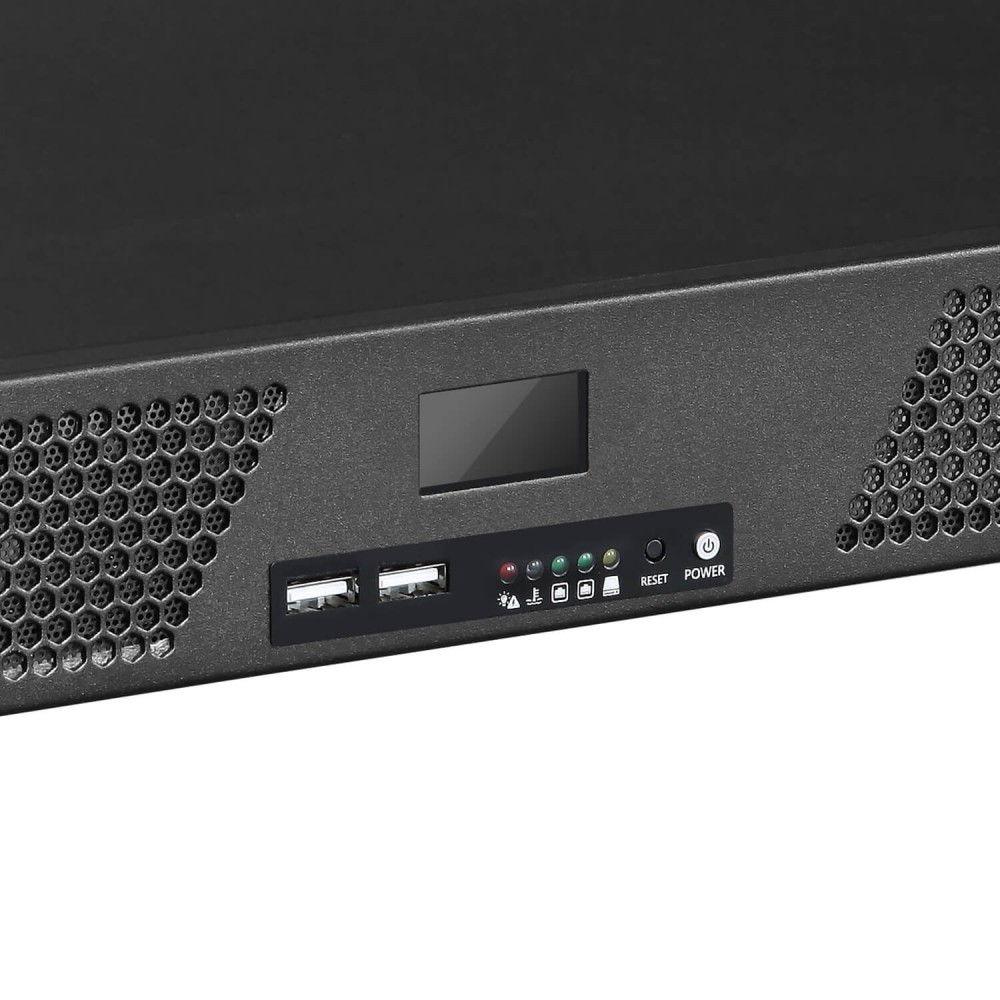

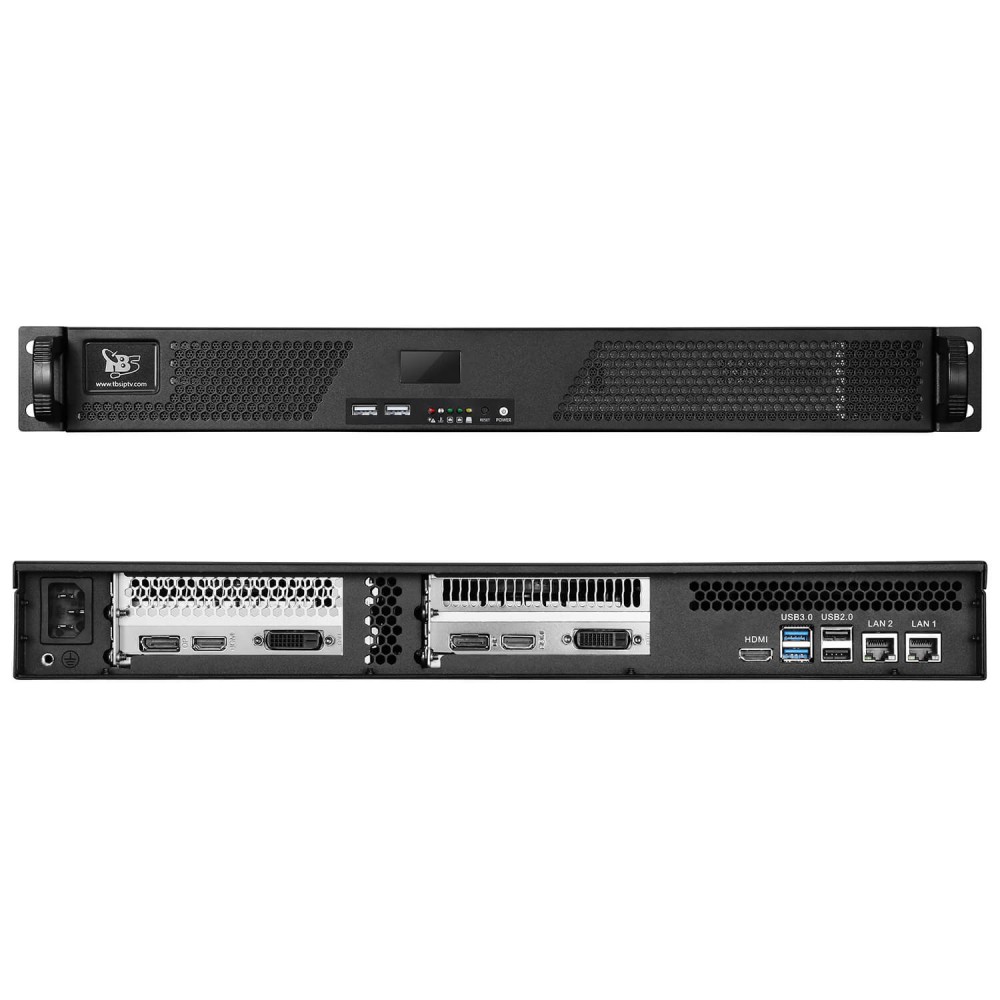

| FRONT PANEL | POWER SW |
| RESET SW | |
| POWER LED | |
| HDD LED | |
| 2 x USB 2.0 | |

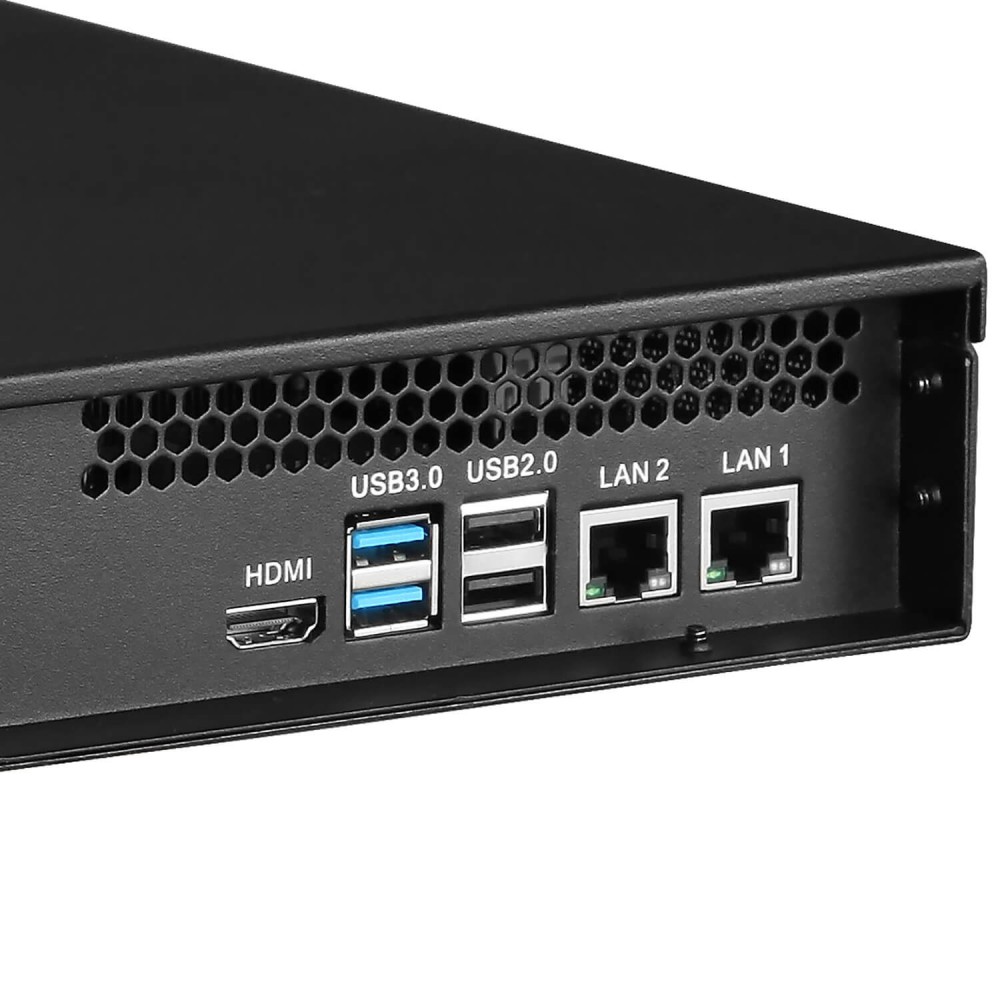

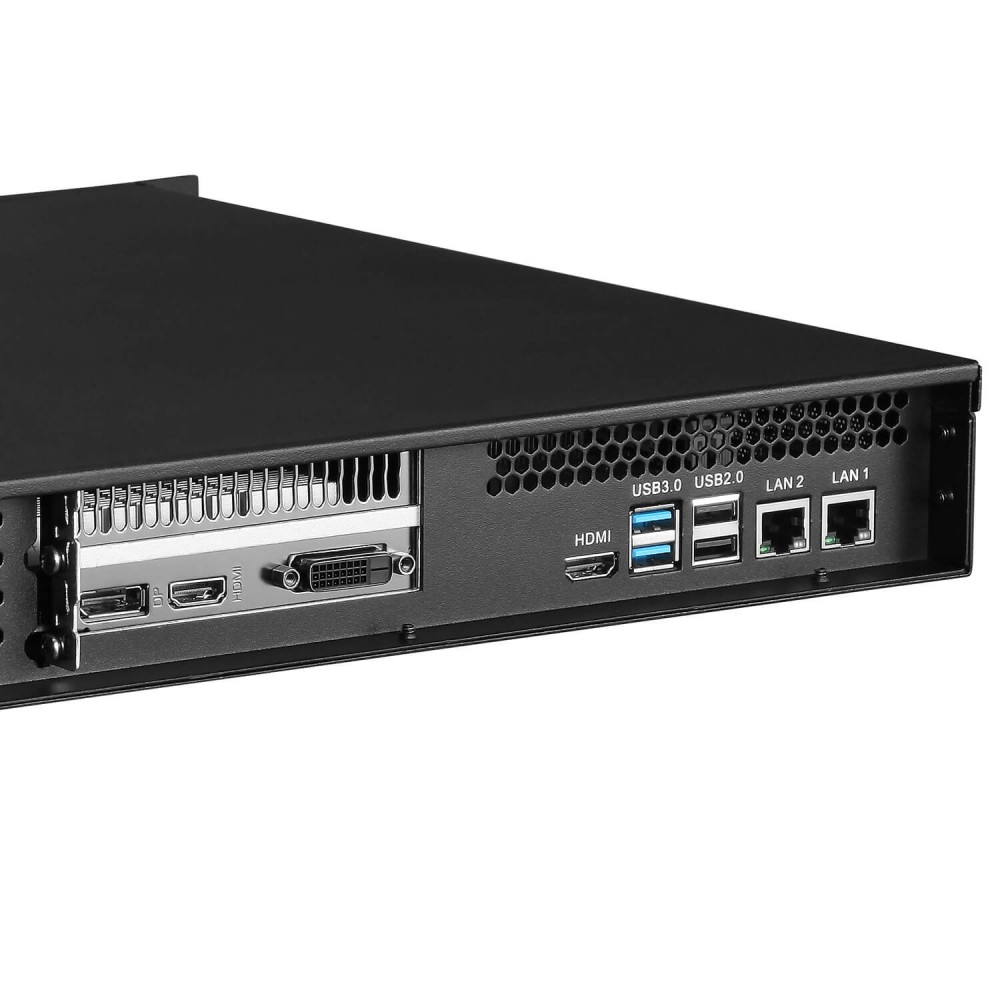

| Display Interface | 1 x HDMI |
| Additional USB | 2 x USB 2.0 |
| 2 x USB 3.0 | |
| Expansion Interface | 1 x Full-Size Mini-PCIe |
| (w/USB, PCle x 1 Single) | |
| Operating Systems | Microsoft® Windows 8, Microsoft® Windows 7 |
| Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact | |
| Centos 7, Ubuntu | |

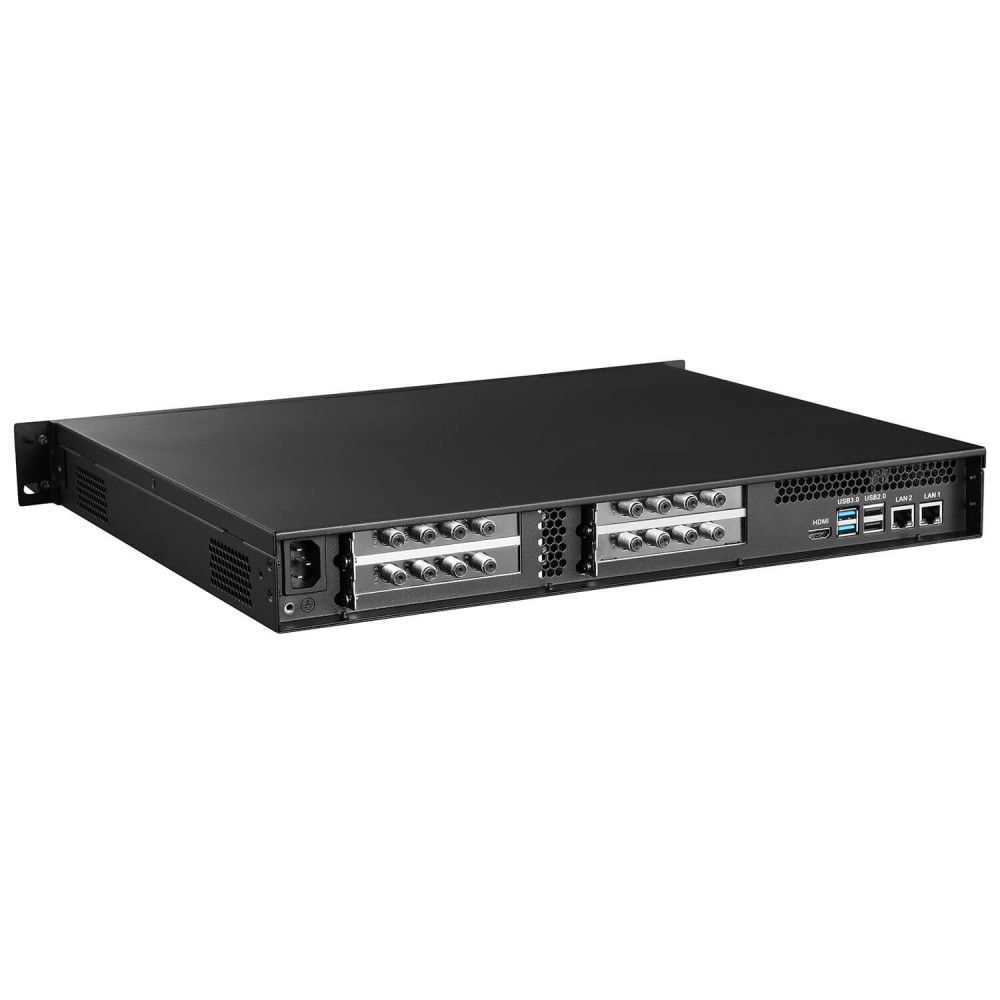

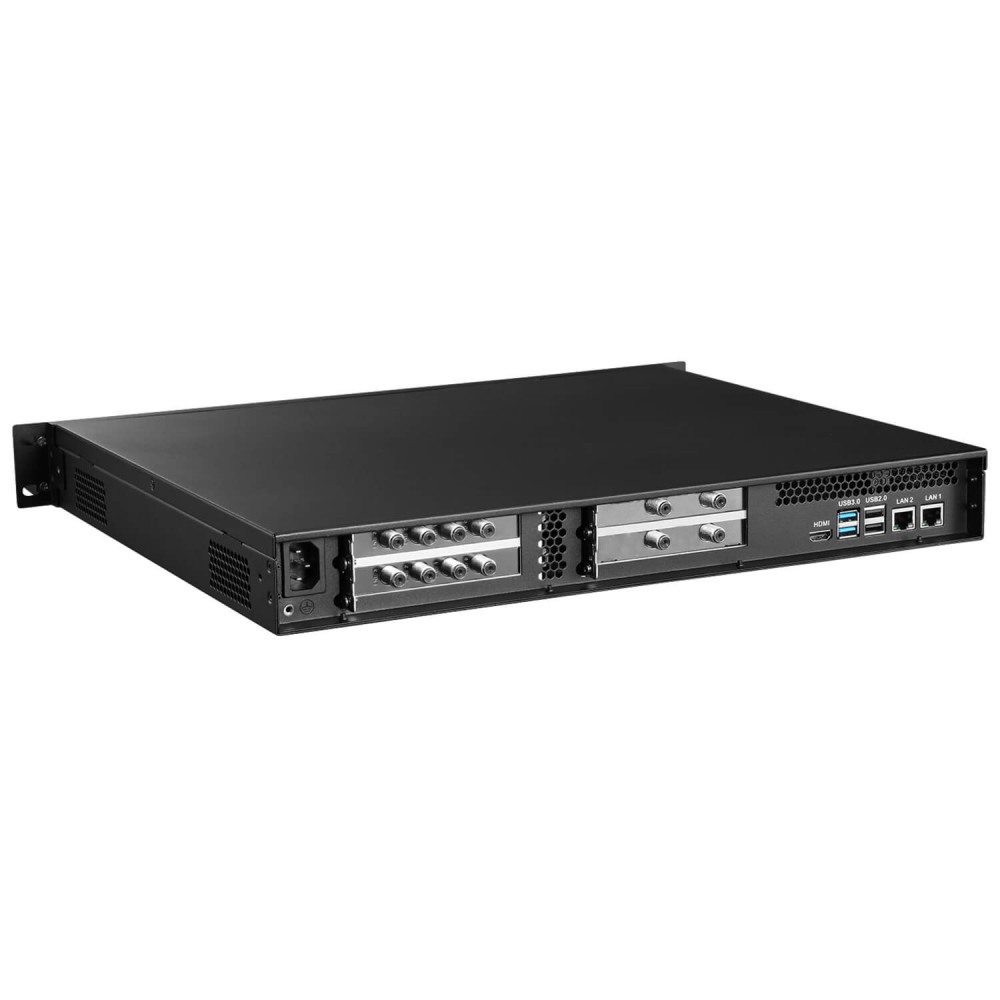

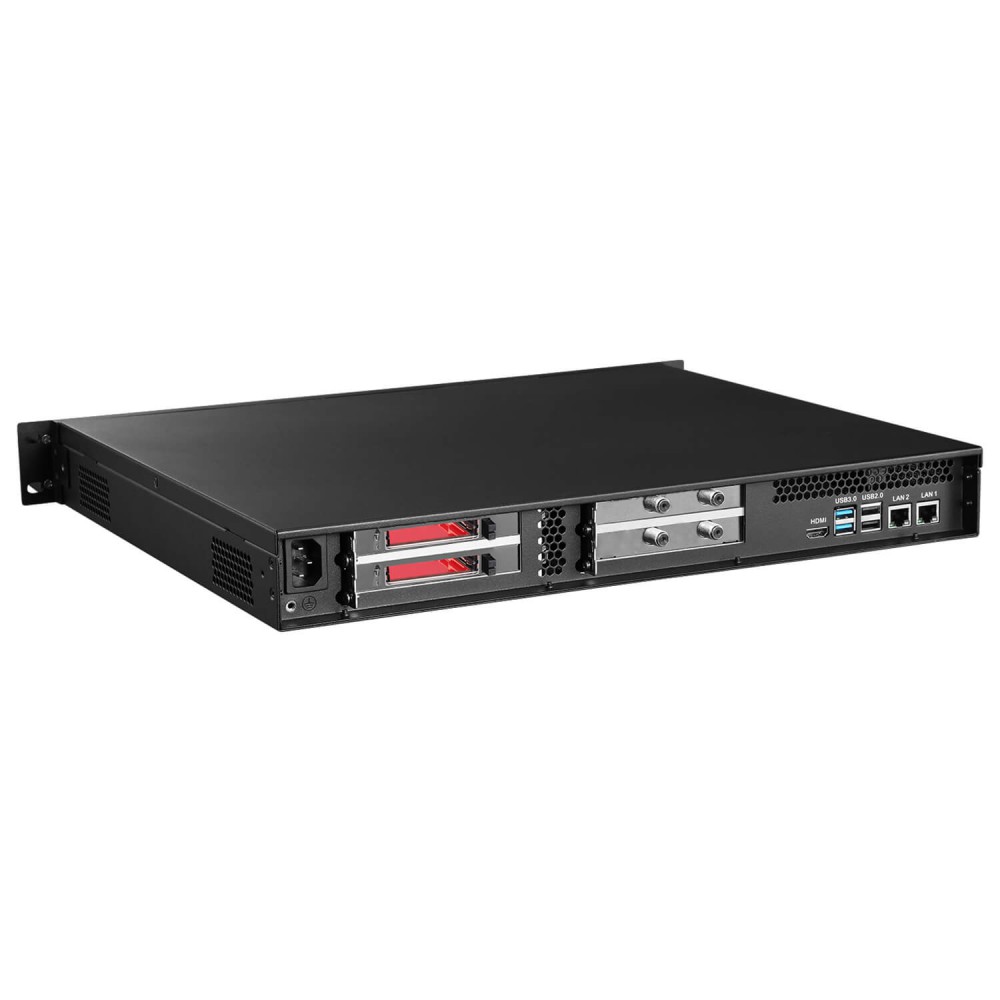

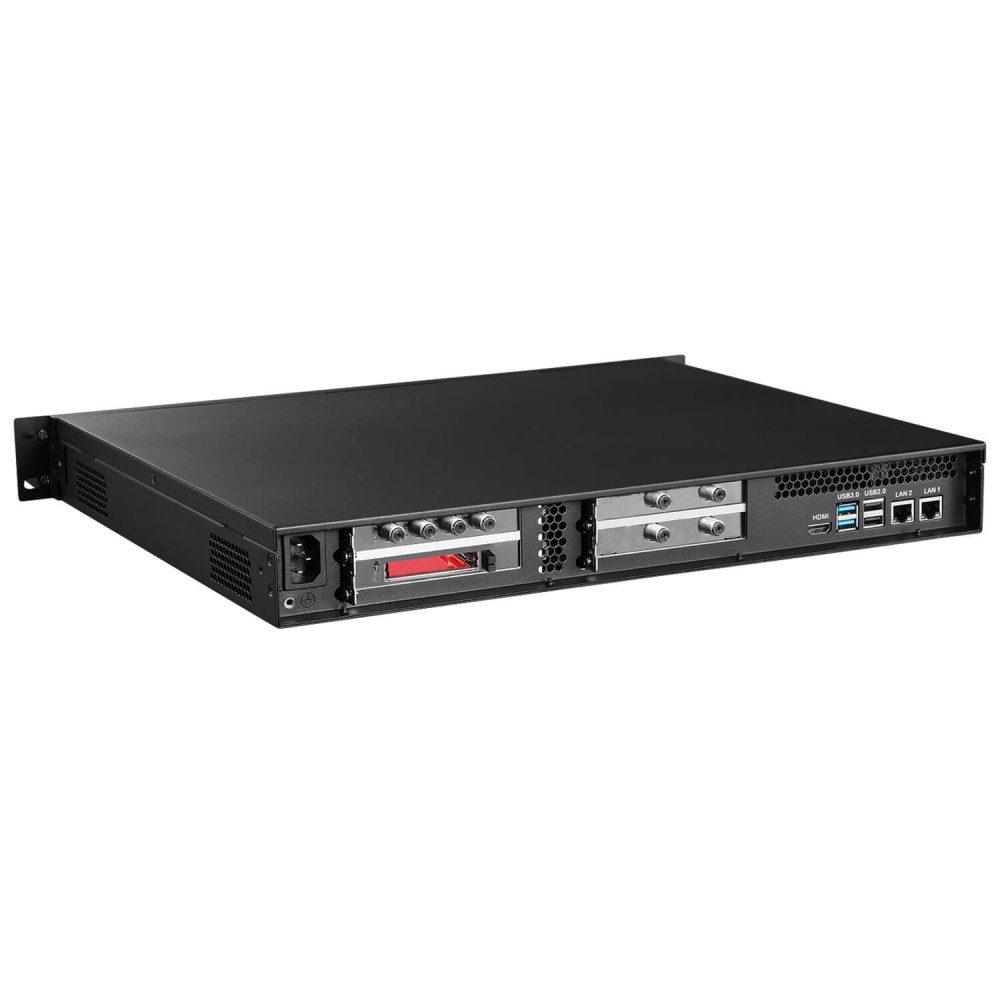

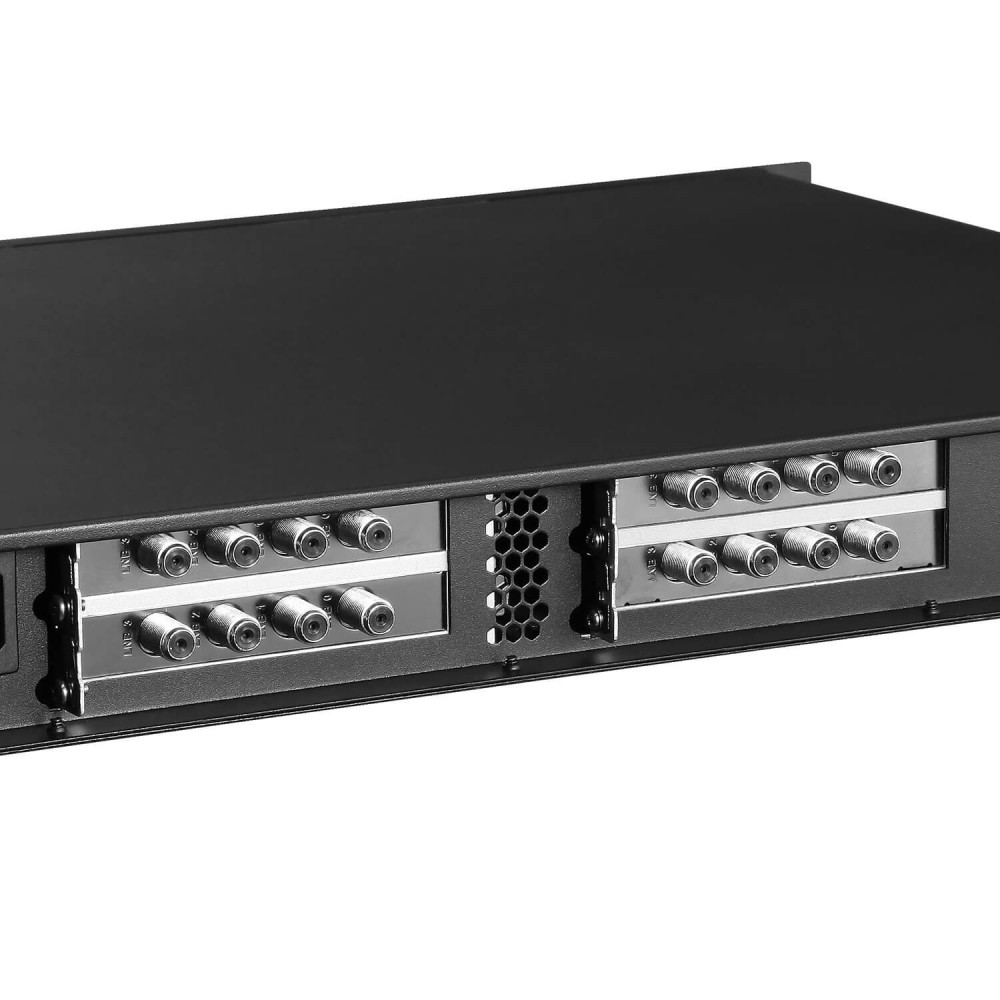

| DVB tuner card support | Up to 32 TV tuners (4 TV tuner PCIe cards) |
| Pre-installed software | Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba |
| Kylone IPTV managing platform (Optional) |
