TBS5210 DTMB TV Tuner USB Box
TBS5210 DTMB TV Tuner USB Box
- Model: TBS5210
- Weight: 500g
- Reward Points: 69
In Stock
US$69.00
TBS5210 is an external DTMB TV tuner card with USB2.0 interface. It's ideal for watching SD and HD channels on your PC.
Through the USB interface, you can easily plug the TBS5210 DTMB TV Tuner into your desktop or laptop PC. With appropriate signal cable connected and software installed, it's convenient to receive DTMB channels.
TBS5210 can also serve as a digital video recorder for recording digital terrestrial multimedia TV programs with full HDTV support. The Time-shifting function allows you to pause a live broadcast and continue from where you left. TBS5210 is ready with Windows BDA driver and Linux driver.
Features
- DTMB single tuner
- Watch & record DTMB TV /radio programs on PC
- Real-time signal quality monitoring
- High-definition video, real-Time and scheduled video recording
- Windows BDA driver and Linux Driver are ready.
- High reliability design, stable operation
Applications
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
Specification
| Model NO. | TBS5210 |
| Model Name | DTMB TV Tuner USB Box |
| Connection | USB2.0 |
| 1x RF IN | |
| DTMB Signal | |
| DTMB(GB20600- 2006) | Supported |
| QAM Mode | 16QAM, 64QAM |
| Bandwidth | 6M/7M/8M |
| Frequency Range | 100M~858M |
| Signal Level | -1 dBm ~-81dBm |
| General Spec. | |
| Input / Power | 2W |
| Operating Temperature | 0 ~ 60 °C |
| System Requirements | Windows XP / Vista/ 7/8/10/11, Linux |
| Available USB 2.0 slot | |
| Dimension | |
| TV Tuner Card Size | 9x 7.5x 2.5 cm |
| Net Weight | 120g |
| Gift Box Size | 220 * 130 * 30mm |
| Weight | 350g |

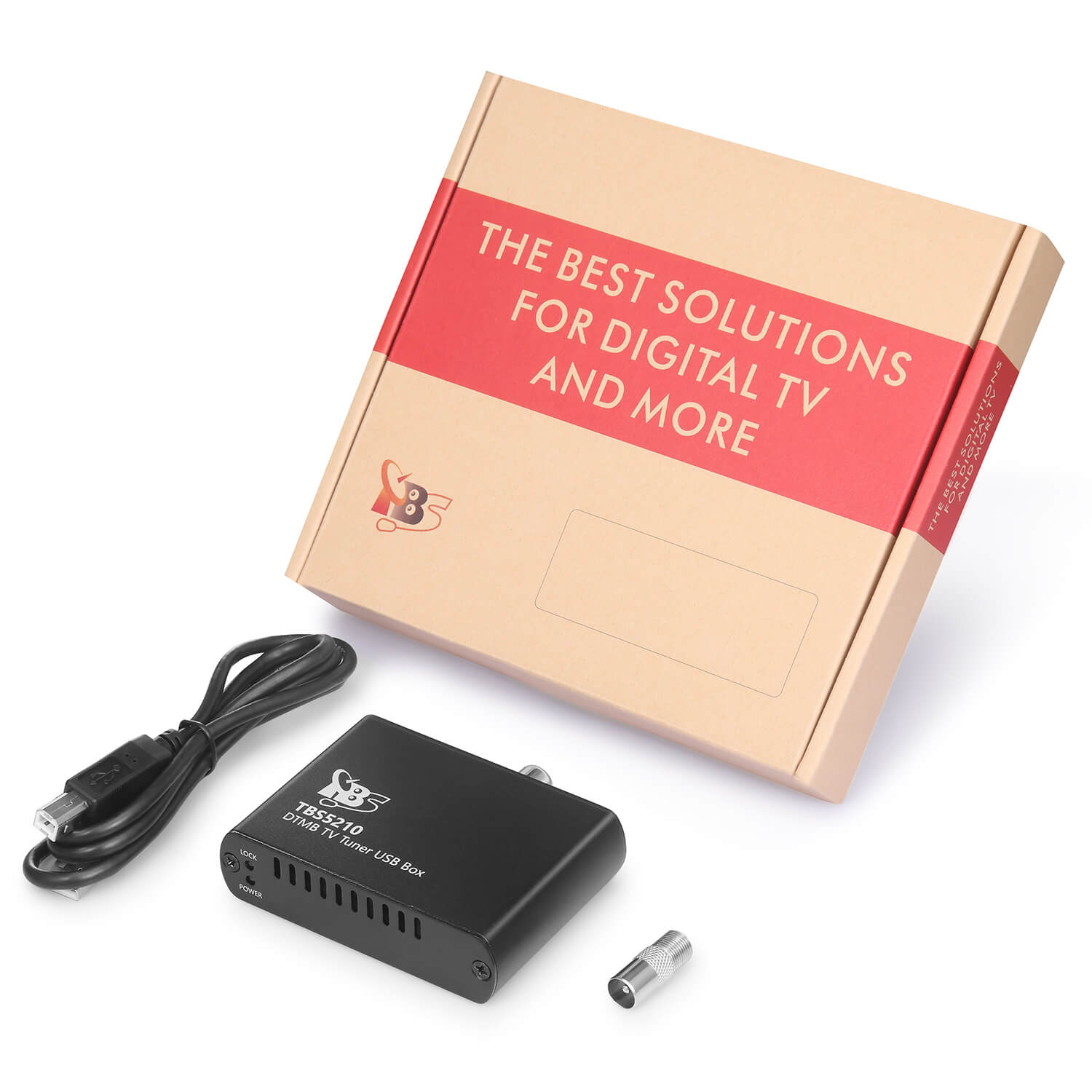

| Package Contents | 1x TBS5210 |
| 1 x USB Cable | |
| 1x F-IEC | |
