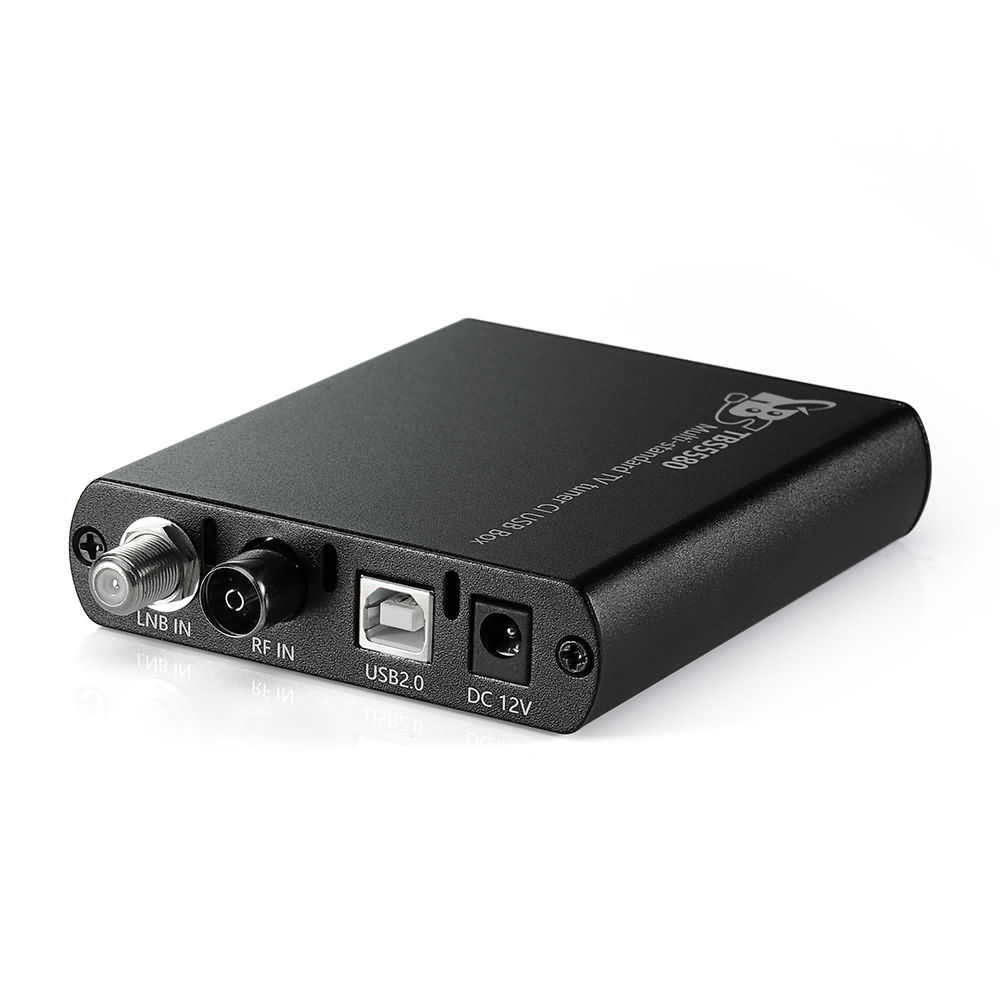

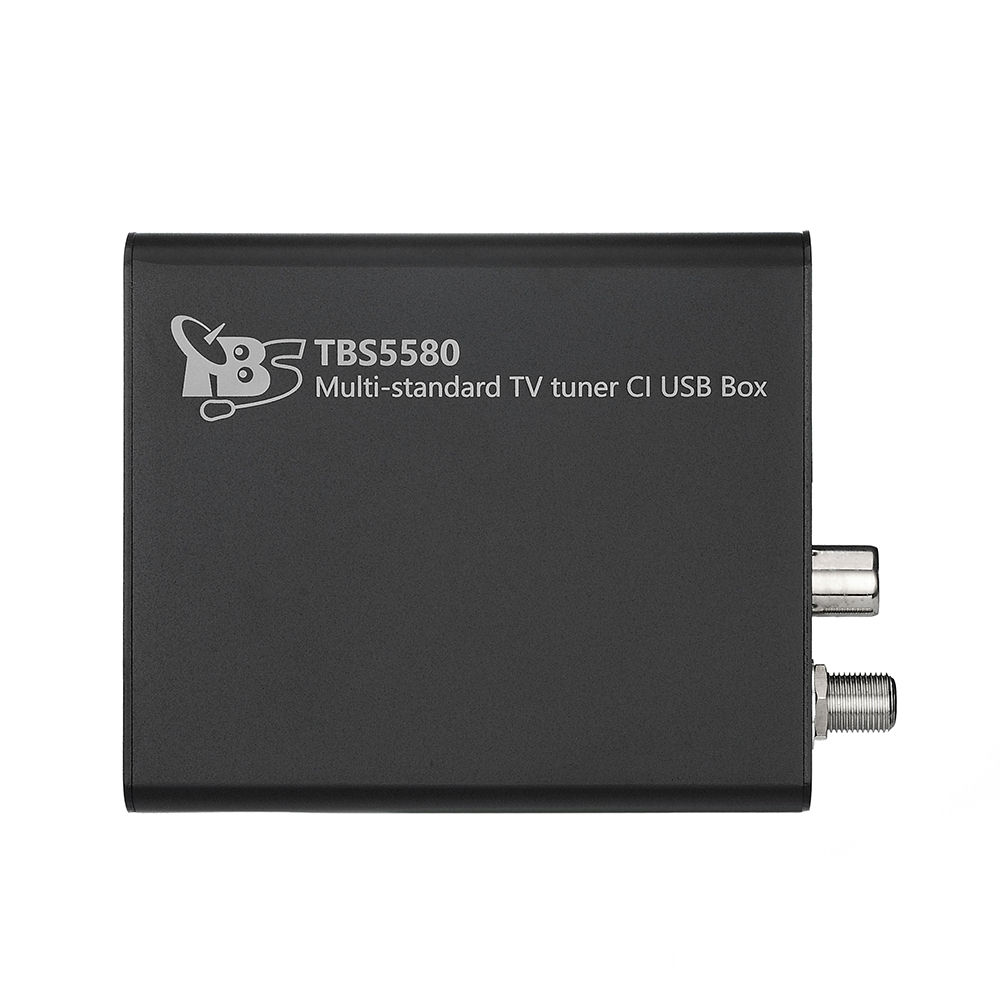

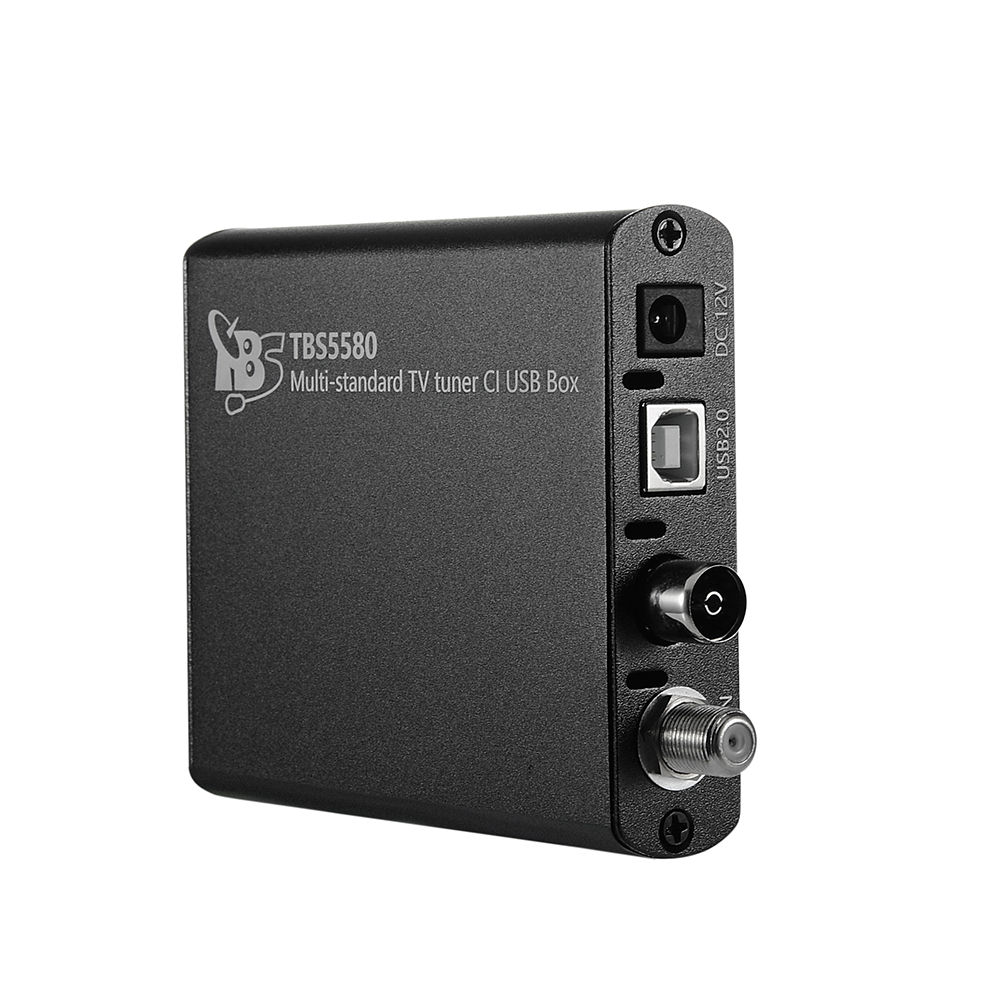

TBS5580 Multi-standard Universal TV Tuner CI USB Box
TBS5580 Multi-standard Universal TV Tuner CI USB Box
- Model: TBS5580
- Weight: 580.00g
- Reward Points:159
In Stock
US$159.00
TBS5580 is a multi-standard external TV tuner USB box with CI interface, it is supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, through the USB interface, you can easily plug the Universal TV Tuner to your desktop or laptop PC. With this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server.
Main Features:
- Multi-standard TV tuner box
- Watch & record satellite TV/ radio programs on PC

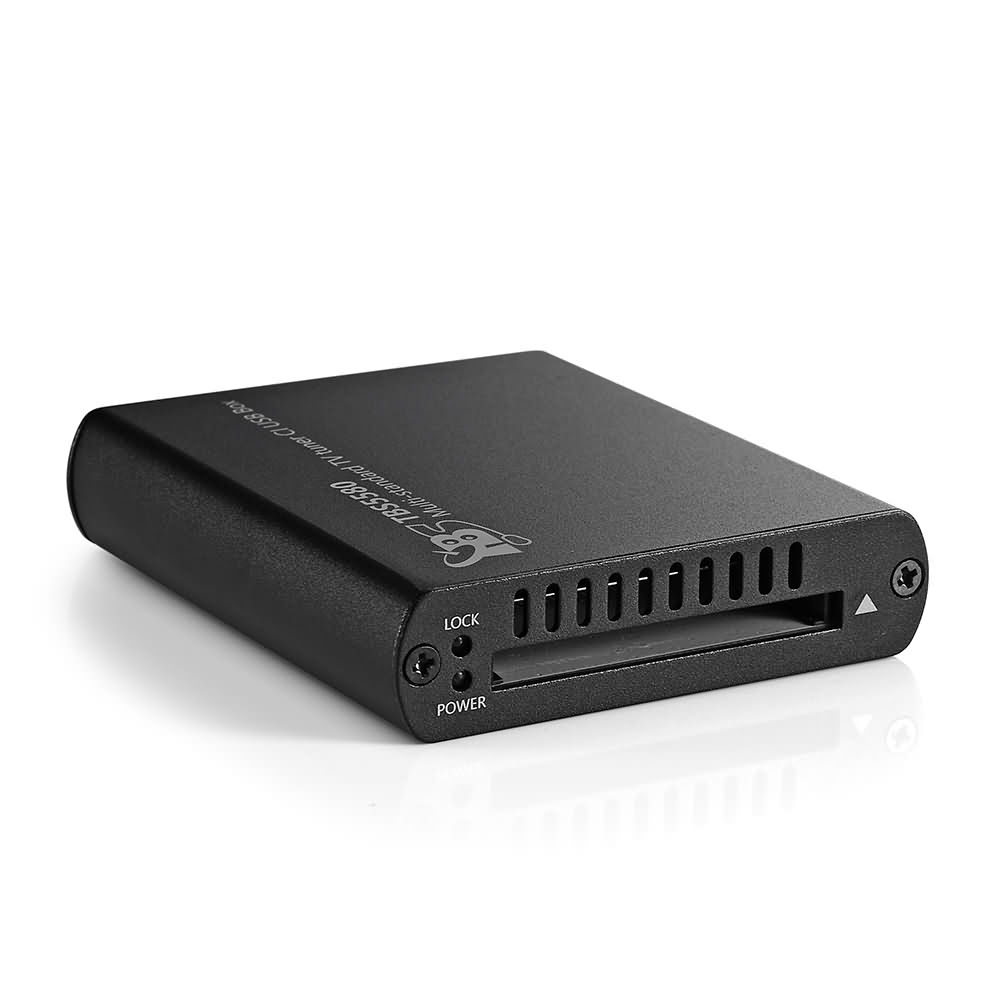

- Common Interface (Single CI) Support
- SD or HD TV receiving
- Unicable/one cable compatible
Applications:
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
Specifications:
| ISDB-T | COFDM demodulator and FEC decoding |
| Support 3 layers decoding | |
| TMCC decoding | |
| Support differential demodulation | |
| AC1 and AC2 decoding | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FEC: QPSK, 16QAM, 64QAM,256QAM | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) |
| FEC(LDPC/BCH) decoder | |
| Bandwidth: 6MHz, 7MHz, 8MHz | |
| DVB-C and ITU-T J.83 Annex B | QAM demodulator |
| FEC decoder | |
| 1 to 7.2MSymbol/s | |
| DVB-S/S2/S2X | symbol rates: 1-45Msps |
FEC: DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/18 8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180 |
|
| Power consumption | |
| Input/ Power: | 12V/12W |
| temperature | 0~60℃ |
Other information:
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| Available USB 2.0 slot | |
| Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) | |
| Dimension: | |
| TV tuner box size | 104mm * 88mm * 22 mm |
| Net weight | 540g |

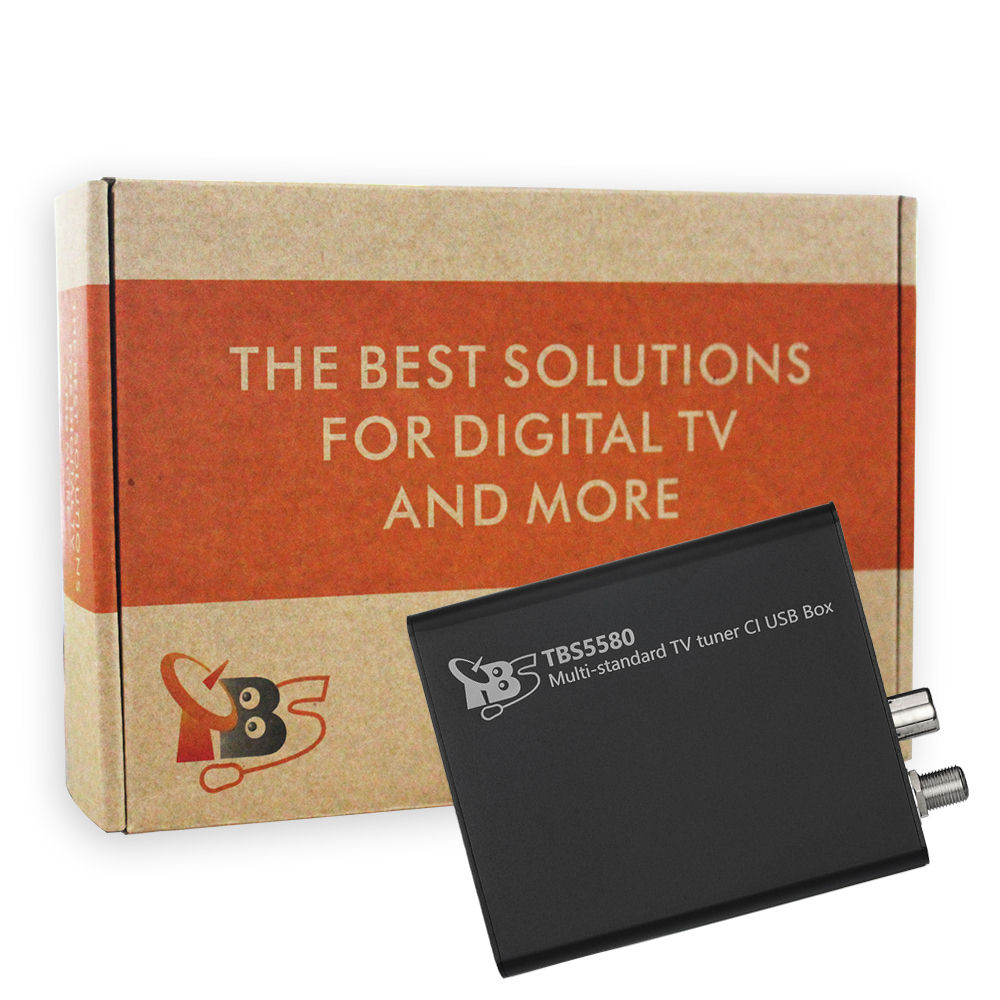

| Gift Box Size | 18 * 18 * 10（cm) |
| Weight | 580g |
| Package Contents | 1 x TBS5580 |
| 1 x USB cable | |
| 1 x F-IEC | |
| 1 x DC 12V Power Adapter | |
