TBS5590 V2 Multi-standard TV Tuner USB2.0 + TSReader Professional MPEG-2 Transport Stream Analyzer
TBS5590 V2 Multi-standard TV Tuner USB2.0 + TSReader Professional MPEG-2 Transport Stream Analyzer
- Model: TBS5590 V2
- Weight: 800.00g
- Reward Points:599
In Stock
US$599.00
TBS5590 V2 is a DVB multi-standard external TV tuner box with USB2.0 interface. It is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T. Through the USB interface, you can easily plug the TBS5590 V2 Universal TV Tuner box to your desktop or laptop PC for watching or recording different standards digital TV channels.

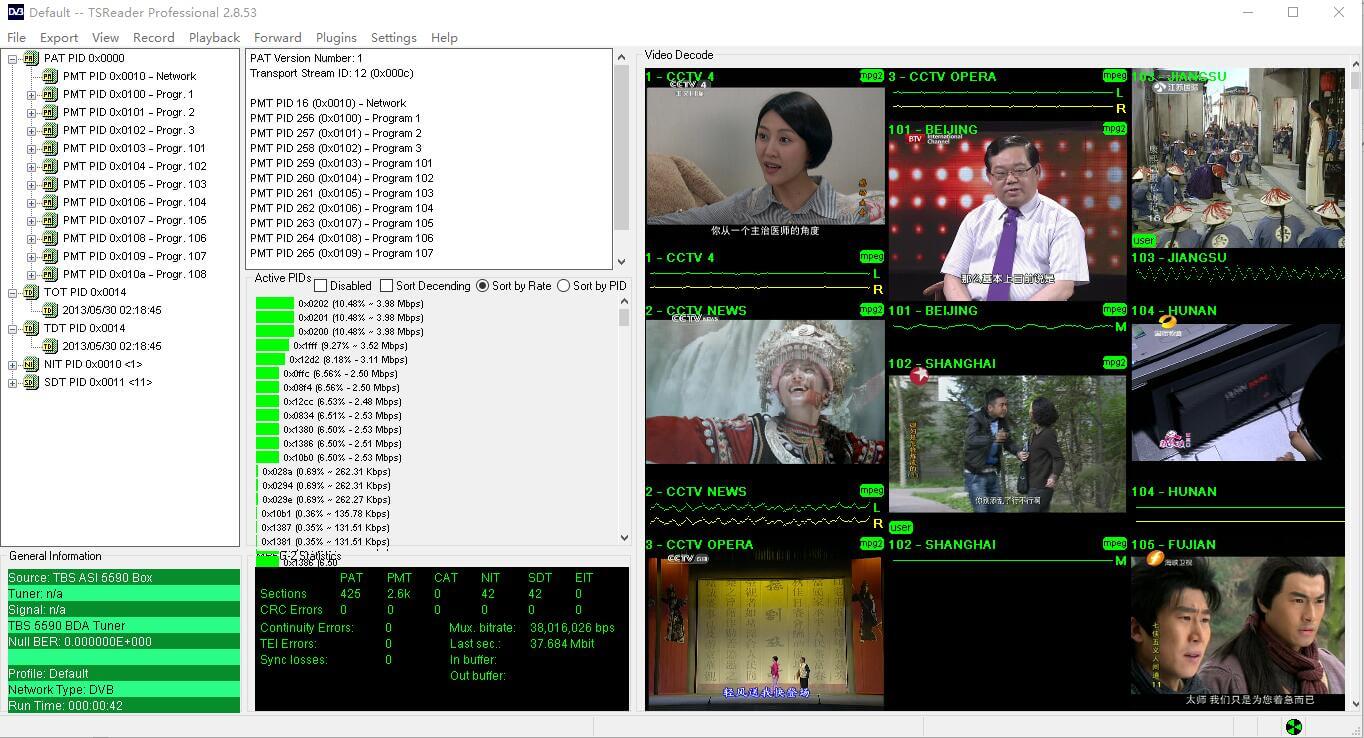

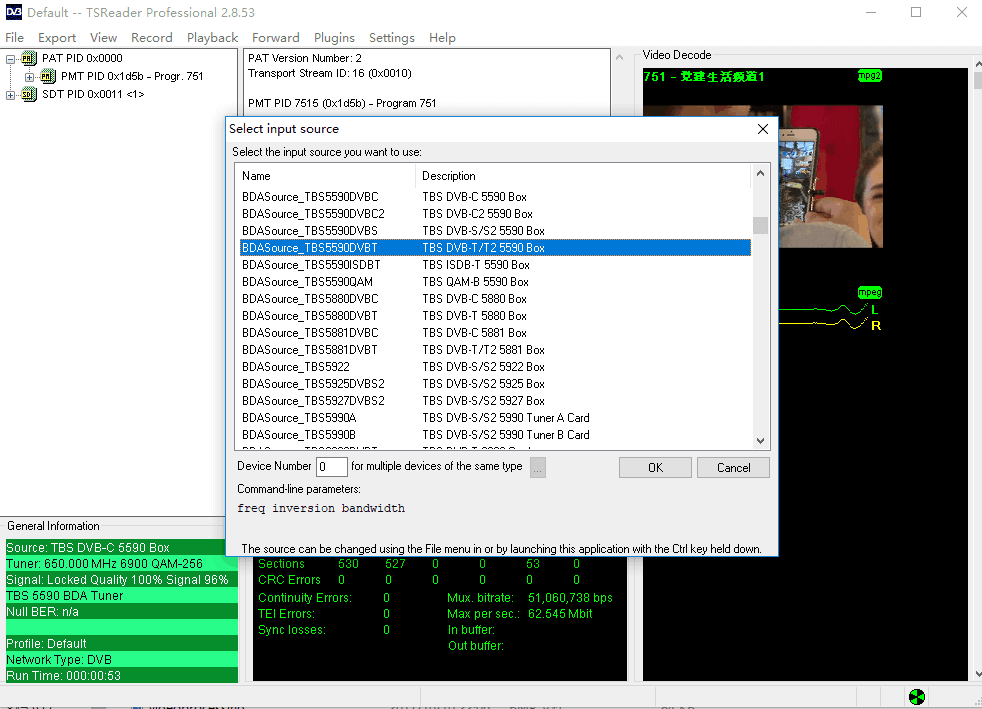

Coupled with TSReader software, TBS5590 V2 is an ideal tool to do real-time analysis, monitoring and recording of MPEG Transport Streams. TBS5590 V2 is supported in TSReader 2.8.53 and later version, which includes source modules for each mode and will automatically reprogram the demodulator when changing modes.
Features:
- DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T, Multi-standard digital TV supported.
- Universal USB TV tuner Box for watching or recording live TV channels.
- Supports real-time TV stream analysis & monitoring
- Supports bitrate measurement
- Supports elementary stream information analyzing.
Specification:
| Digital TV Standards: | ||||||||||||||||||||
| ISDBT | COFDM demodulator and FEC decoding | |||||||||||||||||||
| Support 3 layers decoding | ||||||||||||||||||||
| TMCC decoding | ||||||||||||||||||||
| Support differential demodulation | ||||||||||||||||||||
| AC1 and AC2 decoding | ||||||||||||||||||||
| DVBT2 and T2-Lite | Receiving channel: VHF band, UHF band | |||||||||||||||||||
| Bandwidth: 1.7, 5, 6, 7, 8MHz | ||||||||||||||||||||
| FEC: QPSK, 16QAM, 64QAM.256QAM | ||||||||||||||||||||
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | ||||||||||||||||||||
| Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||||||||||||||||
| DVBC2 | COFDM Demodulator(16_QAM to 4096_QAM) | |||||||||||||||||||
| FEC(LDPC/BCH) decoder | ||||||||||||||||||||
| Bandwidth: 6MHz, 7MHz, 8MHz | ||||||||||||||||||||
| DVBC and ITU-T j.83ANNEX B | QAM demodulator | |||||||||||||||||||
| FEC decoder | ||||||||||||||||||||
| 1 to 7.2MSymbol/s | ||||||||||||||||||||
| DVB-S/DVBS2/DVBS2X | Symbol rates: 1-45Msps | |||||||||||||||||||
|
FEC:
DVB-S2x
|
||||||||||||||||||||
| DVB-ASI | Up to 120Mbps | |||||||||||||||||||
| ATSC1.0 | 6MHz channel bandwidths | |||||||||||||||||||
| 8VSB modulation | ||||||||||||||||||||
| 2/3 code rate | ||||||||||||||||||||
| Power consumption | ||||||||||||||||||||
| Input/power | 12V/2A | |||||||||||||||||||
| Temperature | 0~60℃ | |||||||||||||||||||
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | |||||||||||||||||||
| Available USB 2.0 slot | ||||||||||||||||||||
| Digital TV signal ISDB-T/DVB-T2/C2/S2X/S2/T/C/S, and DVB-ASI | ||||||||||||||||||||
| Dimension: | ||||||||||||||||||||
| TV tuner box size | 103 * 88 * 22mm | |||||||||||||||||||
| Net weight | 260g | |||||||||||||||||||
| Gift Box Size | 210 * 174 * 55mm | |||||||||||||||||||
| Gross Weight | 800g | |||||||||||||||||||
| Package Contents | 1x TBS5590 V2 | |||||||||||||||||||
| 1X USB Cable | ||||||||||||||||||||
| DC 12V Adapter | ||||||||||||||||||||
| TSReader | Digital download within 24 hours of order | |||||||||||||||||||
More about TSReader, click here!
