TBS6032 16 QAM DVB-C Modulator PCIe Card


TBS6032 16 QAM DVB-C Modulator PCIe Card

  • Model: TBS6032
  • Weight: 500.00g

In Stock

TBS6032 16 QAM DVB-C modulator card adopts advanced modulation technology and works as a DVB-C signal generator. It supports to be fed with any DVB resources, network IP streams or other digital resources, and then output DVB-C channels in 16 frequencies. For example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and then use TBS6032 modulator card to convert these channels into DVB-C coaxial system.

TBS6032 supports 16 frequencies DVB-C transmission, which enabling efficient use of the available bandwidth. It provides a very cost-effective solution to transfer digital resources such as DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or even IPTV resources into an existing cable TV system in hotels, hospitals or dormitories etc.

Key Features

  • DVB-C signal generator
  • 16x DVB-C QAM RF output
  • PCIe interface for easily integrated into PC/ server system
  • Compatible with Kylone software

Benefits

  • Compatible with various DVB signal sources: TBS6032 supports to transfer DVB-S/S2/S2X, DVB-T2/T, ISDB-T, ATSC, network IP streams etc. digital resources to DVB-C signal.
  • High-quality signal Output: TBS6032 generates a stable and high-quality DVB-C modulated signal,ensuring clear and distortion-free reception of digital TV channels.
  • Wide Frequency Range: It can operate over a wide frequency range, allowing for flexibility in channel allocation and customization.
  • Easy to install and use: With a simple design, it is easy to install. Users can easily integrate it into the existing cable TV system.
  • WEB UI Configuration and Management: Intuitive Kylone Web UI let you easy to configure and manage TBS6032 for efficient digital TV broadcasting service.

Applications

TBS6032 modulator card is ideal for various applications such as:
  • Cable Television Operators: Used by cable TV providers to transmit digital TV channels to subscribers.
  • Hotels and Hospitality Industry: Enables the provision of digital TV services in hotels, resorts and other hospitality establishments.
  • Educational Institutions: Can be used in schools and universities to distribute educational programming.
  • Corporate and Industrial Settings: For internal communication and training purposes in corporate and industrial environments .
  • Home HDTV broadcasting system: Provides seamless integration into cable TV systems.

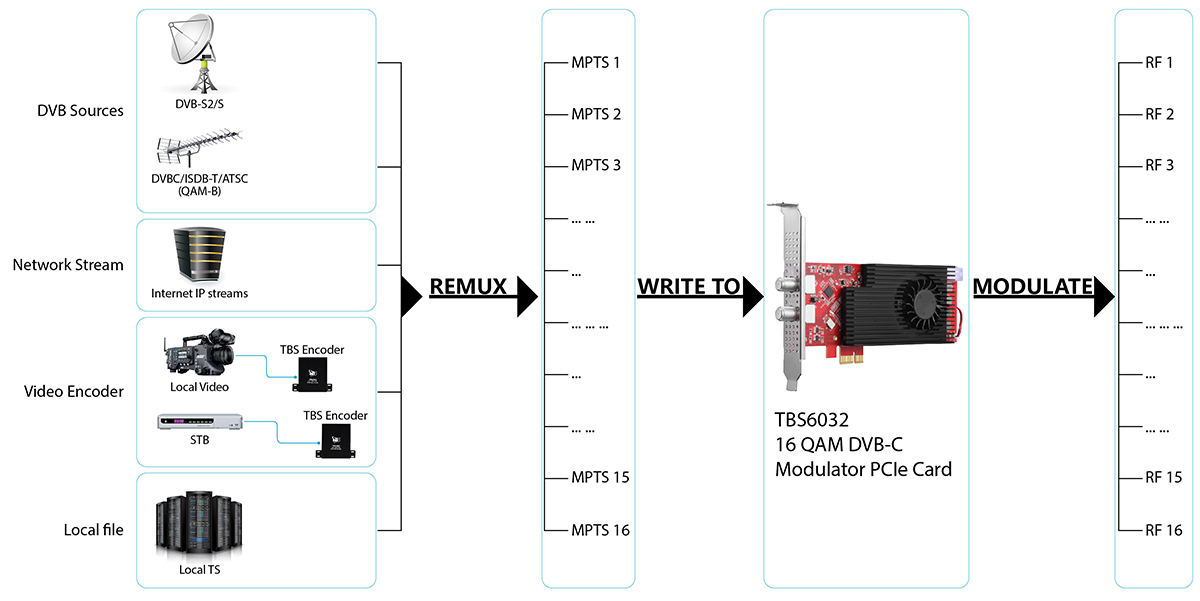

How does TBS6032 work with Kylone software?

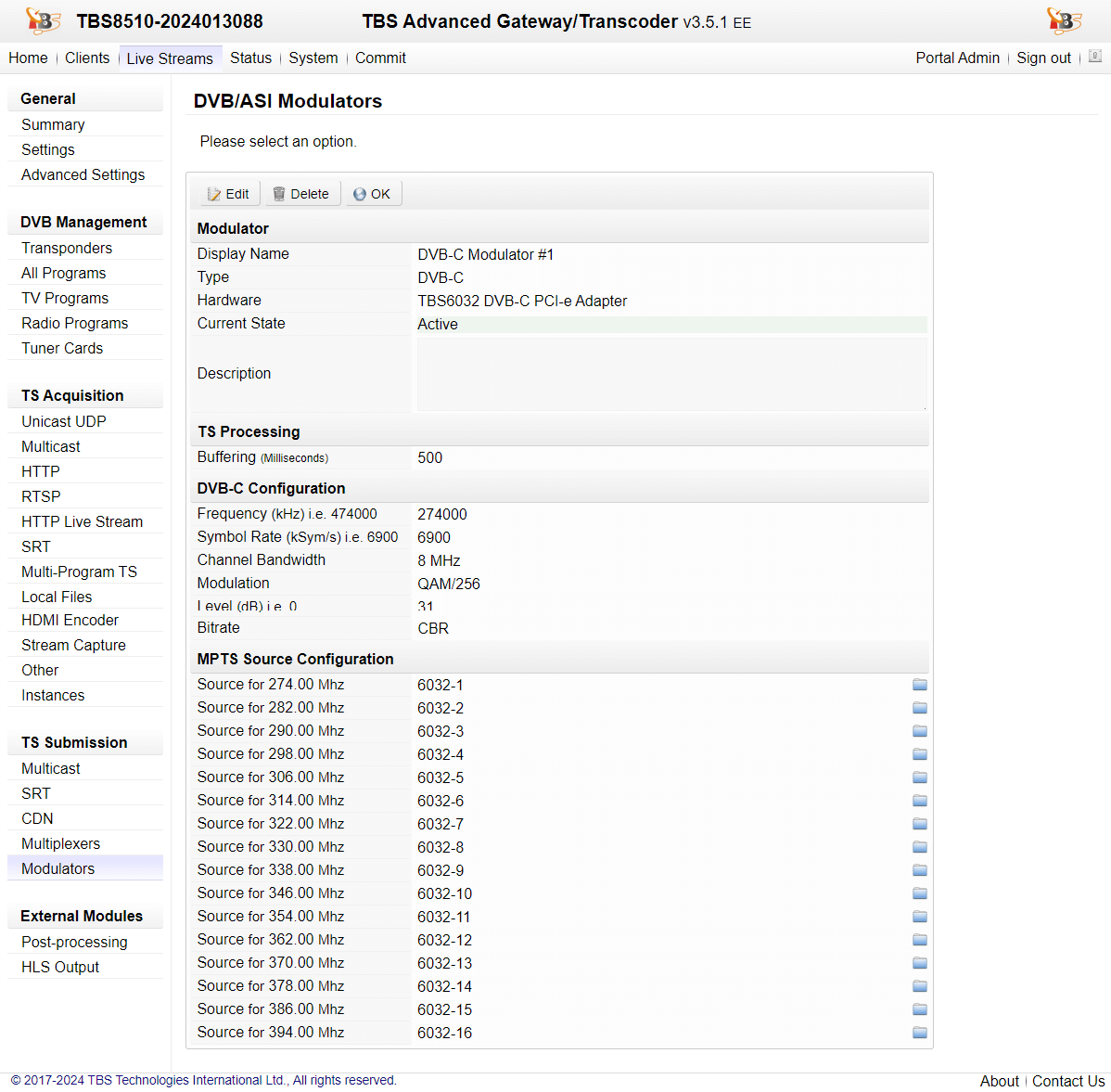

1. Configure input source

Navigate to "Live Streams" =>"Modulators" page and setup TBS6032 modulator parameters.

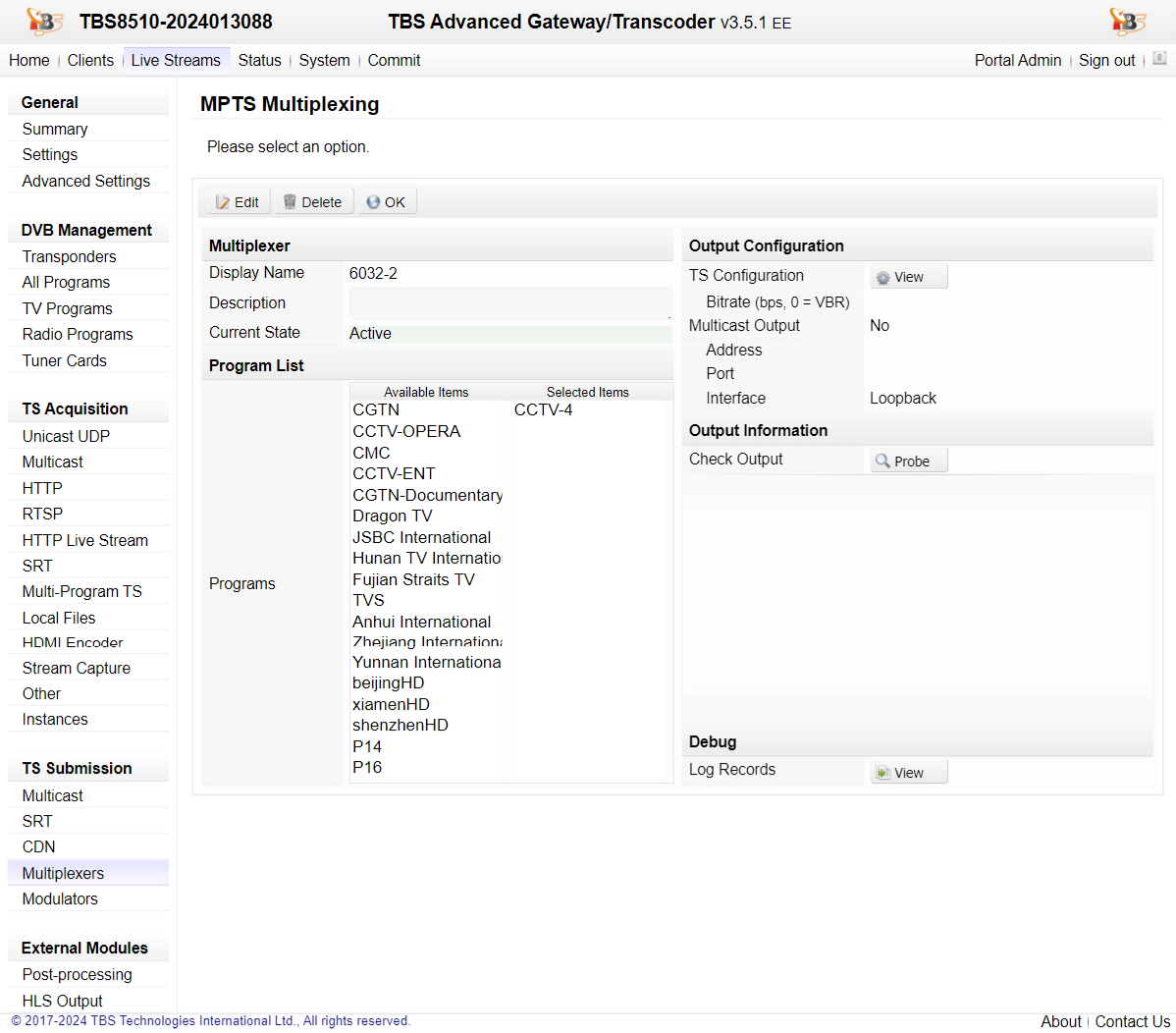

2. Remux and generate the channels into DVB-C streams

Navigate to "Live Streams" => TS Submission "Multiplexers" page. Click "Multiplexers" and "New Record" to create a new MPTS stream and then configure remux DVB-C outputs.

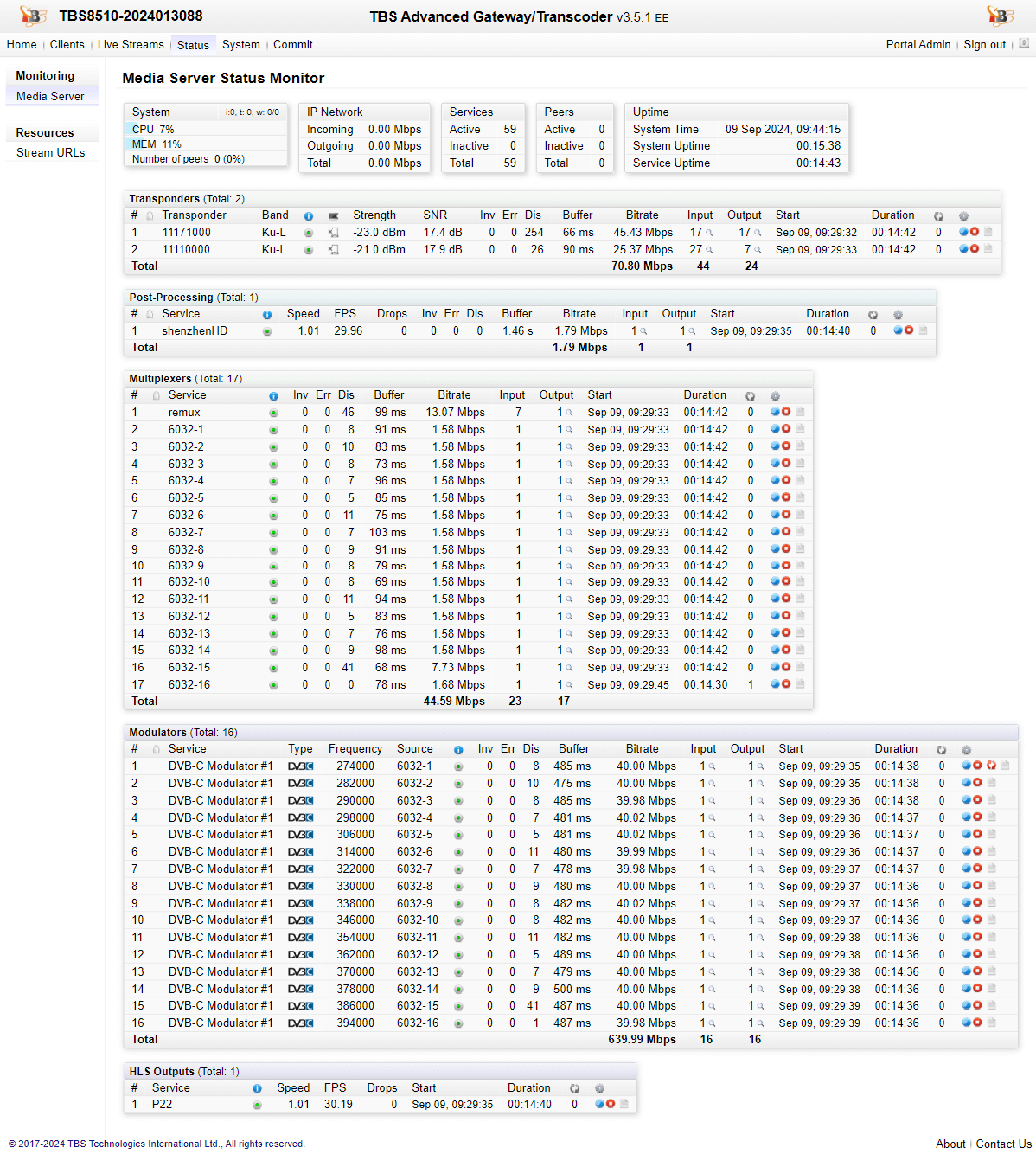

3. Click "Commit" to activate DVB-C outputs. After a while it will display modulator status

Specification

Model NO. TBS6032
Product Name 16 QAM DVBC Modulator PCIe Card
Input:
Possible Sources DVB channels (DVBS/S2, DVBT/T2, DVBC, ISDB-T, ASTC etc. signals)
Network Streams (HTTP, UDP, HLS (m3u8), SRT etc. IP streams)
Video Encoder
Local TS file
Ouput:
Outputs DVBC (ITU-T J.83A)
Frequnecy Range 100 ~ 858Mhz
Symbol Rates 1.0 ~ 7.14Msym/s
Level -5 ~ -37dBm
Modulation 16, 32, 64, 128, 256 QAM
Maximum Delivered Bitrate 46Mbps per frequency
General Spec.
Working Temperature -40°C ~ 85°C
Power Consumption 9.6 Watt
Interface PCIe 1x (compatible with PCI Express 4x/8x/16x slot)
System Requirements Server: recommend 6th Gen Intel i3 CPU, 4GB Ram or higher
System: Linux system, kernel 4.15 or higher
Driver: Linux driver
Dimension:
Card Size 155mm x 68.9mm
Net Weight 160g
Gift Box Size 200mm*138mm*50mm

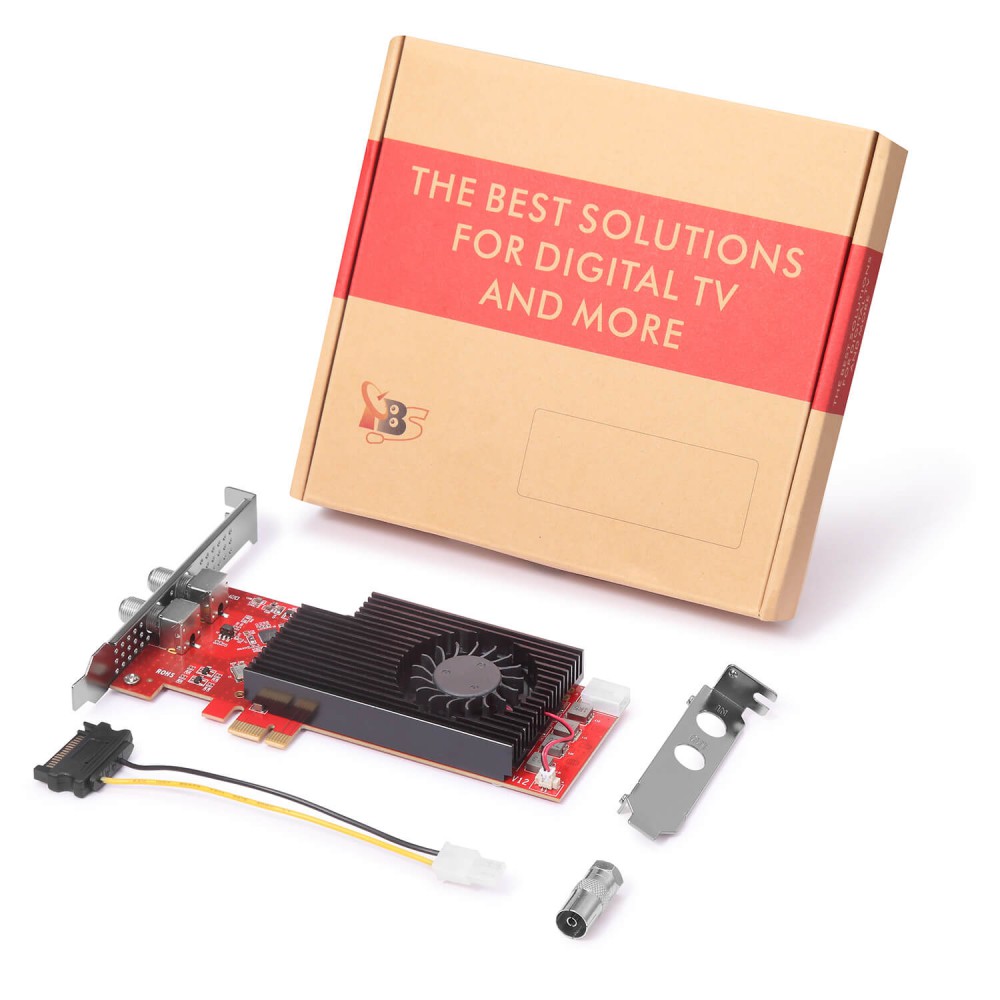

Package Contents 1x TBS6032
1x Low Profile Bracket
1x F-IEC connector
1 x Power Cable
