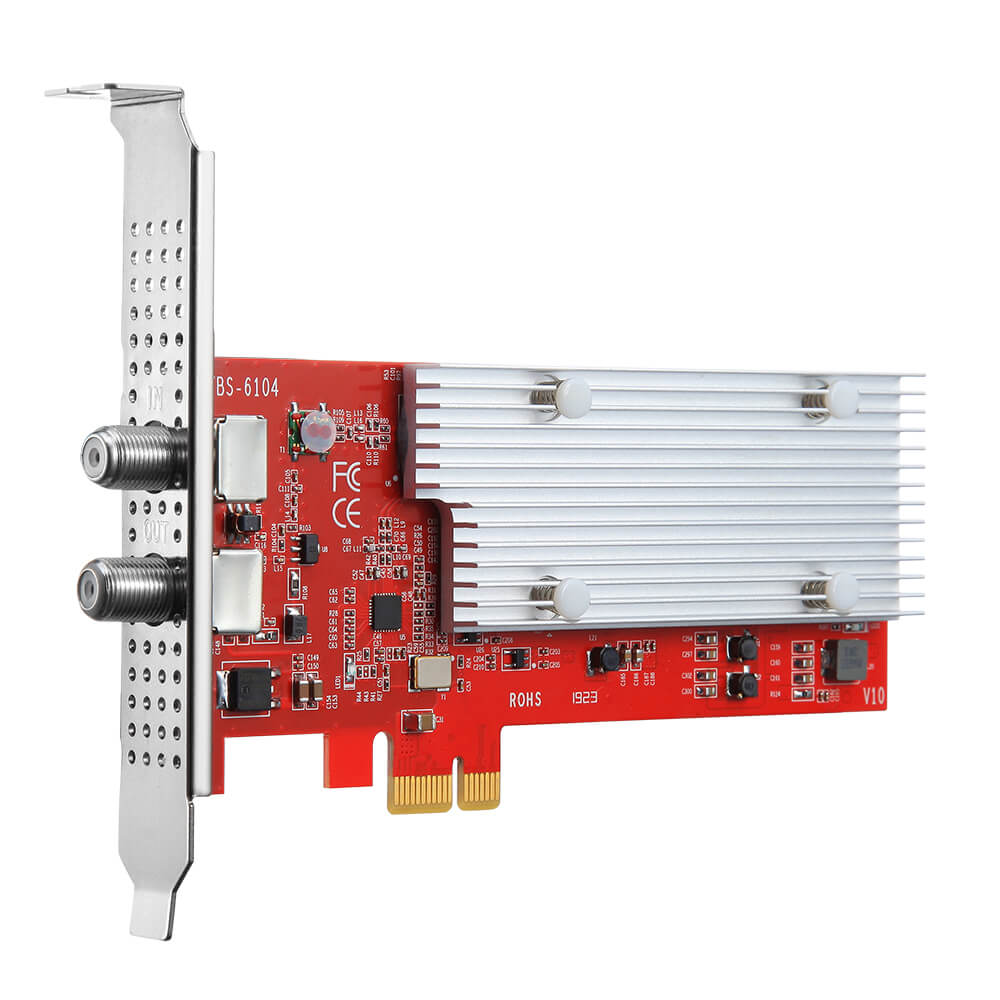

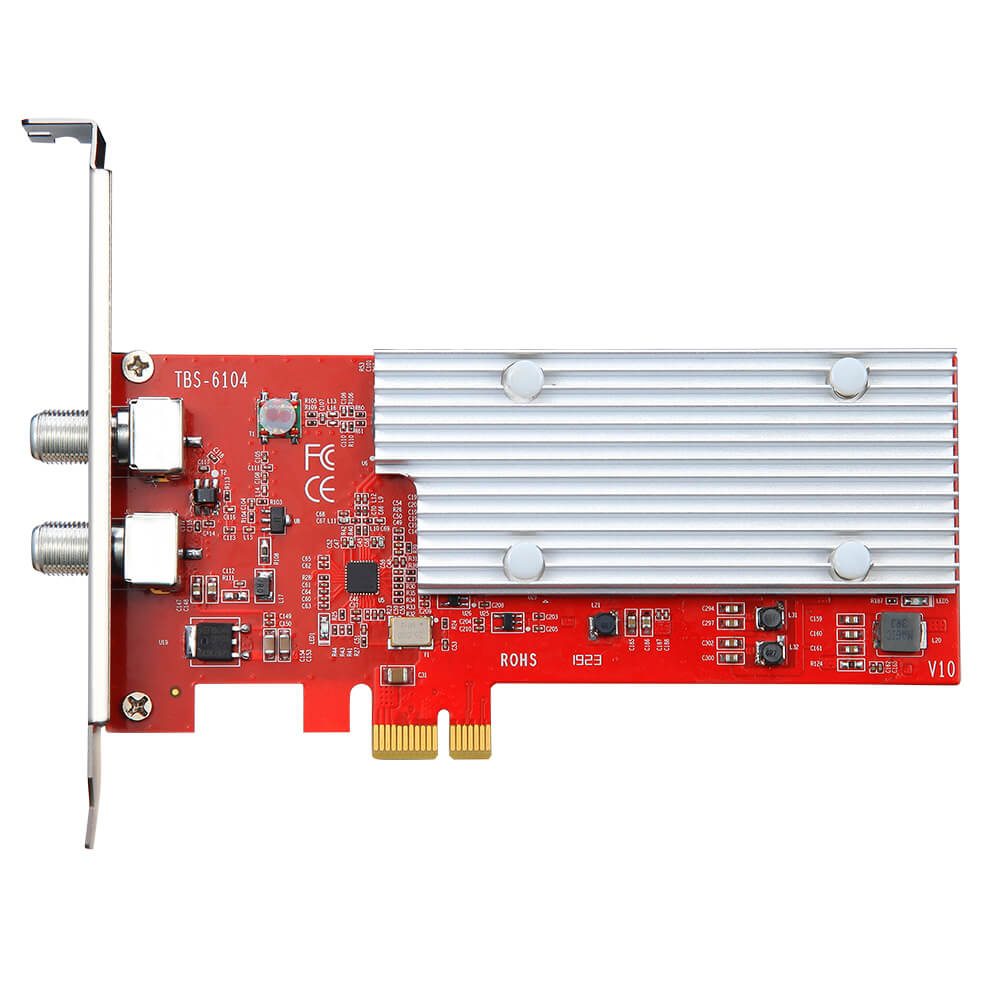

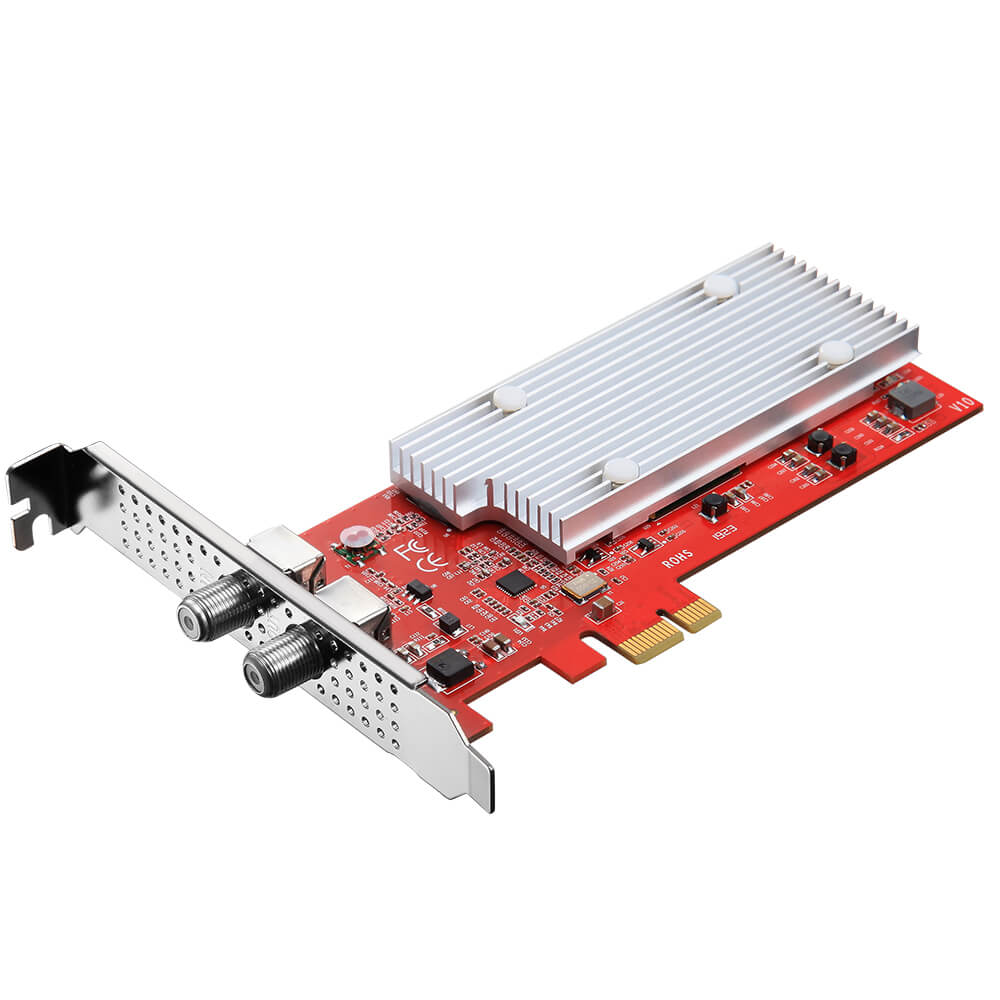

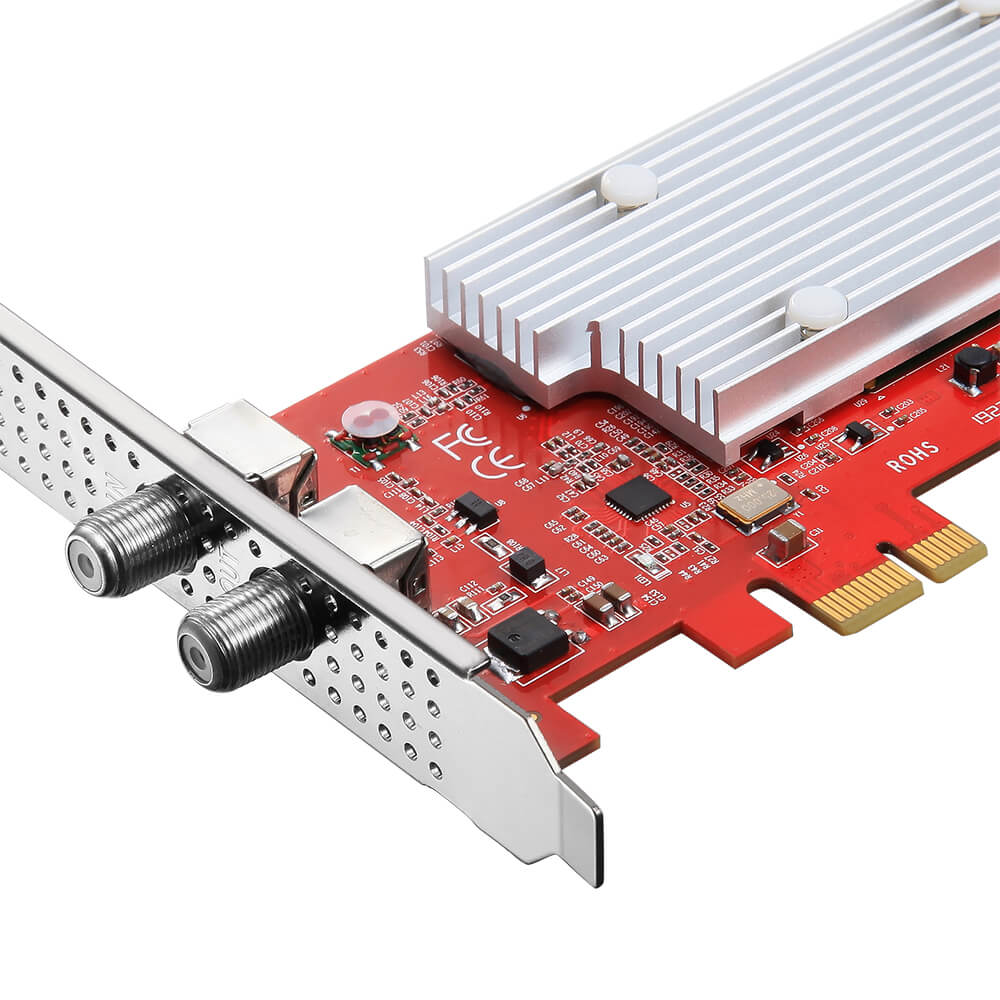

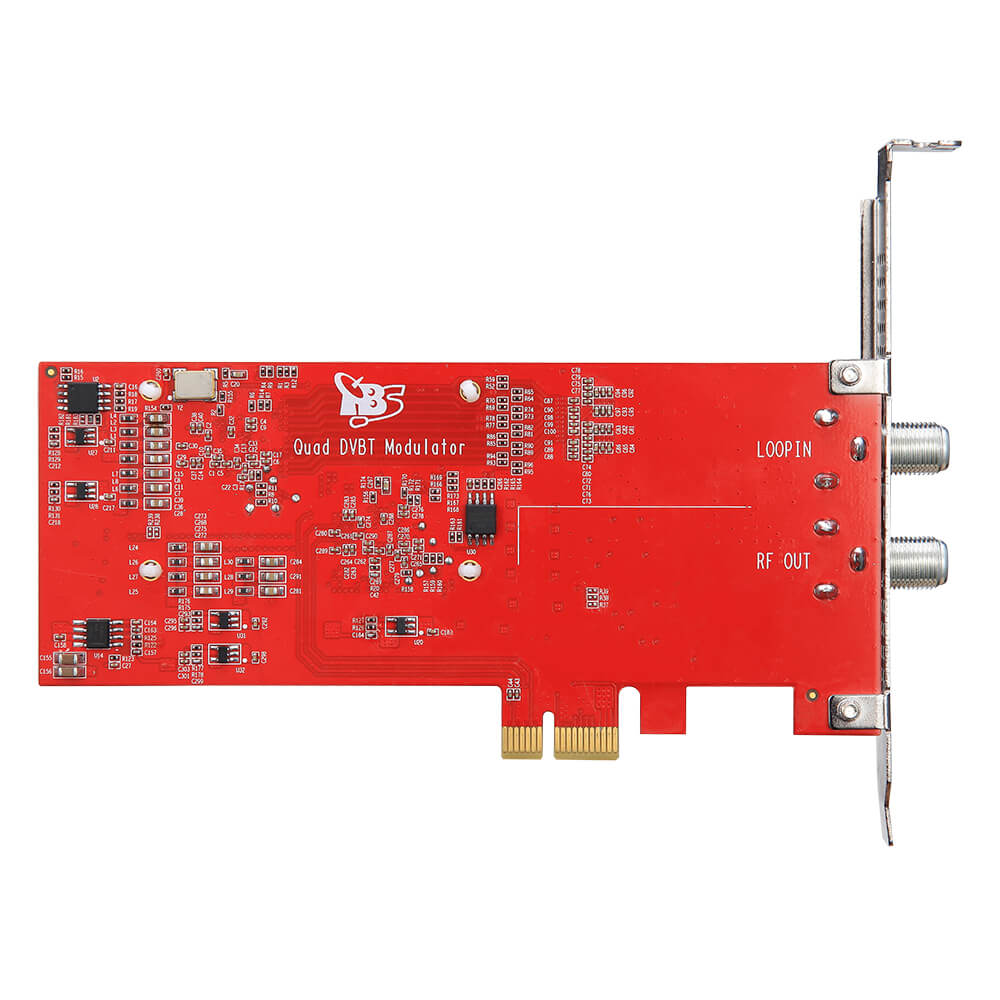

TBS6104 DVBT Quad Modulator Card
TBS6104 DVBT Quad Modulator Card
- Model: TBS6104-DVBT
- Weight: 750.00g
- Reward Points:799
In Stock
US$799.00
This is a DVB-T modulator card, it works as a DVB-T signal generator and supports 4- frequencies DVB-T transmission.This quad card can convert transport stream to DVB-T signal, for example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and use this modulator card to convert the DVB-S2 TS to DVB-T signal at the same time, a modern TV or Set-Top-Box with DVB-T tuner integrated can be used to receive the terrestrial signal easily from the modulator card.
This card provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-C, ISDB-T, ATSC or even IPTV resources into an existing DVB-T system in hotels, hospitals, or dormitories.
Specifications
| Possible Inputs | DVB-S2/S, DVB-C, ISDB-T, ATSC or IPTV resources | |
| Outputs | DVB-T in 4 frequencies | |
| Frequency range | 50 ~ 950 MHz | |
| Channel bandwidth | 6,7,8 MHz | |
| Level | 5-120 | |
| FFT | 2K,8K | |
| FEC | QPSK,16QAM,64QAM | |
| Code rate | 1/2,2/3,3/4,5/6,7/8 | |
| Guard interval: | 1/4,1/8,1/16,1/32 | |
| Max bit rate | 27Mbps/per frequency | |
| Working Temperature | -40°~85° | |
| Power | 10W | |
| System Requirements | Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||

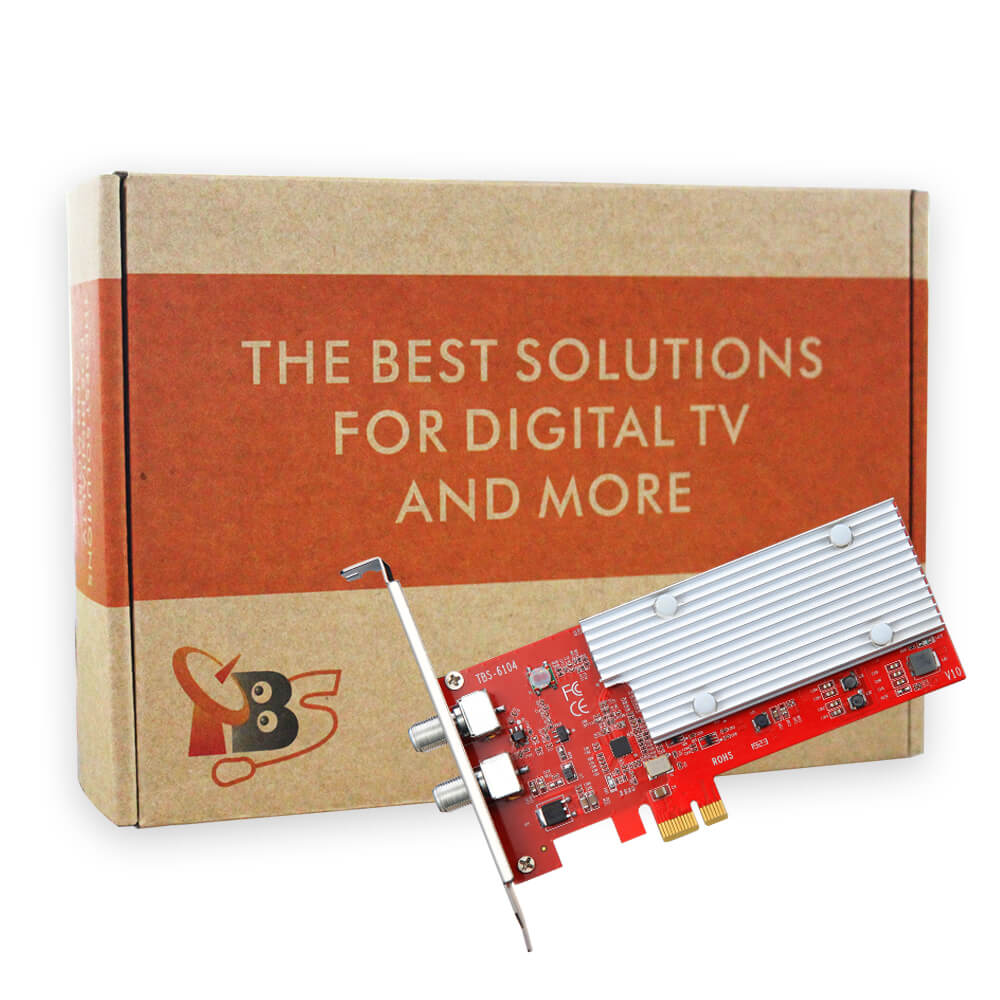

| Package Contents | 1 * TBS6104 DVB-T Quad Modulator Card | |
| 1 * low profile bracket | ||
| F-IEC connector | ||
| Card Size | Gift Box Size | Gross Weight |
| 130mm * 68.7mm | 200*138*50mm | 0.5kg |
