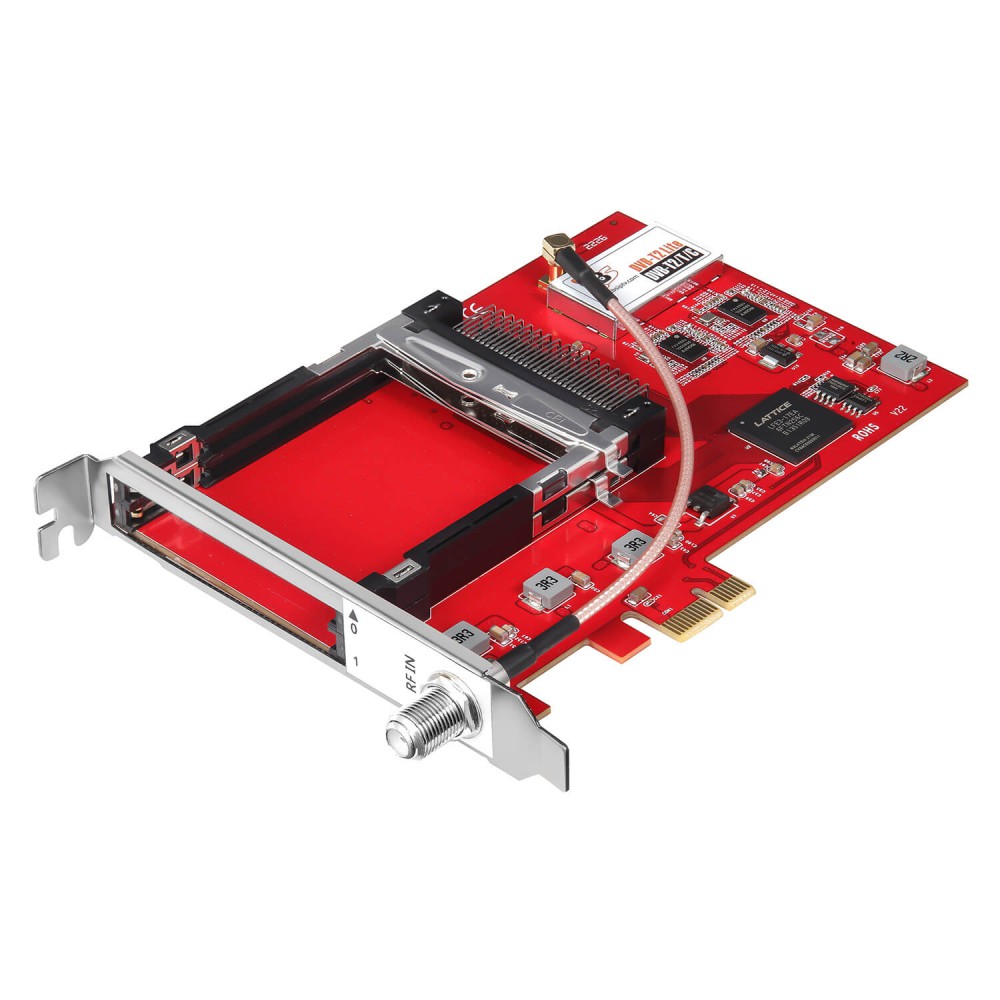

TBS6290se DVB-T2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Dual Tuner Dual CI PCI-e Card
TBS6290se DVB-T2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Dual Tuner Dual CI PCI-e Card
- Model: TBS6290se
- Weight: 380.00g
- Reward Points:189
In Stock
US$189.00

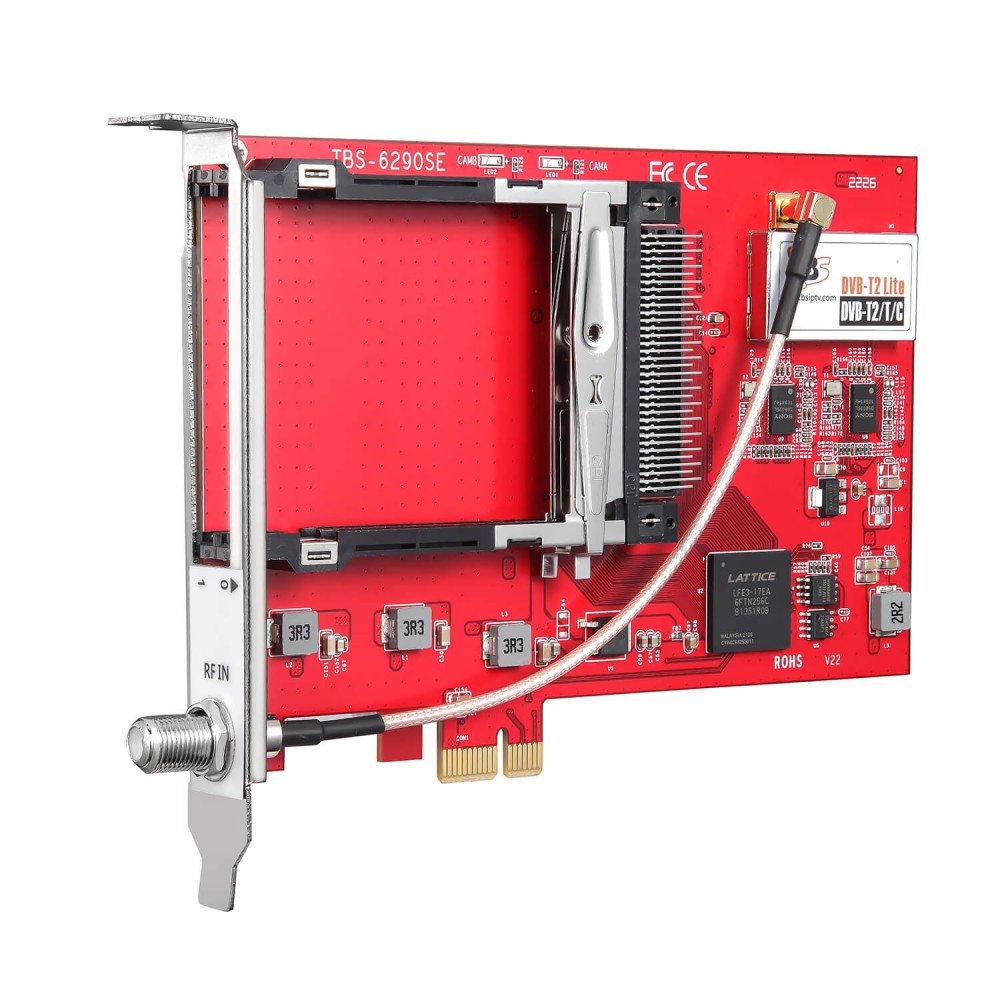

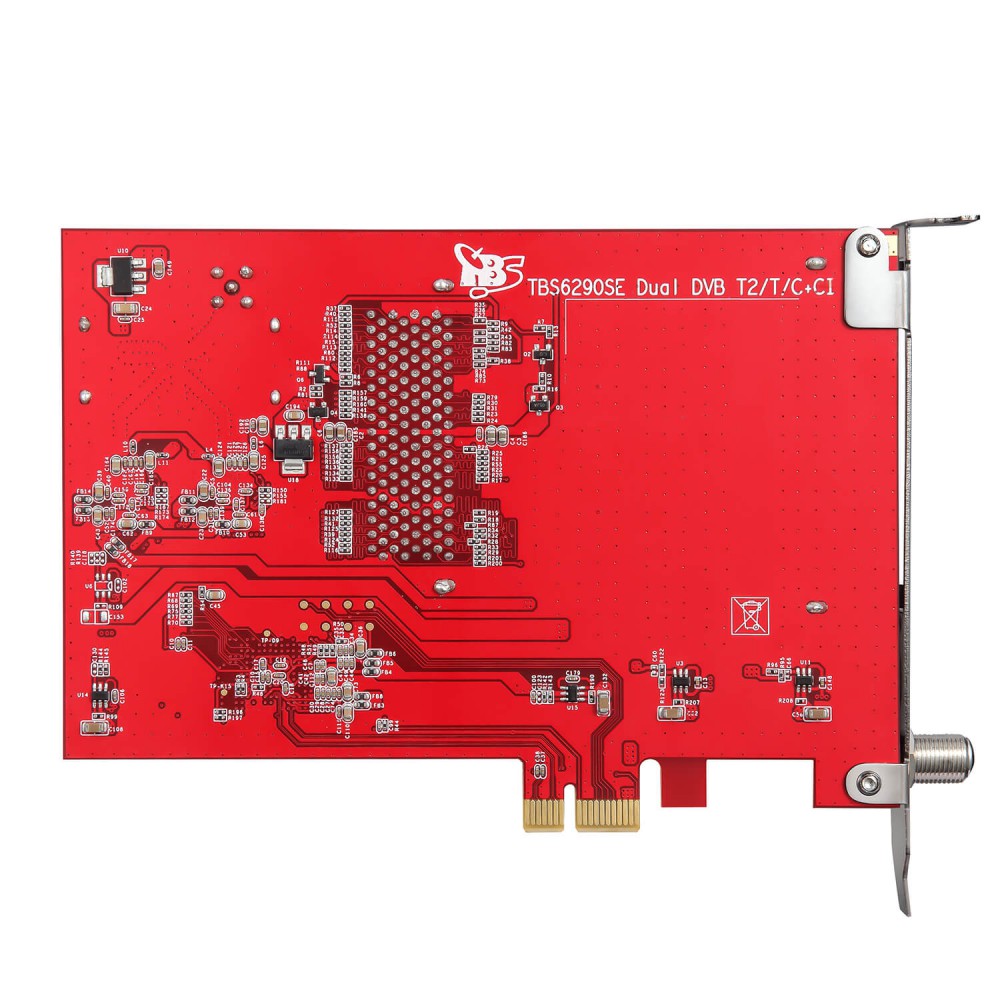

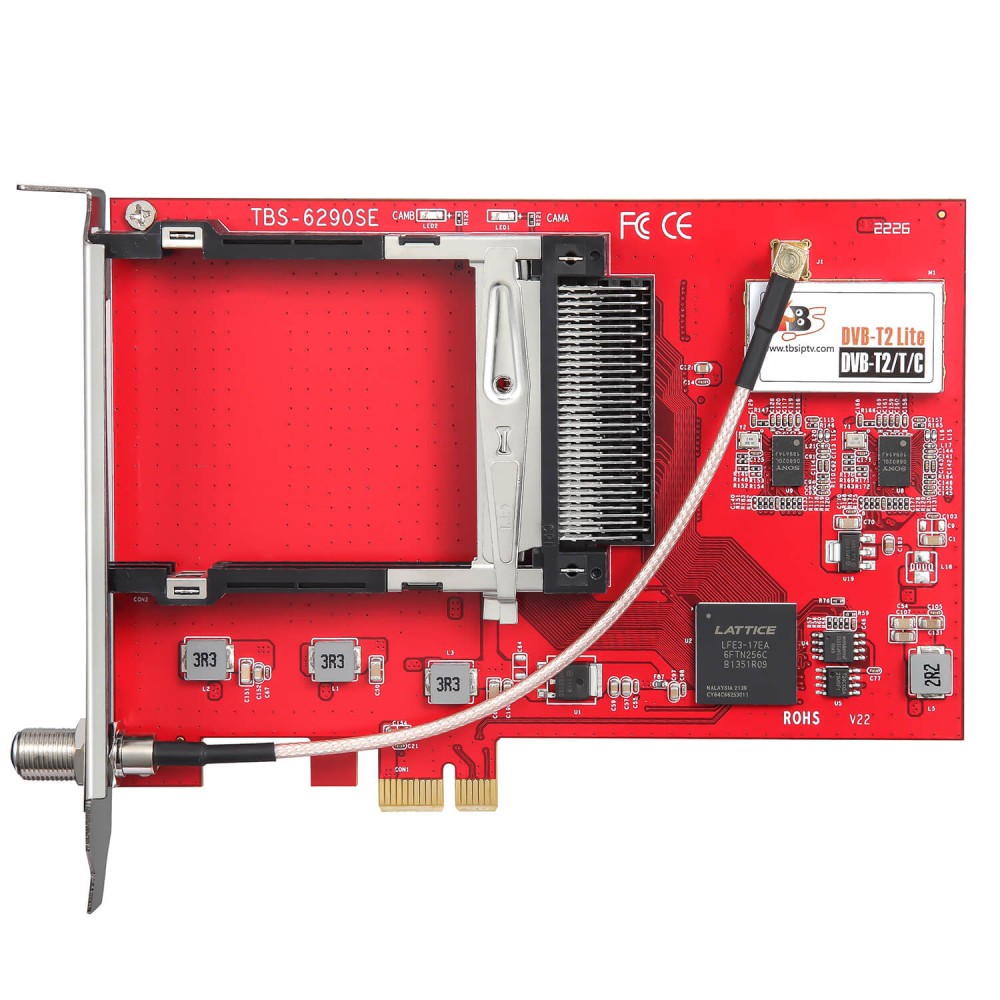

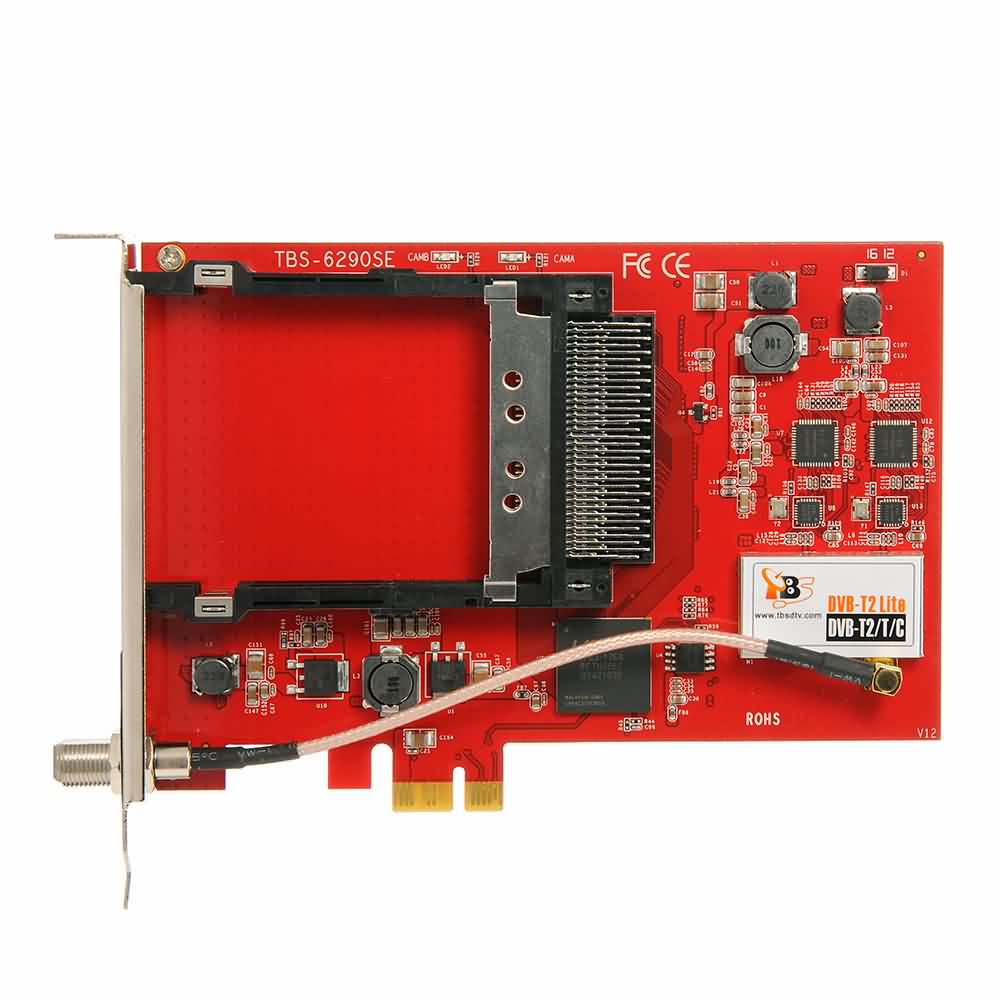

TBS6290se is a DVB-T2/T/C（J.83A/B/C）/ISDB-T/C /ATSC1.0. TV dual tuner dual CI card with PCI-Express interface, it can be used for watching two different channels from two different frequencies simultaneously, and with two CI slots, it supports both reception of FTA (free to air) TV channels and encrypted TV channels.
TBS6290se works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. It is flexible to support dual DVBC or DVBT/T2 receive, and supports 1x DVB-C+ 1x DVB-T/T2 receive simultaneously. TBS6290se is considered as a professional TV tuner for industrial-level users. It is highly recommended for IPTV streaming and broadcasting system.
Main Features
- DVB-T2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. SD or HD TV receiving
- Dual channel receiving simultaneously

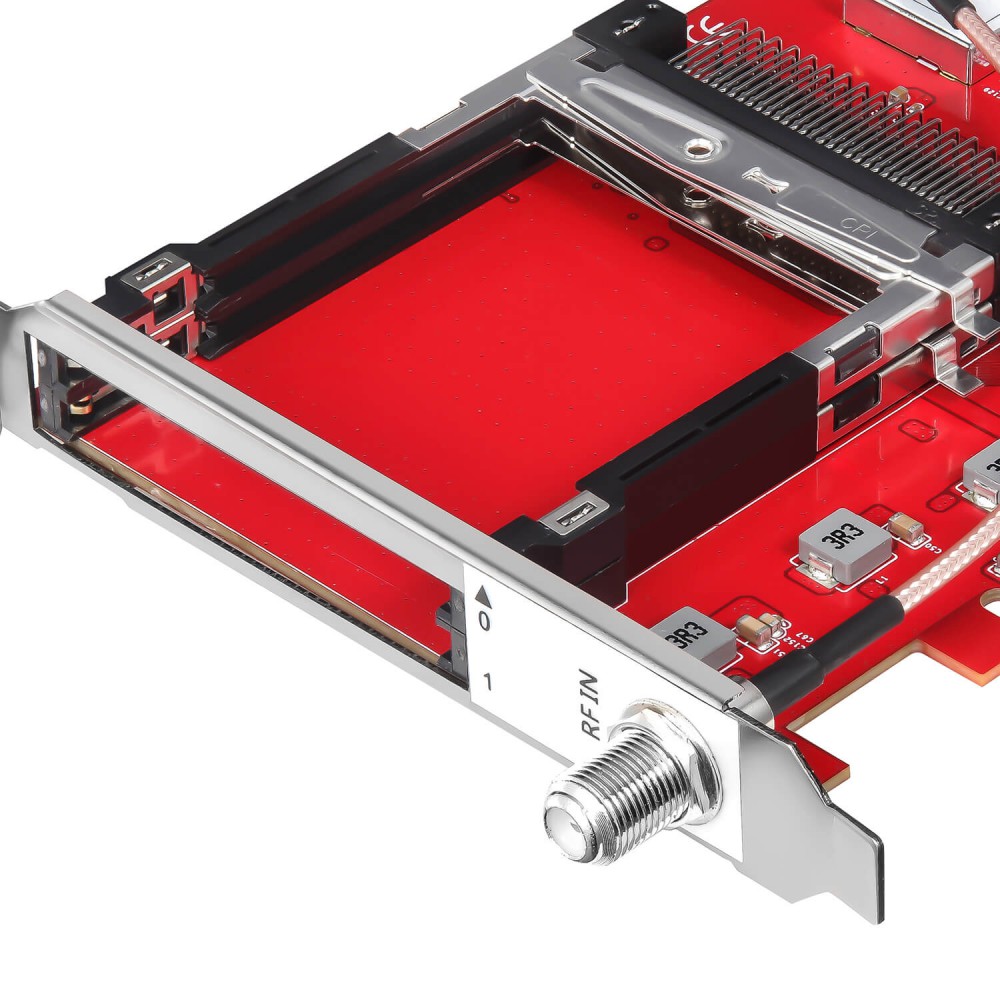

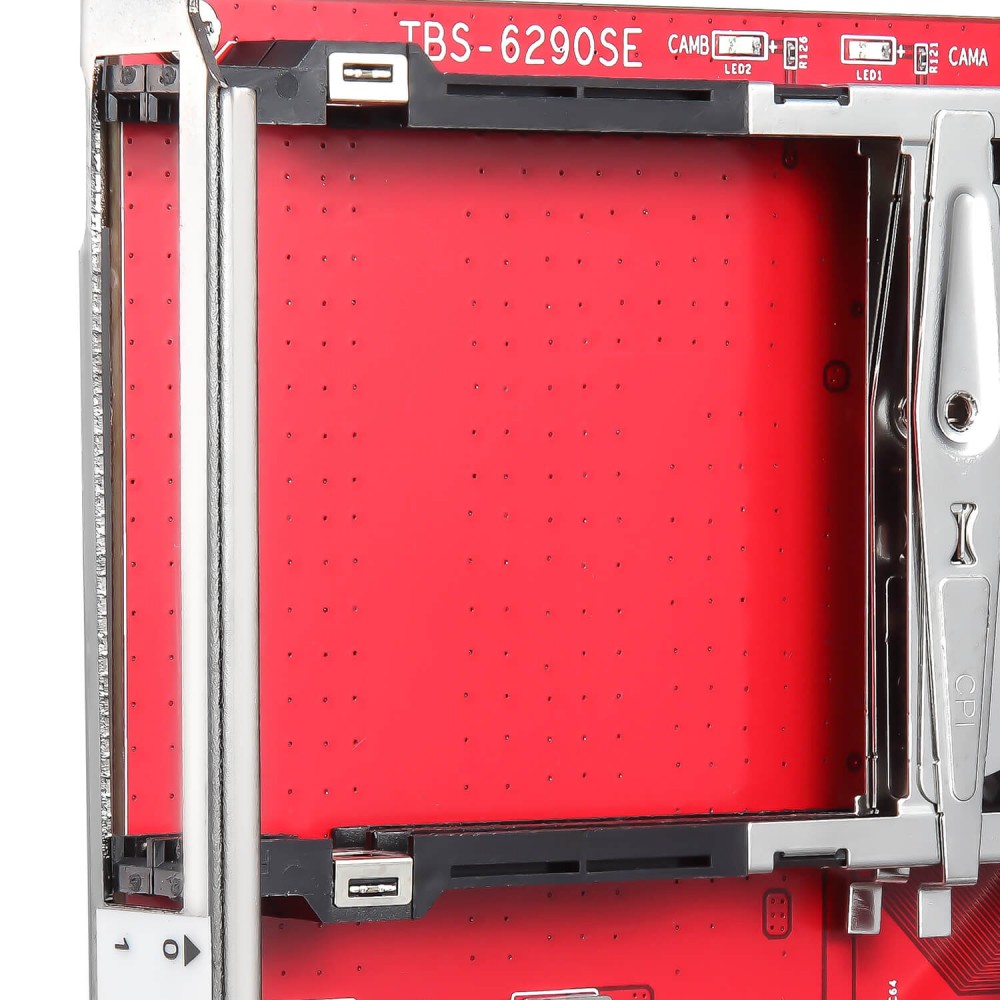

- Dual CI slot
- High-definition video, real-Time and scheduled video recording

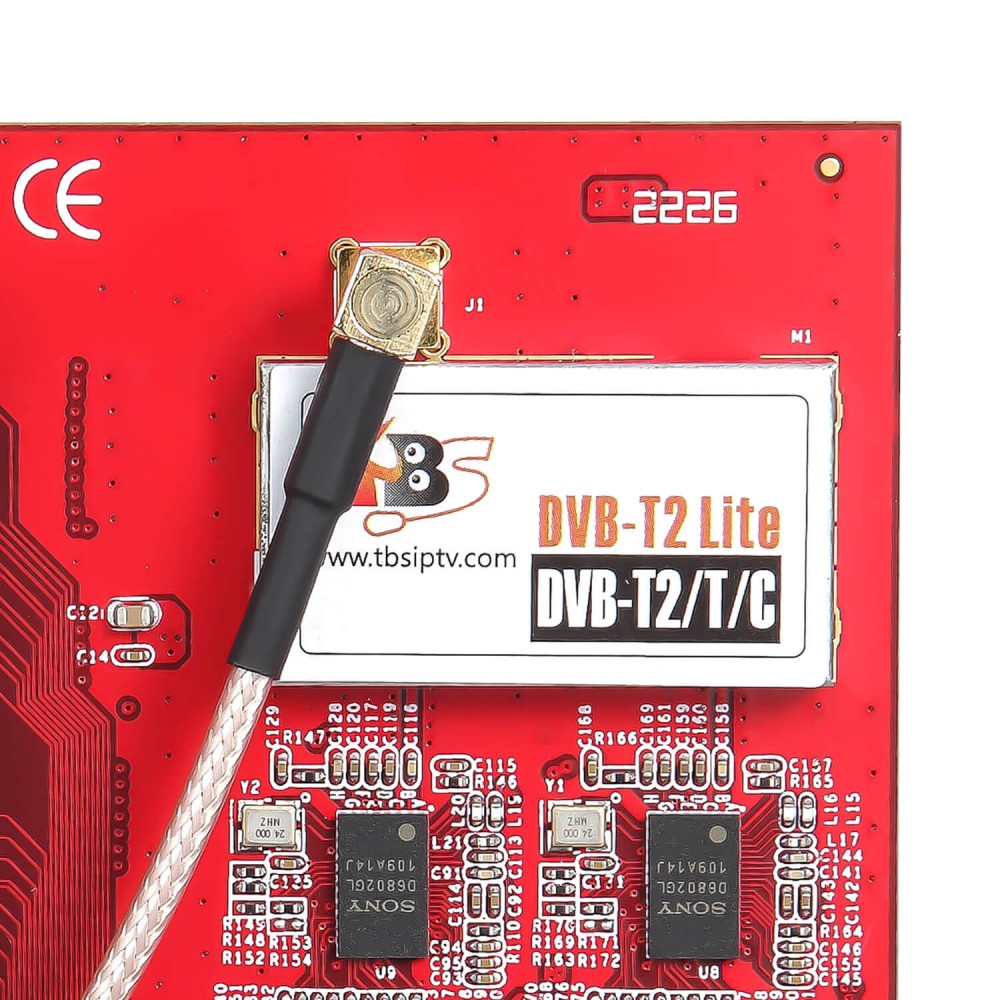

- High sensitivity DVB-T2 dual Tuner for the best digital TV reception
- Windows BDA driver and Linux Driver ready
Specification
| Model | TBS6290se |
| Interface | 2 x tuner 2 x CI slot |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| 8VSB modulation | |
| 2/3 code rate | |
| Power consumption | |
| Input/ Power: | 12V/8W |
| temperature | 0 ~ 60℃ |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| Available PCI Express x1, x4, x8 or x16 slot | |
| Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0. | |

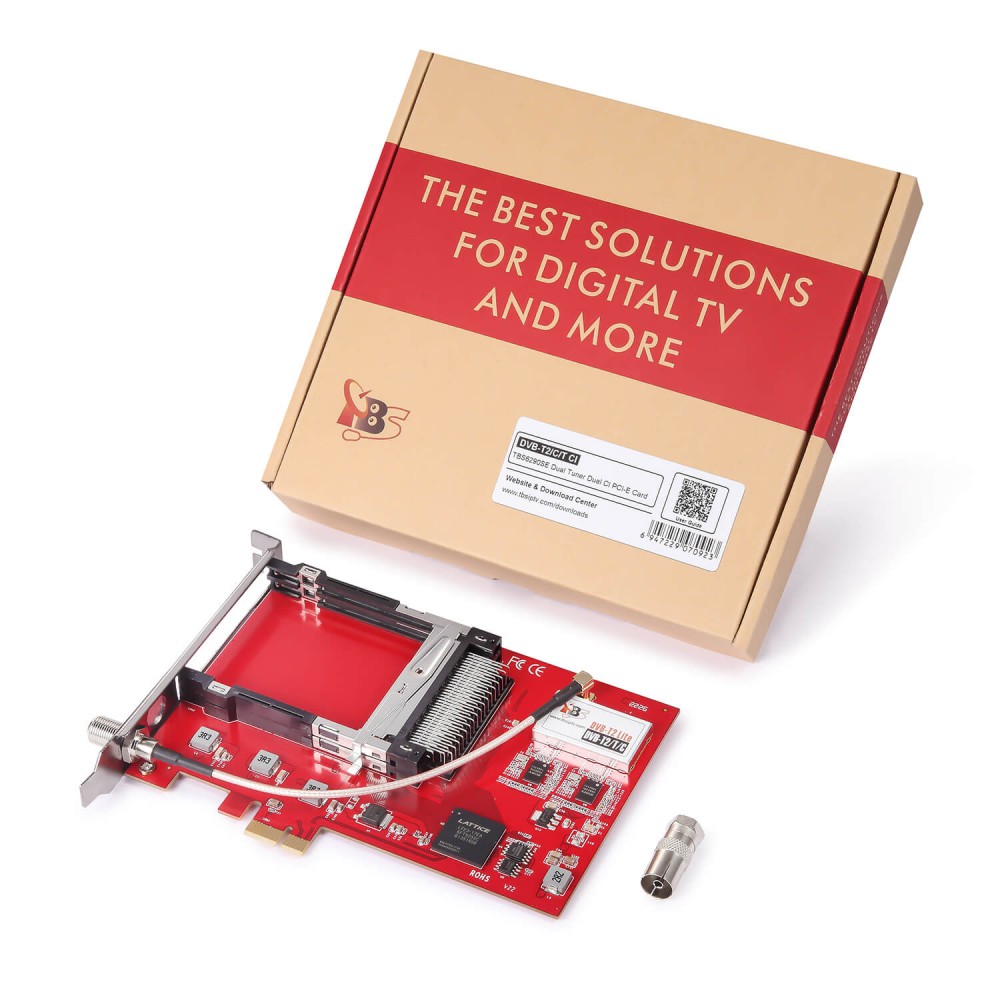

| Package Contents | 1 x TBS6290se |
| 1 x DC line | |
| 1 x F Connector | |
