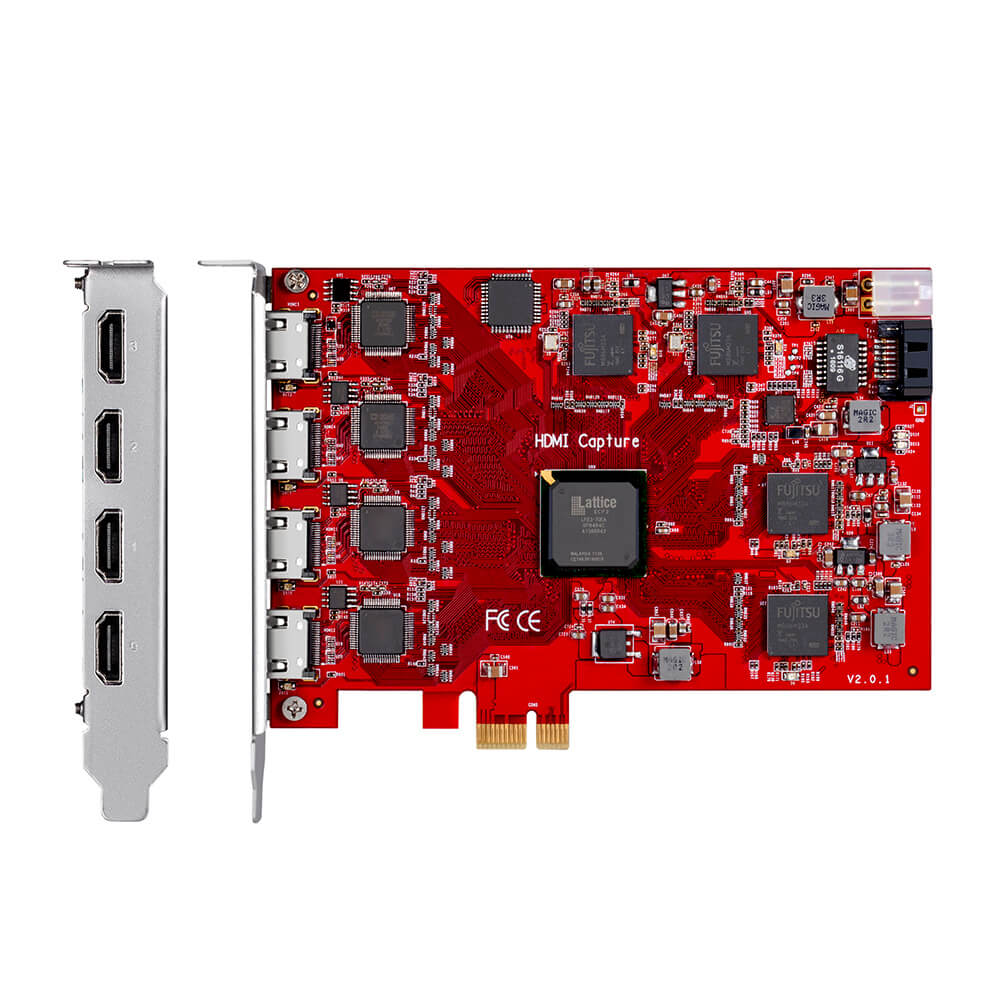

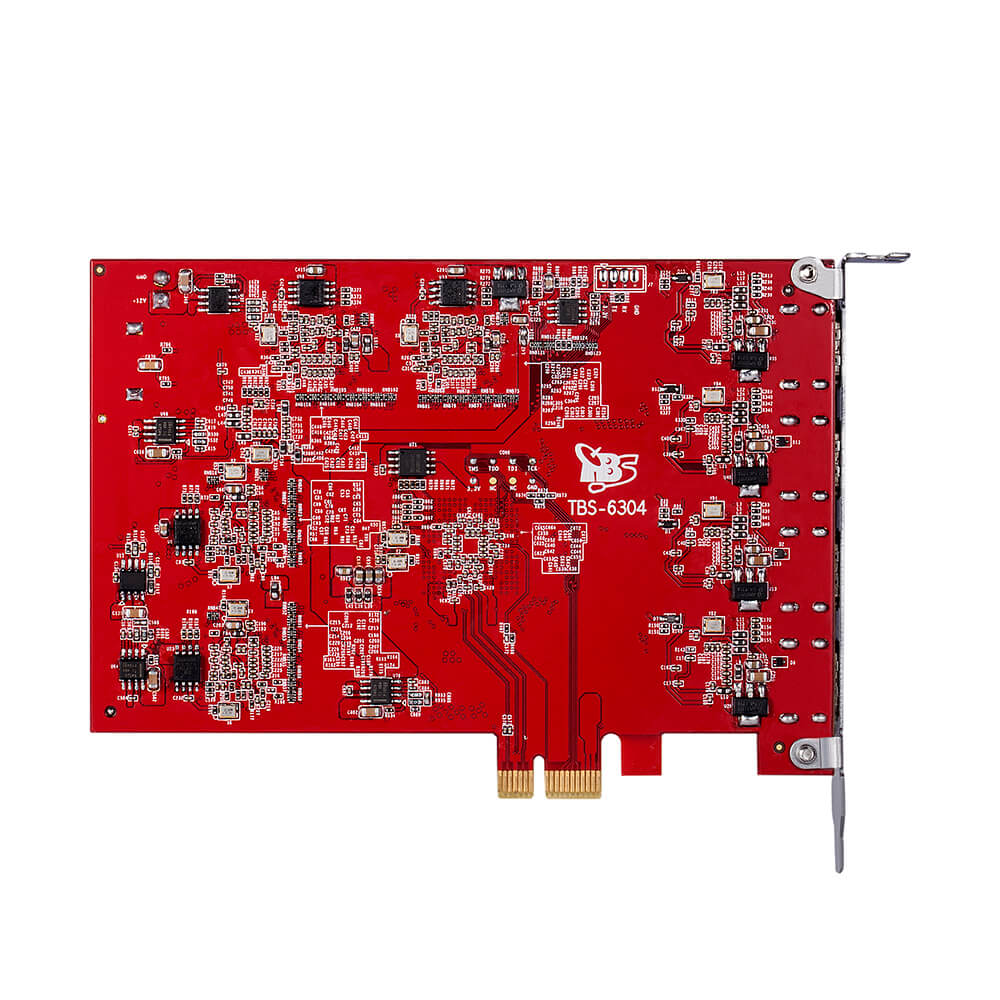

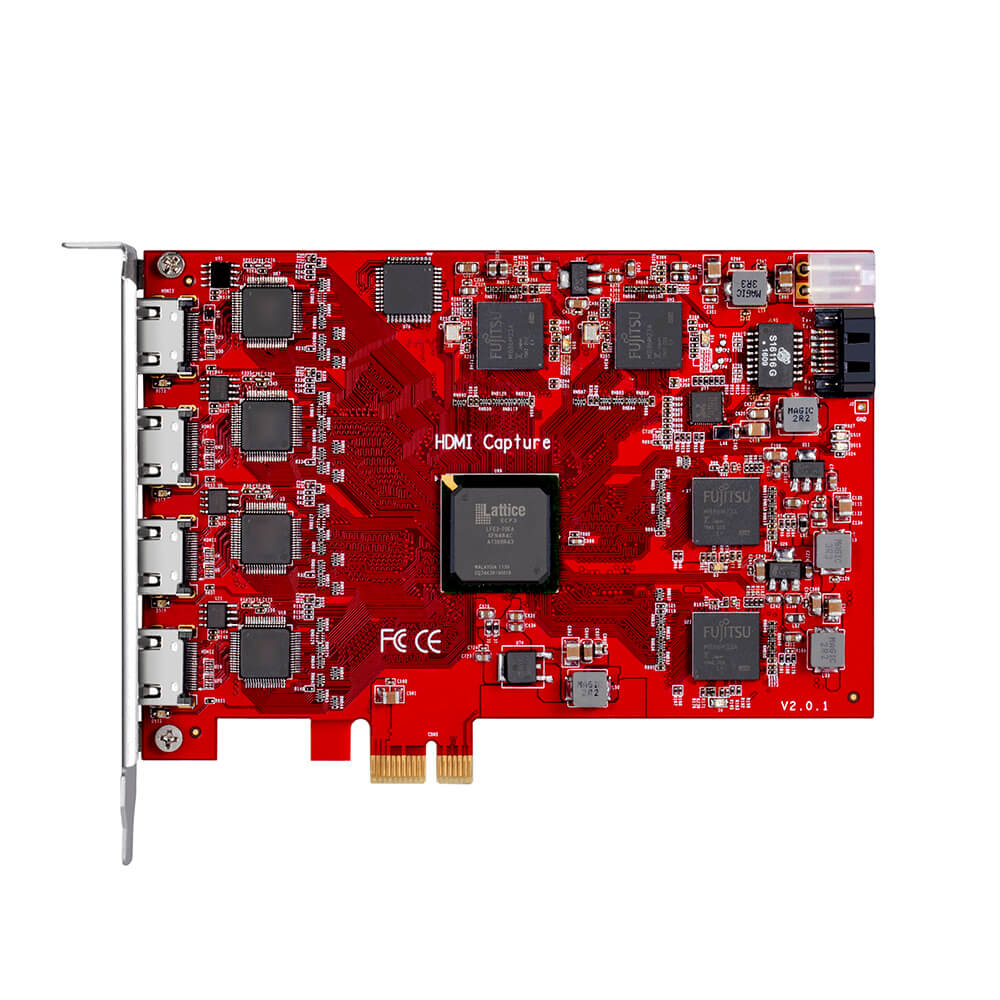

TBS6304 Quad/Octa HD HDMI capture card


TBS6304 Quad/Octa HD HDMI capture card

  • Model: TBS6304
  • Weight: 500.00g

Discontinued

Successor

Available Options

Pro Quad HD HDMI Capture Card (TBS6304)

TBS recently releases a high and standard definition capture card with quad HDMI 1.4 inputs and H.264 hardware compression. Users can easily capture SD/HD signals from different kinds of devices by this Pro Quad HDMI Capture Card without limitation.

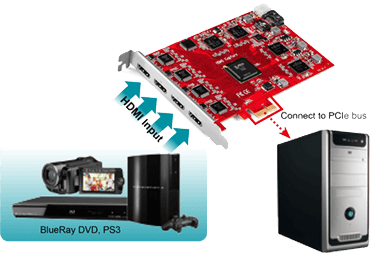

  Enjoy True HD 1080P

Pro Quad HD HDMI Capture Card supports quad HDMI/HDCP inputs displaying up to 1080i resolution and compacts audio/video/composite/component (1080i) interface for transmitting digital data. It also supports to capture or record HD content in H.264 format from PS3, Xbox 360 and digital camcorders.

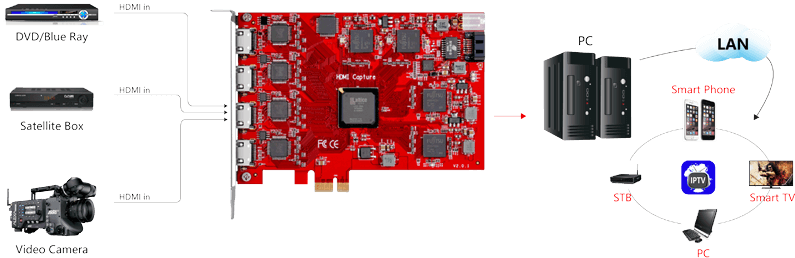

Applications:

  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Capturing and streaming
  • Broadcast TV

Feartues:

  • Quad HDMI inputs
  • Max. input resolution 1920 x 1080 60fps
  • Compliant with HDMI 1.3, HDMI 1.4a, HDCP 1.4
  • H.264 hardware compression
  • 10-Bit absolute encoding
  • Windows & Linux support

H.264 Hardware Compression with low CPU Consumption Solution

Equipped with an advanced built-in H.264 hardware encoder that enables the system not to utilise CPU's computing ability while maintaining high quality video encoding. This feature balances the load, thereby imporving the reliability of the system.

TBS Pro Quad HD HDMI Capture Card is used as a DVB tuner system device, built-in a H.264 encoder with HDCP supported and provides adjustable resolution and bitrate options.

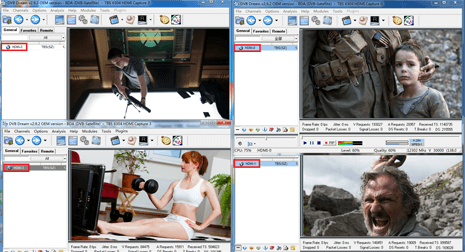

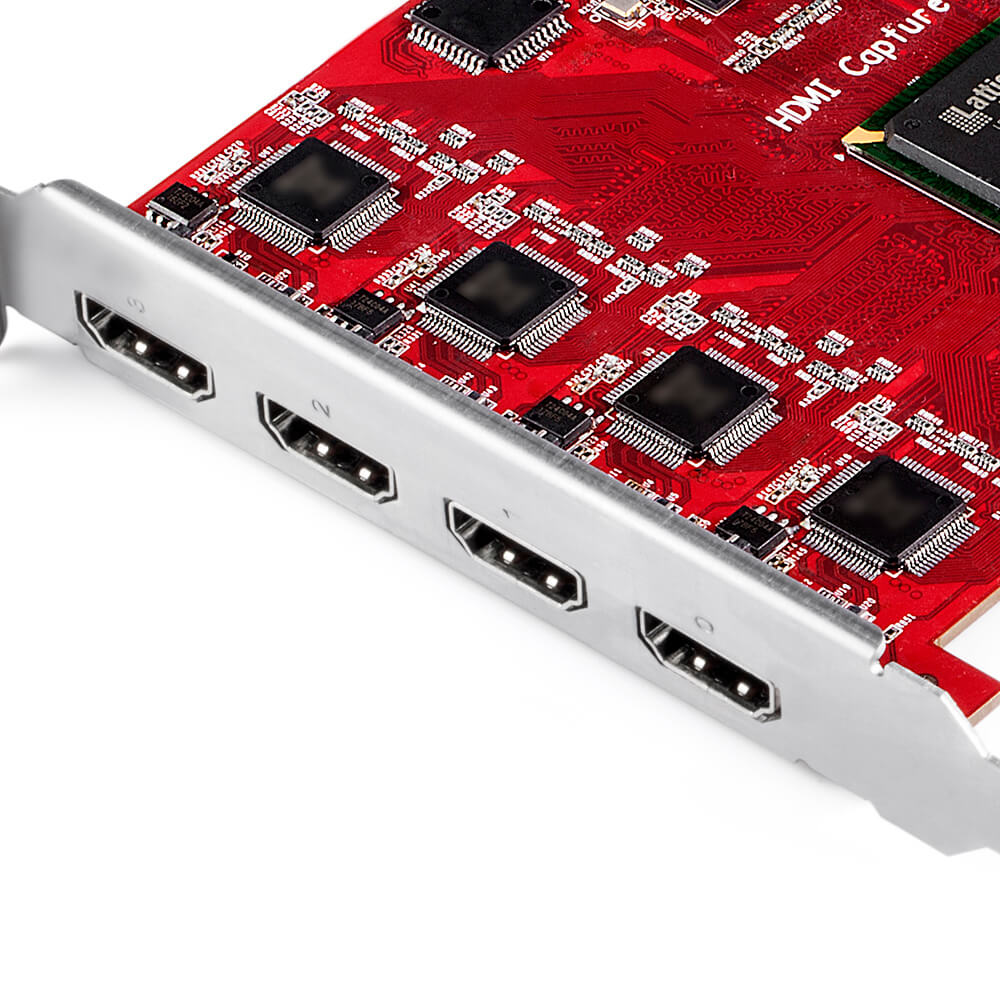

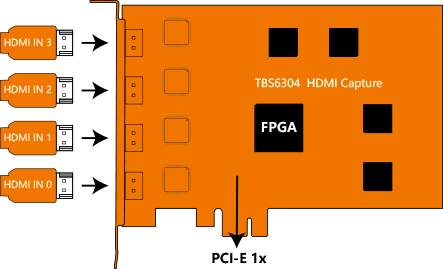

4 x Real HDMI Digital Interface

TBS HD HDMI Capture Card provides 4 HDMI inputs of the highest quality video. It meets the HDMI 1.4 standard and can be able to capture the LPCM audio signals.

Flexible Extension for 8 Inputs:

Strong expandability, it can connect an additional card via SATA cable without utilizing a second PCI-E slot, which can be extended to 8 HDMI capture cards.

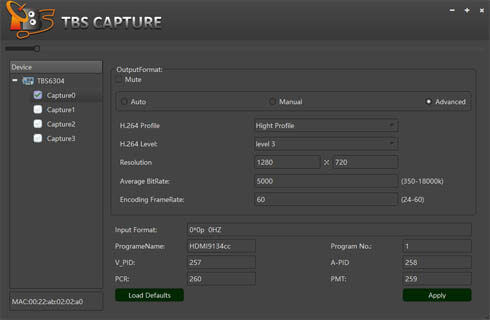

Intuitive User Interface for Effective
Management of TS Stream Outputs

TBS Pro Quad HD HDMI Capture Card supports automatically detecting the signal source. With TBS encoded setting tool, it can easily switch between channels and adjust configurations, offering better TV viewing experience.

Specifications:

Model TBS6304
Interface PCI-E x 1
Input HDMI 1.4a
Output TS
Recording Mode Hardware compression, real time mode
Encode Format H.264
Audio Input HDMI Embedded audio
Update Firmware could be updated.
OS and Driver Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux
Temperature 0 ~ 60 ℃
Dimension
Capture Card Size 144mm * 104.5mm
Gift Box Size 18.5*16.5*3.5 cm
Weight 500g
Package content 1* TBS6304 HDMI capture card
1* DC line

HDMI Input Video Format Support:

Horizontal size Vertical size Rate I (Interleave)or P (Progressive)
1920 1080 60 / 59.94 P
1920 1080 50 P
1920 1080 60 / 59.94 I
1920 1080 50 I
1280 720 60 / 59.94 P
1280 720 50 P
720 483(480) 59.94 P
720 576 50 P
1920 1080 30 / 29.97 P
1920 1080 25 P
1920 1080 24 / 23.98 P
1280 720 30 / 29.97 P
1280 720 24 / 23.98 P

Encode Max supports 1080 30P
