TBS6504H Multi-Standard Quad (4SAT+ 4Ter/Cable) Tuner PCI-E Card
TBS6504H Multi-Standard Quad (4SAT+ 4Ter/Cable) Tuner PCI-E Card
- Model: TBS6504H
- Weight: 550.00g
- Reward Points:349
In Stock
US$349.00

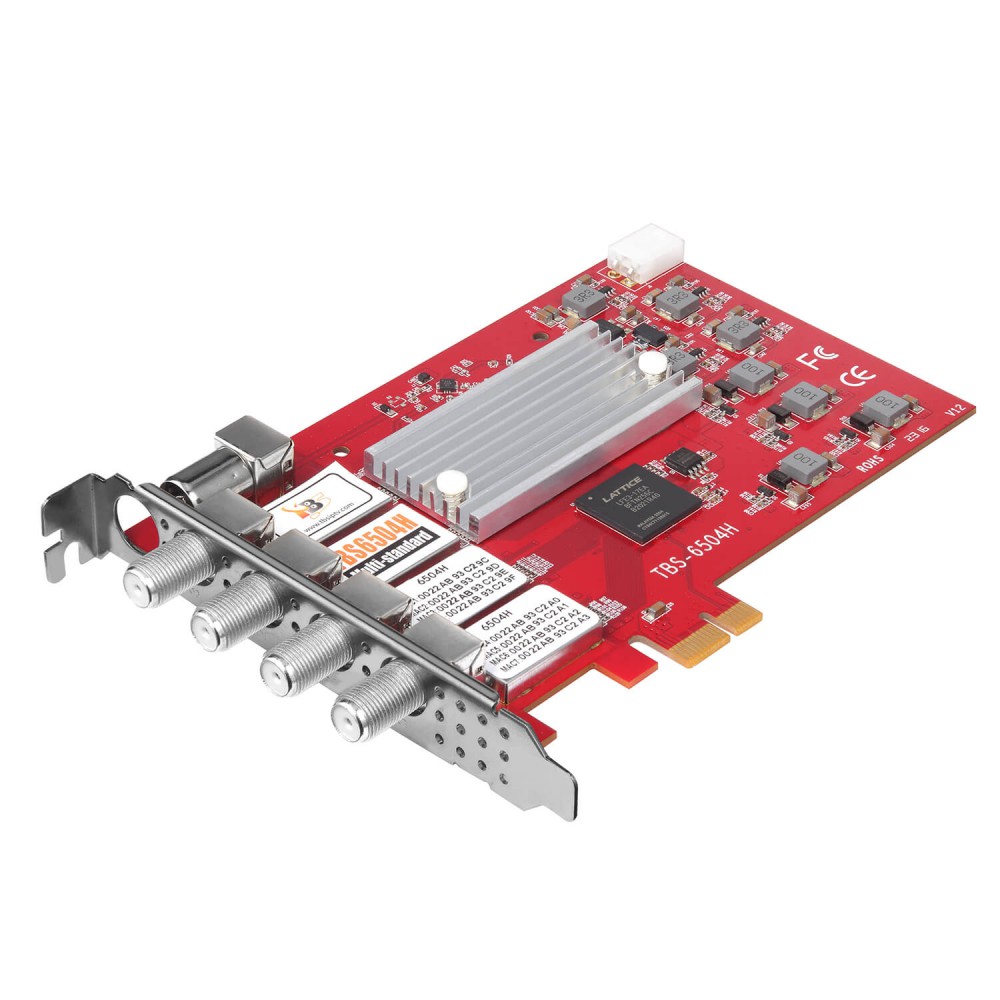

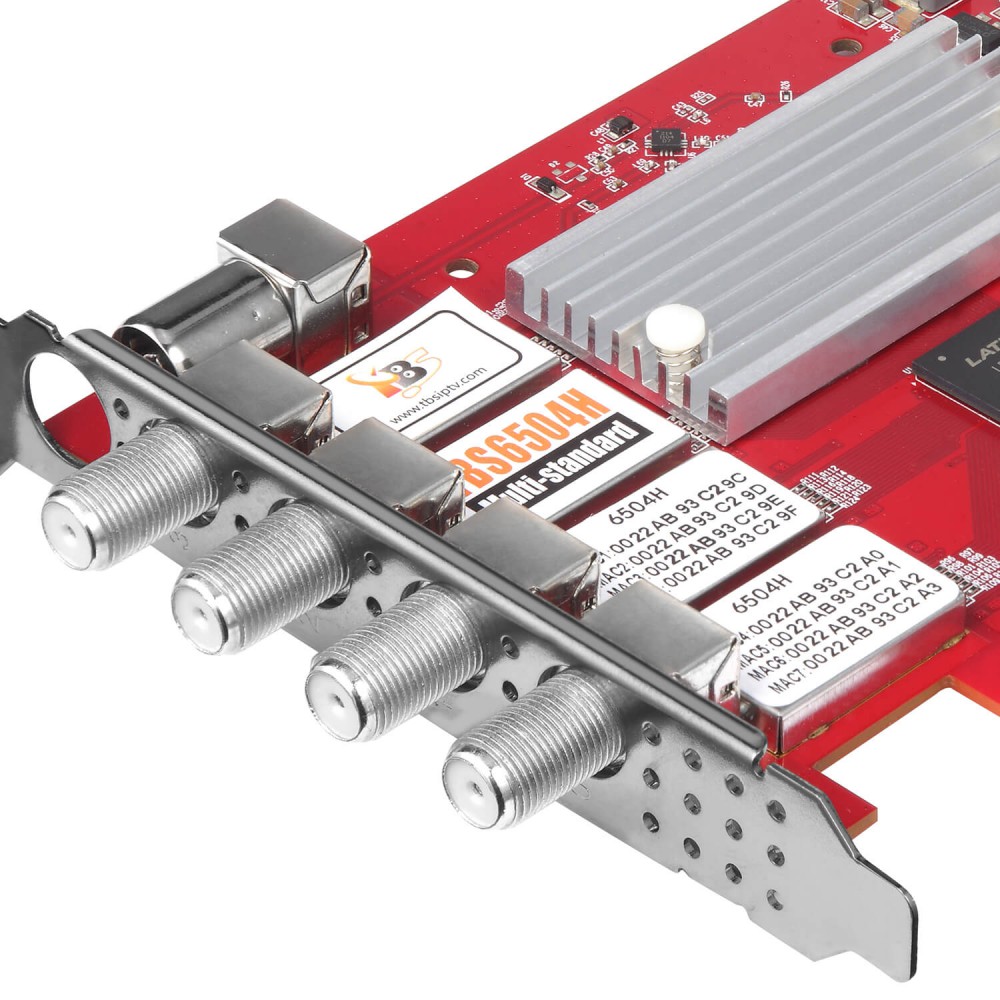

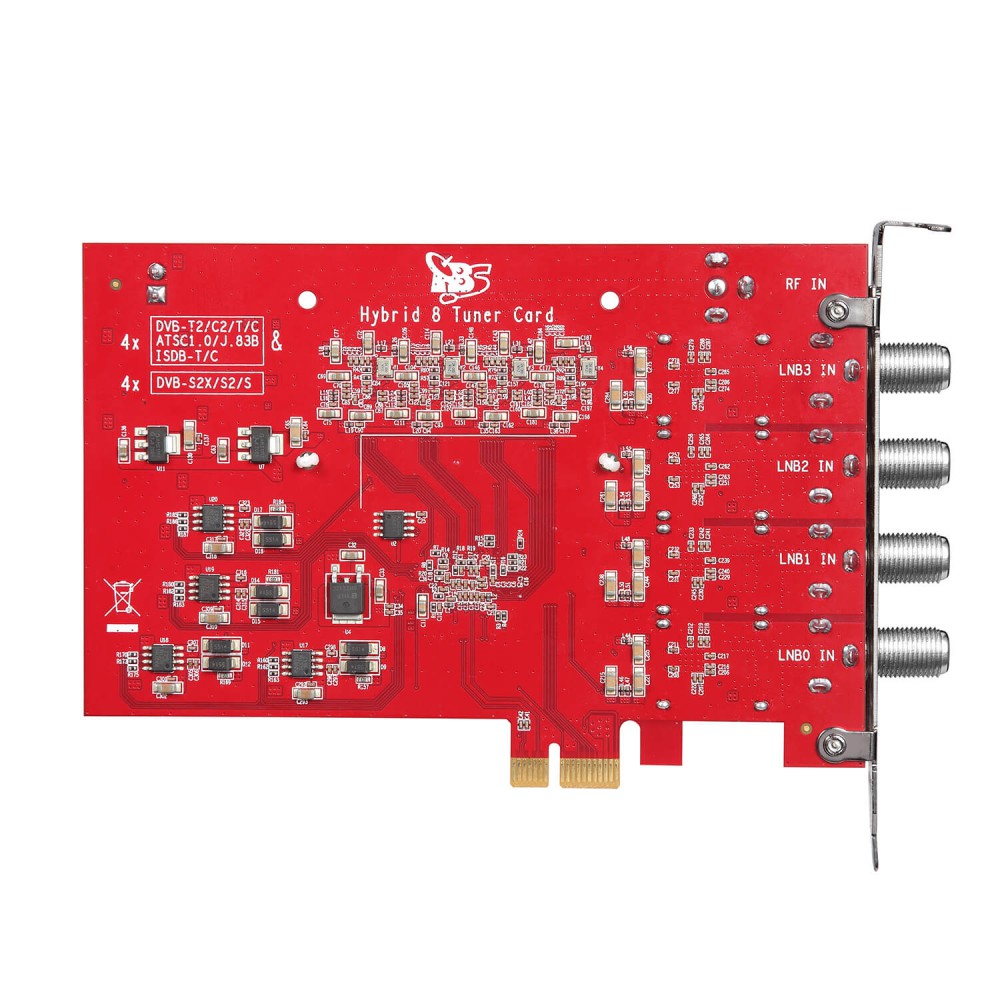

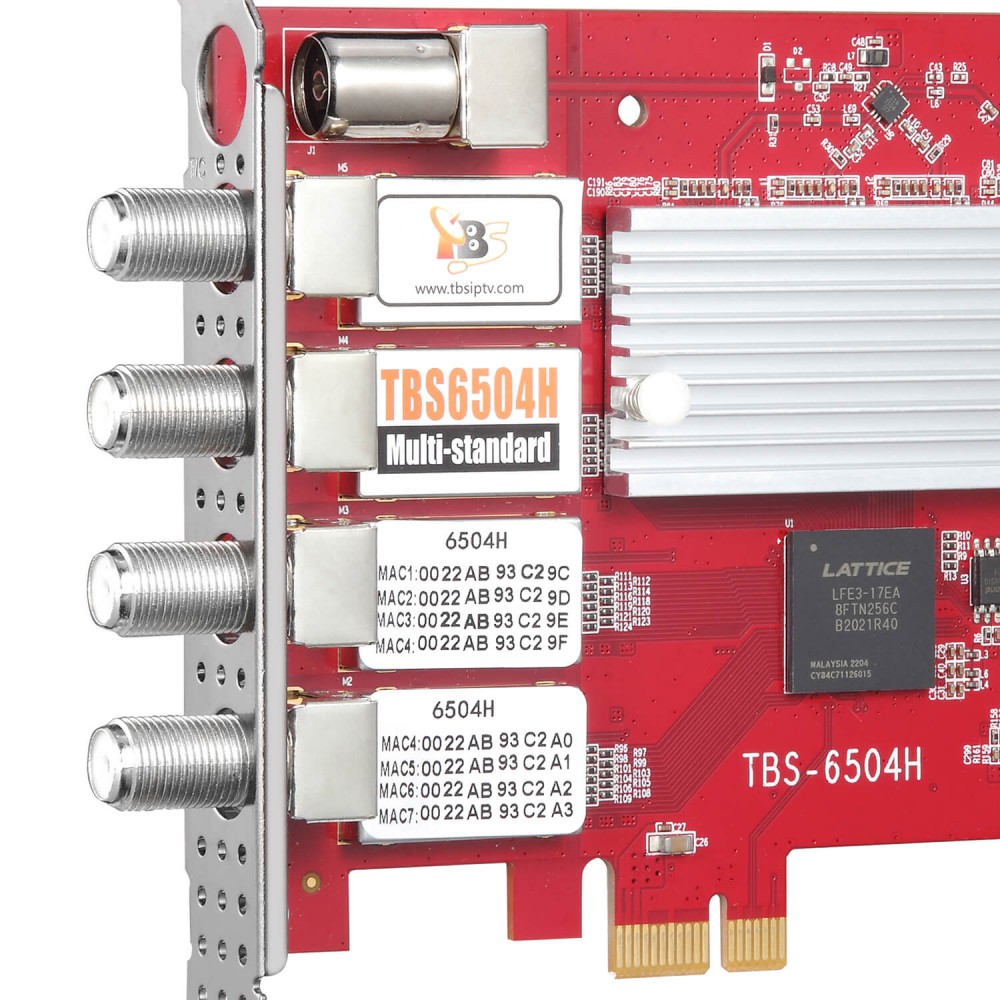

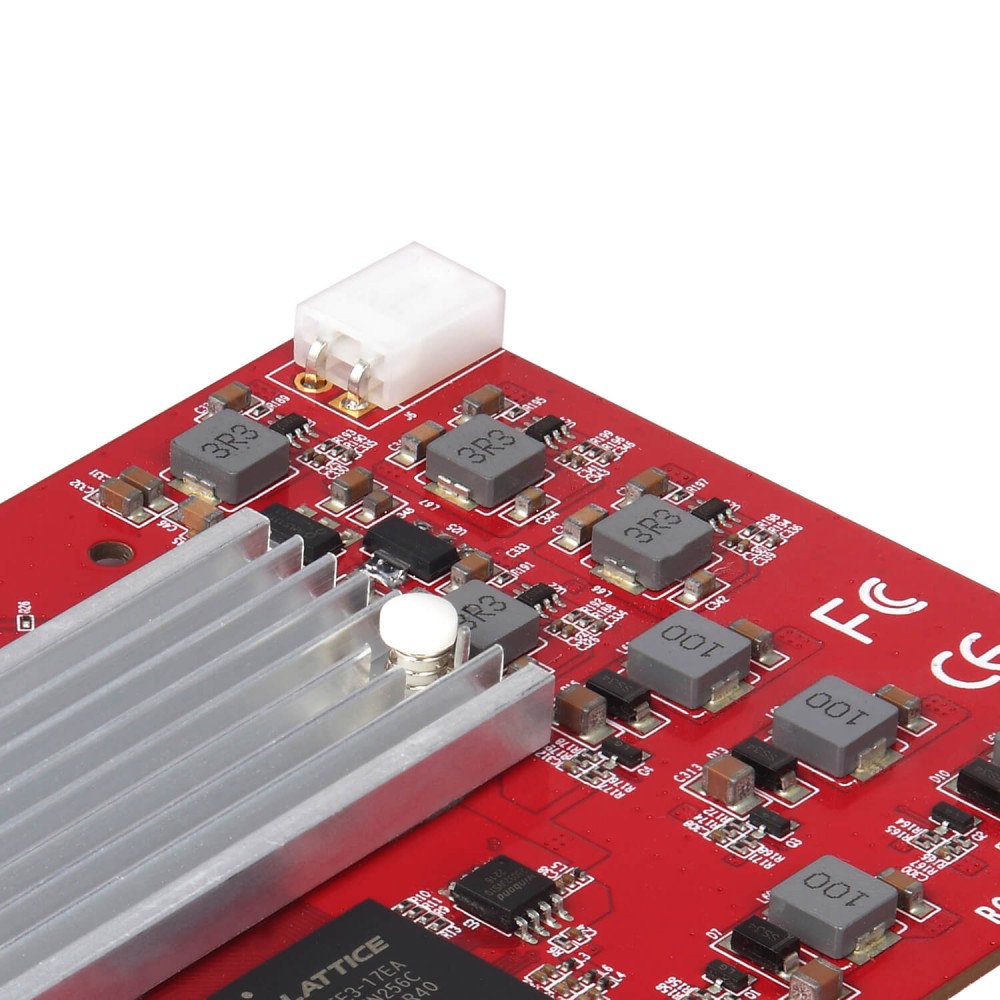

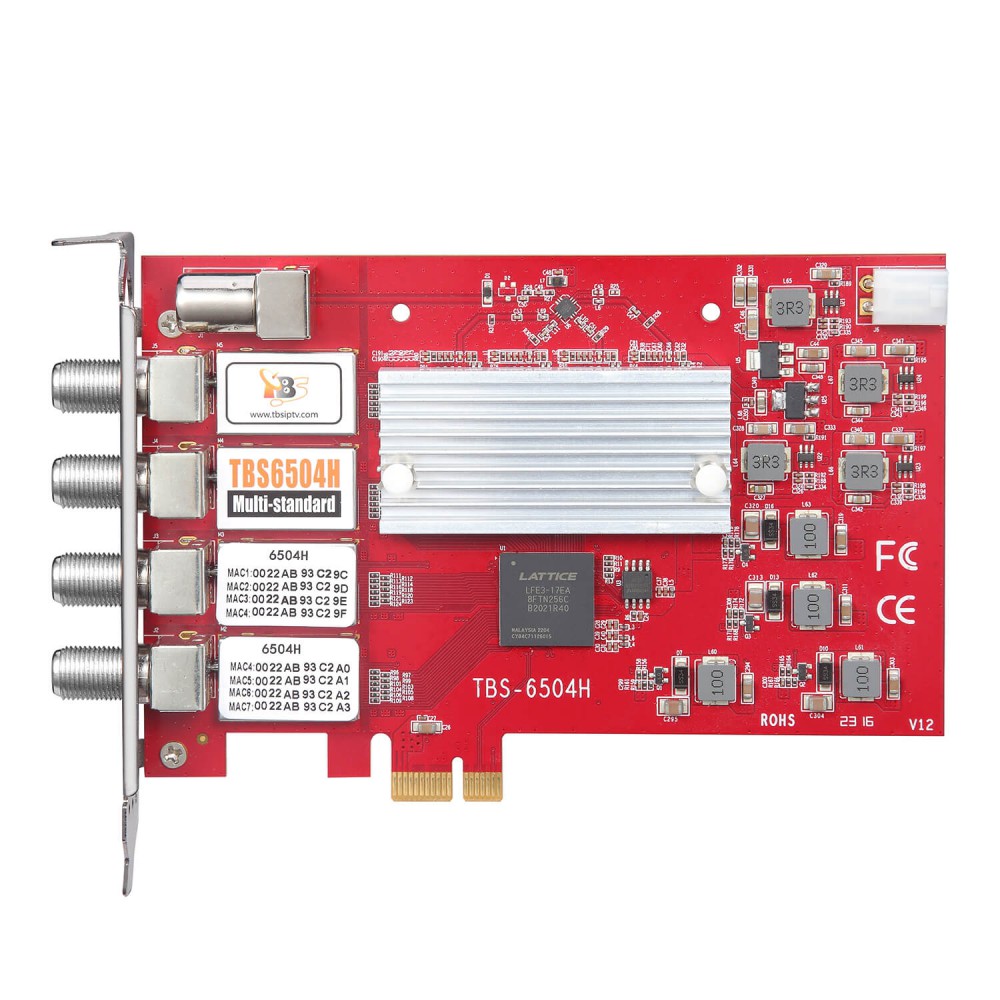

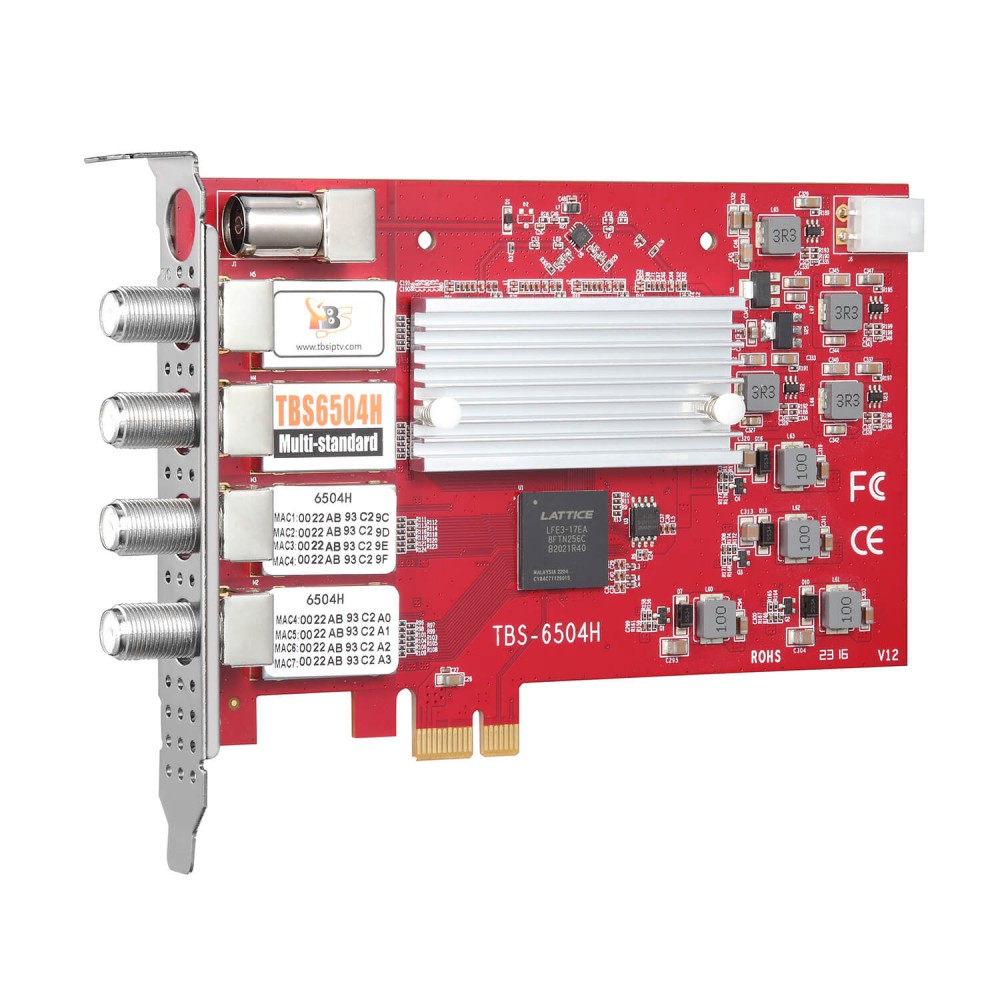

TBS6504H is a Octa（4SAT+ 4Ter/Cable）PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C (J.83A/B/C)/ISDB-T/C /ATSC1.0, four RF IN is independent with each other, it supports both quad DVB-S2X/S2 and quad DVB-T2/T/C2/C standard at the same time, which allows to receive/record channels from satellite and terrestrial/cable at the same time . With this multi-standard TV tuner card, it is much easier to switch between different digital TV signals.
TBS6504H not only supports normal DVB-S2X/DVB-S2/S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, VCM, 16APSK, 32APSK Stream Mode, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured.
Main Features
- DVB-S/S2/S2X, DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T, ISDB-C, ATSC1.0
- Fast scanning functionality for all media
- Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
- Up to 173M/bps(TS Data Rate)
- High-definition video, real-Time and scheduled video recording
- High sensitivity Tuner for the best digital TV reception
- Windows BDA driver and Linux Driver ready
Specification
| Model | TBS6504H | |
| Connector | PCI-E | |
| 8 x RF (4 satellite tuner + 4 Ter/Cable tuner) | ||
| DVB-S2/S | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK (32APSK-L) | 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3) | |
| Symbol rate | 1 ~ 45Msymb/s | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band | |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | ||
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | ||
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | ||
| 16, 32, 64, 128 and 256QAM modulations | ||
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | ||
| DVB-T | 6, 7 and 8MHz channel bandwidths | |
| 2 and 8K FFT | ||
| QPSK, 16 and 64QAM | ||
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | ||
| DVB-C2 | 6 and 8MHz channel bandwidths | |
| 1/64 and 1/128 guard intervals | ||
| 16, 64, 256, 1024, 4096 QAM | ||
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | ||
| DVB-C | 1.7 to 7.2 Msym/s | |
| 16, 32, 64, 128 and 256QAM | ||
| 0.15 roll-off factor | ||
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s | |
| 0.18 and 0.12 roll-off factor | ||
| 64 and 256QAM | ||
| ISDB-T | 6, 7 and 8MHz channel bandwidths | |
| 2 and 8K FFT | ||
| QPSK, 16 and 64QAM | ||
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | ||
| ISDB-C | 5.274 Msym/s | |
| 0.13 roll-off factor | ||
| 64 and 256QAM | ||
| TSMF (Transport Streams Multiplexing Frame) | ||
| ATSC 1.0 | 6MHz channel bandwidths | |
| 8VSB modulation | ||
| 2/3 code rate | ||
| Power consumption | ||
| Input/ Power: | 12V/6 ~ 18W | |
| temperature | 0° ~ 60° | |
| Other information: | ||
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) | ||
| TV tuner card size | 12.1cm * 10.8cm * 2cm | |

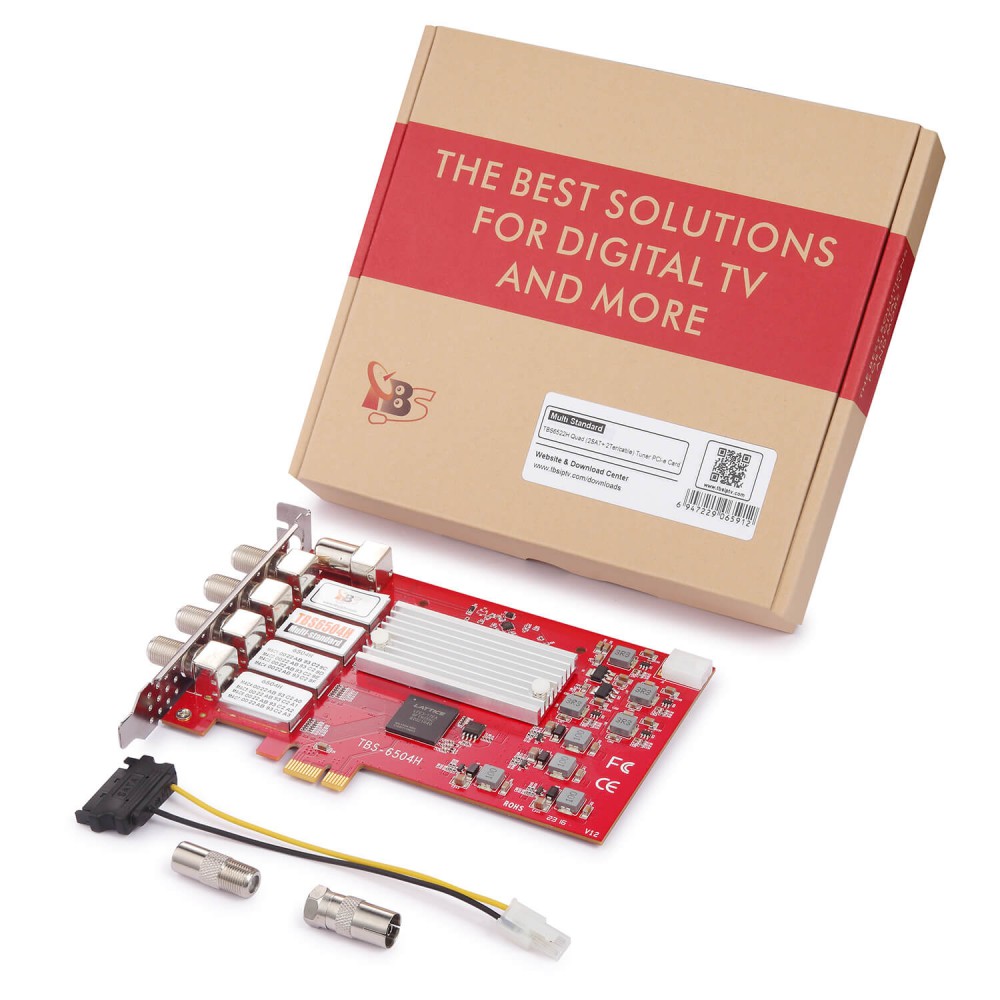

| Package Contents | 1 x TBS6504H | |
| 1 x DC cable | ||
