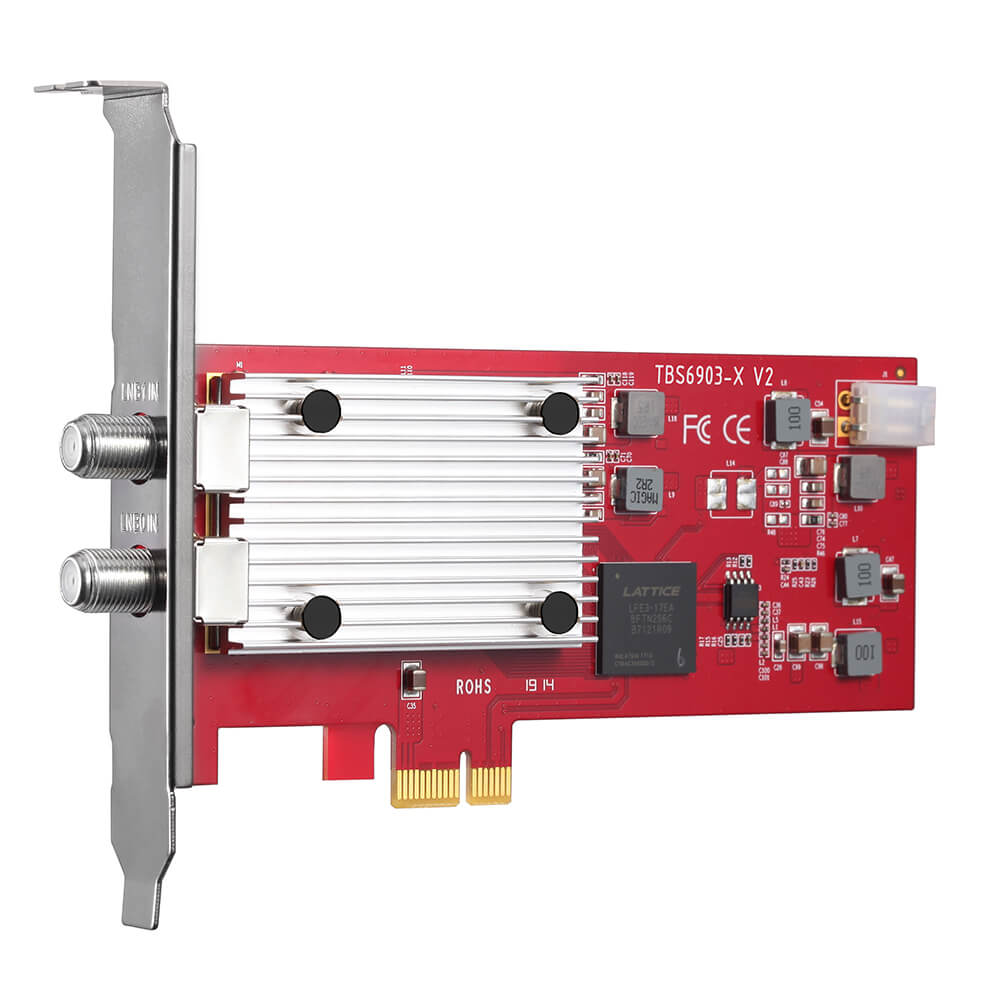

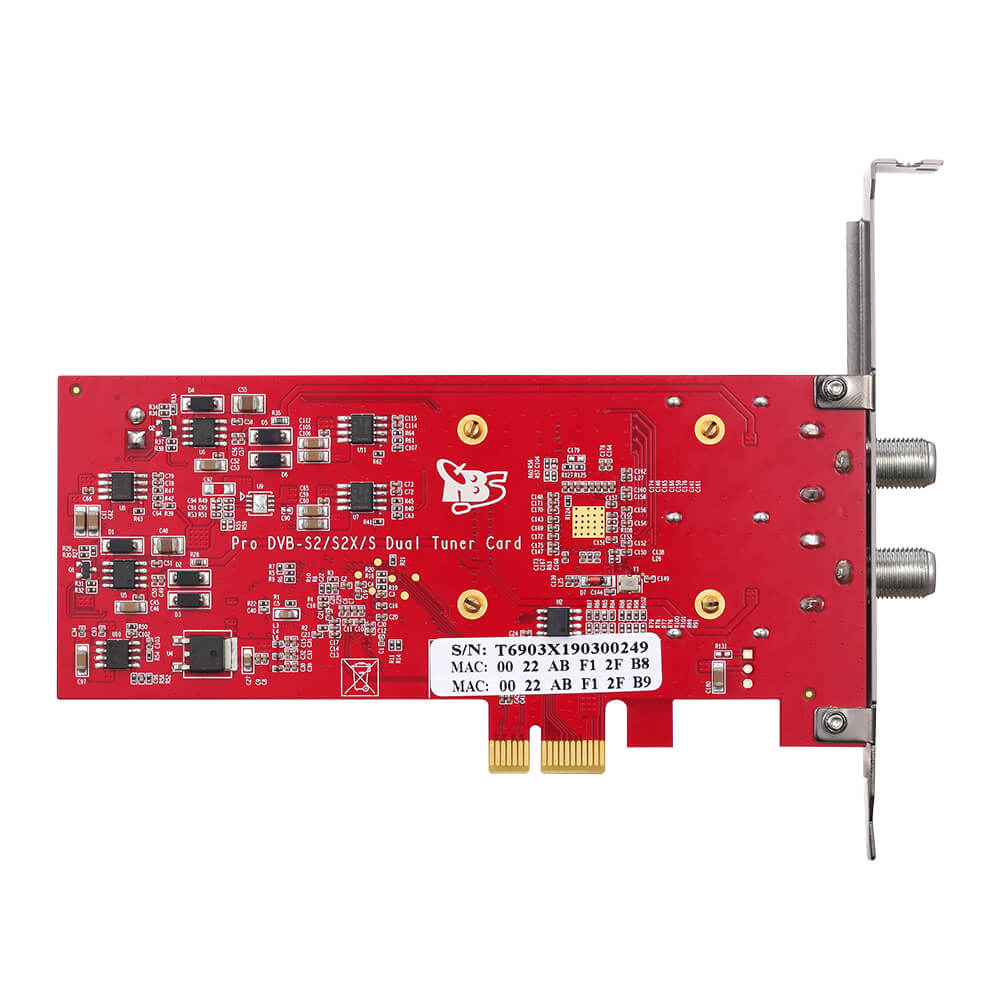

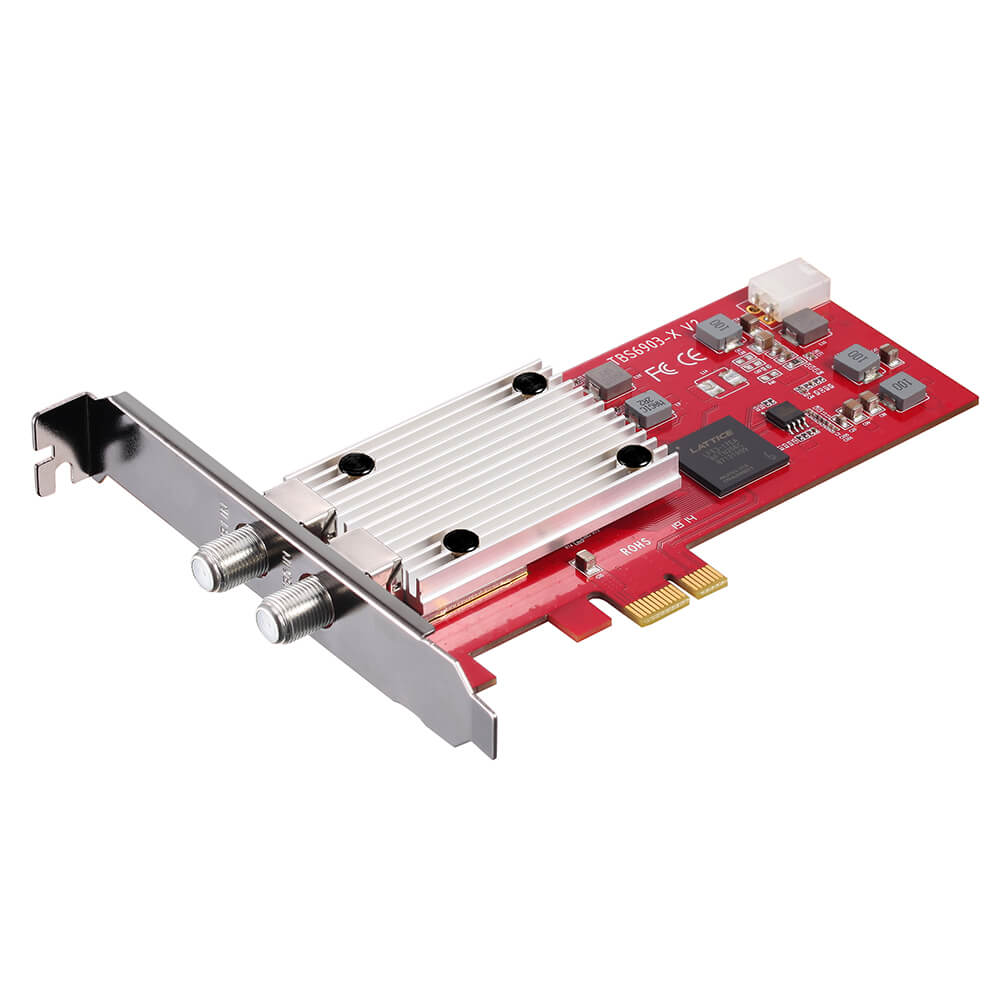

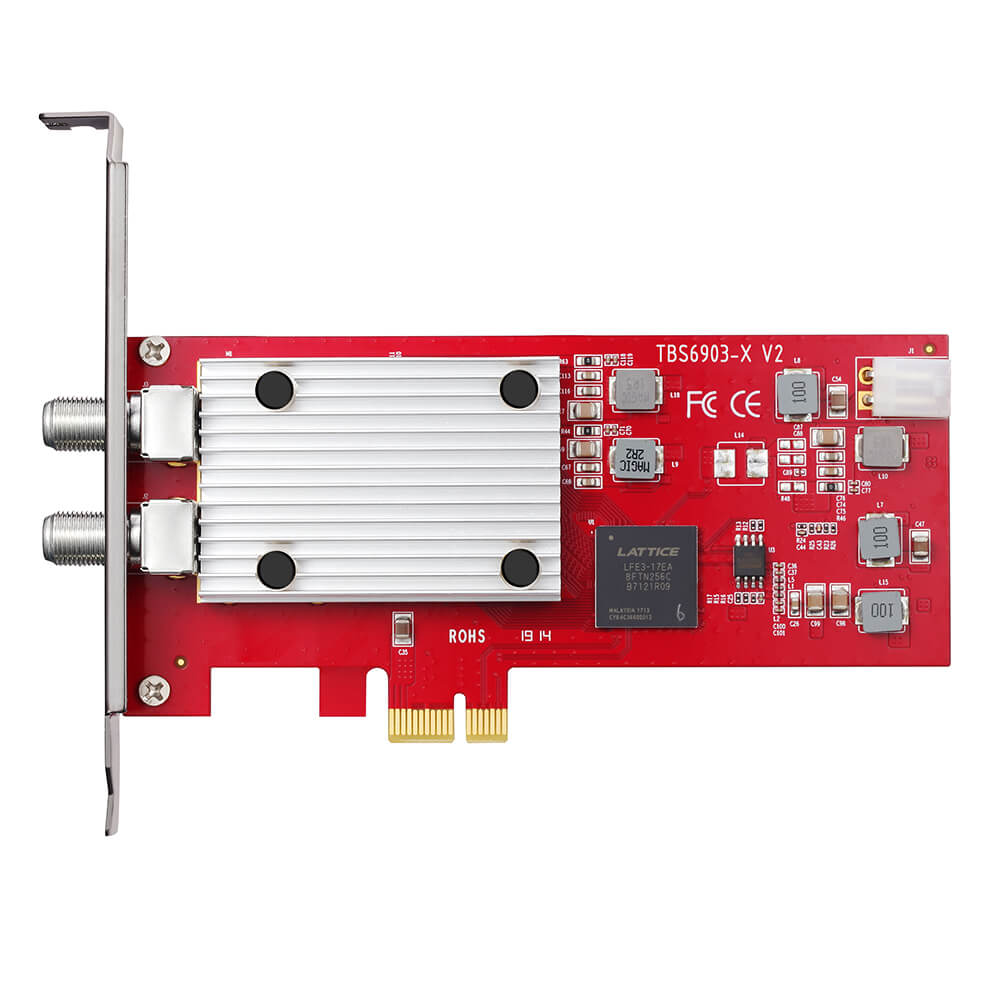

TBS6903-X Professional DVB-S2X Dual Tuner PCIe Card


TBS6903-X Professional DVB-S2X Dual Tuner PCIe Card

  • Model: TBS6903X
  • Weight: 350.00g
  • Reward Points:359

In Stock

US$359.00

TBS6903-X is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903-X not only supports normal DVB-S2X/S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic & Single TS, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.

Main Features:

  • DVB-S2X/S2 dual tuner
  • Watch & record satellite TV/ radio programs on PC
  • CCM, VCM, ACM and Multi Input Stream support
  • Generic stream mode Support
  • Blind scan support
  • EPG (Electronic Program Guide) support
  • Unicable/one cable compatible
  • High-speed data download via satellite

Applications:

  • Data receiving
  • Media monitoring

Specification:

Model TBS6903-X
Connection PCI-express
2x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X(NORMAL) FECFRAME 64800 (bits)
QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
13/45
9/20, 11/20
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
23/36, 25/36, 13/18
8PSK-L 5/9, 26/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 , 9/10(S2-MODCODs)
26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90
16APSK-L 5/9, 8/15, 1/2, 3/5, 2/3
32APSK 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs)
32/45, 11/15, 7/9
32APSK-L 2/3
64APSK 11/15, 7/9,4/5, 5/6.
64APSK-L 32/45
DVB-S2X(SHORT) FECFRAME 16200 (bits)
QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15, 8/15, 32/45
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45,32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK 2/3, 32/45
VCM, VCM ,CCM Yes
Signal sensitivity: 8PSK 3/4 -75dBm
Power consumption
Input/ Power: 12V/7~15W
temperature 0° ~ 60°
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot

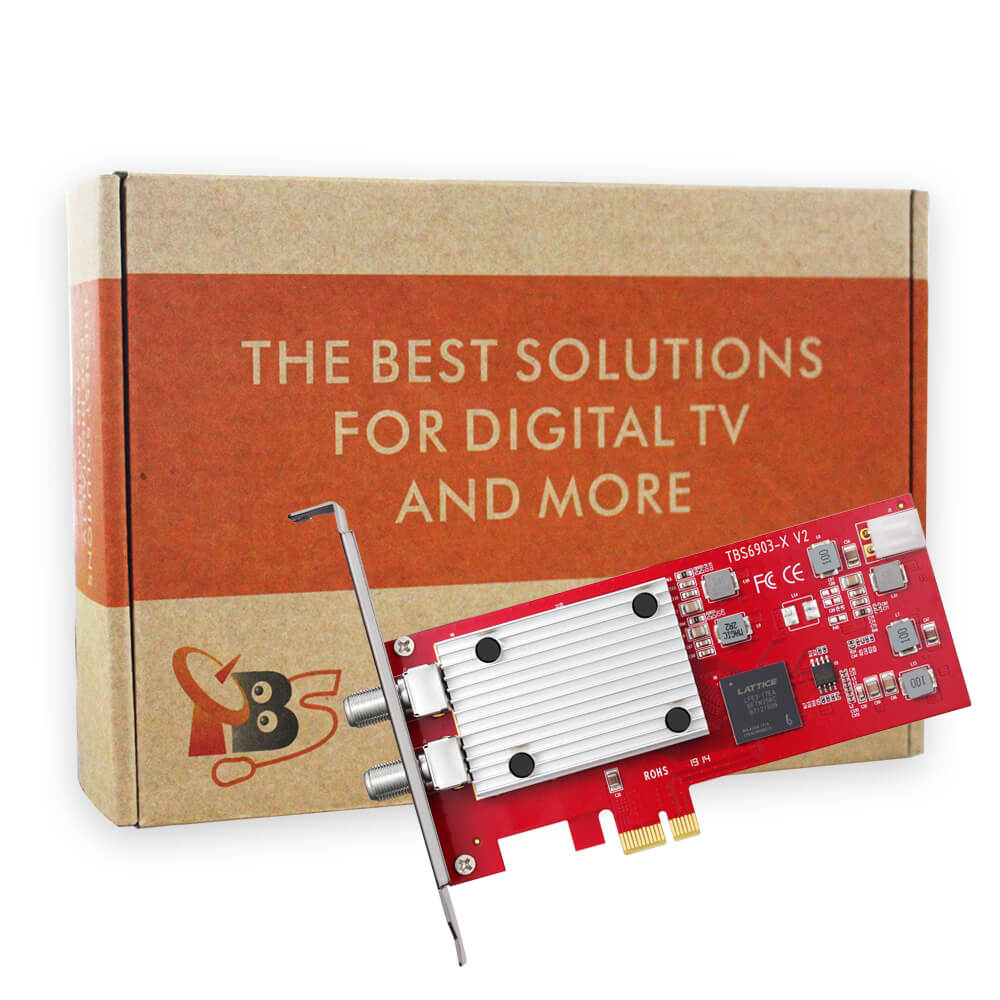

Package Contents 1 * TBS6903-X
1 * Power cable

Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

Msymb/s Demod
QPSK 180
8PSK 120
16APSK 90
32APSK 72
64APSK 60
128APSK 51,42
256APSK 45
