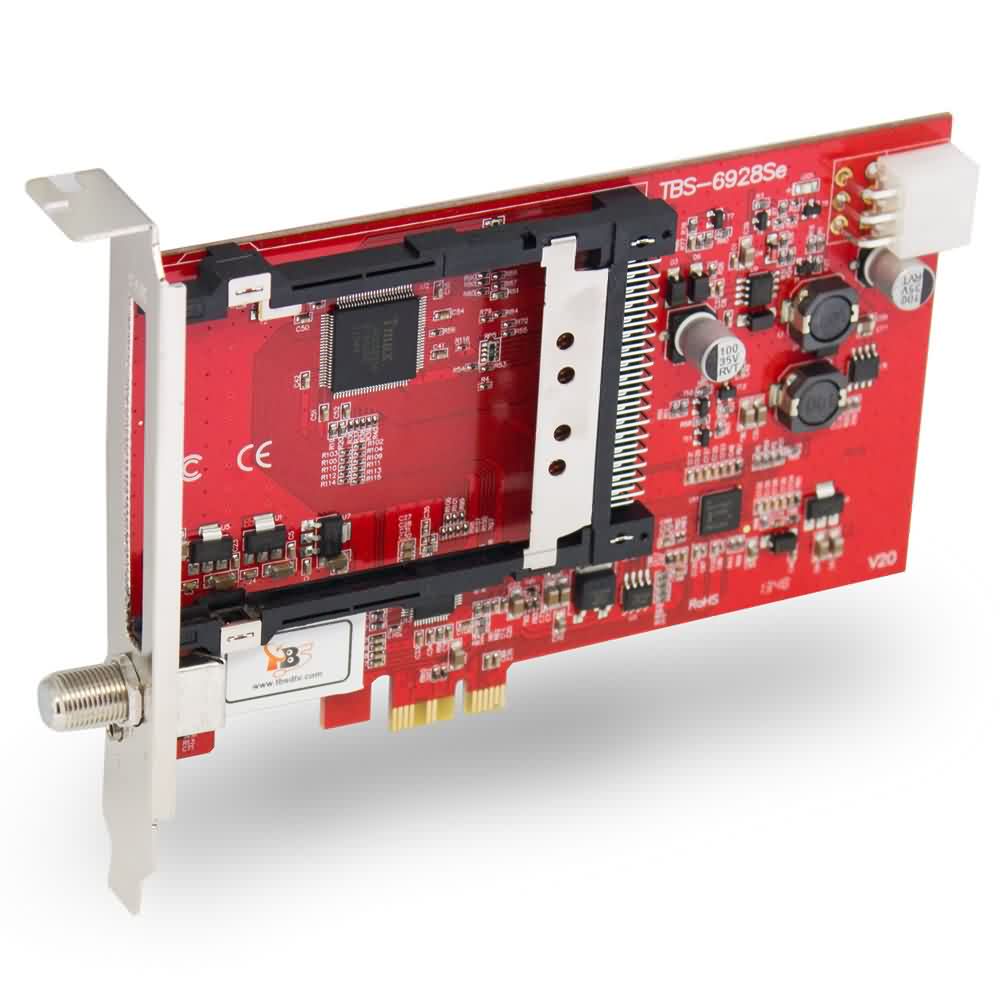

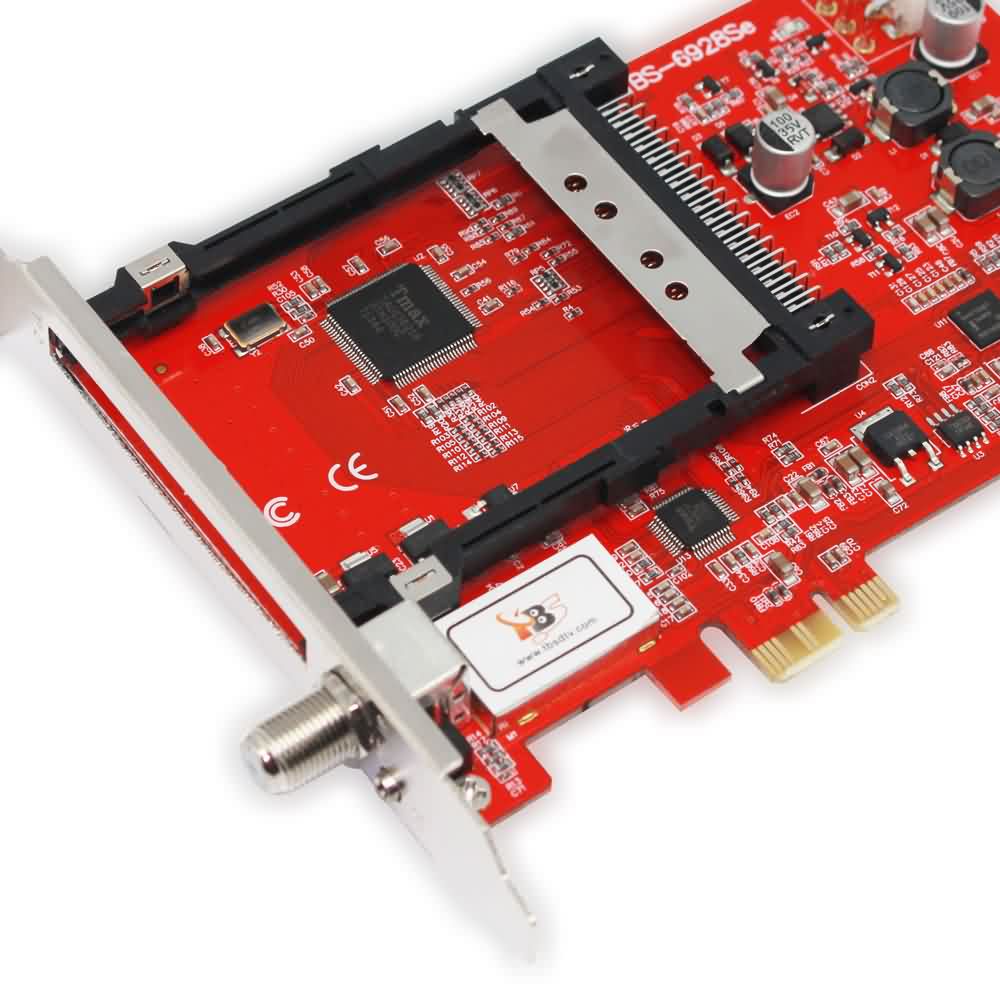

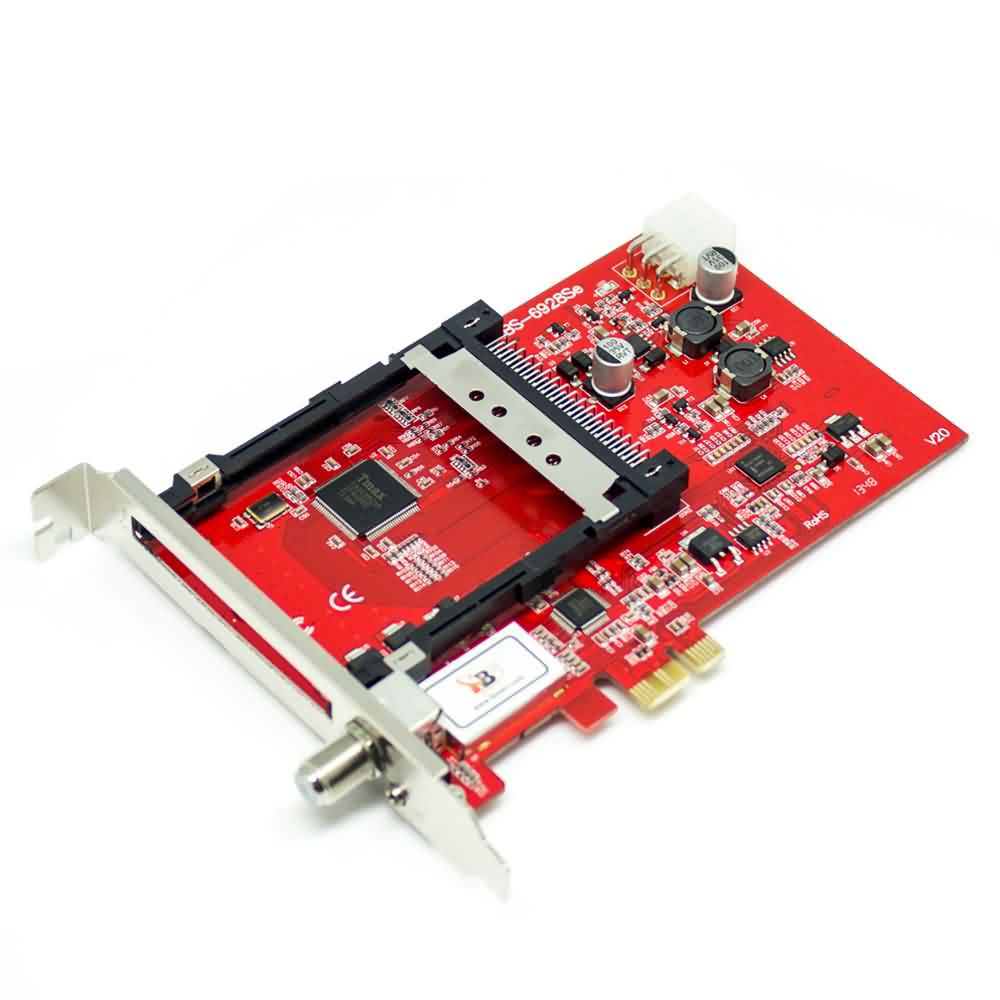

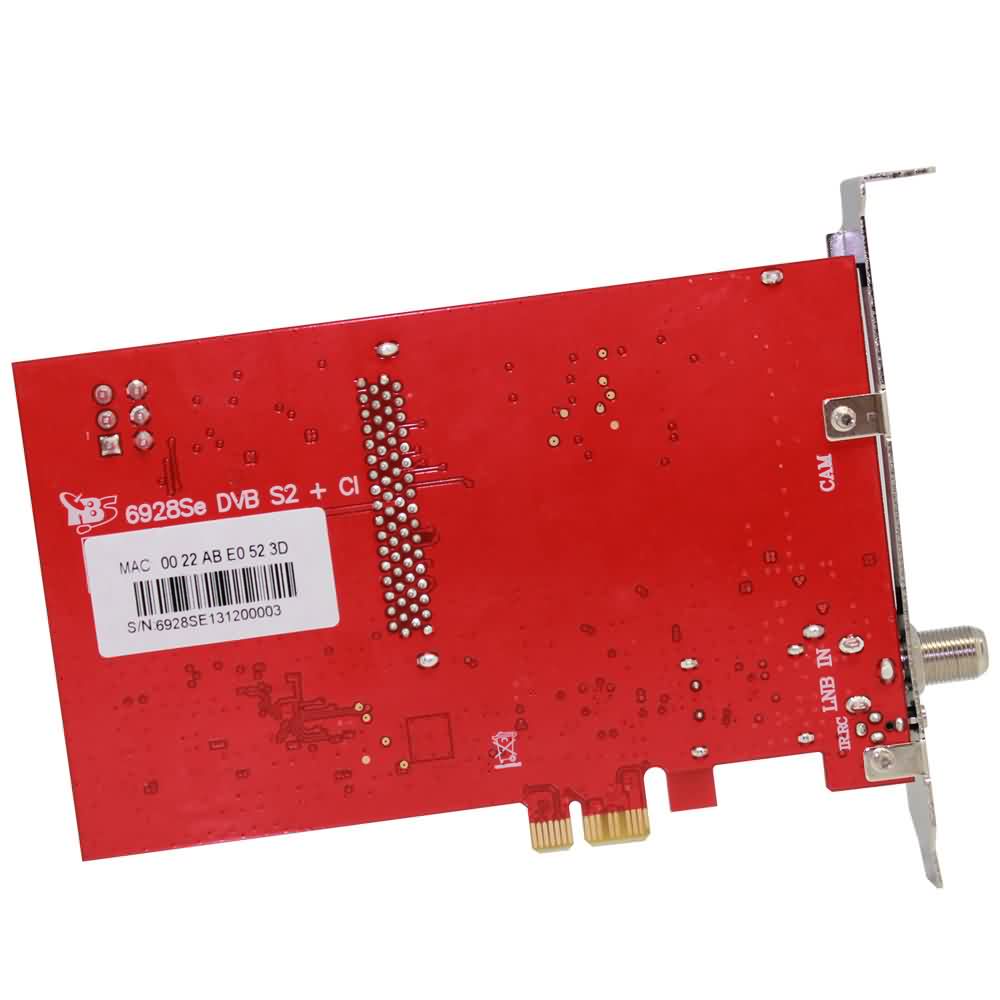

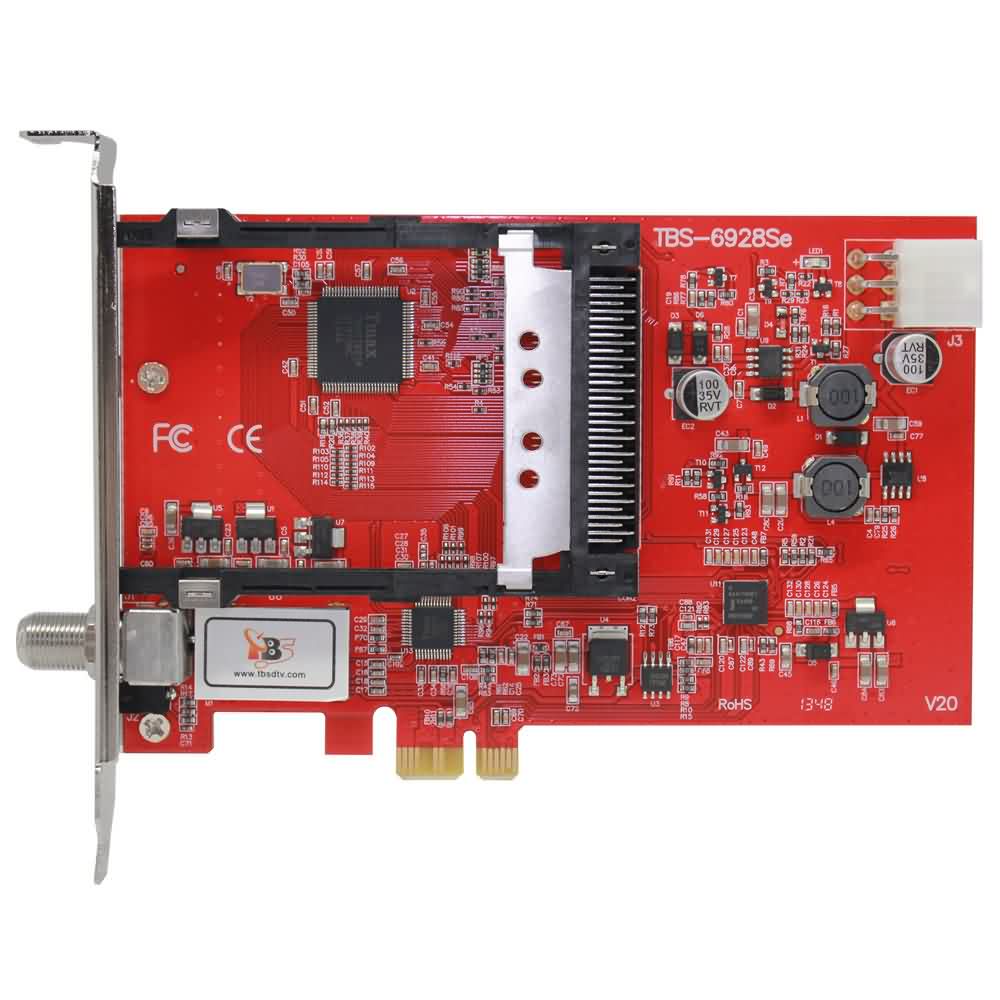

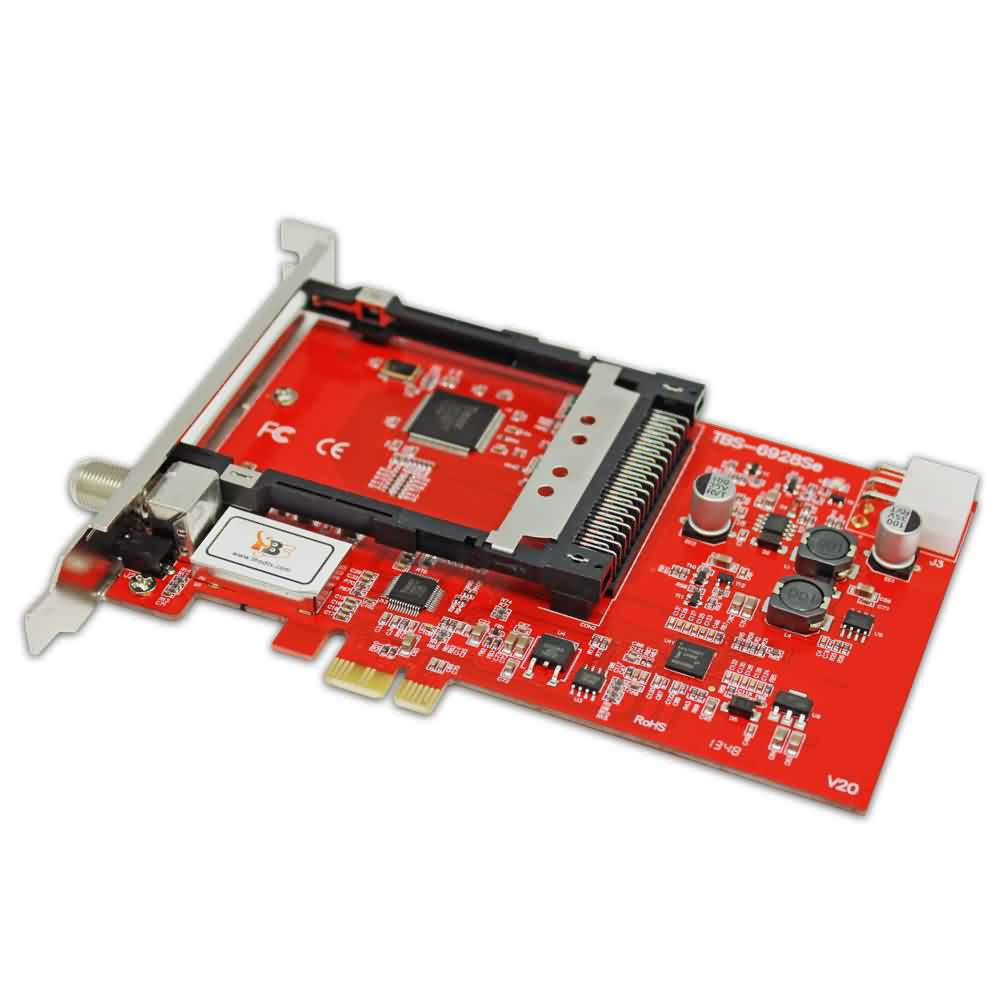

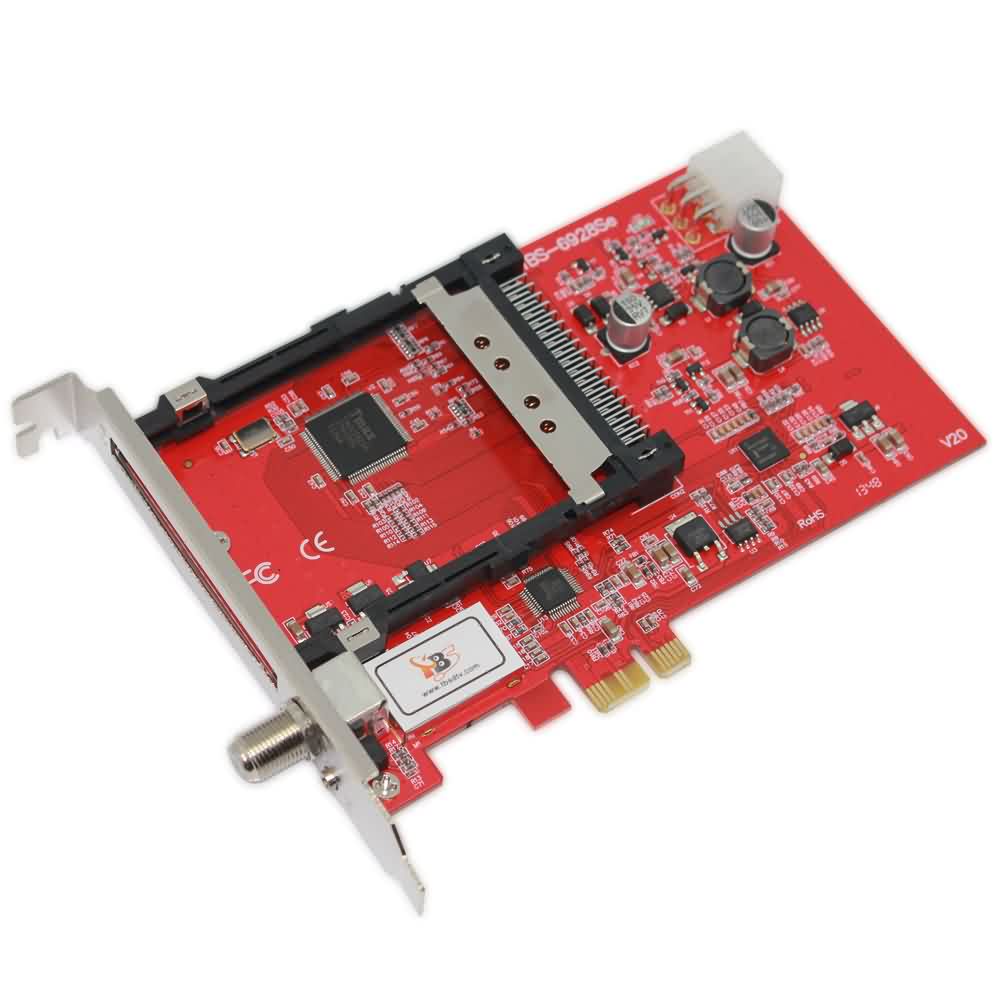

TBS6928SE DVB-S2 TV Tuner CI PCIe Card is a PCI Express (PCIe) interface digital satellite TV Tuner card for watching and recording digital satellite TV on PC. With integrated CI slot, it can be used for watching Free to Air(FTA) TV and Pay TV(with correct CAM and subscription smartcard equipped). Both Windows BDA driver and Linux driver up to the latest kernel are provided.

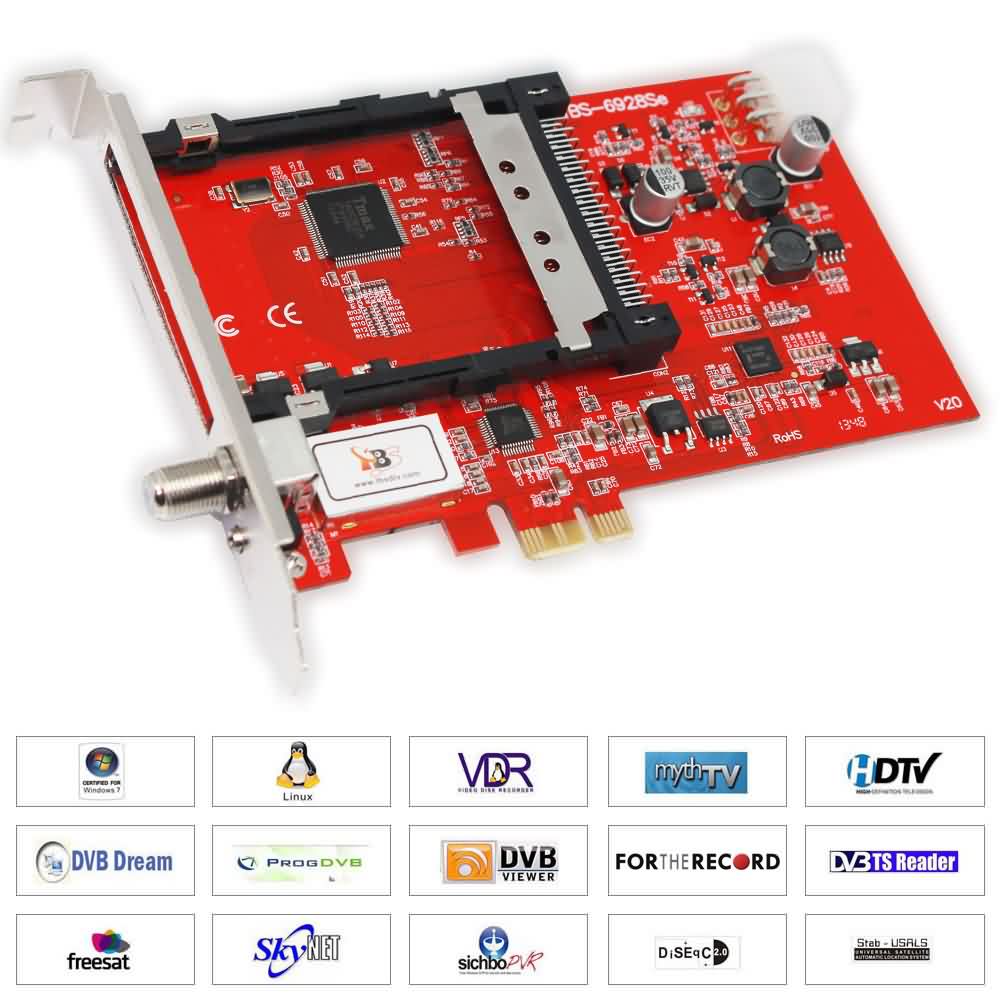

The unique TBS MCE tool makes it possible to read CAM/Smartcard on Windows7 Media Center, thus your satellite subscription TV can be watched/recorded on Windows7 Media Center. On Linux platform, you can also watch Pay TV by using correct software. TBS6928SE is compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV,VDR and many other popular software.

TBS6928SE PCIe DVB-S2 TV Tune CI card is the advanced satellite TV tuner built with Common Interface support, which allows insertion of CAM and smartcard for Pay TV. It uses advanced DVB-S2 RF and demodulator chipset and it’s built with the highest quality components such as tantalum capacitors. It's a good choice for IPTV server streaming Pay TV contents especially. By using appropriate software, e.g. MediaPortal and its plugins, you can stream satellite TV contents to your iPhone, iPad or iPod. The built in hardware blindscan capability allows you to scan satellite programs without knowing exact transponder details, which is especially useful for hunting unknown satellite feeds.

Main Features:

• Watch satellite TV & listen to radio on PC
• DVB-S2/DVB-S SD or HD TV receiving
• Broadband internet via satellite *
• High-speed data download via satellite *
• Real time and scheduled program Recording(PVR)
• Time shifting to pause live TV
• Unicable/One cable compatible
• Common Interface (CI) Support
• Blindscan
• High reliability

*Depends on service provider.

Applications:

• HTPC

Specifications:

• Receiving frequency: 950~2150 MHz tuning range
• Input level: -69~-23dBm
• DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator
• Symbol rate:
• DVB-S QPSK 1~45Msps
• DVB-S2 QPSK/8PSK 1~45Msps
• Carrier capture range: ±10MHz
• -DVB-S2 CCM
  • QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10
• -DVB-S
  • QPSK+1/2, 2/3, 3/4, 5/6, 7/8
• Support data burst & tone burst
• Support DiSEqC2.X and motor
• Single CI slot

System Requirements:

• Windows 2000/XP/Vista/7/8/10 or Linux
• DirectX9.0 or later Version
• Available PCI Express x1,x4, x8 or x16 slot
• Satellite dish and LNB
• For DVB-S:
  • 1GHz CPU or above
  • 256MB RAM or above
  • Graphic card with at least 16MB RAM
• For DVB-S2 HDTV:
  • Dualcore CPU
  • 1GB RAM or above
  • Graphic card with at least 64MB RAM

Package Contents:

• 1 x TBS6928SE
• 1 x DC line
