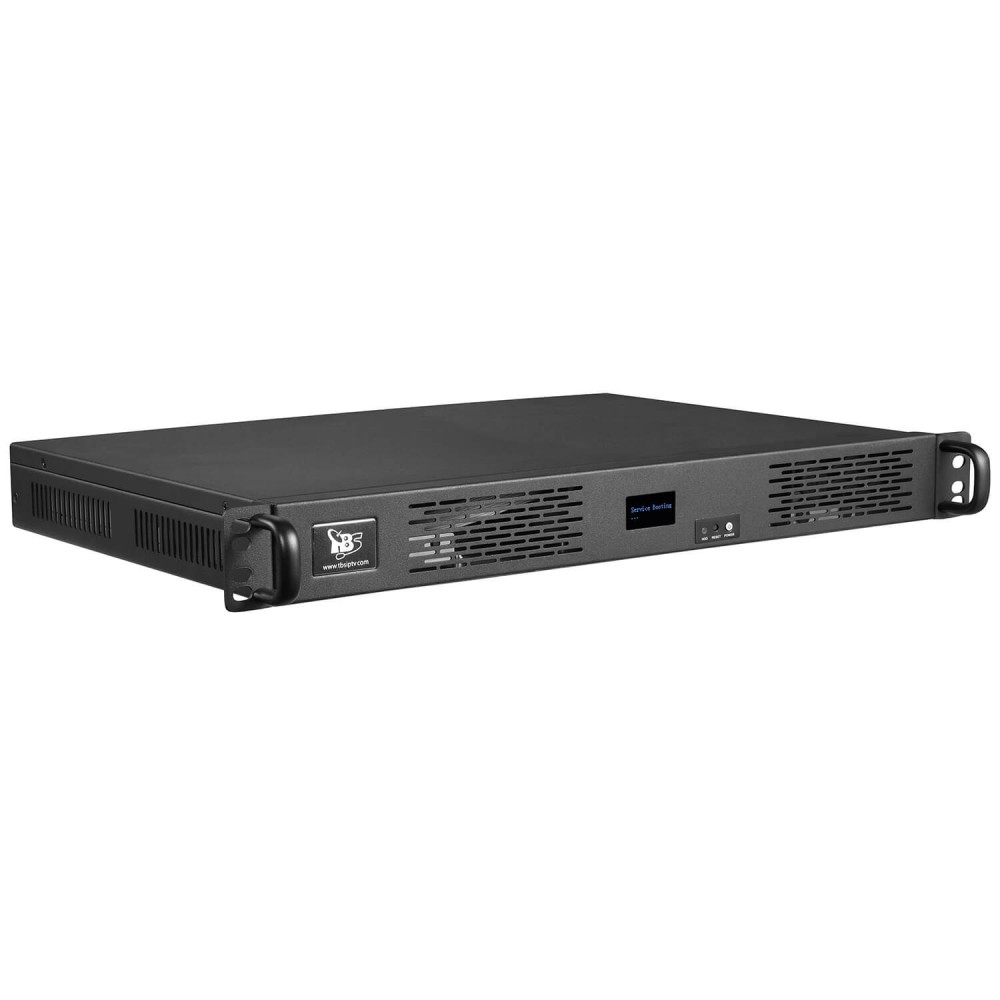

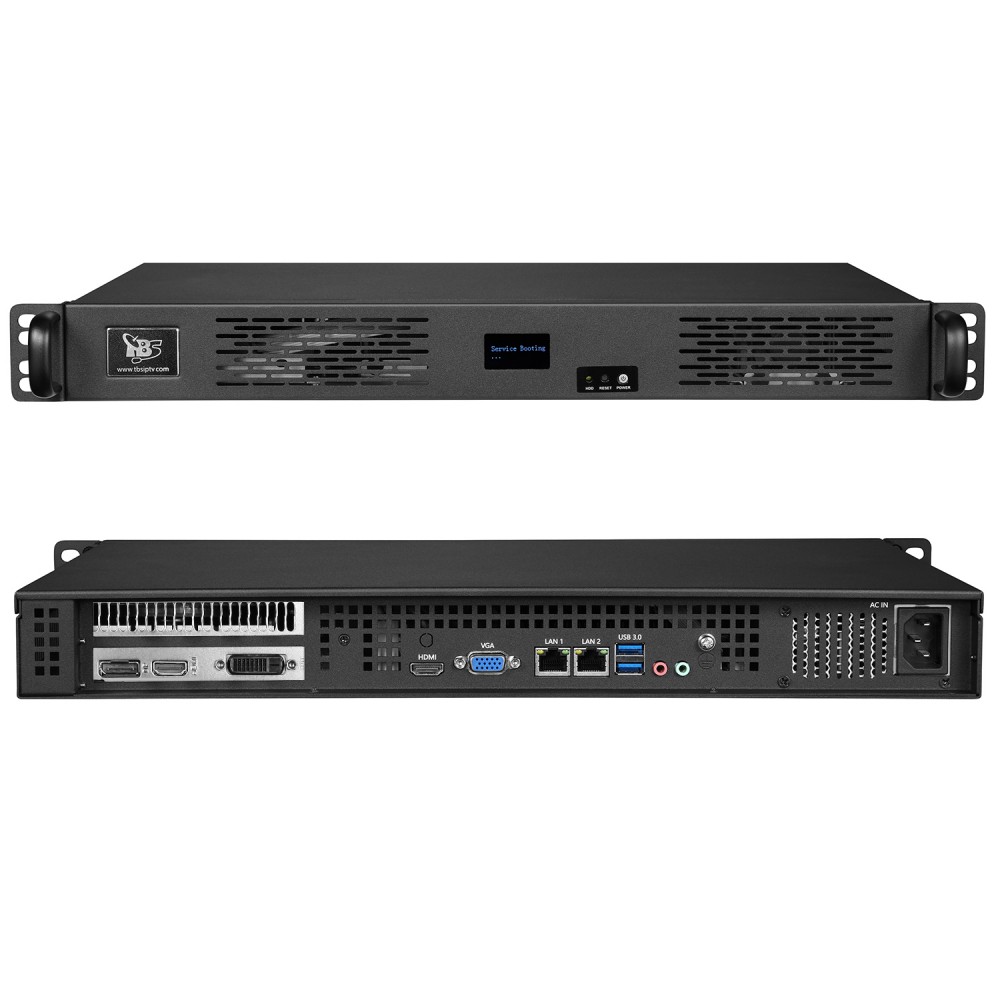

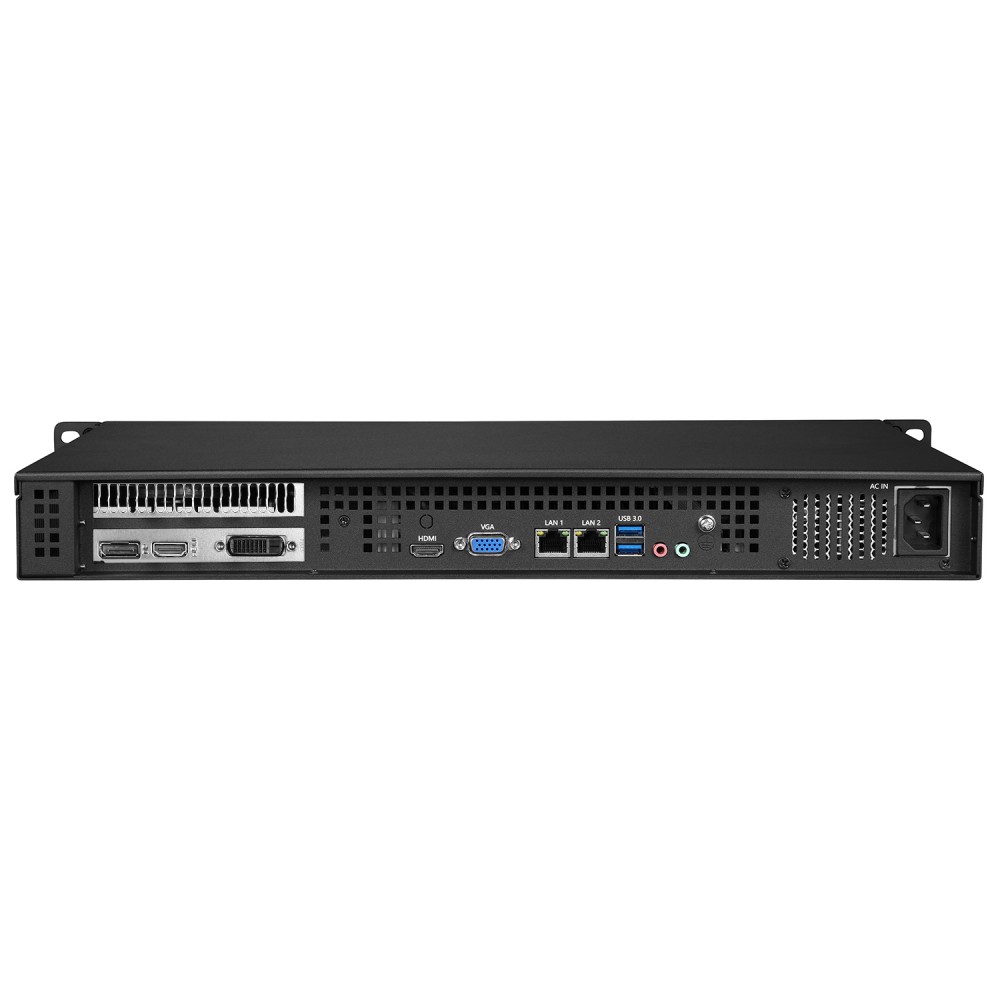

TBS8510-Lite IPTV Video Transcoder


TBS8510-Lite IPTV Video Transcoder

  • Model: TBS8510-Lite
  • Weight: 10,000.00g
  • Reward Points:2799

In Stock

US$2,799.00

The TBS8510-Lite IPTV video Transcoder is capable of handling 15~20 HD channels compression simultaneously. Equipped with powerful H.264 and H.265 encoding capabilities, this transcoder ensures superior video quality and optimized bandwidth usage. The TBS8510-Lite is perfect for IPTV providers, broadcasting stations, and corporate environments seeking a reliable and efficient transcoding solution. With its robust performance and user-friendly interface, the TBS8510-Lite delivers exceptional value and performance for a wide range of applications.

Key Features:

  • Optimized to be 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
  • Supports HEVC / H.265 transcoding.
  • Baseline, main profile and high profile with variable GOP.
  • Multiple codecs, Protocols, Bitrate Resolution, Profile per channel.
  • GbE IP output: UDP, RTP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist file.
  • Flexible GOP structure with Reference-frame and B-frame editing.
  • Up and down conversion of frame rate.
  • High quality pre-processing, including filtering, de-interlacing, cross scaling, image insertion.
  • Support variable Bit Rate (VBR) encoding, maximizes adaptive streaming video quality and bandwidth efficiency.
  • Based on embedded Rocky8 Linux
  • Supports setting the MPEG-TS service provider and service name.
  • Support by pass the EIA-608 Closed Captioning Subtitle
  • Support transcoding all audio tracks and keep all subtitles
  • DVB Subtitle and Logo insertion.
  • Parameter templates settings and imports
  • Easy configuration via Web UI
  • Designed for safe 24*365 operation

Application:

The TBS8510-Lite IPTV Transcoder is ideal for:

  • IPTV Service Providers: Enhance service delivery with reliable HD channel management.
  • Content Delivery Networks: Streamline video delivery with efficient transcoding.
  • Broadcasting Stations: Optimize broadcasting operations with high-quality video streaming.
  • Educational Institutions: Distribute educational content over IP networks with ease.
  • Corporate Environments: Support internal video communications and training.

Specifications

Transcoder 15-20 HD 1080 HEVC(H.265)/AVC(H.264) streams
Input
Input Signal IP input
Input Net Stream UDP, RTP, HTTP, HLS, Media Files, SRT
Video codecs MPEG-2, AVC / H.264, HEVC / H.265
Resolution 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576
Audio codecs AAC, MP2, MP3, AC-3
Output
Output types UDP, RTMP, HTTP, HLS(ABR), SRT
Video codecs MPEG-2, AVC / H.264, HEVC / H.265
Resolution 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Audio codecs AAC, MP3
Rate Control CBR/VBR
Power Consumption Less than 200W

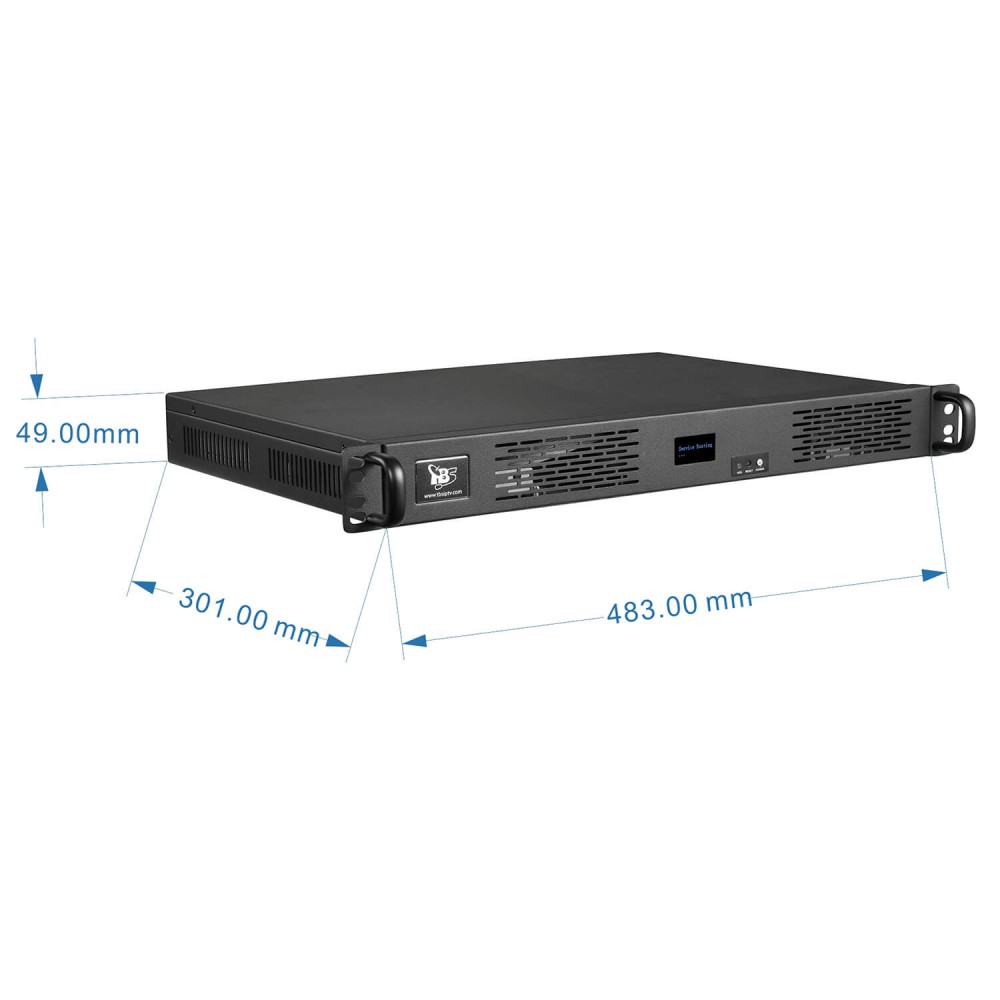

Chassis Size 483mm * 301mm * 49mm
