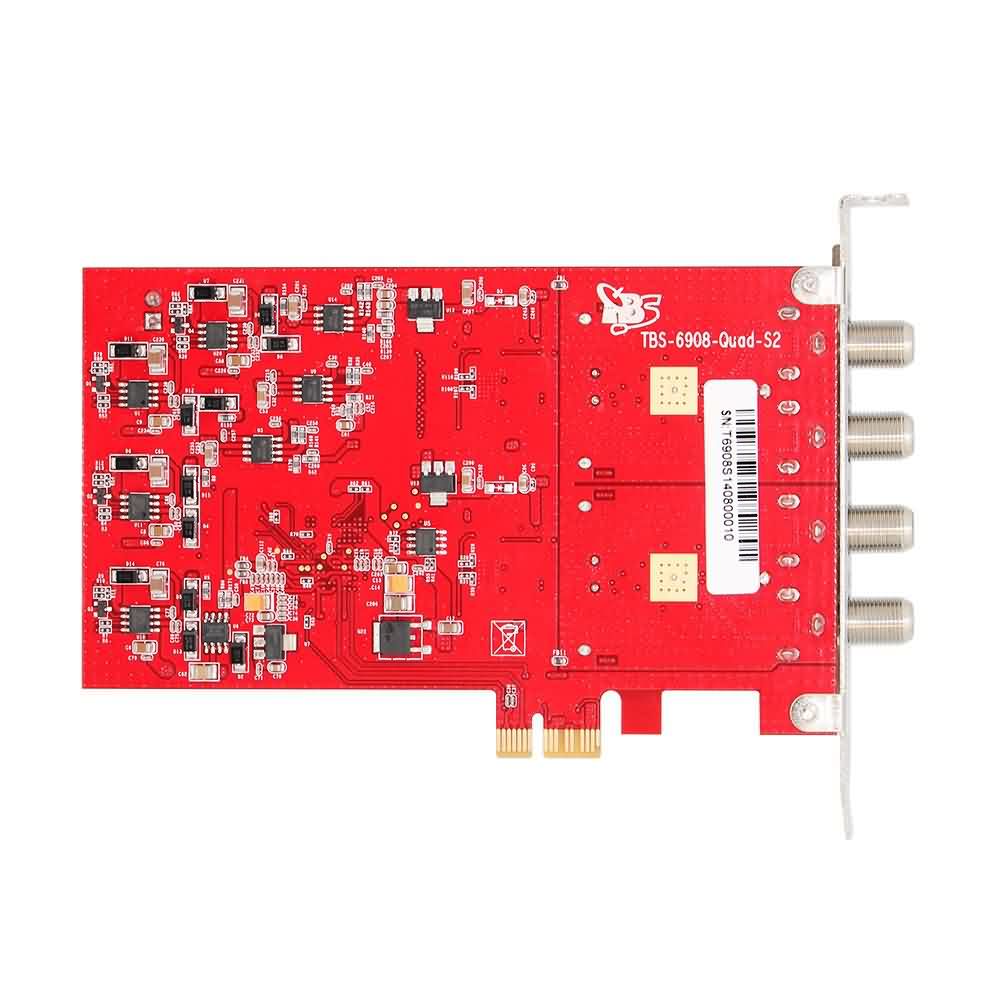

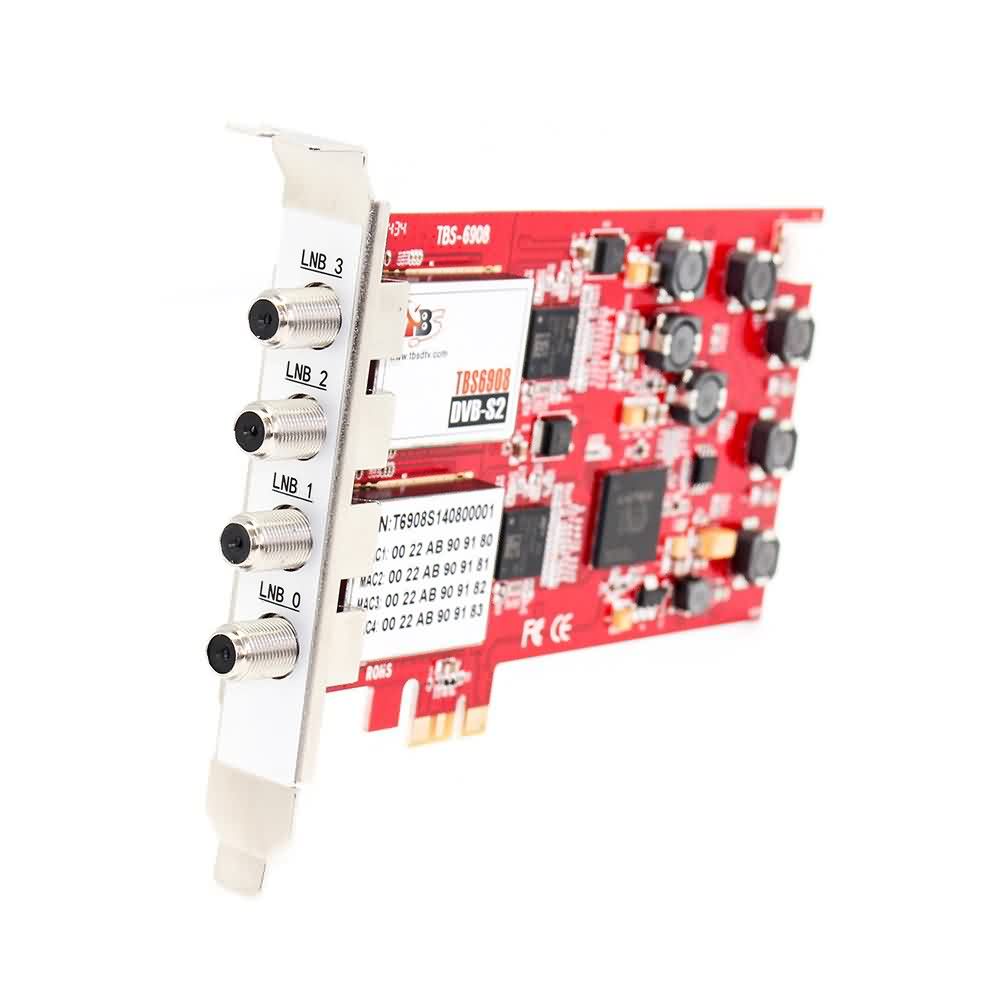

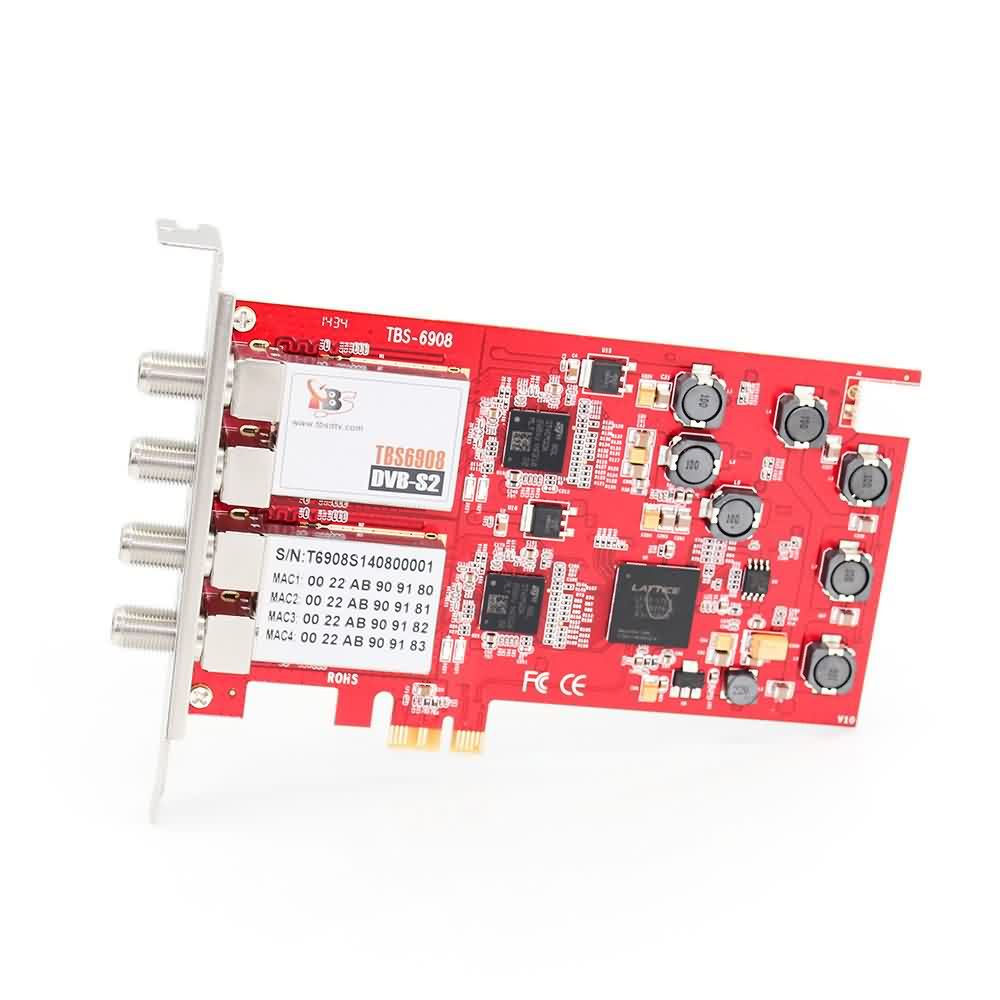

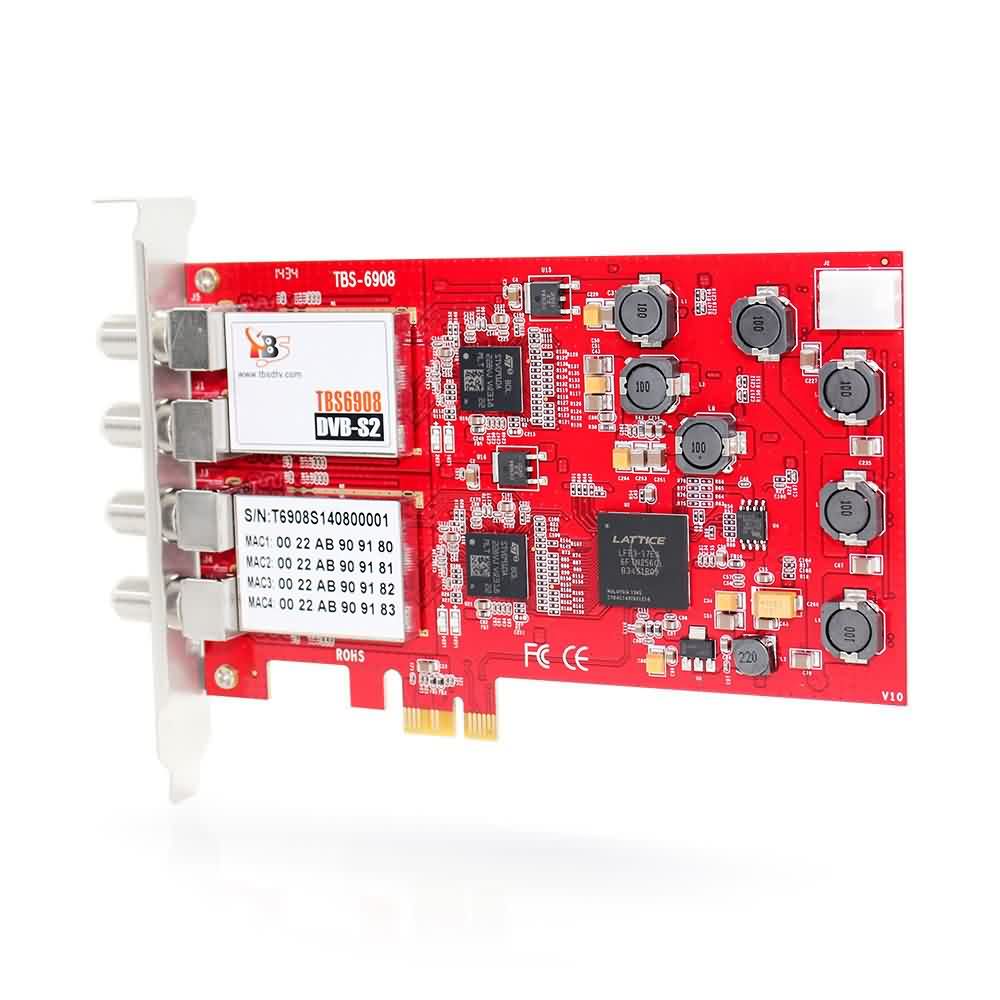

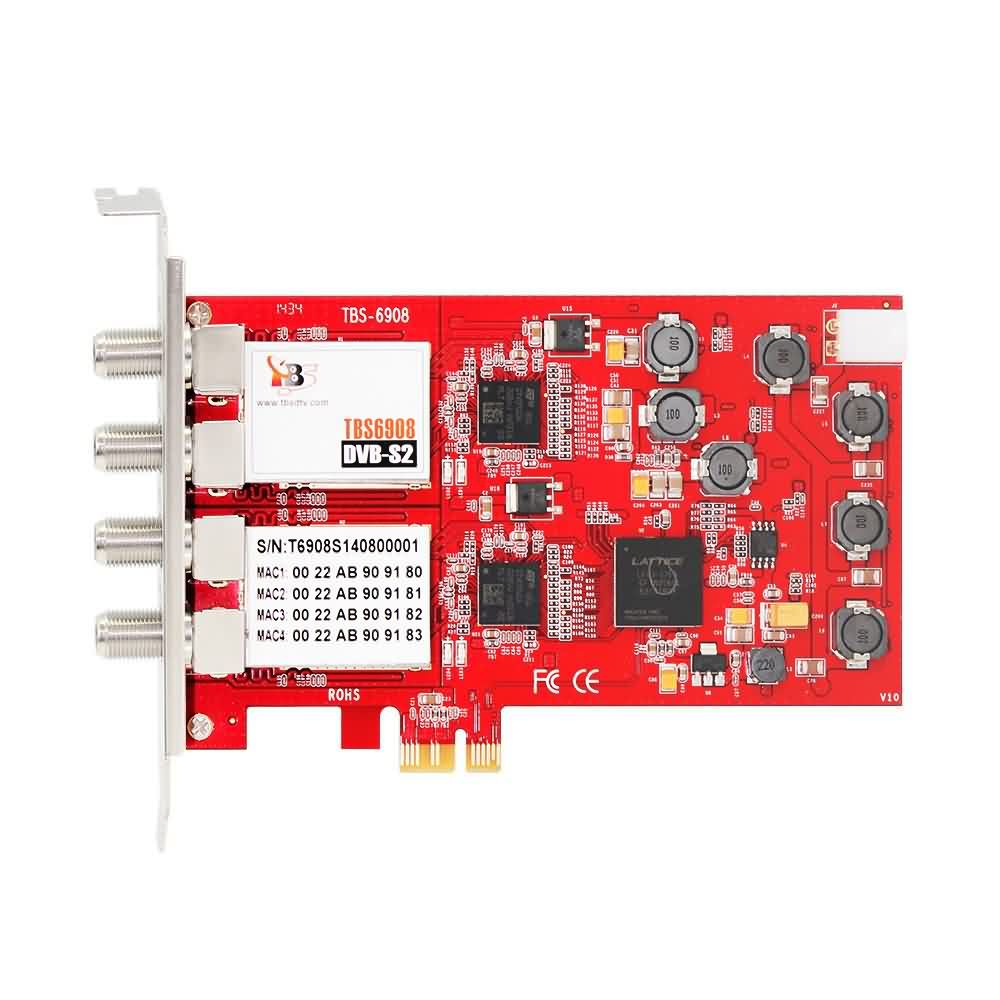

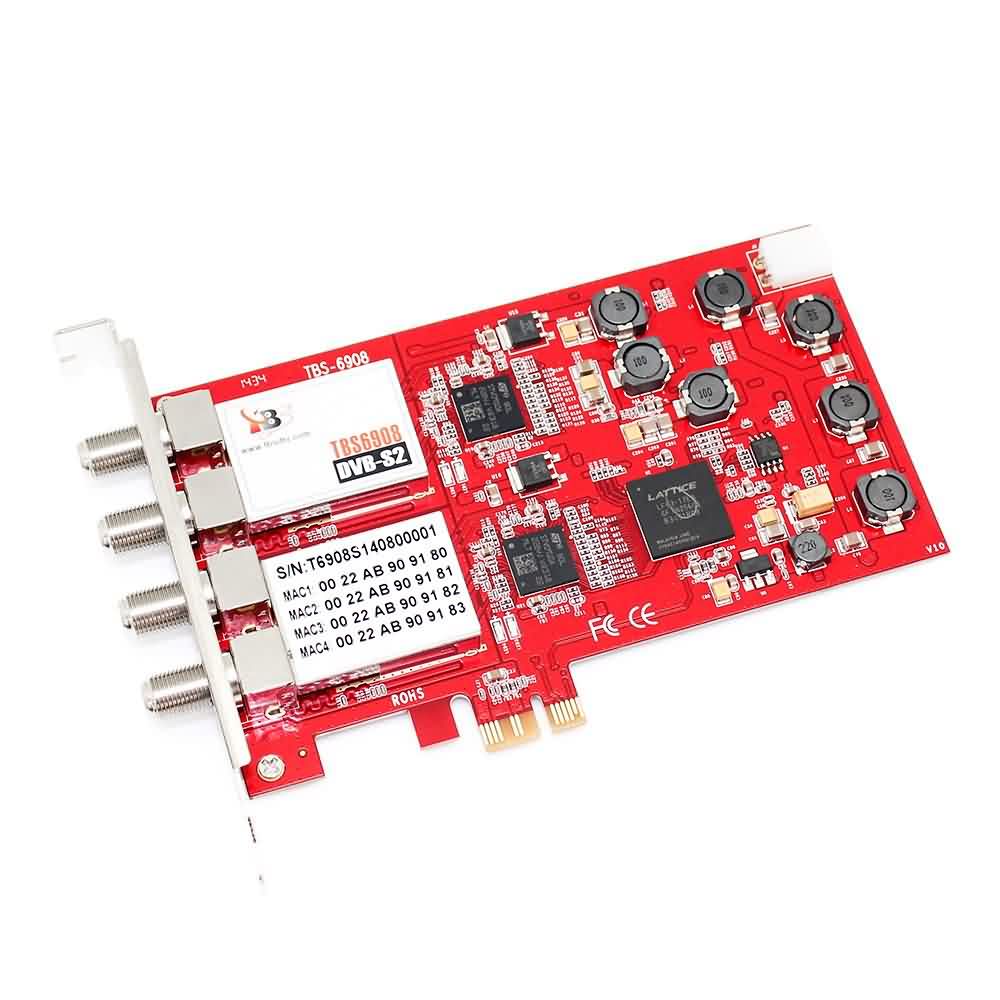

TBS6908 is a Professional level digital satellite TV Tuner card with PCI Expressinterface. TBS6908 not only supports normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, Multi Input Stream, 16APSK,32APSK,Generic Stream Mode , which most satellite receivingdevices can't support. With use of dedicated TBS tools, those special streamscan be captured. Both Windows BDA driver and the latest kernel 3.X Linux driver are ready.

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card has the highest industry standard. Its outstanding reliability is what any personal enthusiasts or engineers in digital satellite TV industry wants. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted with ACM, VCM, Multi Input Stream, 16APSK,32APSK or Generic Stream Mode.

Main Features:

• Quad tuner DVB-S2/S transponders receiving
• CCM, VCM, ACM and Multi Input Stream support
• Generic stream mode Support
• Up to 190 Mbit/s channel bit rate capture
• Wide range symbol rates support from 1Msps to 45Msps
• High-speed data download via satellite
• Unicable/one cable compatible
• Blindscan

Applications:

• Satellite feed hunt
• Satellite data download
• Lock of special transponders

Specifications:

• Receiving frequency: 950~2150 MHztuning range
• Input level: -69~-23dBm
• Quad channels DVB-S2/DVB-S 8PSK QPSK16APSK
• 32APSK ACM/VCM Demodulator
• Symbol rate:
-Maximum symbol DVB-S2 rate limitations (Msymb/s)

Msymb/s	Demod	LDPC	Single	Dual
QPSK	67.5	135	67.5	67.5
8PSK	67.5	90	67.5	45
16APSK	67.5	67.5	67.5	33.7
32APSK	67.5	54	54	27

-DVB-S

QPSK+1/2, 2/3, 3/4, 5/6,7/8
Support Data Burst &Tone Burst
Support DiSEqC2.X andMotor
Power consumption: 0.66W~ 33.13W

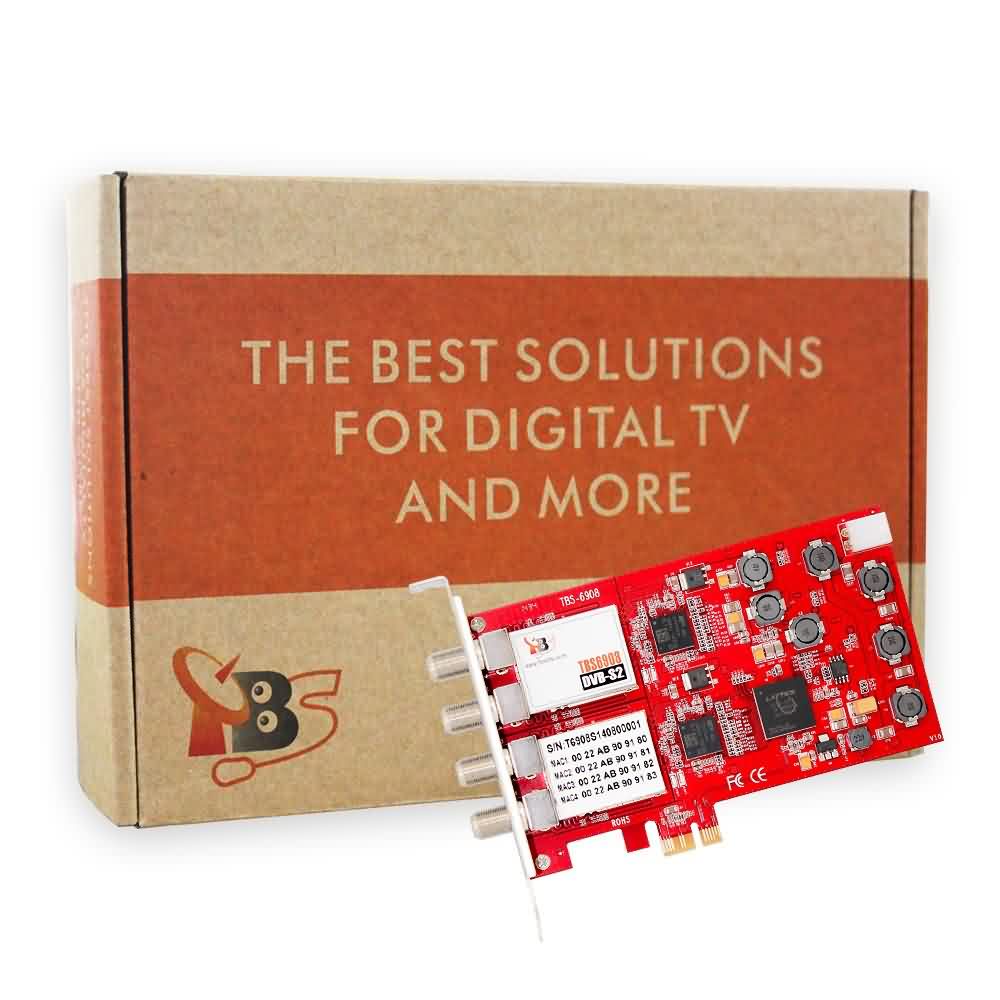

Package Contents:

• 1 x TBS6908
• 1 x DC line
