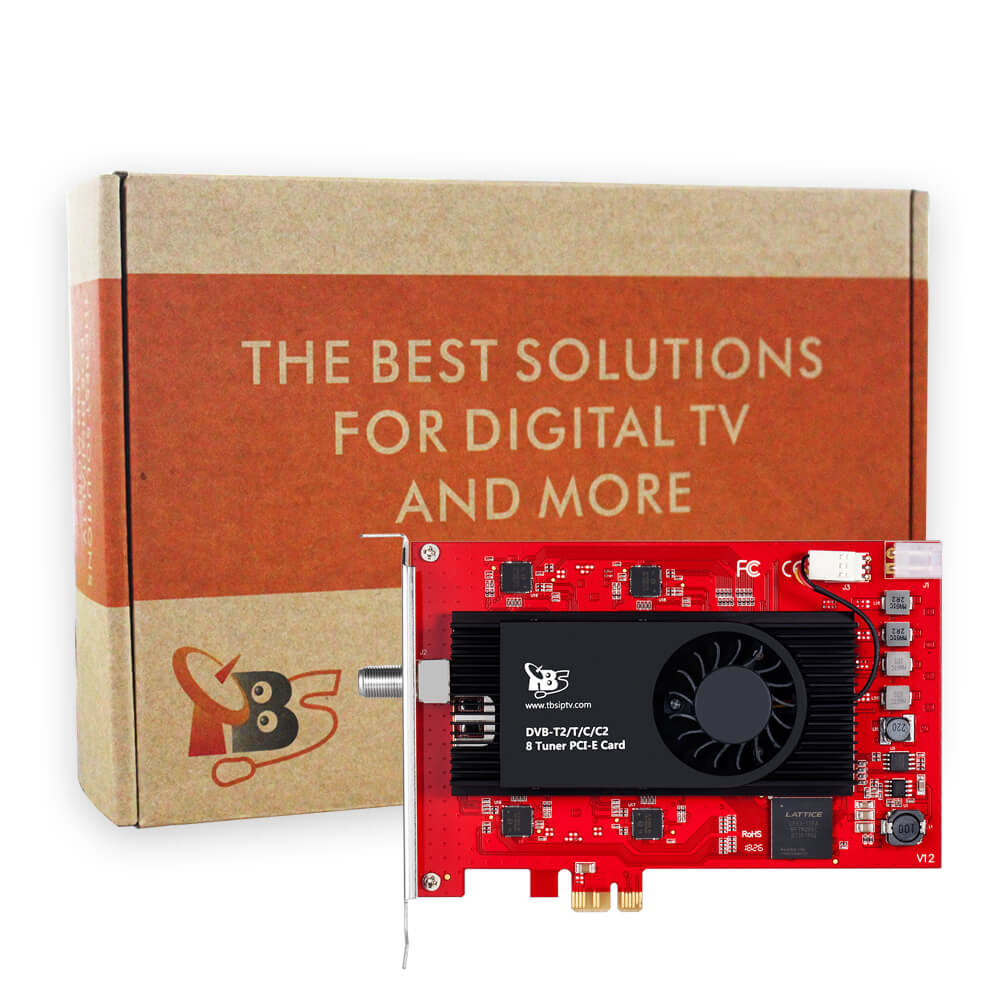

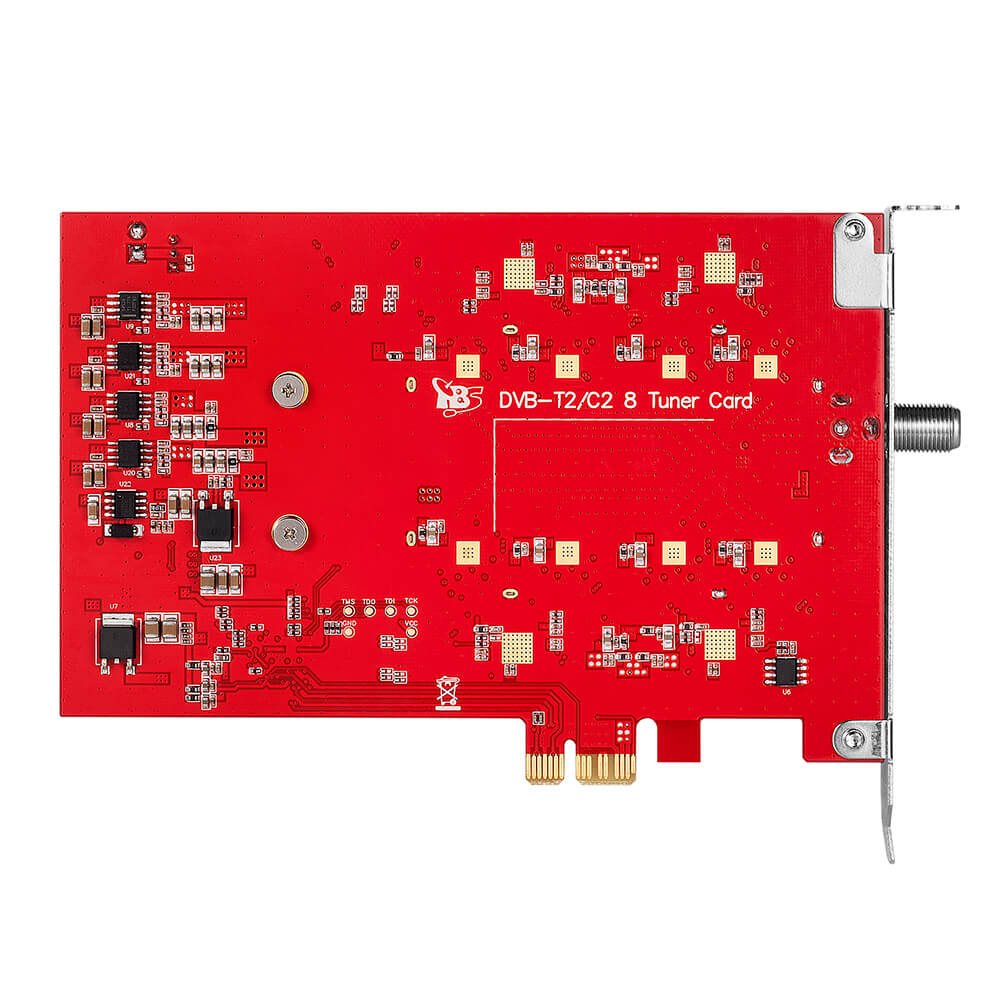

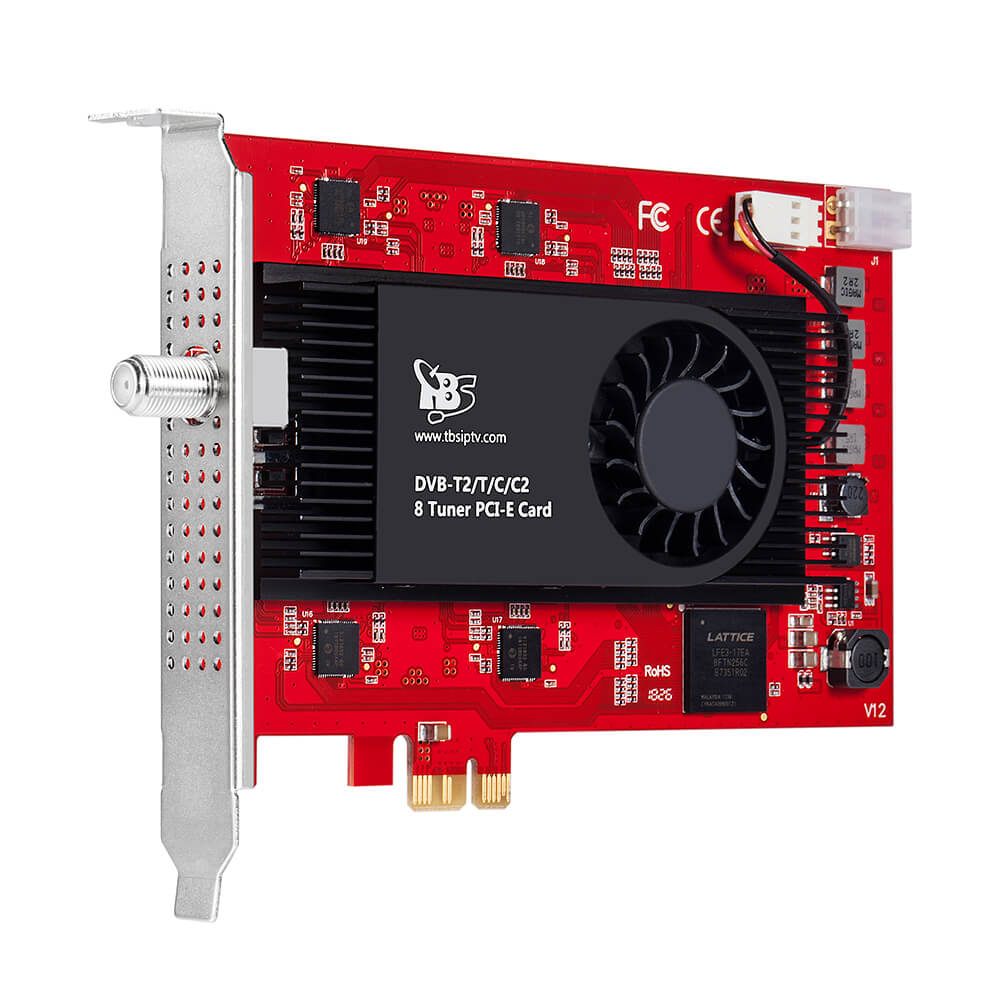

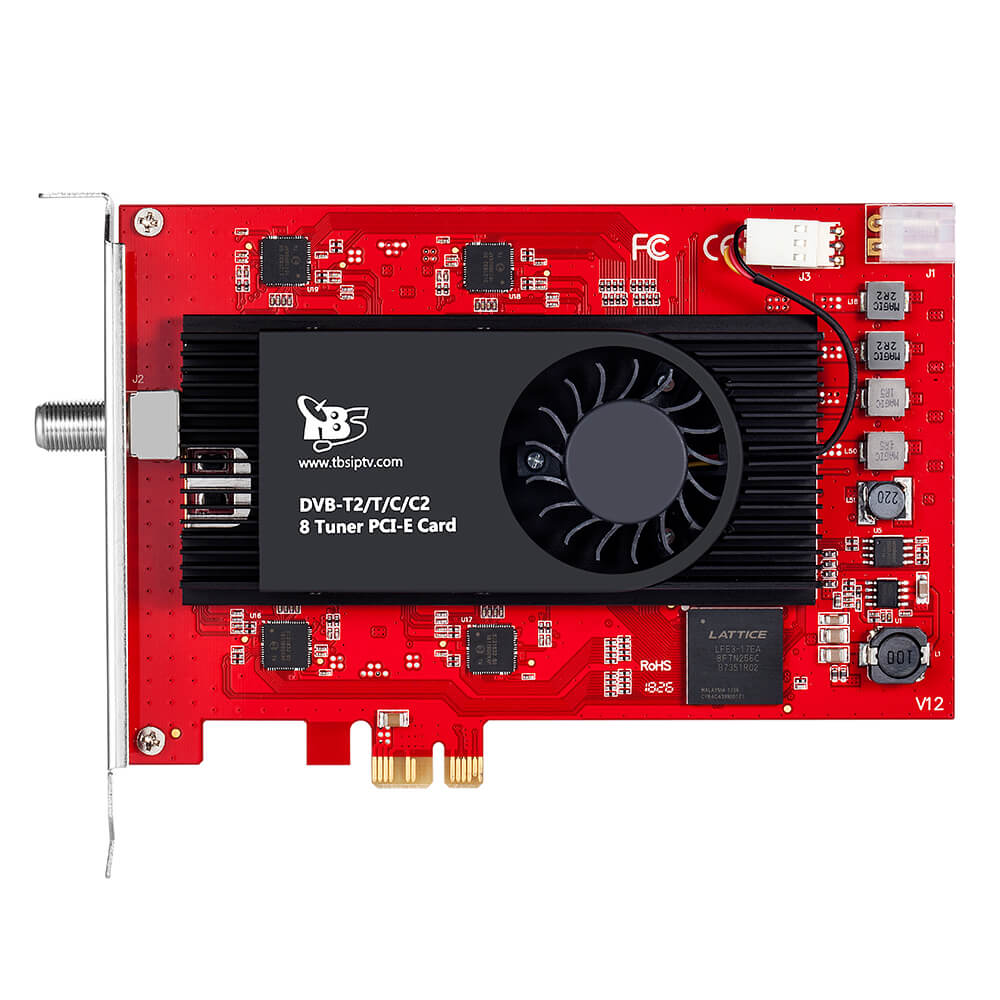

TBS6209 DVB-T2/C2/T/C/ISDB-T/Clear QAM Octa TV Tuner
TBS6209 DVB-T2/C2/T/C/ISDB-T/Clear QAM Octa TV Tuner
- Model: TBS6209
- Weight: 280.00g
Discontinued
SuccessorTBS6209 is a DVB-T2/C2/T/C/ISDB-T/Clear QAM cable TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.
TBS6209 DVB-T2/C2/T/C/ISDB-T/Clear QAM cable TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209 is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6209 enables you to receive more channels than the usual dual or quad TV tuner. Thus it is highly recommended for broadcasting system.
Main Features:
- DVB-T2/C2/T/C/ISDB-T/Clear QAM SD or HD TV receiving
- Octa channel receiving simultaneously
- High-definition video, real-Time and scheduled video
- Recording
- High sensitivity DVB-T2 octa Tuner for the best digital TV reception
- Windows BDA driver and Linux Driver ready
Specifications:
DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
Bandwidth: 1.7, 5, 6, 7, 8MHz | |
FEC:QPSK, 16QAM, 64QAM,256QAM | |
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | |
DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) |
FEC(LDPC/BCH) decoder | |
Bandwidth: 6MHz, 7MHz, 8MHz | |
DVB-C and Clear QAM cable TV | QAM demodulator |
FEC decoder | |
1 to 7.2MSymbol/s | |
ISDB-T | COFDM demodulator and FEC decoding |
Support 3 layers decoding | |
TMCC decoding | |
Support differential demodulation | |
AC1 and AC2 decoding | |
Power consumption | |
Input/ Power: | 12V/14W |
temperature | 0~60℃ |
System Requirements | Windows XP / Vista/ 7/8/10, Linux |
Available PCI Express x1, x4, x8 or x16 slot | |
Digital TV signal (DVB-T2/C2 /T/C/ISDB-T) | |
Dimension: | |
TV tuner card size | 104.5mm*150mm |
Net weight | 190g |
Gift Box Size | 17.7*16*3CM |
Weight | 280g |
Package Contents | 1 x TBS6209 |
1x DC line | |
1x F Connector |
