TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card
TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card
- Model: TBS6209se
- Weight: 280.00g
- Reward Points:339
In Stock
US$339.00

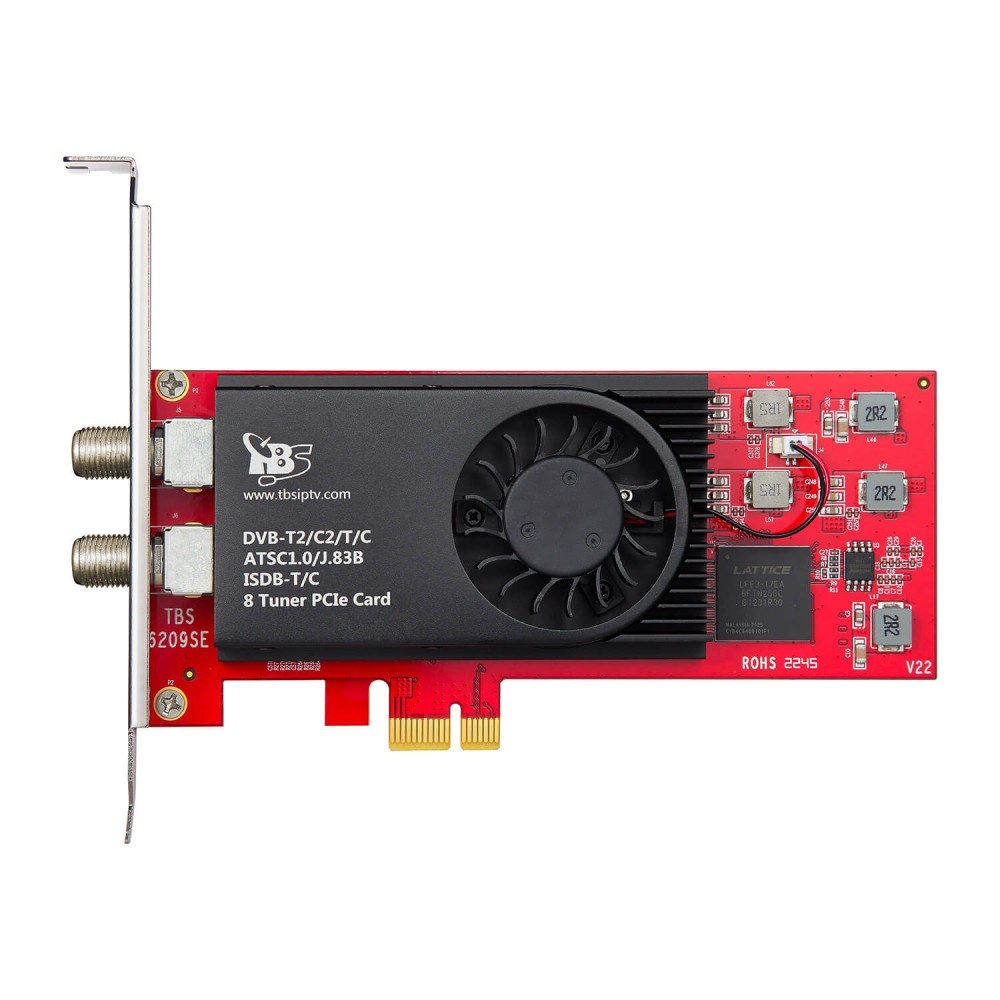

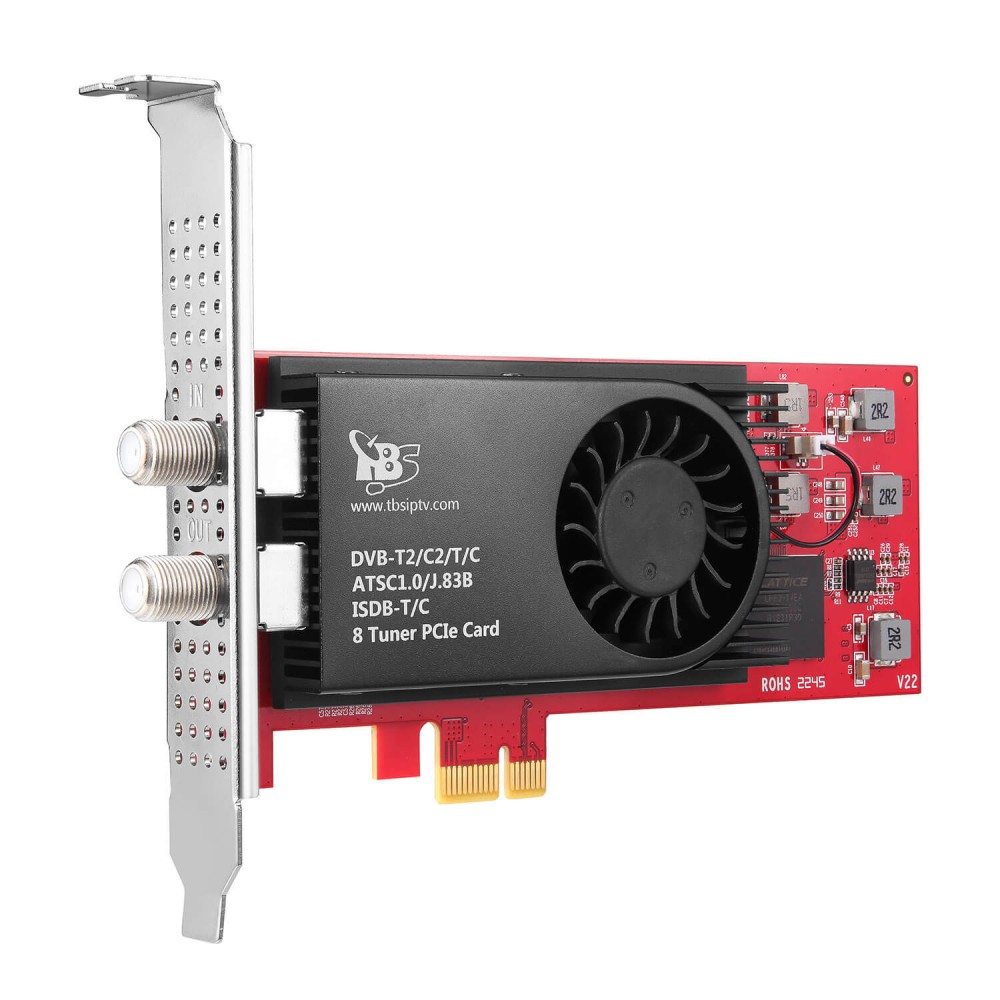

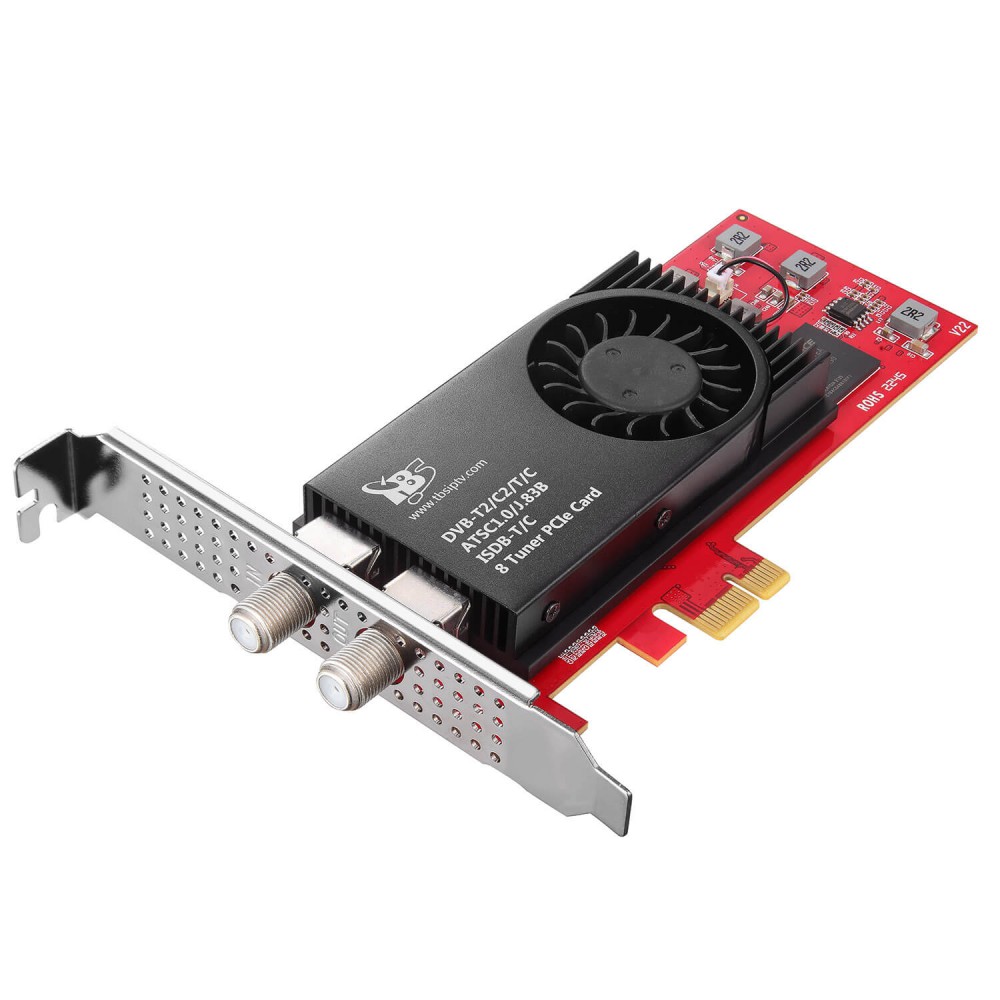

TBS6209se is a DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.
TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209 is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6209se enables you to receive more channels than the usual dual or quad TV tuner. Thus, it is highly recommended for broadcasting system.
Main Features
- DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. SD or HD TV receiving
- Octa channel receiving simultaneously
- High-definition video, real-Time and scheduled video recording
- High sensitivity DVB-T2 octa Tuner for the best digital TV reception
- Windows BDA driver and Linux Driver ready
Specification
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C2 | 6 and 8MHz channel bandwidths |
| 1/64 and 1/128 guard intervals | |
| 16, 64, 256, 1024, 4096 QAM | |
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| ISDB-T | 6, 7 and 8MHz bandwidth |
| 2, 4 and 8K FFT | |
| 1/32, 1/16, 1/8 and 1/4 guard intervals | |
| QPSK, 16QAM and 64QAM | |
| ISDB-C | 5.274 Msym/s |
| 0.13 roll-off factor | |
| 64 and 256QAM | |
| TSMF (Transport Streams Multiplexing Frame) | |
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s |
| 0.18 and 0.12 roll-off factor | |
| 64 and 256QAM | |
| ATSC1.0 | 6MHz channel bandwidths |
| 8VSB modulation | |
| 2/3 code rate | |
| Power consumption | |
| Input/ Power: | 12V/14W |
| temperature | 0~60℃ |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| Available PCI Express x1, x4, x8 or x16 slot | |
| Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0. | |
| Dimension: | |
| TV tuner card size | 104.5mm * 150mm |
| Net weight | 190g |
| Gift Box Size | 17.7 * 16 * 3CM |
| Weight | 280g |

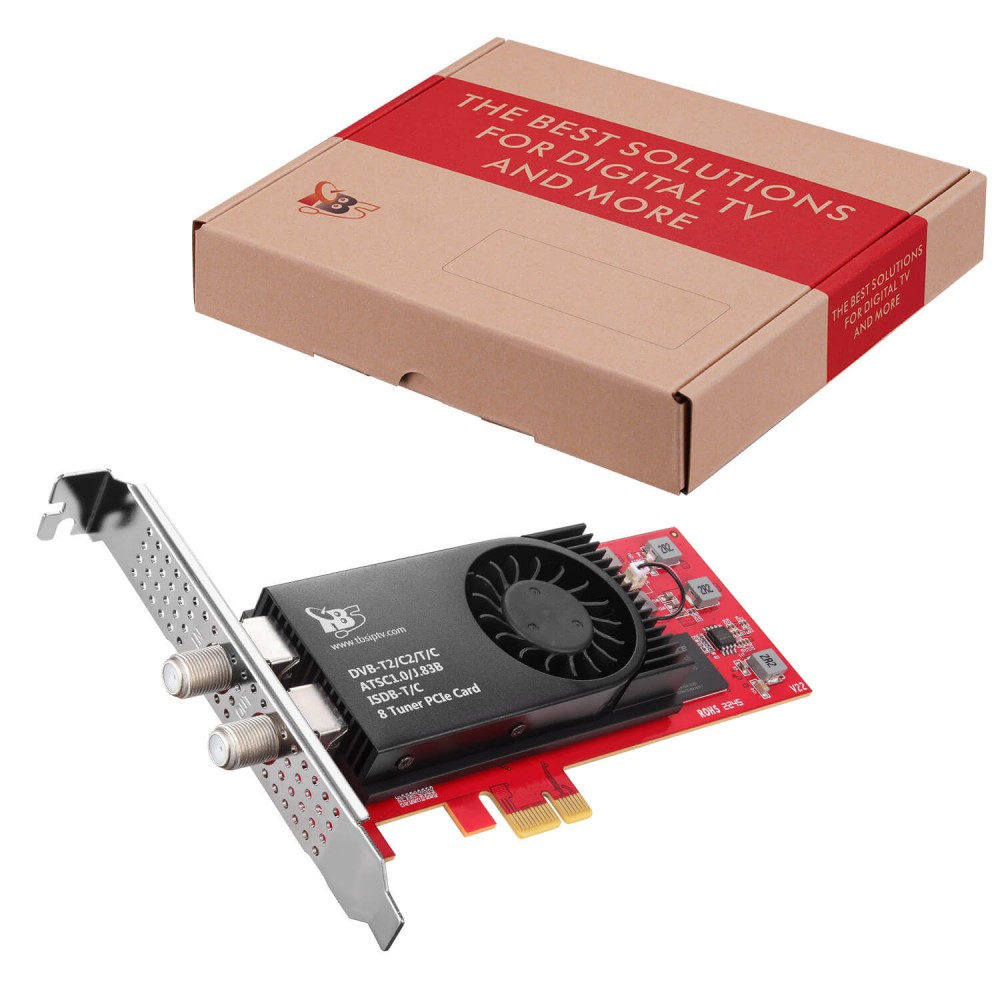

| Package Contents | 1 x TBS6209se |
| 1x DC line | |
| 1x F Connector | |
